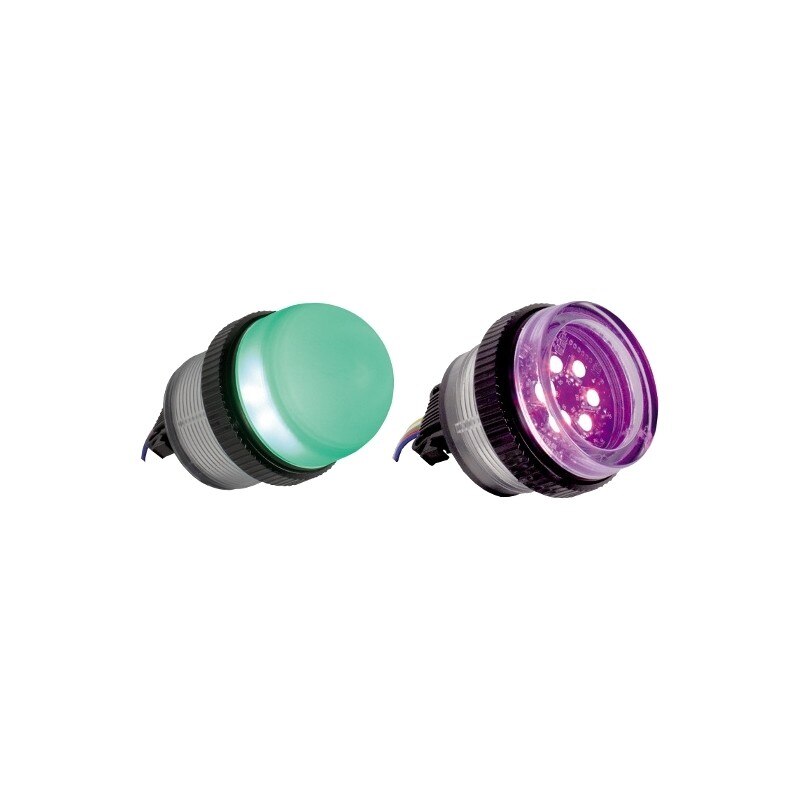

Acclaim X-Dome DMX - RGB Milky White
Details
This item is only available for sale with written estimate from the Stage Lighting Store. Please call for pricing.
X Dome is an outdoor rated compact RGB node. Using multiple fixtures you can create dynamic matrix displays and add visual effects to any indoor or outdoor space.
User_Manual_81159_File_1.pdf
X Dome is an outdoor rated compact RGB node. Using multiple fixtures you can create dynamic matrix displays and add visual effects to any indoor or outdoor space.
Features:
- System: 24Vdc + DMX
- Max in Chain: 32 pcs
- Cabling System: 2-wire DC Power-cable + 1 DMX Cable
- Control: Direct DMX-512 or DMX-1000
- DMX Channels: RGB 3 channels / SC 1 channel / RGB+W 4 channels
- Addressing DMX: Auto DMX Addressing
- Power Requirements: 24Vdc
- Current Consumption: 80mA
- Light Source: 6 x SMD 5050
- Luminous: Diffuse -8.5 lm / Clear - 11.5 lm / Milky - 7.6 lm
- Power Consumption: 2W
- Weight: 2.8 oz (80g)
- Dimensions: 2" x 2.5" (50 x 62 mm)
- Housing: Polycarbonate and UV Stabilizer
- Source Life: 50 000 hours
- Operating Temp.: -20 °C ~ +40 °C
- Storage Temp.: -20 °C ~ +70 °C
- Including: Input cable 15 cm / Output cable 15 cm
