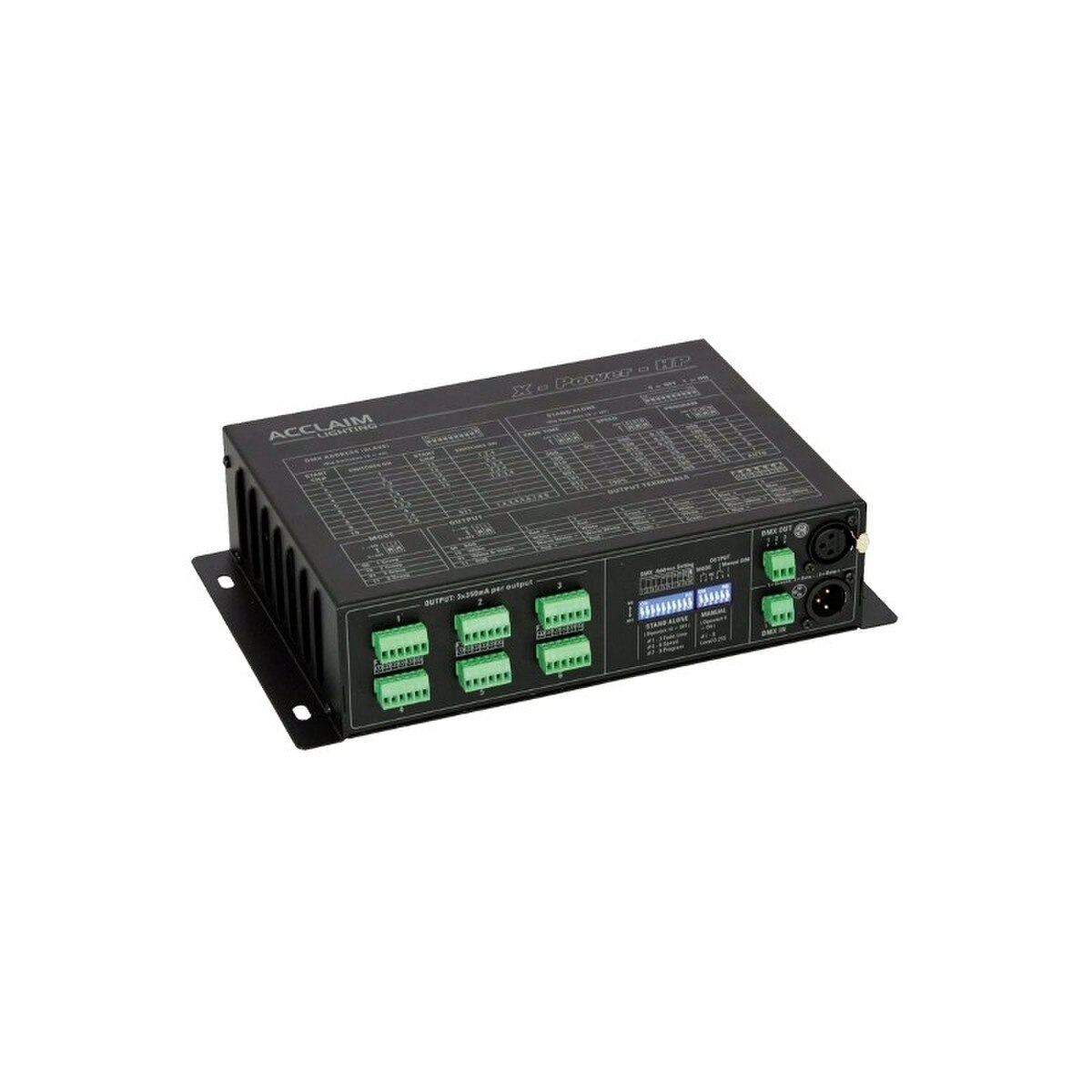

Acclaim X-Power HP Pro

Features:

• X-Power HP Pro is an HP LED control unit specially used to drive 1 Watt high power LED fixtures such as High Power LED Bar.
• High frequency driving HP LED bars suitable for CCD cameras pick up facility.
• X-Power HP Pro is engaged as a combination of a control interface and tension provider for 1 Watt high power LED fixtures.
• Ability of the maximum of 6 channels can be controlled separately allows a maximum loads of 3 x 350mA per output and the maximum amount connected loads distributed over all 6 outputs must not exceed 6A.
• All work modes and parameters can be set by flipping 10-way Function Dip Switch and 6-way Mode Dip Switch.
• USITT DMX512(1990) multiplexed digital control via 3 pin XLR connector or terminals.
• DMX Control Mode and Stand Alone Mode available.
• 1~7 patterns plus a sequence of 7 patterns chase speed & fade time adjustable.
• Different Output Group modes for user assignable.
• Output loading modes available in RGB mode WHITE mode and COOL WHITE & WARM WHITE mode.
• Manual Dim mode allows to control overall output intensity.
• AC 110-120V/AC220-240V power input option by voltage selector.
• Providing built-in DC24V 6.5A PSU.
• Power Failure Memory.

• System: Constant Current (6-Wire)
• Constant Current Output: 6 pcs (6-pin Terminal 3x350mA)
• Control Options: DMX-512 Stand Alone
• Load: 6 fixtures with 18 LEDs 1W (1 x 6-pin connector) 3 fixtures with 36 LEDs 1W (2 x 6-pin connector)
• Addressing DMX: Dipswitch
• Power Requirement: 110 Vac (3.2A) / 240 Vac (1.6A)
• DMX Input: 3-pin Terminal and 3-pin XLR
• DMX Output: 3-pin Terminal and 3-pin XLR
• DMX Channels: Min. 3 (1 x RGB) Max. 18 (6 x RGB)
• Listing: cETLus recognized CE Certified
• Operating Temp.: 0 °C ~ +40 °C
• Storage Temp.: -20 °C ~ +70 °C
• Housing: Sheet metal with powder painting
• Dimensions: 11.83"L x 5.91"W x 2.6"H (300.5 x 150 x 66 mm)
• Weight: 3.97 lbs (1.8kg)
