Acclaim X-Stick 500 - 3200K Warm White
Details
This item is only available for sale with written estimate from the Stage Lighting Store. Please call for pricing.

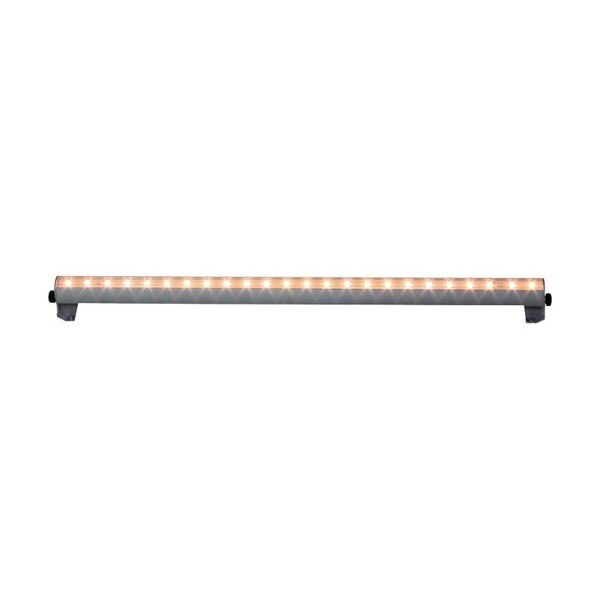

Acclaim X-Stick is a high output SMD LED fixture with an attractive aluminum casing and onboard dip switches for DMX addressing. Available in multiple color temperatures of white they are perfect for counter and cove lighting.
User_Manual_81152_File_1.pdf
Acclaim X-Stick is a high output SMD LED fixture with an attractive aluminum casing and onboard dip switches for DMX addressing. Available in multiple color temperatures of white they are perfect for counter and cove lighting.
Features:
- System: 24Vdc PWM (2-wire)
- Max. in Chain: 15 m
- Cabling System: 2-wire DC cable
- Control: DC Power or Any 24Vdc PWM Dimmer AL Driver 8 RGBW 24V or AL Dimmer 1 Pro
- DMX Channels: Controlled by 1 DMX Channel
- Power Requirements: 24Vdc
- Current Consumption: 200mA
- Light Source: 24 x SMD 5050
- Power Consumption: 5W
- Housing: Aluminum extrusion
- Listing: CE Certified
- Source Life: 50 000 hours
- Operating Temp.: -0 °C ~ +40 °C
- Storage Temp.: -20 °C ~ +70 °C
- Including: First and Link cable
- Color: WW 3200K NW 4000K CW 6000K
- Beam Angle: 120°
- Max Fixture Runs: 30 Fixtures
- Power Consumption: 5W
- Total Lumens: 245 (NW)
- Housing: Aluminum with Polycarbonite Lens
- Operating & Storage Temp: 32° - 104 ° F (0 ° - 40 ° C)
- Operating Voltage: 24VDC
- Dimming: DMX 512 or Triac via M Series Transformers
- Fixture Connectors: 2 Pin Terminal Block
- Rating: Dry Location
- Warranty: 5 Years
- Weight: 0.6 lbs (300g)
- Dimensions: 19.6" x 1.4" x 1.6" (500 x 37 x 42mm)
