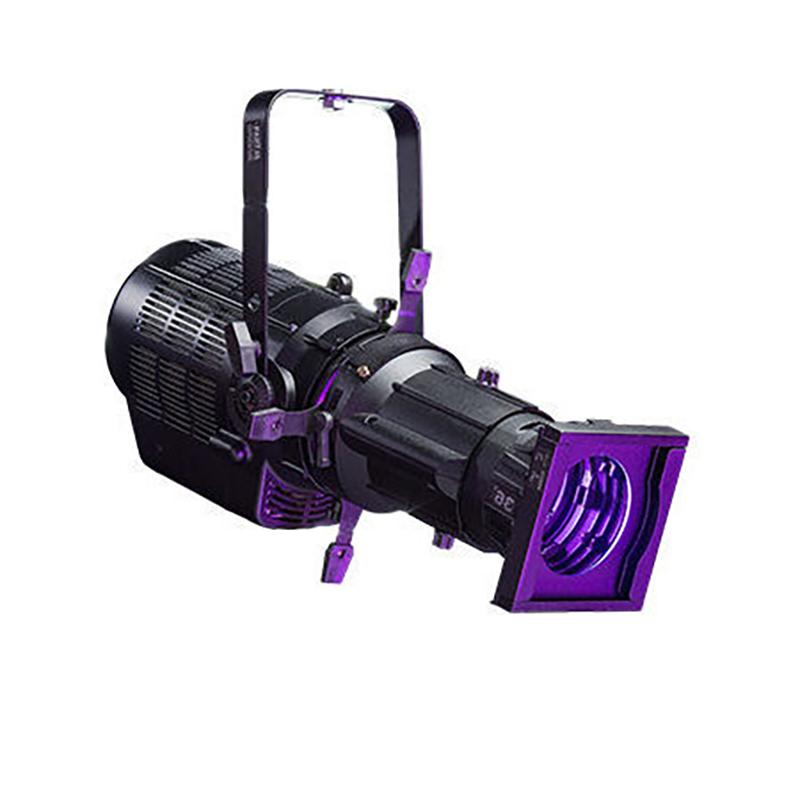

Altman 350W PHX LED Profile Spot 5° - RGBL LED Array - Black

The PHX3.5 LED 340W RGBL Profile is a state of the art luminaire in function, style, and efficiency. Designed and engineered with a number of innovative details and features, this fixture enhances versatility and efficiency without sacrificing performance. New and innovative options make the PHX LED ellipsoidals ideal for theatres, special events, television studios, or wherever superior, energy efficient lighting performance is required.

Specifications:

• 360-degree rotating barrel
• >10,000 output lumens BrightAF
• Heat resistant Plano-Convex lensing
• Die-cast aluminum and sheet metal fabrication
• Color frame, soft focus pattern holder, safety cable and 5 foot PowerCON included
• PowerCON in and out for daisy-chaining units – Up to 5 fixtures (20A Max) may be linked
• Available standard in Black or White
• Positive locking double-clutch fixture body
• Wide accessory slot with sliding cover for motorized pattern devices or optional iris
• Yoke made from rigid flat steel with dual locking handles, two mounting positions and indexed tilt angle markings
• DMX512 in/thru via 5-pin XLR connector
• Multiple on-board control options: color fades and strobes
• Console free stand alone Player Mode
• 8-bit or 16-bit virtual dimming engine provides smooth, high quality fades and minimizes color shift during dimming
• User friendly control interface
• Carries standard 5 year plus 1 day Altman Warranty
• 26.55 lbs. (12.02 kg.)
• cETLus listed and CE marked (IP20 Rated for indoor use)
• Assembled in the USA
• Supported Forever – Free phone and online technical support for the life of your product

Altman PHX3.5 Fixed Profile Datasheet.pdf
Altman PHX LED Series Luminaires Installation & User Manual.pdf
Altman Lighting PHX Gobo Holder Selection Guide Datasheet.pdf
