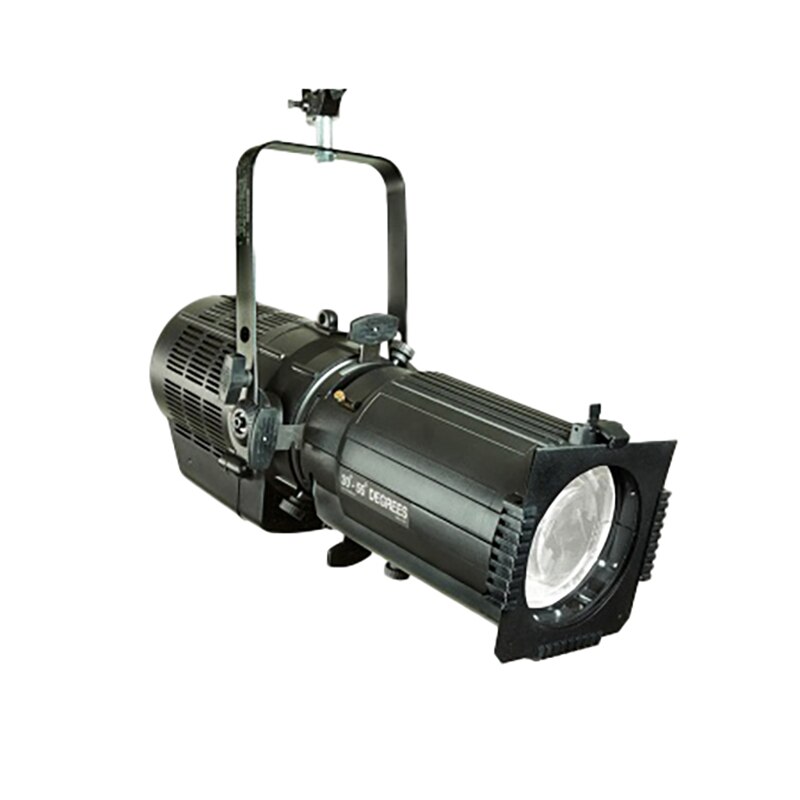

Altman 350W PHX LED Zoom Spot - RGBL LED Array - 30°-55° Zoom - Black

The 15°-35° and 30°-55°PHX 3.5 LED Zoom ellipsoidals are state of the art luminaires in function, style, and efficiency. PHX 3.5 is a 340 Watt RGBL Zoom Spot outputting just over 10,000 Lumens making the PHX3 a true Front of House luminaire. A 360° rotating barrel help you keep the artistic part of your fixtures’ focus intact with virtually no light leak. PHX LED ellipsoidals ideal for theatres, special events, and studios.

Specifications:

• 360-degree rotating barrel
• 10,000 output lumens Bright AF
• Heat resistant Plano-Convex lensing
• Die-cast aluminum and sheet metal fabrication
• Color frame, soft focus pattern holder, safety cable and 5 foot PowerCON included
• PowerCON in and out for daisy-chaining units – Up to 5 fixtures (20A Max) may be linked
• Available standard in Black or White
• Positive locking double-clutch fixture body
• Wide accessory slot with sliding cover for motorized pattern devices or optional iris
• Yoke made from rigid flat steel with dual locking handles, two mounting positions and indexed tilt angle markings
• DMX512 in/thru via 5-pin XLR connector
• Multiple on-board control options color fades and strobes
• Console free stand alone Player Mode
• 8-bit or 16-bit virtual dimming engine provides smooth, high quality fades and minimizes color shift during dimming
• User friendly control interface
• Carries standard 5 year plus 1 day Altman Warranty
• 28.45 lbs. (12.81 kg.)
• cETLus listed and CE marked (IP20 Rated for indoor use)
• Assembled in the USA
• Supported Forever – Free phone and online technical support for the life of your product

Altman PHX3.5 Zoom Profile Datasheet.pdf
Altman PHX LED Series Luminaires Installation & User Manual.pdf
Altman Lighting PHX Gobo Holder Selection Guide Datasheet.pdf
