American Audio APX12 GO BT

At A Glance:

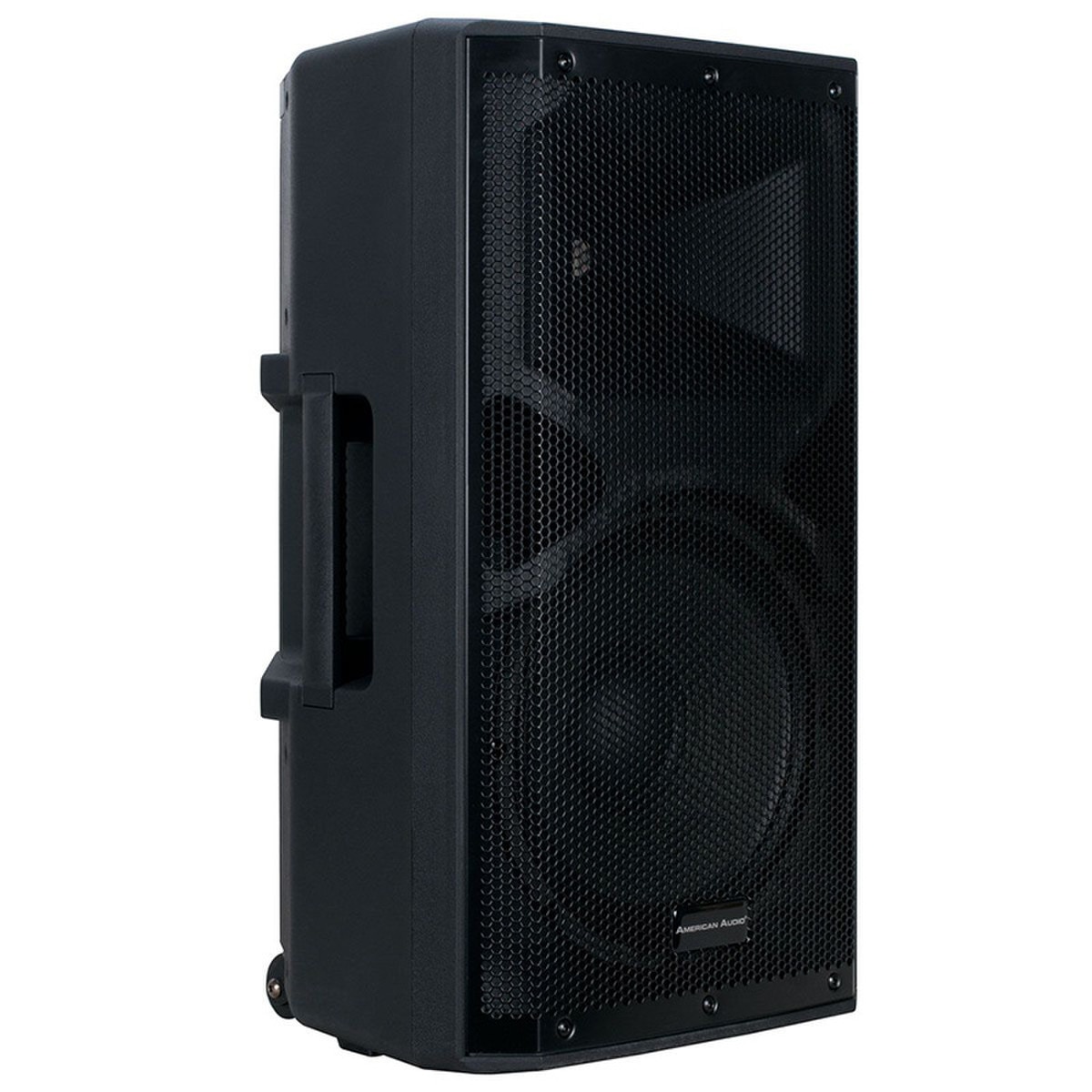

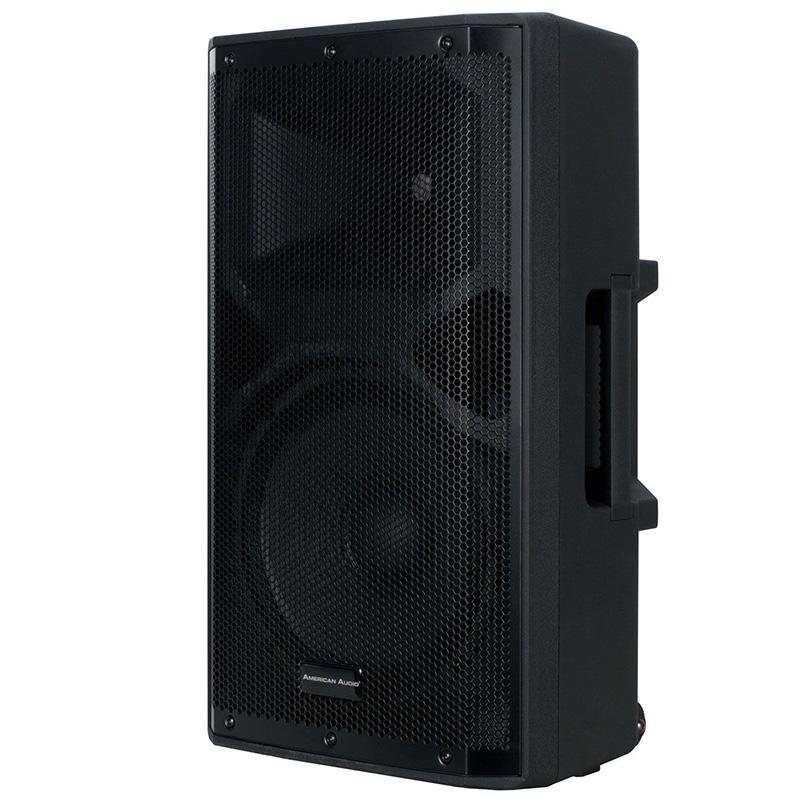

12-inch, 2-way battery powered 200W active loudspeaker with LCD display, MP3 playback and FM tuner. Includes UHF handheld mic and wireless remote to control volume and track selection. Now includes Bluetooth® TWS (True Wireless Stereo) feature.

Specifications

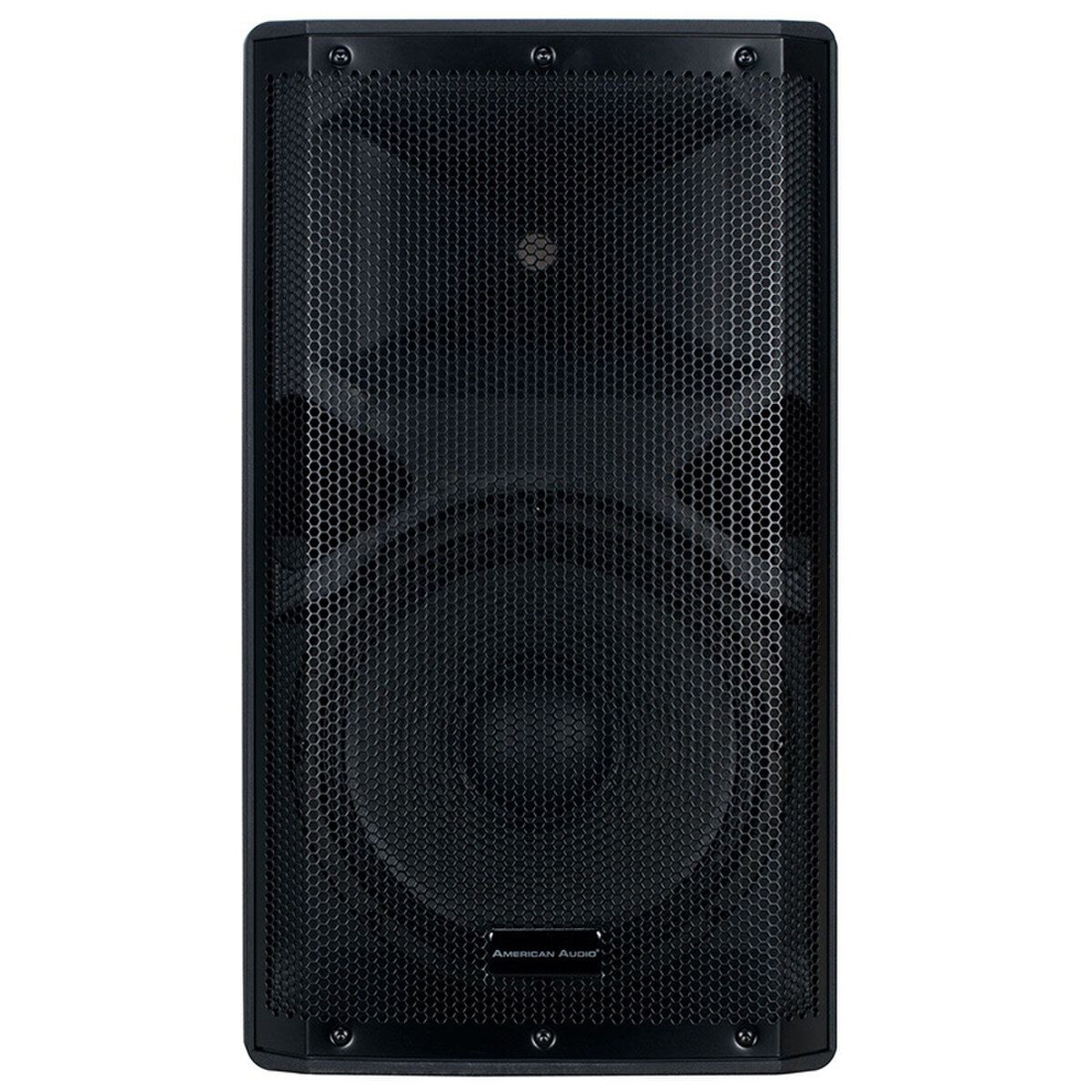

Speaker:

• 12" Woofer with 1.5" Voice Coil
• 1" High Frequency Driver
• 200 Watts Peak Power
• Class D Amplifiers with 65 Watts RMS
• Freq Response: 40Hz-18KHz
• Sensitivity: 93 +/- 2 dB

Features:

• Battery power up to 8 hours of use
• Battery life indicator
• Bluetooth® TWS (True Wireless Stereo) wireless link two of the speakers using reliable Bluetooth connectivity (Models shipping September 2021)
• LCD display
• Plays MP3 files from USB or SD Card inputs
• FM tuner
• Includes retractable carrying handle and wheels

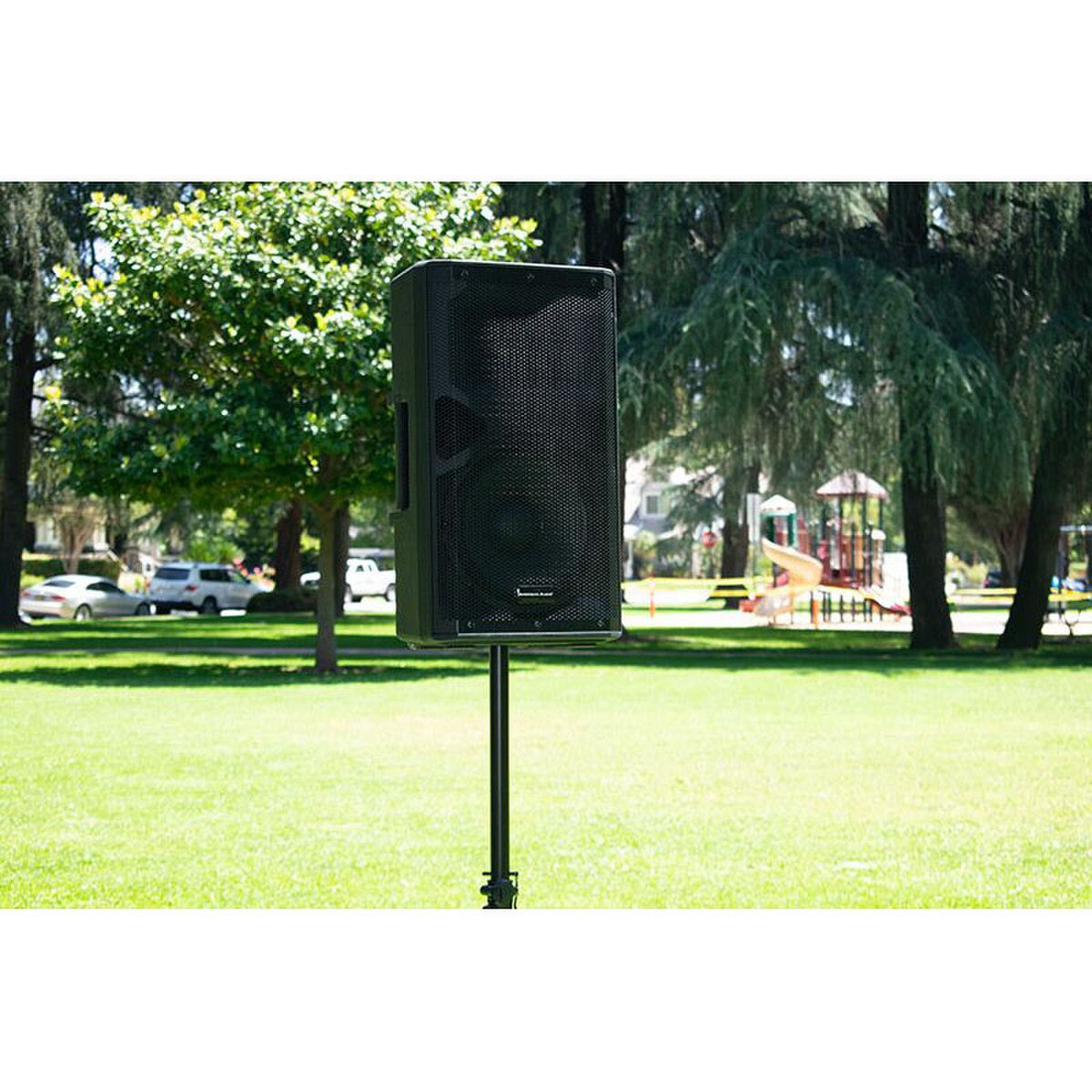

• Tripod mount on the bottom of speaker

Input / Outputs:

• Inputs: XLR, 1/8-inch jack, RCA
• Output: XLR
• Mic Inputs: XLR or ¼-inch

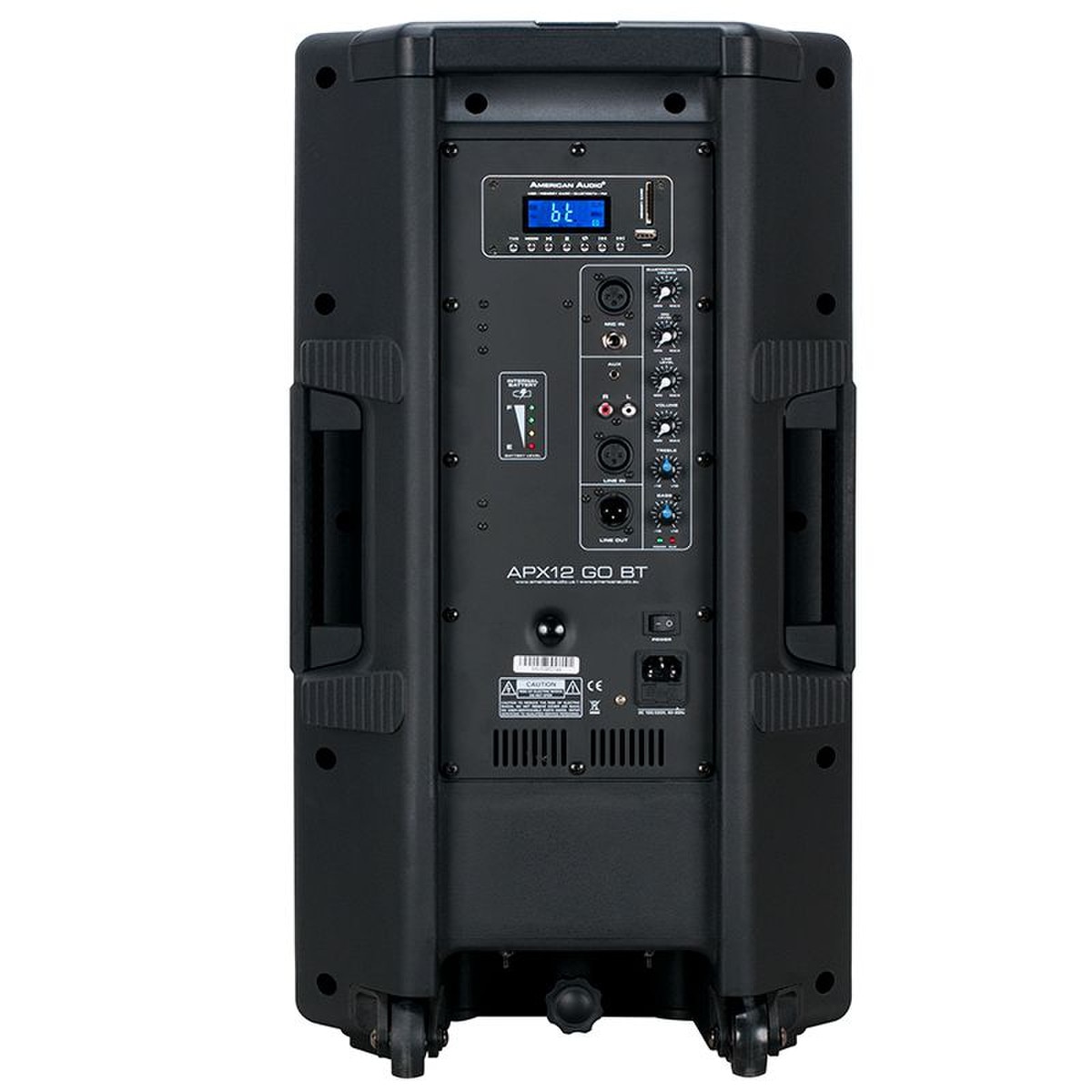

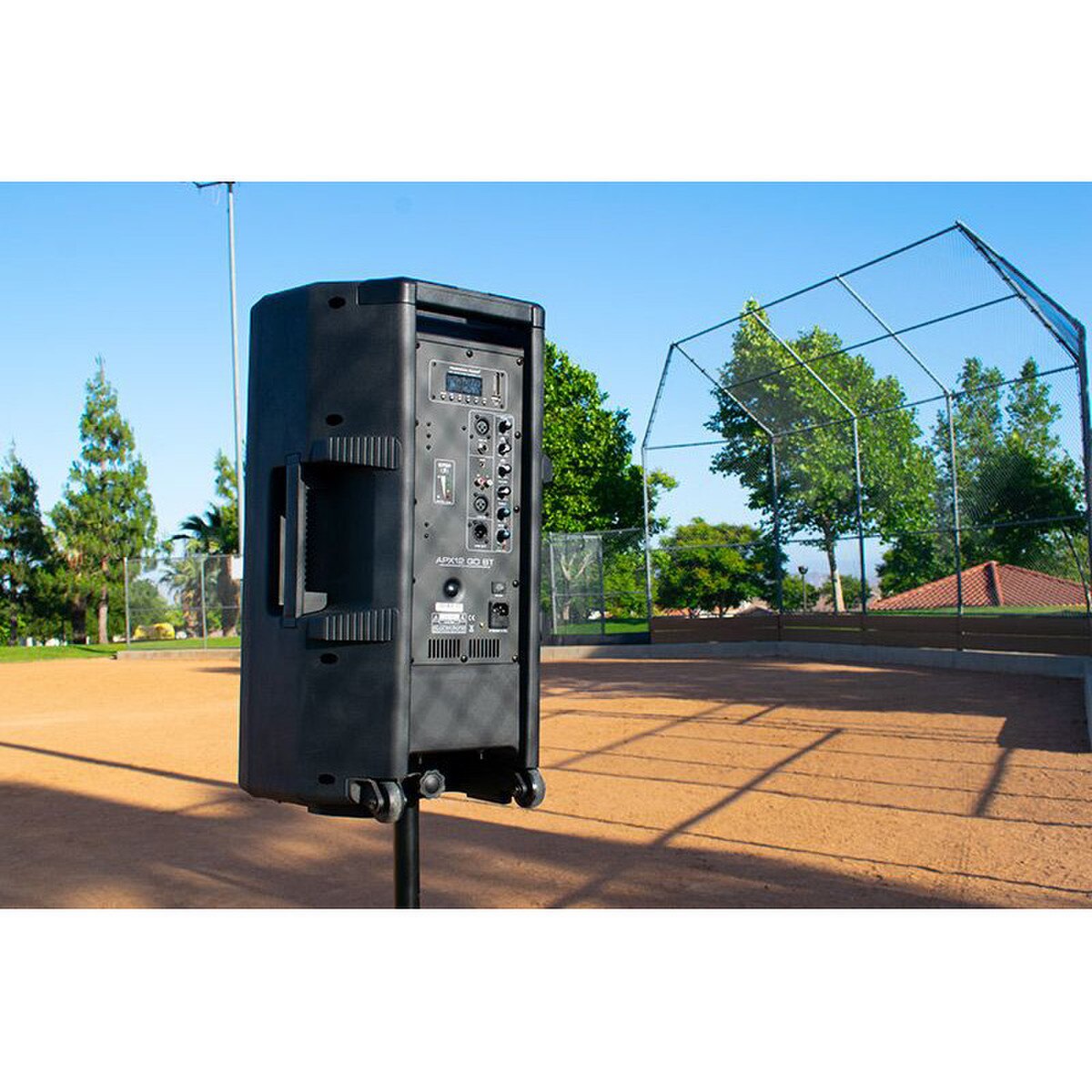

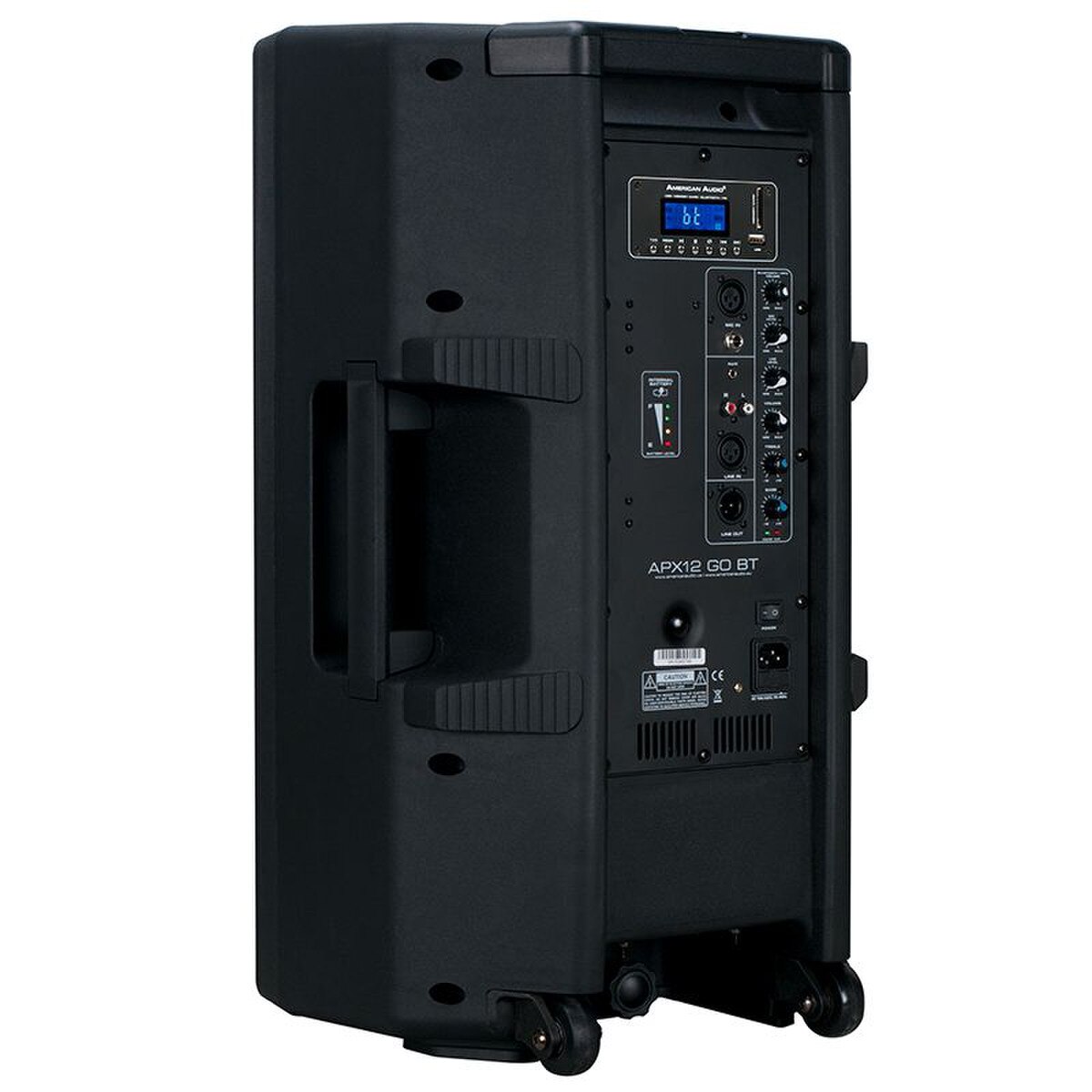

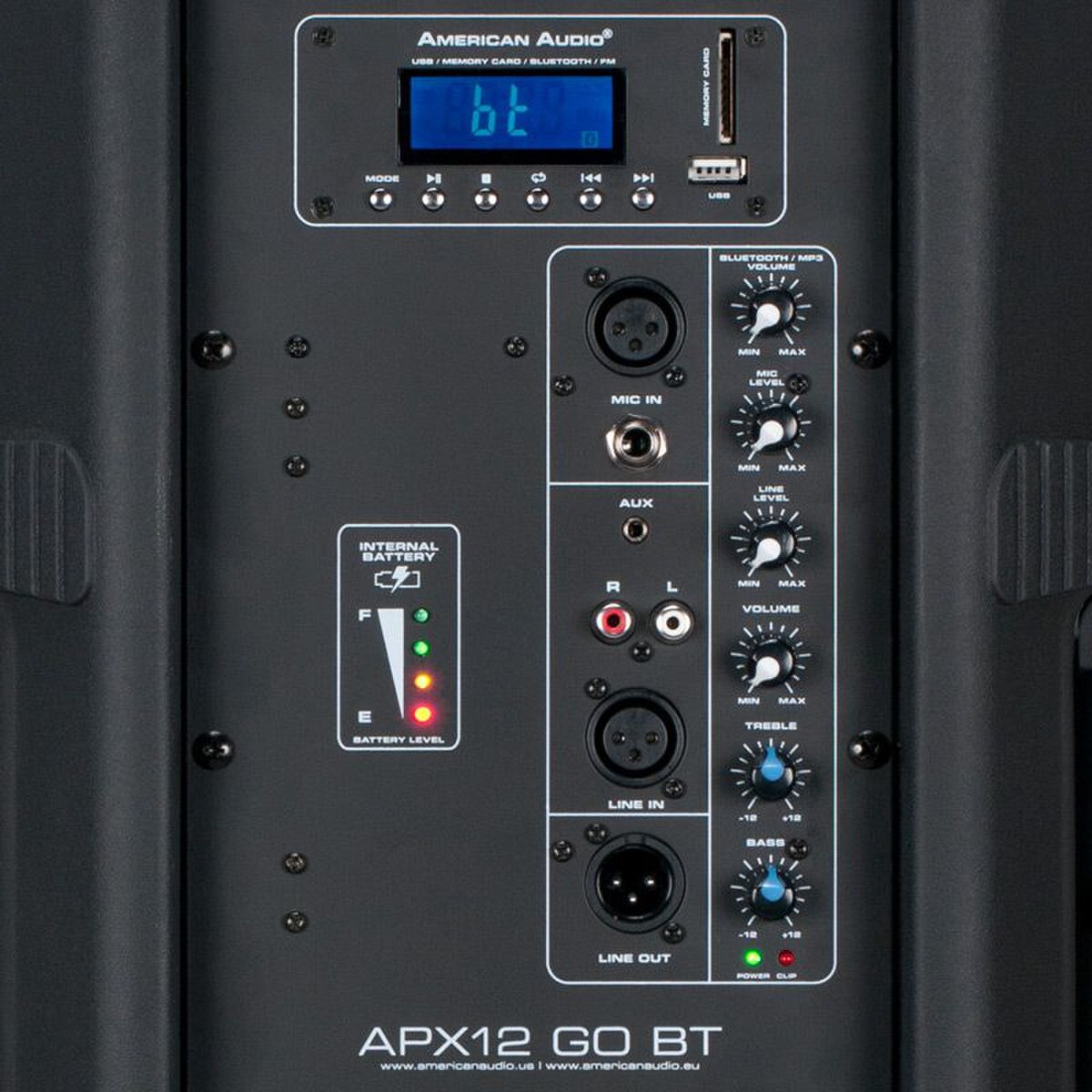

Rear Controls:

• MP3 Volume Control
• Microphone Volume Control
• Line Level Control
• Master Volume Control
• Treble Control
• Bass Control

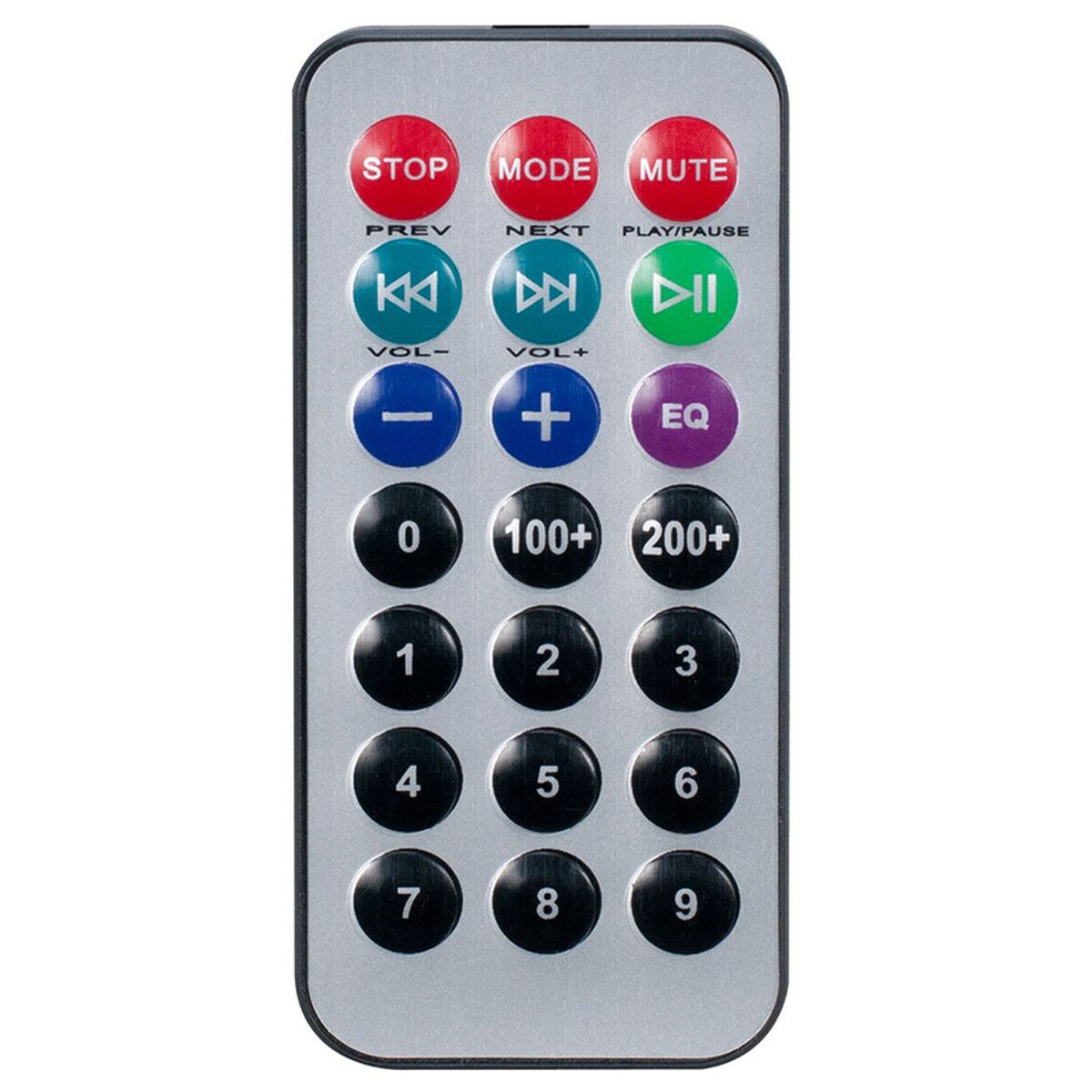

Wireless Remote Controls:

• Play/Pause
• Volume Control
• EQ Control
• Mute
• Mode
• Previous / Next

Power:

• Switching AC Power Supply: AC115/230V
• Battery: 12V, 700mA
• Charge time: Up to 4 hours for a full charge

Dimensions / Weight:

• Dimensions (LxWxH): 16.375” x 14” x 27.5” / 415 x 355 x 700mm
• Weight: 35 lbs. / 16kg.

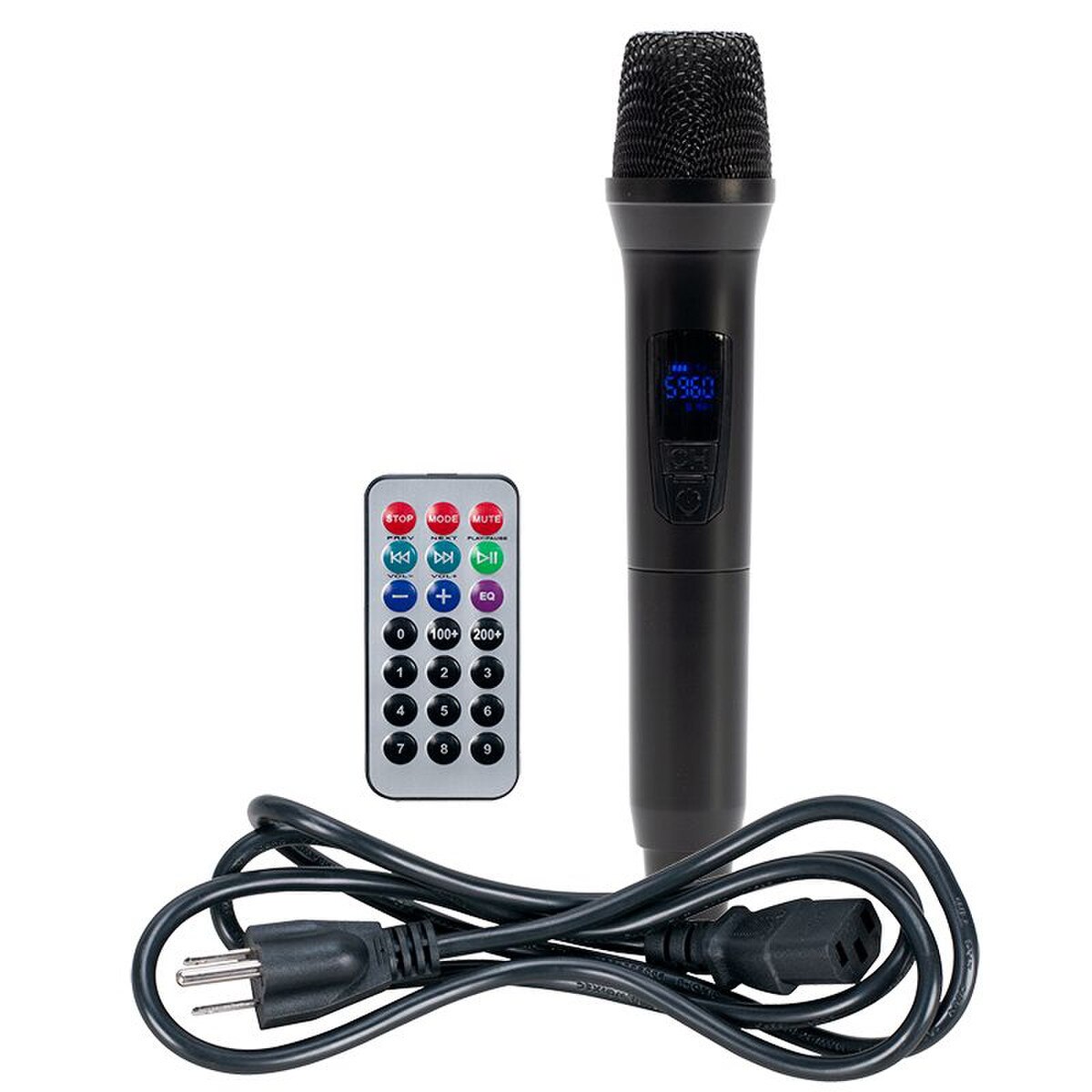

Includes:

• Power cord
• One wired UHF microphone
• Wireless remote control

Accessories (Sold Separately):

• SPSX2B: Two universal Accu-Stand speaker stands in a carry bag
• Color Stand LED: Single Accu-Stand speaker stand with LED Lighting and an IR remote
• SKAC10: Accu-Cable 10 ft. AC Power to XLR combo cable
• SKAC25: Accu-Cable 25 ft. AC Power to XLR combo cable
• SKAC50: Accu-Cable 50 ft. AC Power to XLR combo cable
• XLPRO-25: 25-foot pro audio XLR cable

Details:

12-inch, 2-way battery powered 200W active loudspeaker with LCD display, MP3 playback, Bluetooth and FM tuner. Includes UHF handheld mic and wireless remote to control volume and track selection.

Create the party where ever you are! The American Audio APX12 GO BT is a portable, yet powerful battery powered speaker that lasts up to 8 hours on a single charge. There are a variety of ways to play music from the APX12 GO BT.

Bluetooth® TWS (True Wireless Stereo):

• Integrated as standard into all new APX12 GO BT units, can now be used to link two of the speakers using reliable Bluetooth® connectivity. This allows them to work as a stereo pair for events where a larger portable PA is required, with no connecting cable required between the two speakers (Updated on all models starting September 2021).

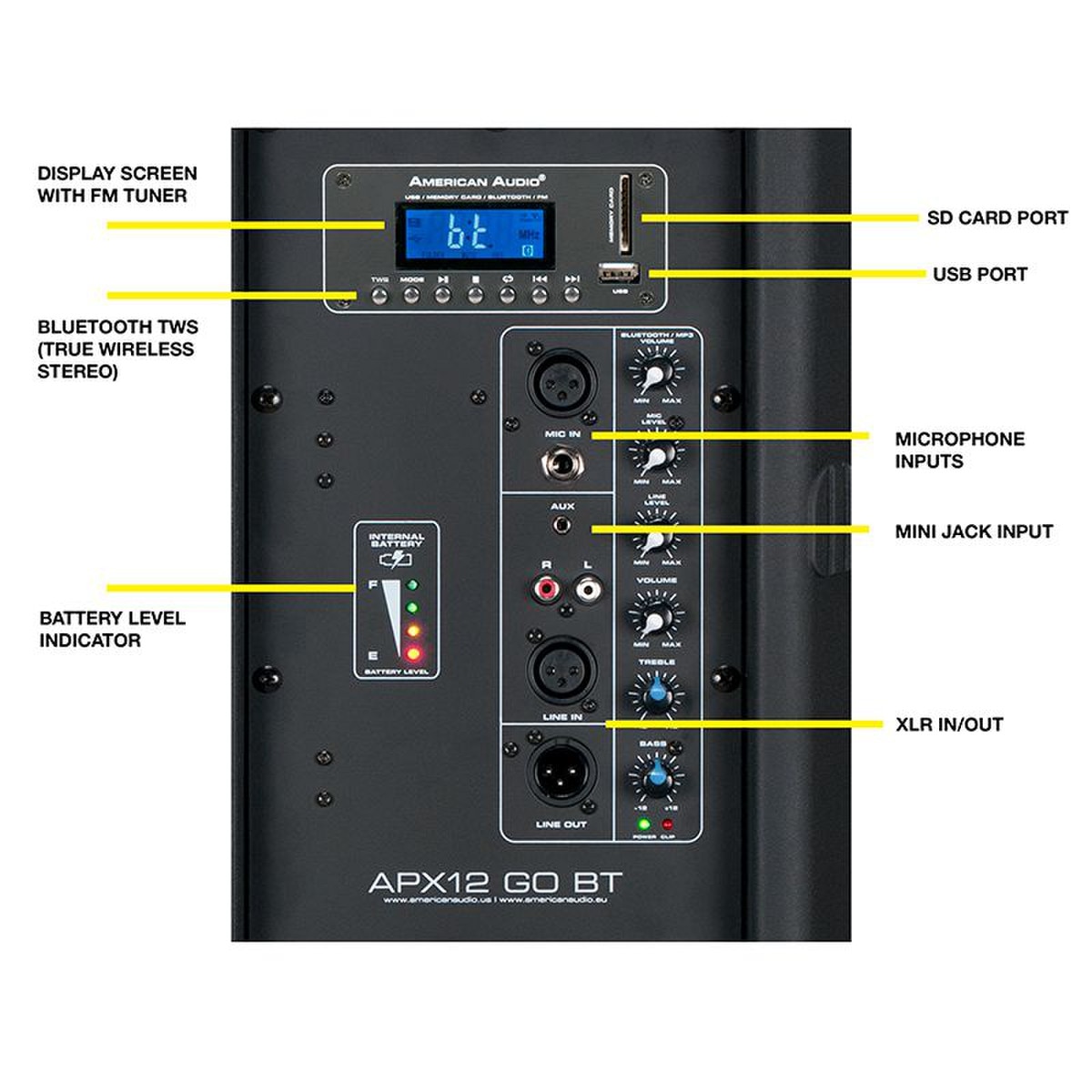

SD Card Port:

• Insert a SD card full of MP3 files and control them from the built-in display

USB Port:

• Plug in an MP3 player into the built-in USB input and control the music form the built-in display

Mini Jack Input:

• 1/8-inch mini jack input to play MP3s from an external MP3 player

FM Tuner:

• Dial into your favorite FM radio station

PA or DJ Mixer:

• The APX12 GO BT also has XLR In/Out to connect to a traditional PA or DJ mixer

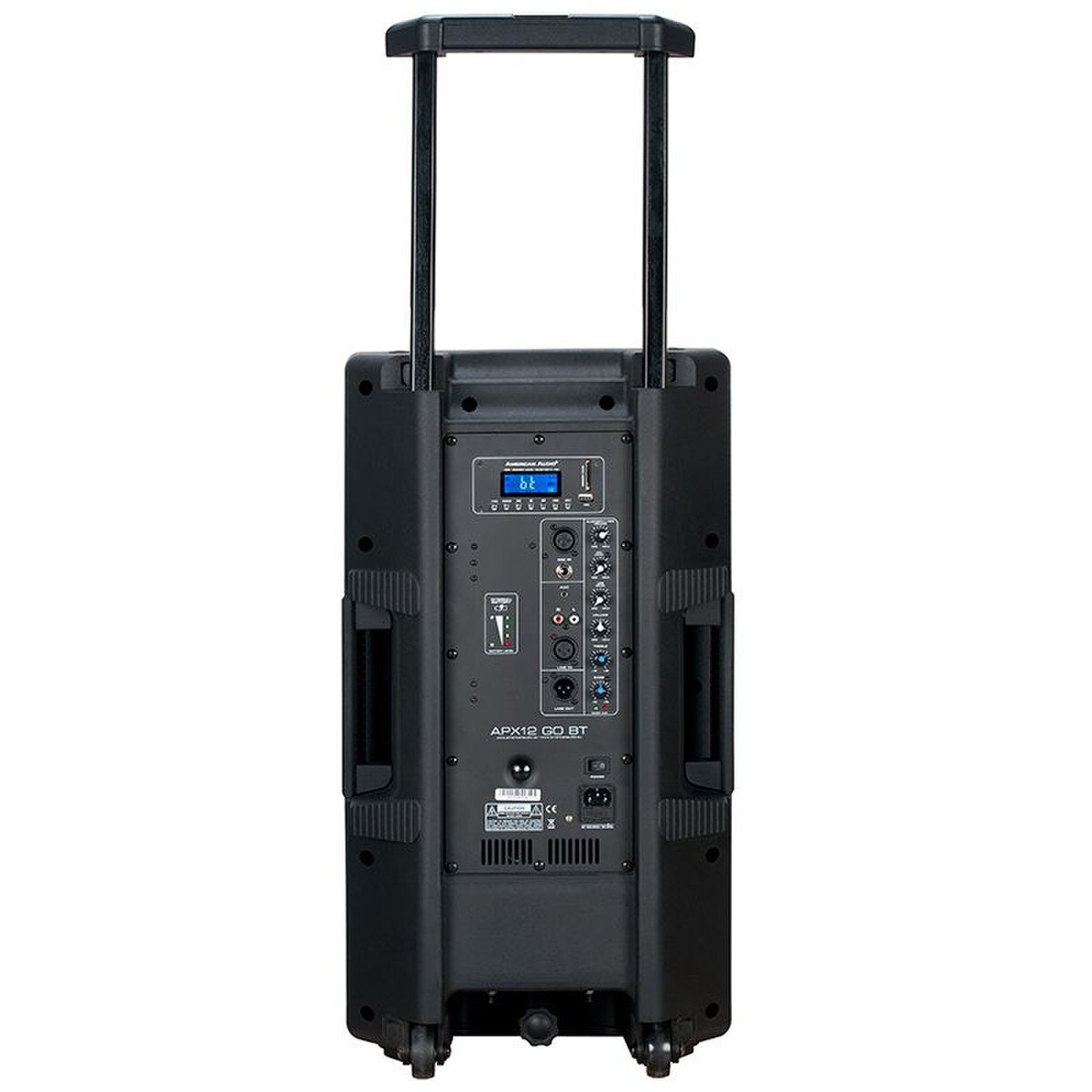

The APX12 GO BT features wheels and a retractable handle making it easy to transport to any indoor or outdoor event. Whether you are doing a presentation, playing music outdoors, or using it to as your background system as you play your favorite instrument or sing your favorite song. Perfect for rentals or production as well as extending the boundaries of any event.

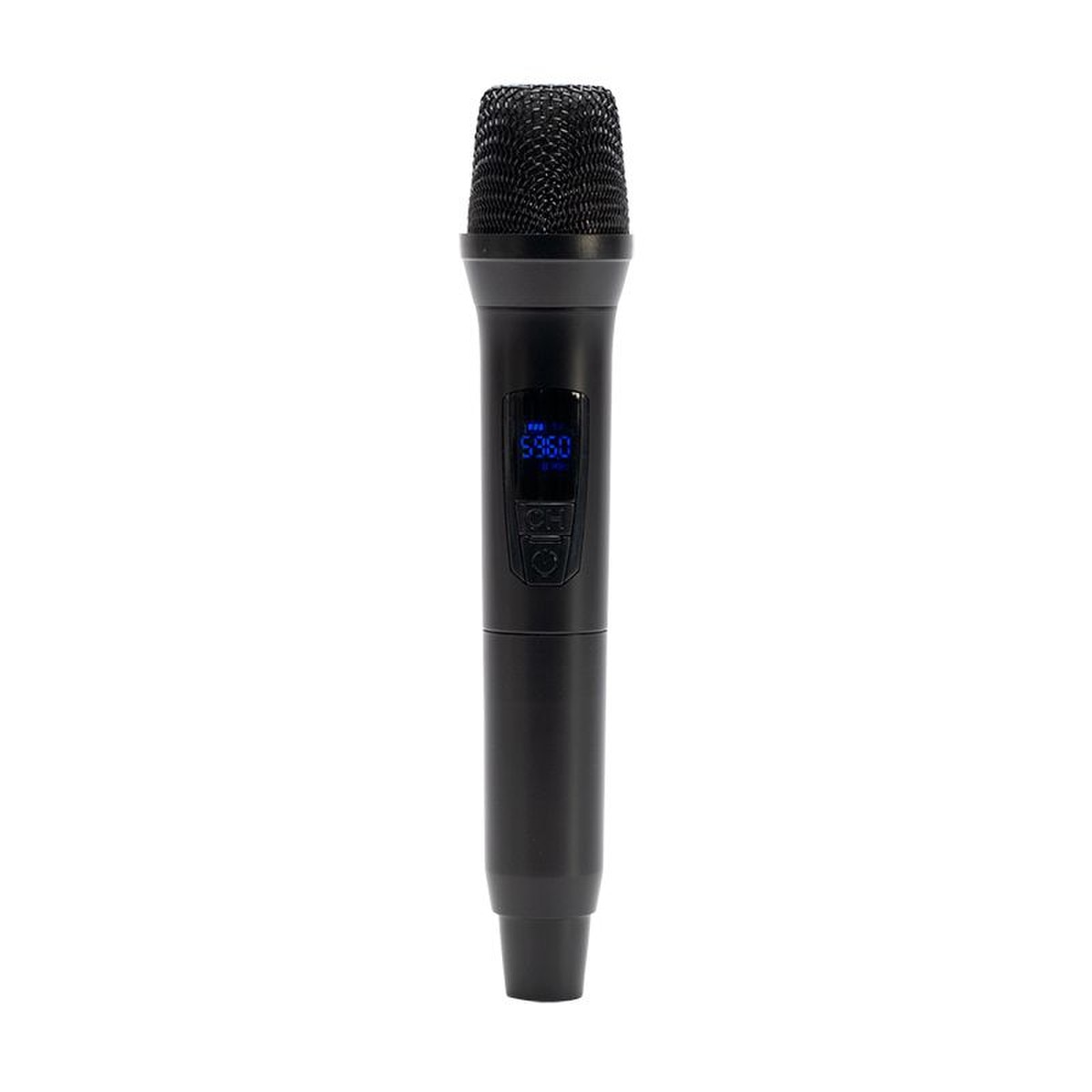

The APX12 GO BT includes a UHF handheld microphone and a wireless remote to control volume and track selection.
