ADJ Inno Pocket Roll

It’s time for a Scanner Revolution! With it’s compact size and light weight, the ADJ Inno Pocket Roll is an ideal lighting effect for any mobile entertainer, small nightclub, bar or lounge and for Bowling and entertainment centers. This fixture features a bright 12-Watt LED engine and 12 exciting built-in light shows, in a very compact, mobile case.

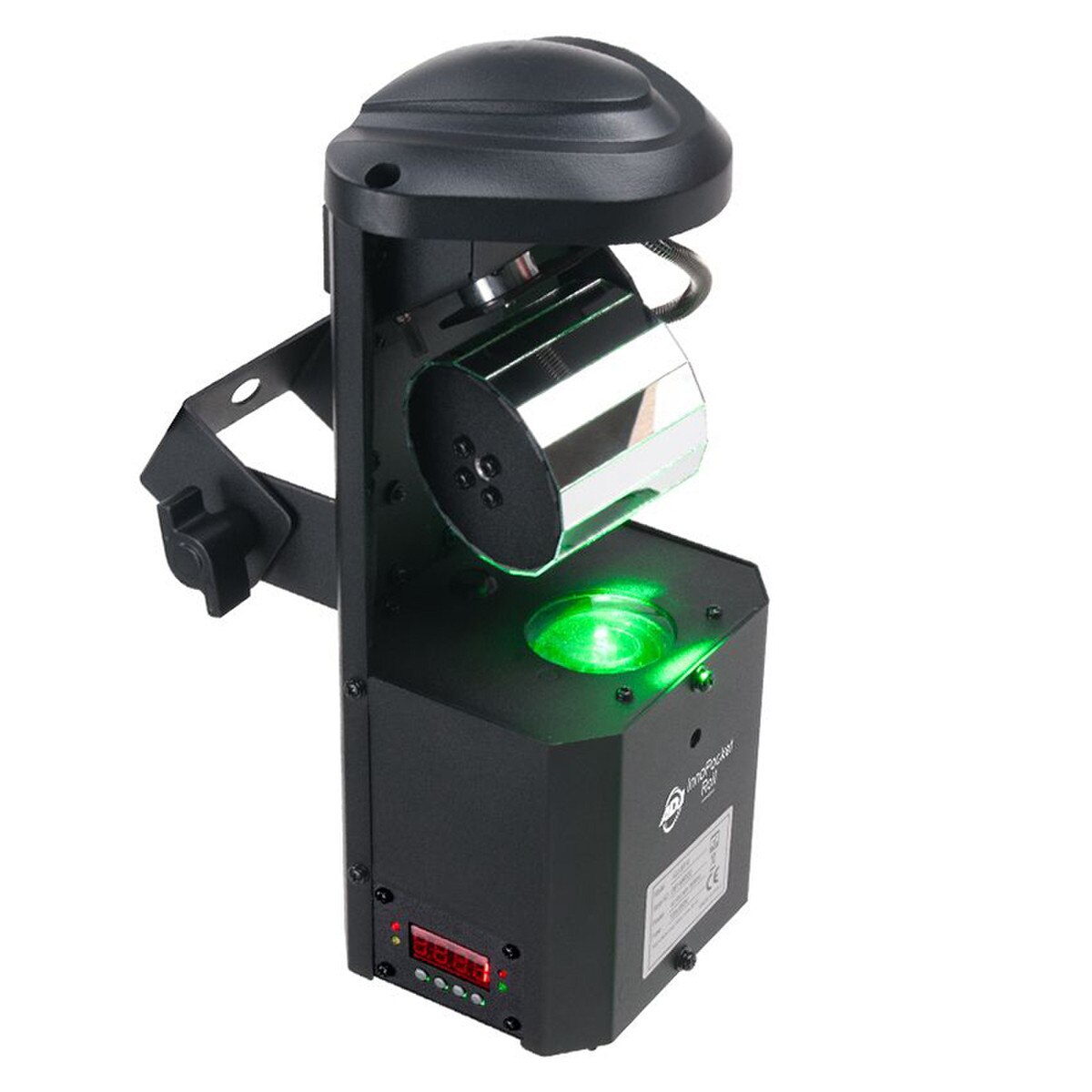

This pocket sized, Barrel Mirrored Scanner has a 14-degrees beam angle that projects 8 fixed GOBO/Color patterns (plus spot/white) from a single wheel. The Inno Pocket Roll is built with high quality, precision stepper motors for speed and accuracy.

The fast mirror speed means that the Inno Pocket Roll is great for high energy music, plus the Barrel Mirror produces multiple beams that shoot around a room for a unique effect. This fixtures provides a great compliment to Moving Head effects for pure lighting excitement.

Specifications:

• 12-Watt LED DMX Barrel Mirrored Scanner
• Single GOBO/Color wheel: 8 fixed GOBO/Colors + spot/white
• 3 Operational modes: DMX, Sound Active & Internal Show control modes
• 6 DMX channels
• 12 Built-in shows
• Gobo Shake effect
• Gobo scroll mode
• Beam Angle: 14-degrees
• X/Y mirror movement
• Stepper motors with micro stepping
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Shutter: Pulse effect; random strobe slow to fast
• Dimming: 0% - 100%
• Display Inversion Mode
• With Wired Digital Communication Network

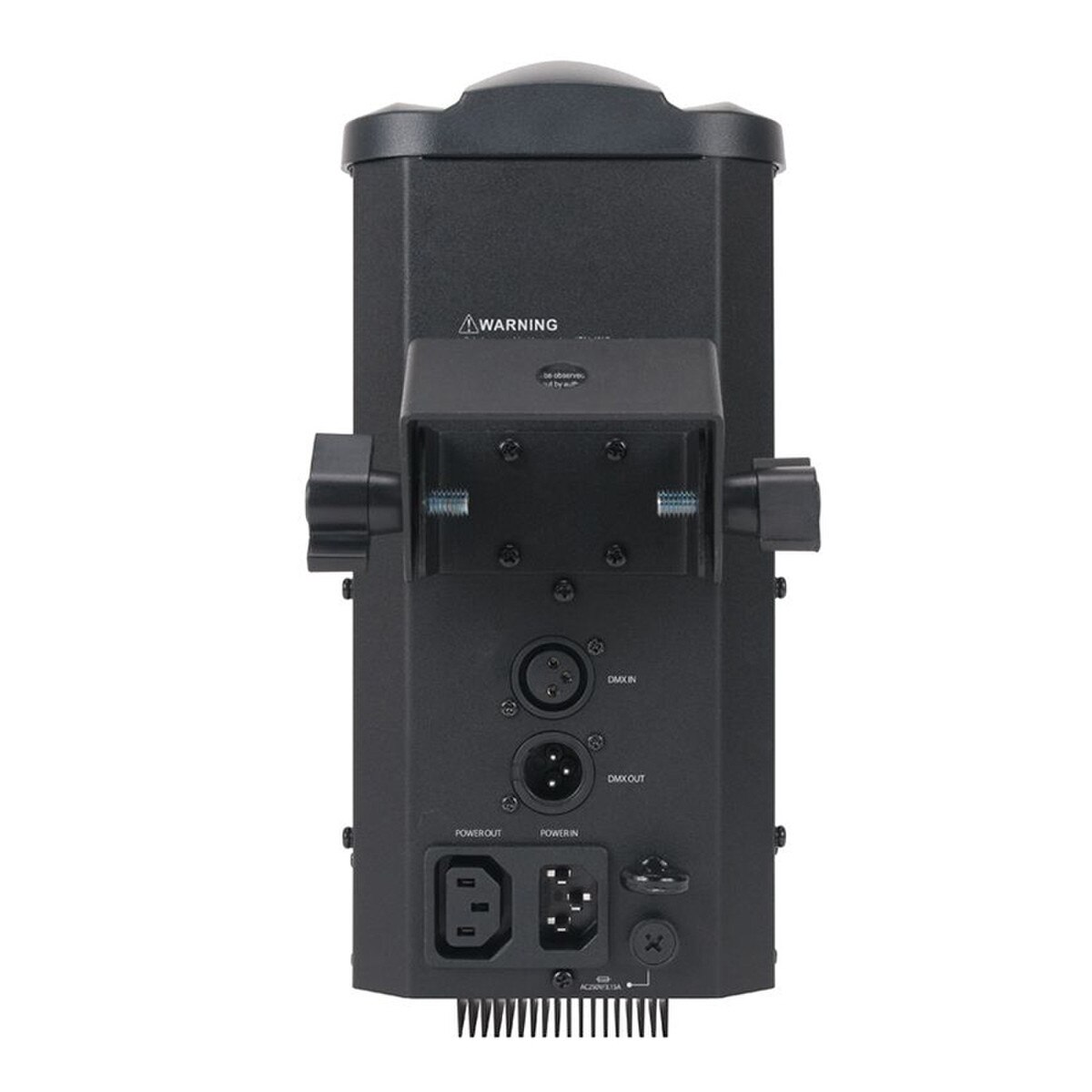

• IEC AC IN/OUT on rear to daisy chain power (up to 19 Inno Pocket Roll’s @ 120V and 35 Inno Pocket Roll’s @ 230V )
• Hanging Yoke + safety hook included
• Optional IR wireless remote control: Full On, Stand by, Strobe, Color Change, Dimming, Sound Active On/Off (ADJ UC IR Not Included)
• Power consumption: 36W (Full-On)
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• LED Source: 12W White LED source (Rated at approximately 50,000 hrs)
• LED Output: 1200 LUX @2M; 310 LUX @4M (14-degree beam)
• Dimensions (LxWxH): 13” x 5.25” x 6.5” / 329 x 132 x 165mm
• Weight: 6 lbs. / 2.6 kgs.
• cETLux Approved (Control #4000358)
