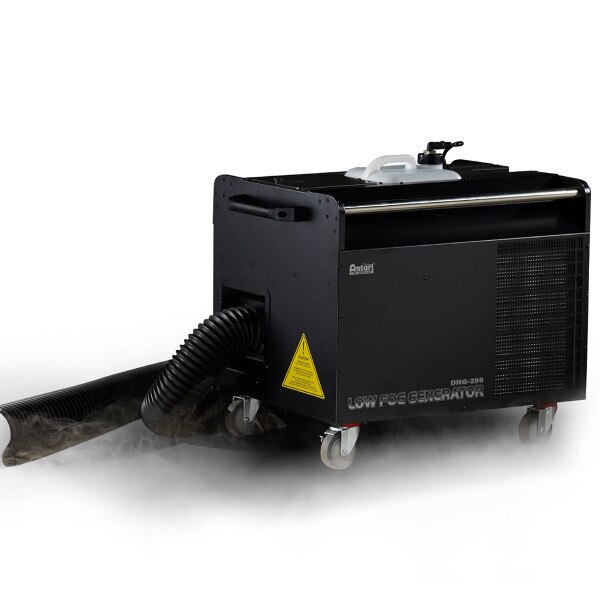

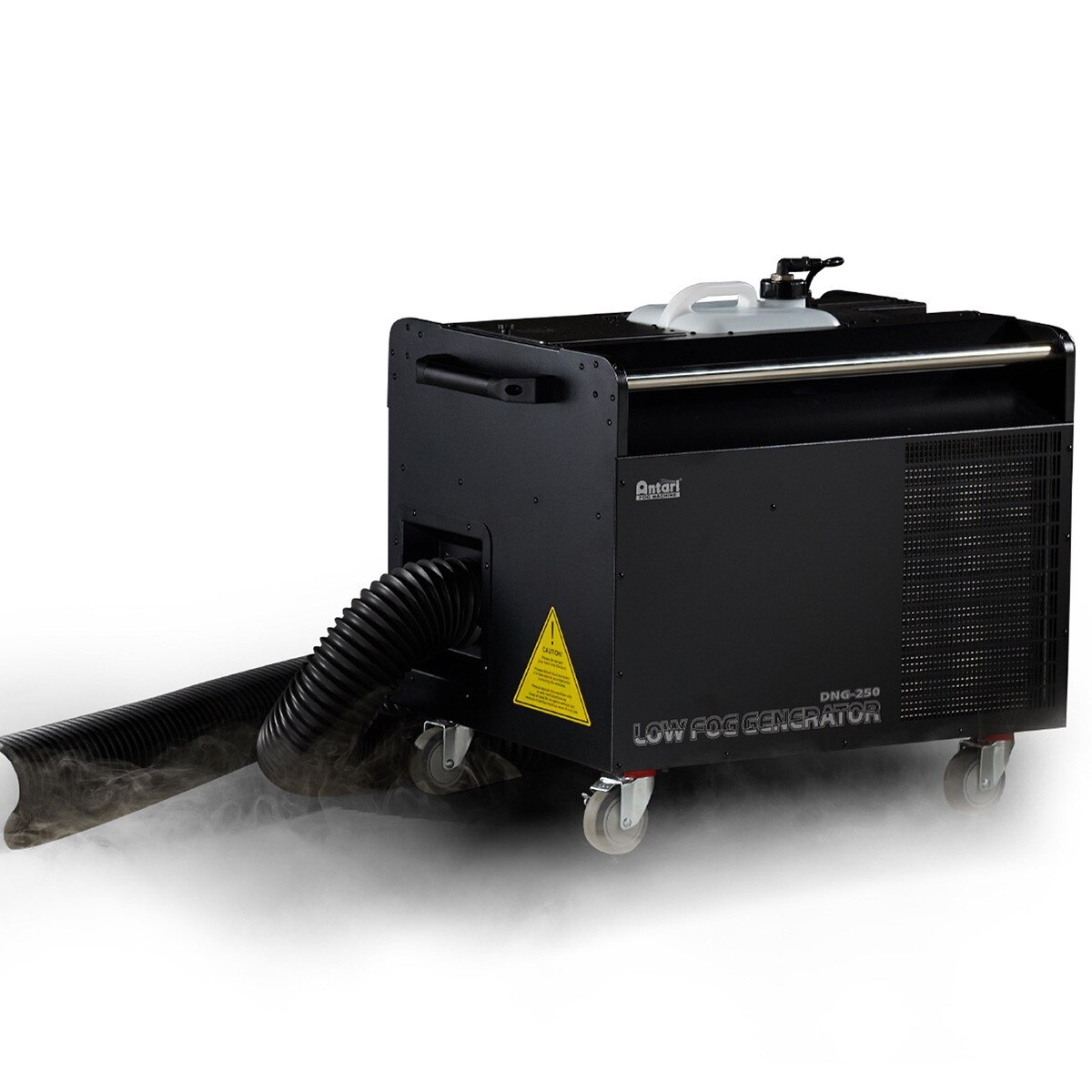

Antari DNG-250 Low Lying Fogger

Meet Antari’s latest low-lying fog technology: DNG-250. Compare to its previous version DNG-200, the DNG-250 is upgraded to a more powerful heating element and more efficient refrigeration systems, which enables it to produce higher volume and even better low fog effects.

*For best low fog effect, use Antari FLL Low Fog Fluid.

Specification:

• Input voltage: AC 100-120V, 50/60Hz
• Refrigerant: 120V R- 404A , 1.76LB (0.8Kg)
• Start Current: 120V / 77.4A
• Rated Power: 120V / 14.2A
• Fog Power Consumption: 120V / 1600W 13.5A
• Warm-up Time: 6 minutes (approx.)
• Fluid Consumption: 100 ml/min
• Fluid Tank Capacity: 10 Liters (2.64 gallon)
• Compatible Fluid: Antari FLL-10 Low Fog Effects Fluid
• Ambient Temp. Range: 5°C – 40°C (41°F – 104°F)
• Output: 120 m2 / min
• Control: Manual, Timer, DMX 512
• DMX Channels: 2 Channels

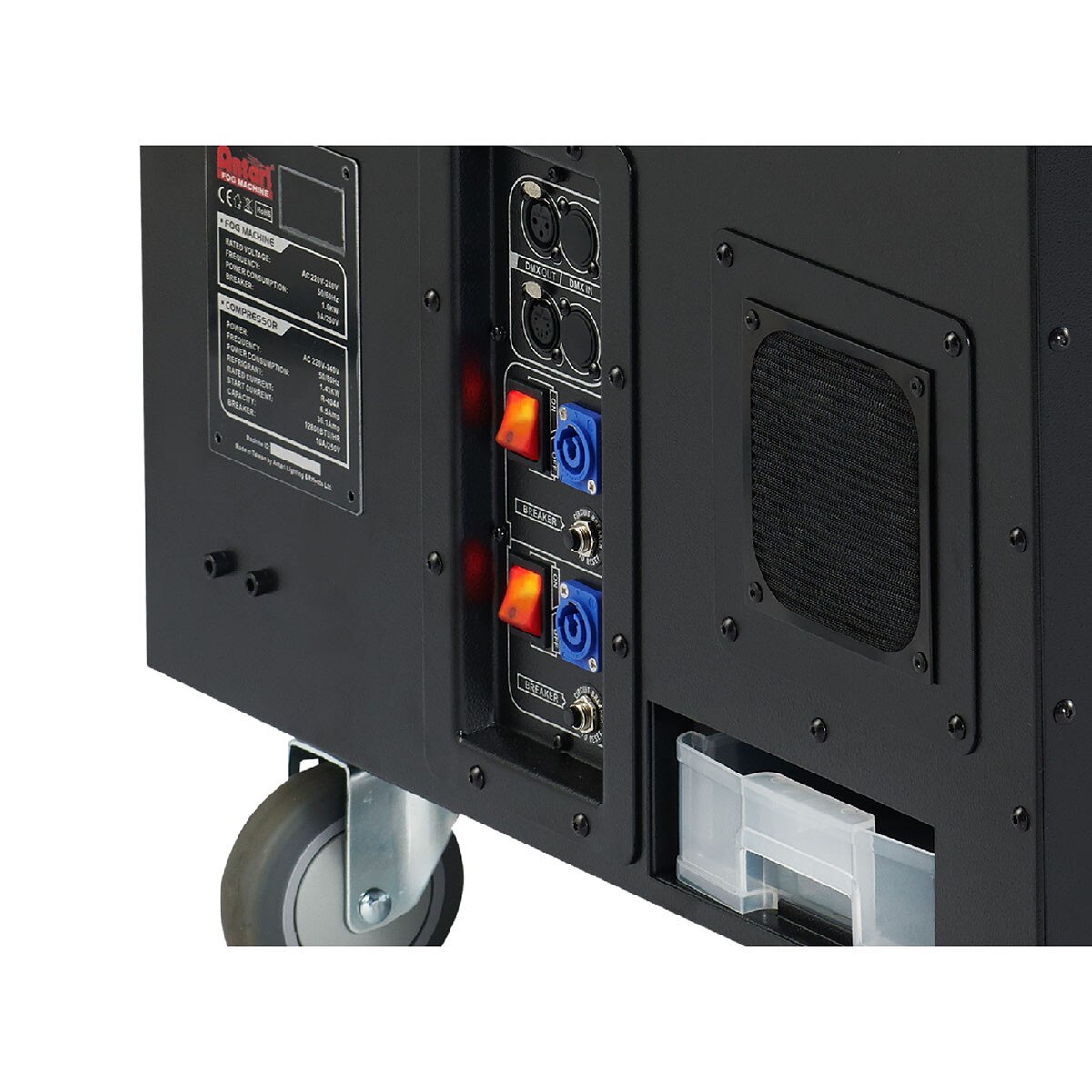

• Connection: Neutrik Powercon (Power)
• XLR 3-pin and 5-pin (DMX)
• Optional Accessories: FDNG-250 Flight Case
• Dimension: L 780 W 608 H 715 mm (L 30.7 W 23.93 H 28.15 inch)
• Weight: 130 kg (286.6 lbs)

DNG-250 User Manual.pdf
