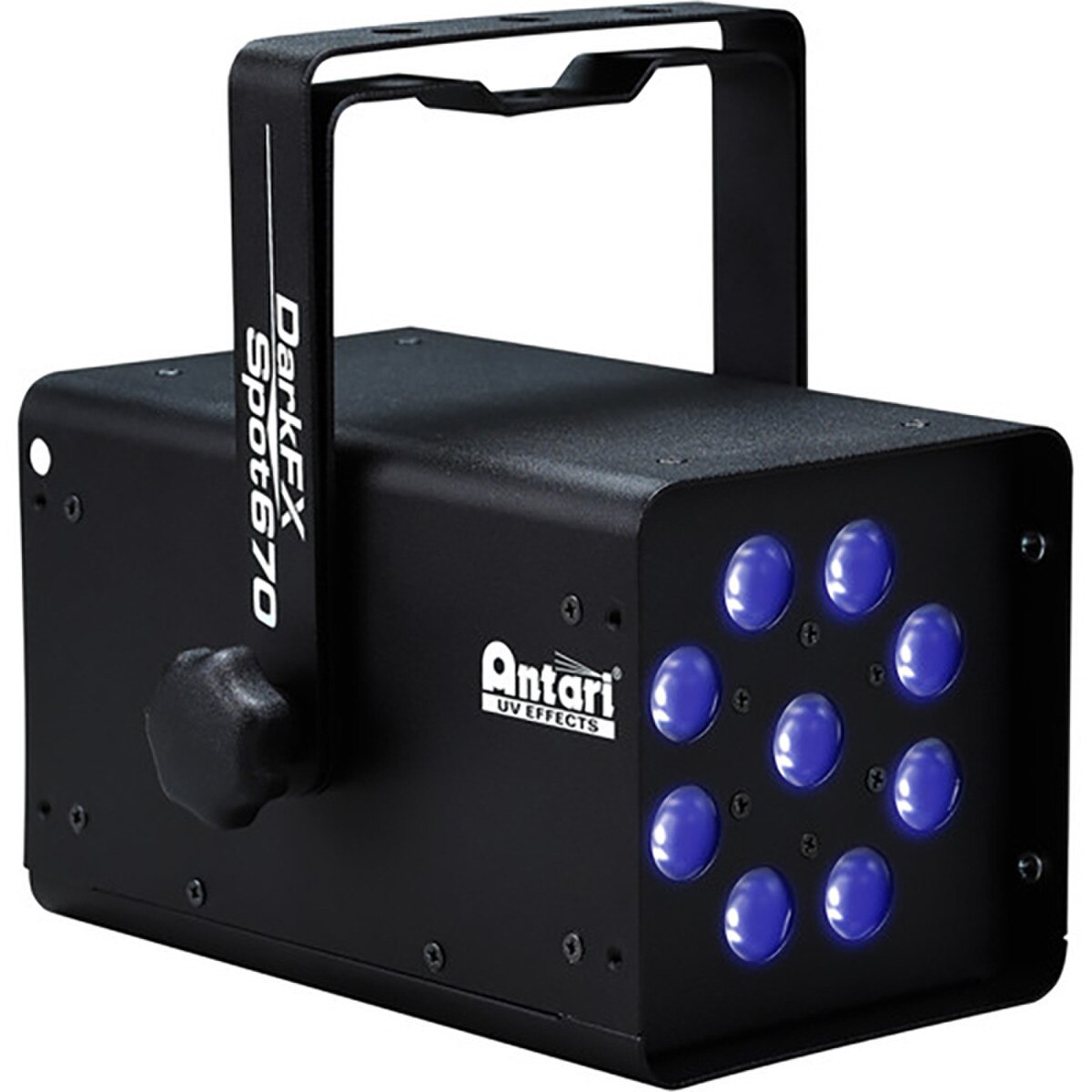

Antari DarkFX Spot 670 UV LED Fixture
Details
Features:
- High-efficiency UV LED
- Peak wavelength at 365nm
- Minimum visible light
- High output 6760mW at full intensity
- Special optics will not degrade due to high UV exposure
- Flicker-free
- 15° narrow beam angle
Specifications:
- Input Voltage: 100-240VAC 50-60Hz
- Power: 21W @ 110VAC / 24W @ 220VAC
- (9) 1.9W high-power UV LED
- Refresh Rate: 500Hz
- Optics: 15°
- Output: 6760 mW
- Project Lamp Life: 20,000 hrs L70 at 25C
- Color Range: 365nm
- Control Options: DMX-512 or manual
- DMX channels 1, 2
- Operation: 2 x 16 digit display with 4 buttons
- Power Connection: Neutrik PowerCON in/through
- DMX Data Connection: 5-pin XLR
- Housing Metal
- Protection rating IP-20 Indoor use only
- Dimensions (L x W x H): 8" x 5" x 5" (205mm x 125mm x 125mm)
- Dry Weight: 5 lbs (2.4kg)
- Approvals/Ratings: CE, RoHs, cETLus
Dimensions_Drawing_100177.pdf
Photometric_Test_Report_100177_File_2.pdf
Specification_Sheet_100177_File_1.pdf
User_Manual_100177_File_4.pdf
