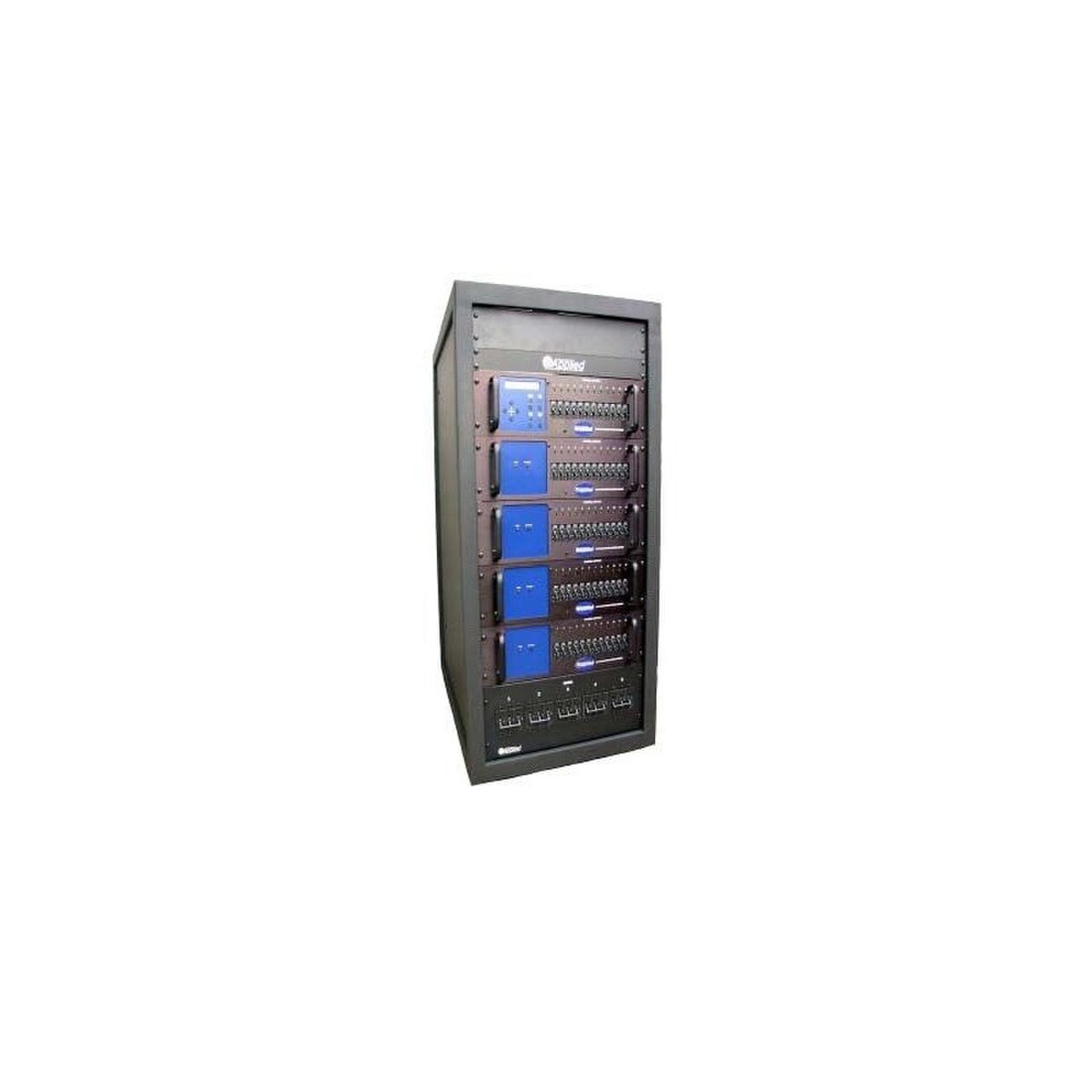

Applied NN 36 Channel Install Dimmer Rack 2.4kW per Channel

The Applied 36 Channel Install Dimmer Rack contains the SA12/2400 Bravo Series dimmers to provide 36 dimmer channels of 2.4kW outputs. The enclosure is 14 gauge steel with an easy access front main circuit breaker panel. It can be controlled using Applied's Architecture Wall Station Control.

Features:

• SA12/2400 Bravo Series Dimmers
• Terminal block outputs connection for input power
• Factory configured for single or three phase power
• Fully magnetic circuit breakers
• DMX-512 XLR five pin connection (with loop-thru connection)
• Easy access front Main Circuit Breaker Panel
• Optional wall station control for up to 96 channels
• Space saving, pre-wired steel enclosure
• Main circuit breaker per dimming unit included

Specifications:

• 36 dimmer channels of 2.4kW outputs
• 14 gauge steel rack enclosure
• Terminal block input: Ratings dependent upon system design
• Terminal block output: (12-96) 10A or 20A circuits
• DMX data connectors: 5 pin XLR input and output
• RJ-45 connector for wall station control
• Footprint: 22" W x 25.5" D
