Applied NN Crank Up Lift & 2in. T Bar

Applied NN 1-13-000:

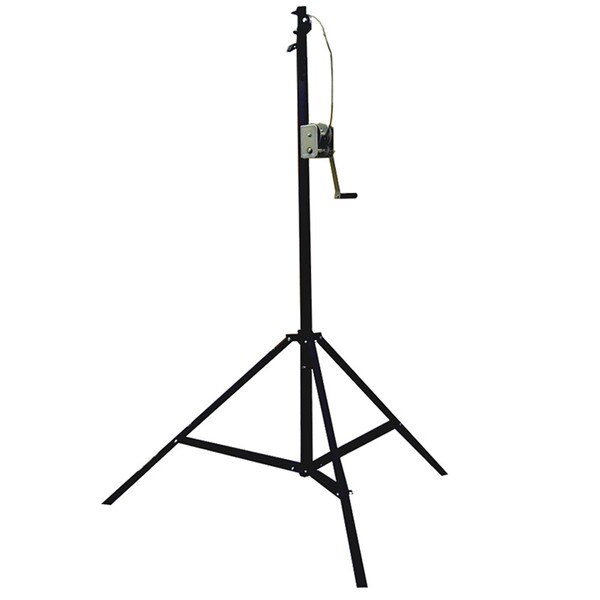

The Applied XL-13 Crank-up Lift features a steel body with collapsible tripod legs. The steel cabling and positive locking mechanism insure that the lift remains stable, and the light-duty hand crank winch makes it easy to raise or lower.

Features:

• Steel crank-up lift
• Collapsible tripod legs
• Can be shipped UPS
• Light duty hand crank winch
• 13' maximum lift height
• Lowers to 76" for loading
• Positive locking mechanism
• Heavy duty steel cabling

Specifications:

• Collapsed dimensions: 7" x 7" x 76"
• Weight: 42 lbs.
• Footprint: 78"

Weight Loading Information:

• Maximum weight rating: 250 lbs. at 13'
• Weight loading certified by structural engineering firm

Applied NN 1-00-002:

Made from 2" round aluminum tube. 57" (4' 9") long and 8 lbs. Supports 4 or more fixtures.
