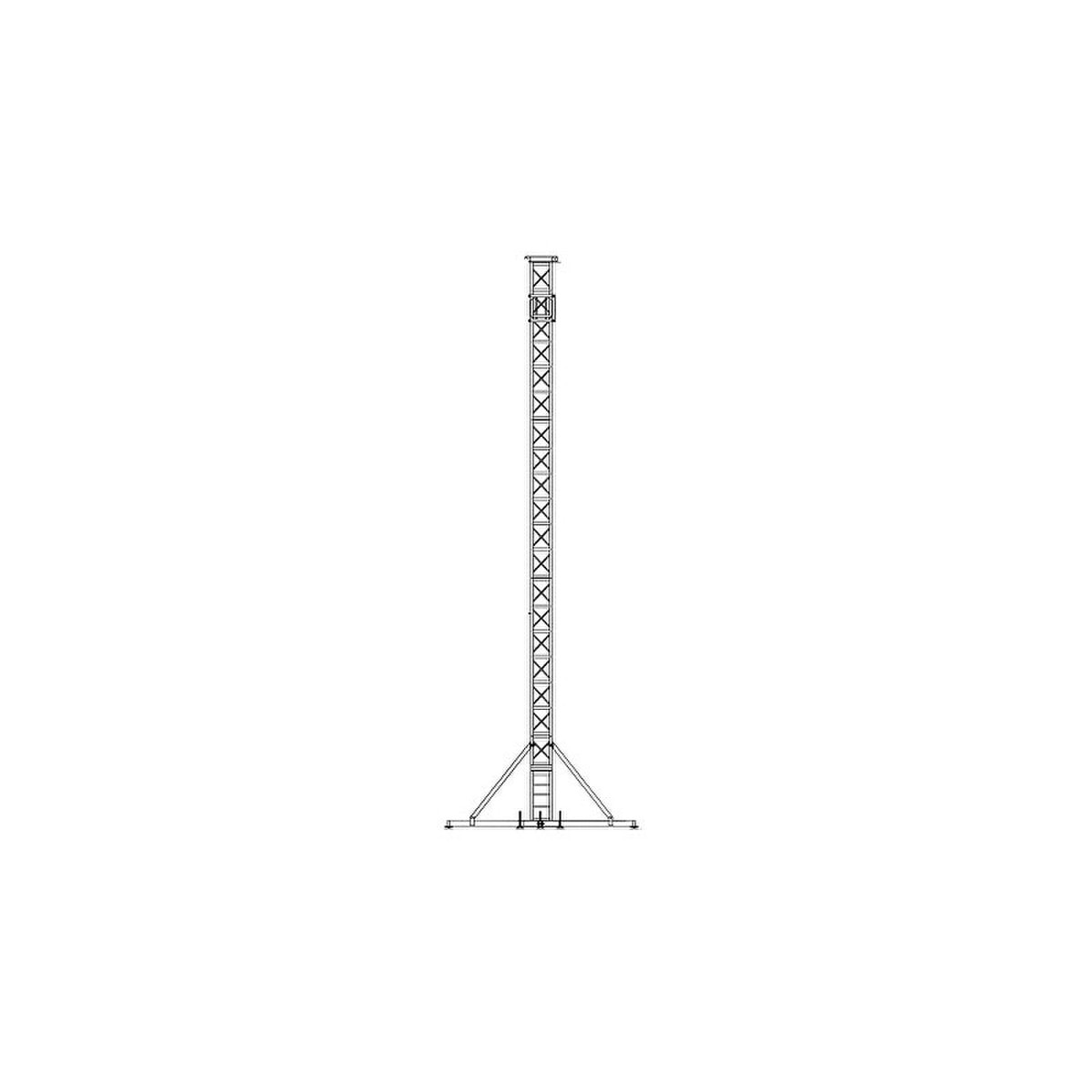

Applied NN GS-45 Ground Support Tower System - 45' Height w/ 20.5in. Truss
Details
Applied Electronics GS Towers are constructed from heavy duty, schedule 80, 6061-T6 aluminum tube and are available in 12", 16" or 20.5" tower truss. These towers provide the support structure for roof systems, video walls, sound reinforcement and lighting grids where heavier load ratings are required. They can be supplied with sleeve blocks and accessories for most rigging applications.
Features:
- Adjustable leveling pads
- Lowers to 6" for easy loading
- Three way custom sleeve blocks
- Highly polished aluminum tubing
- Tower: aluminum construction
- Base: steel construction
- Modular design for fast assembly
- Compact for easy transport
Components:
- 5' hinged base section
- Head block
- Sleeve block
- 4 outriggers
- Guy wires (Required for outdoor use)
Specifications:
- 1.9" OD 6061-T6 aluminum tube Schd #80
- 0.200" wall thickness
- 1.05" OD aluminum bracing
- 20.5" tower truss section
- Max. weight rating - 3000 lbs. at 45'
- 45' height with 20.5" tower truss
