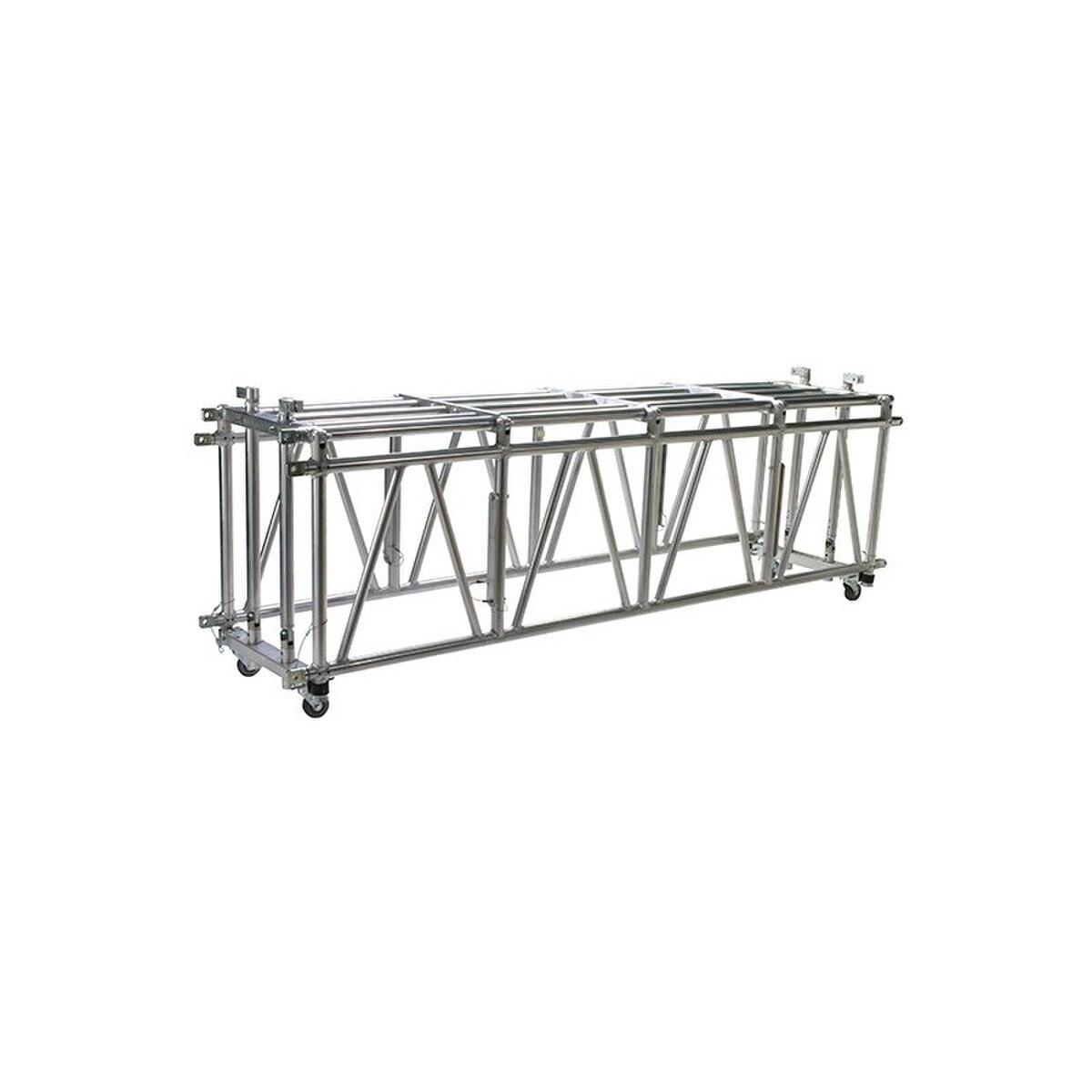

Applied NN Moving Light Truss - 30in. x 39in. x 10'

Features:

• Highly Polished Aluminum Tubing
• 1.9" OD 6061-T6 Aluminum Tube Schd #80
• Six Main Chords with Steel Spigots
• Three Chords for Mounting Fixtures
• Steel Spigots and Pins
• Four Heavy Duty Swivel Casters
• Wheel Trucks Slide Up and Lock
• Side Ladders Swing Up/Down and Lock
• Design Shields Fixtures During Transit
• Stackable to Maximize Truck Pack
• Fastening Hardware Secured With Lanyards
• Dimensions: 30" x 39" x 10'
• Weight: 215 lbs.

Weight Loading Information:

• Length: 10' Span
• Uniform Distribution: 5470 lbs.
• Center Point Load: 2880 lbs.
