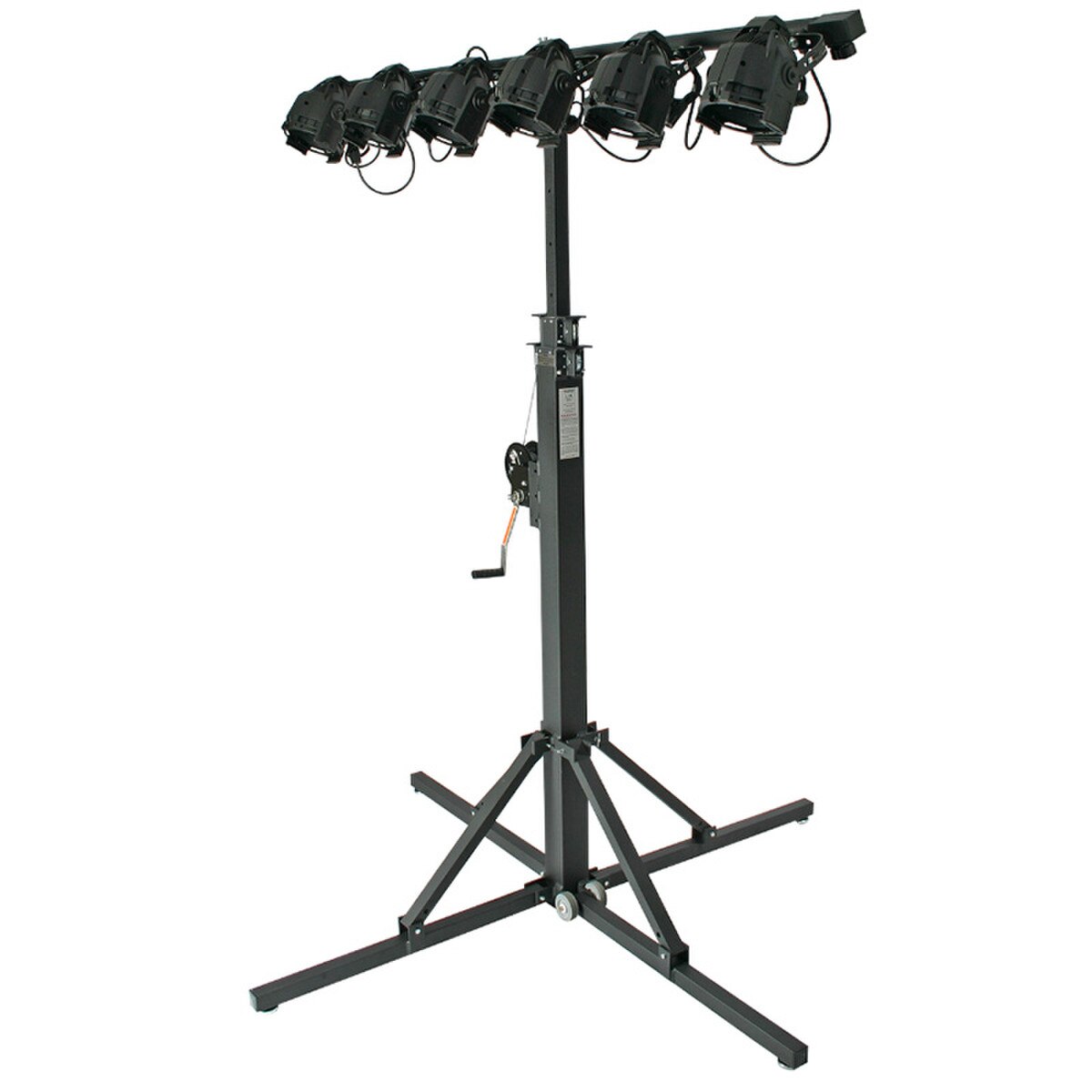

Applied NN XL-16 Crank-Up Lift 6.4' - 16'

The Applied XL-16 Crank-up Lift features an aluminum body with collapsible legs. It features eighteen separate locking positions, a heavy duty self-braking winch, and adjustable heavy duty leveling pads to insure that the lift remains stable and easy to raise or lower.

Features:

• One man, two minute setup
• Collapsible legs
• Eighteen separate locking positions
• Heavy duty self braking winch
• 16' maximum lift height
• Adjustable heavy duty leveling pads
• Wheel kit included
• 2" square top tube with 0.188" wall
• 4" square base tube
• Aluminum construction

Specifications:

• Collapsed dimensions: 12.5" x 12.5" x 77"
• Weight: 98 lbs.
• Footprint: 84"

Weight Loading Information:

• Maximum weight rating: 500 lbs at any height
• Weight loading certified by structural engineering firm
