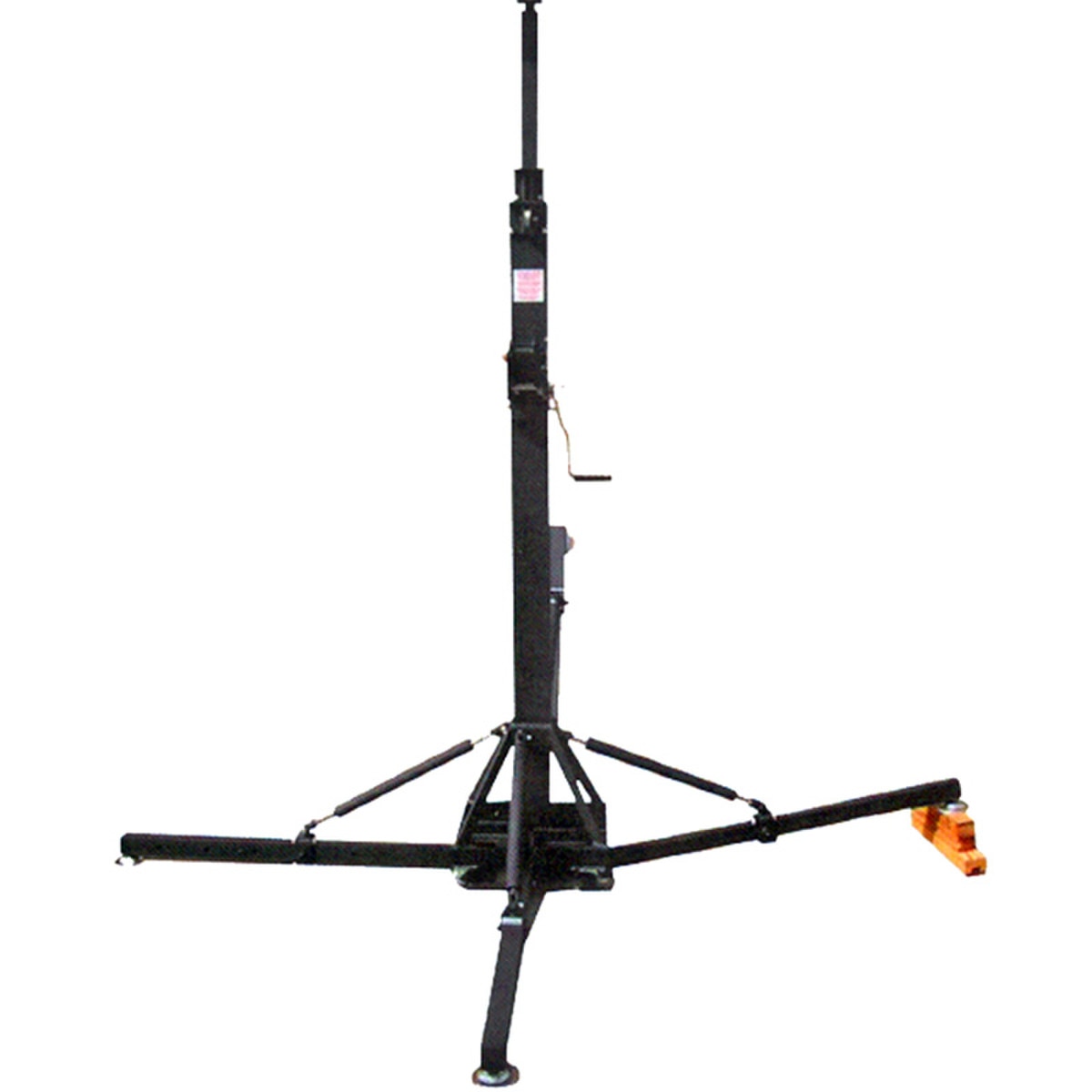

Applied NN XL-16 Mobile Crank-Up Lift 7' - 16'

The Applied XL-16 Mobile Crank-up Lift features aluminum construction. All four legs are fully adjustable, and it comes with adjustable heavy-duty leveling pads, ensuring that the lift will adapt to the most uneven ground. Eighteen separate locking positions and a heavy duty self-braking winch ensure that the lift remains stable and easy to raise or lower.

Features:

• All four legs are fully adjustable
• Adapts to the most uneven ground
• One man, two minute setup
• Eighteen separate locking positions
• Heavy duty self braking winch
• 16' maximum lift height
• Adjustable heavy duty leveling pads
• 2" square top tube with 0.188" wall
• 4" square base tube
• Aluminum construction
• Wheel base
• Large foot base

Specifications:

• Collapsed dimensions: 16" x 18" x 81"
• Weight: 135 lbs
• Footprint: 84"

Weight Loading Information:

• Maximum weight rating: 500 lbs at any height
• Weight loading certified by structural engineering firm
