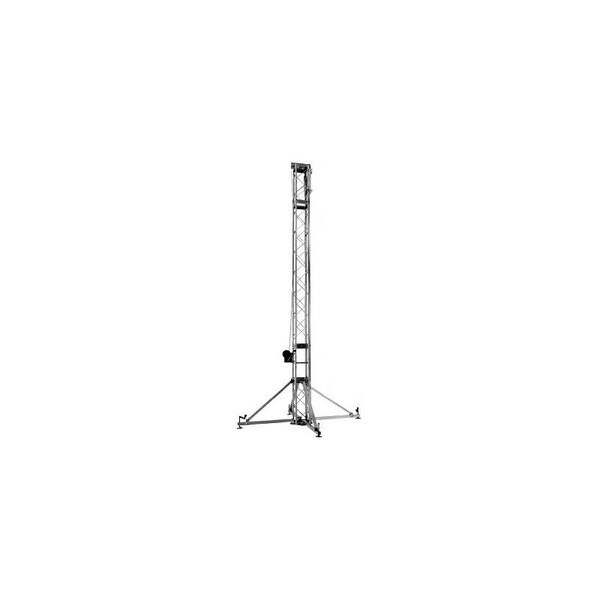

Applied NN XL-25 Lift Mini Tower

The XL-25 Mini Tower is available with a standard heavy duty hand crank winch or can be upgraded with an electric chain hoist and control package. The Mini Tower provides support for small roof systems and lighting grids within the load limits of the tower.

Features:

• Modular design for fast assembly
• Easy transport
• Aluminum construction
• Adjustable leveling pads
• Tower hinged for easy loading
• Heavy duty hand crank winch
• Can be motorized
• Certified by structural engineering firm

Components:

• 5' hinged base section
• 4 outrigger legs
• 4 outrigger braces
• 10' tower section
• 7' tower section
• 3' tower section
• Winch & cable
• Slide block
• Head block

Specifications:

• Maximum height 25'
• Weight rating: 1200 lbs
• Weight: 340 lbs
• Footprint: 99"
