ArKaos MEDIAMASTER PRO 6 (LICENSE)

(0)No Reviews yet
$1,899.99
SKU: ADJ MED673

Details

ArKaos MediaMaster Pro 6 Control Software (License Only)

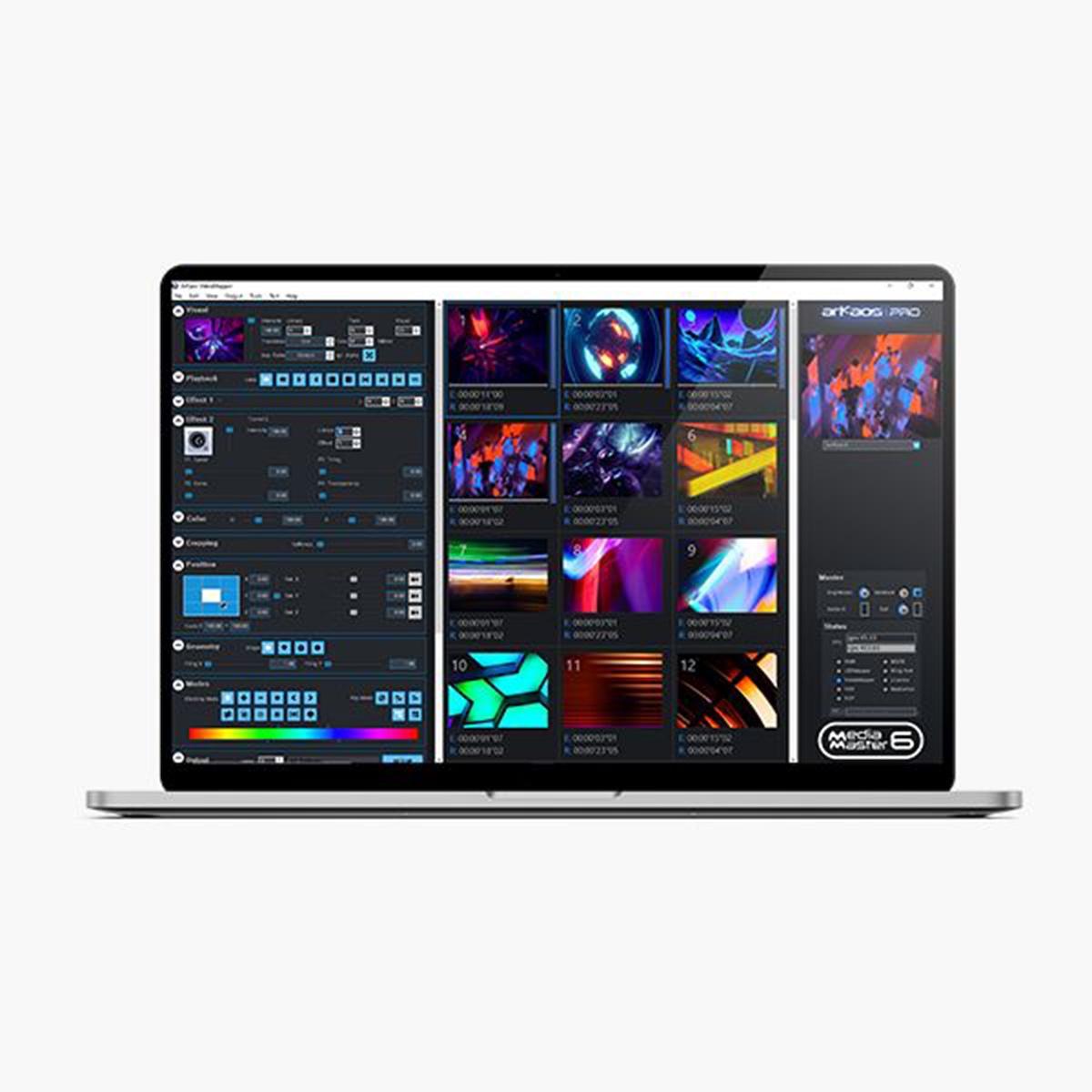

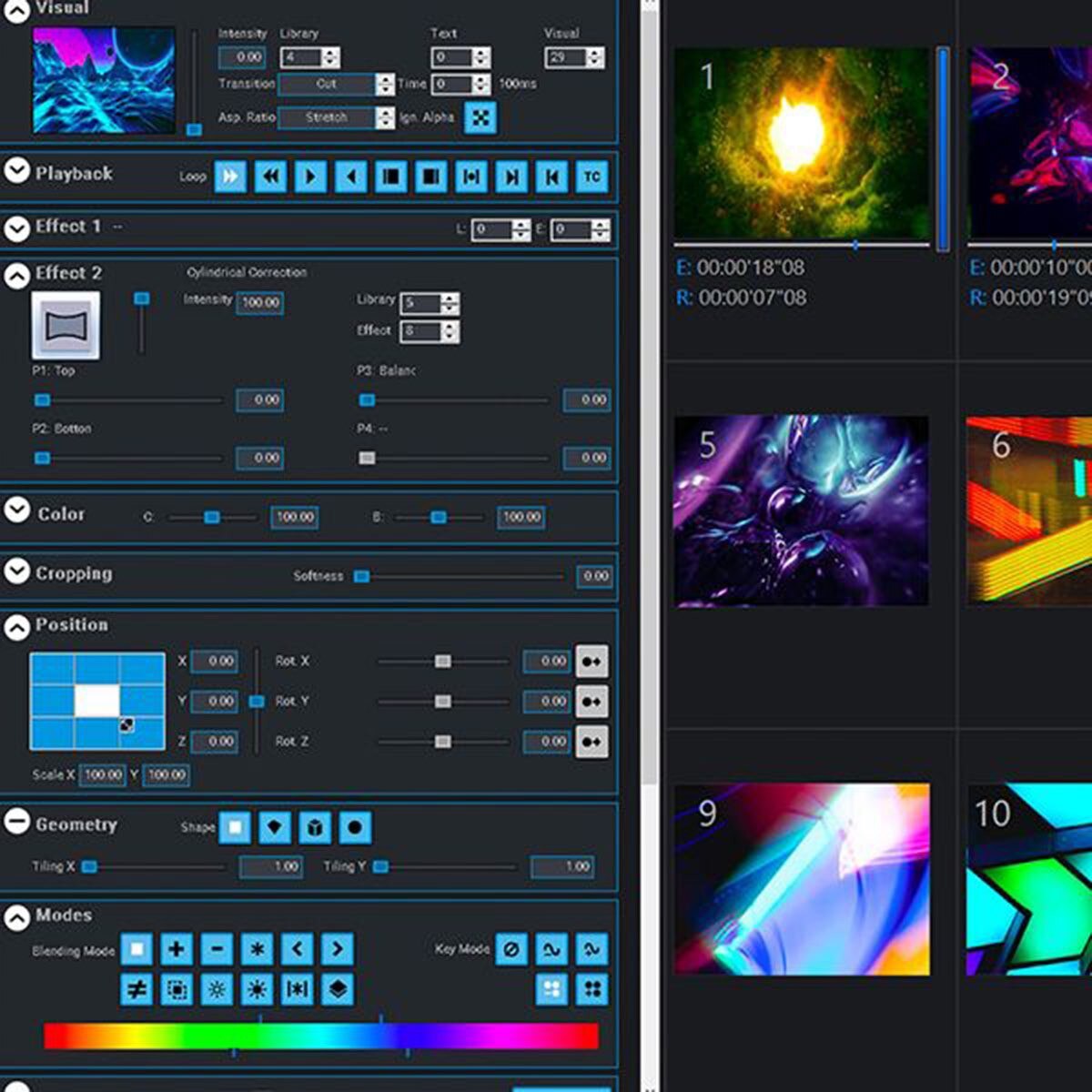

MEDIAMASTER PRO PRACTICAL INTERFACE

A straightforward interface displaying all layer’s parameters simultaneously, as well as all layers preview, gives lighting designers improved visibility of their shows and the best ergonomics possible.

GUARANTEED QUALITY

MediaMaster’s powerful video engine and proprietary video Codec SAGA guarantee a smooth and reliable playback up to a canvas of 16K x 16K pixels. Use 10-bit color range with or without HDR for better and brighter picture quality. MediaMaster’s powerful video engine and proprietary video Codec SAGA guarantee a smooth and reliable playback up to a canvas of 16K x 16K pixels. Use 10-bit color range with or without HDR for better and brighter picture quality.

TOTAL CONTROL

Take total control of your media: position, scale, rotate, adjust transparency, alpha, colors, compose with other layers etc. MediaMaster supports major media formats, multiple video inputs, and provides more than 60 effects with controllable parameters.

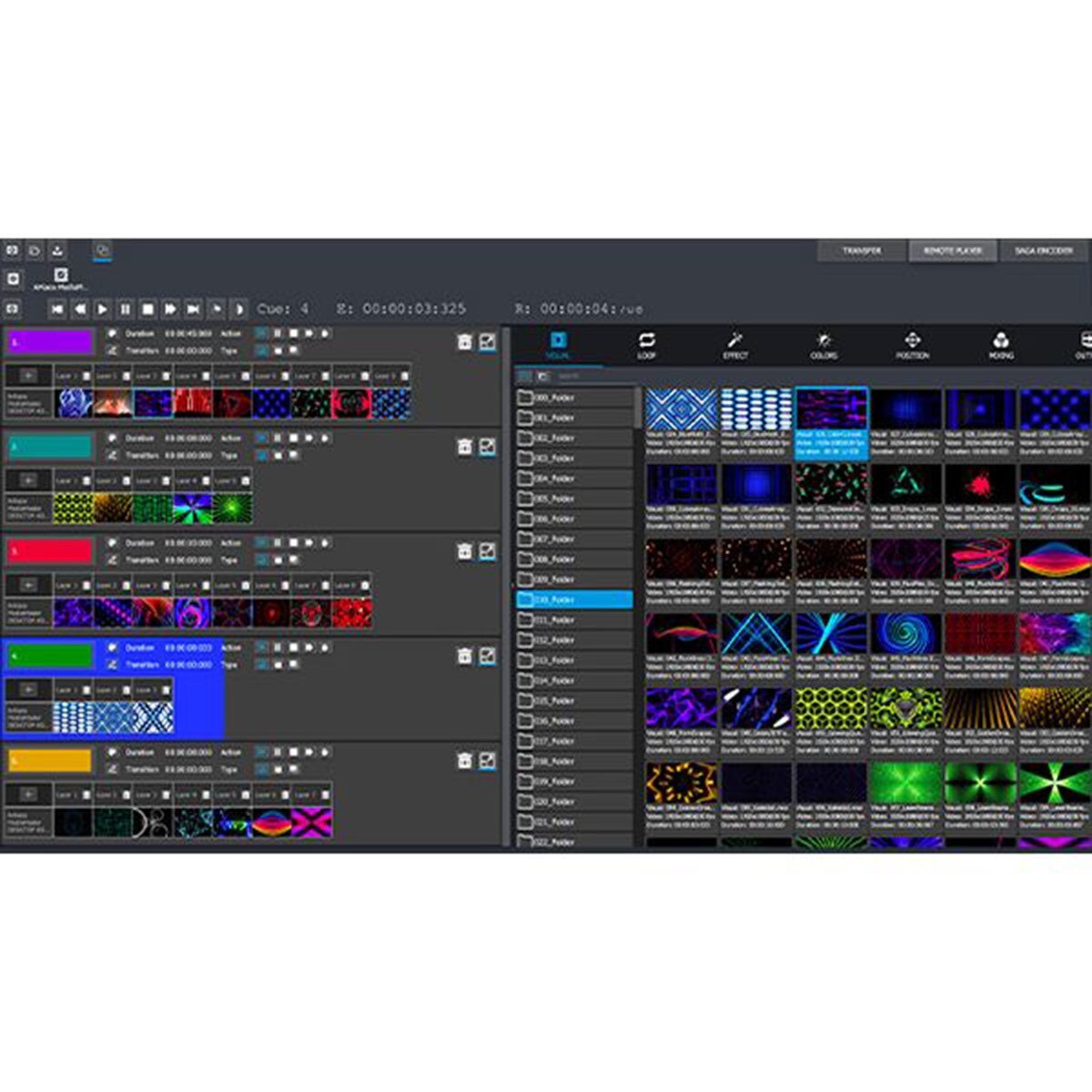

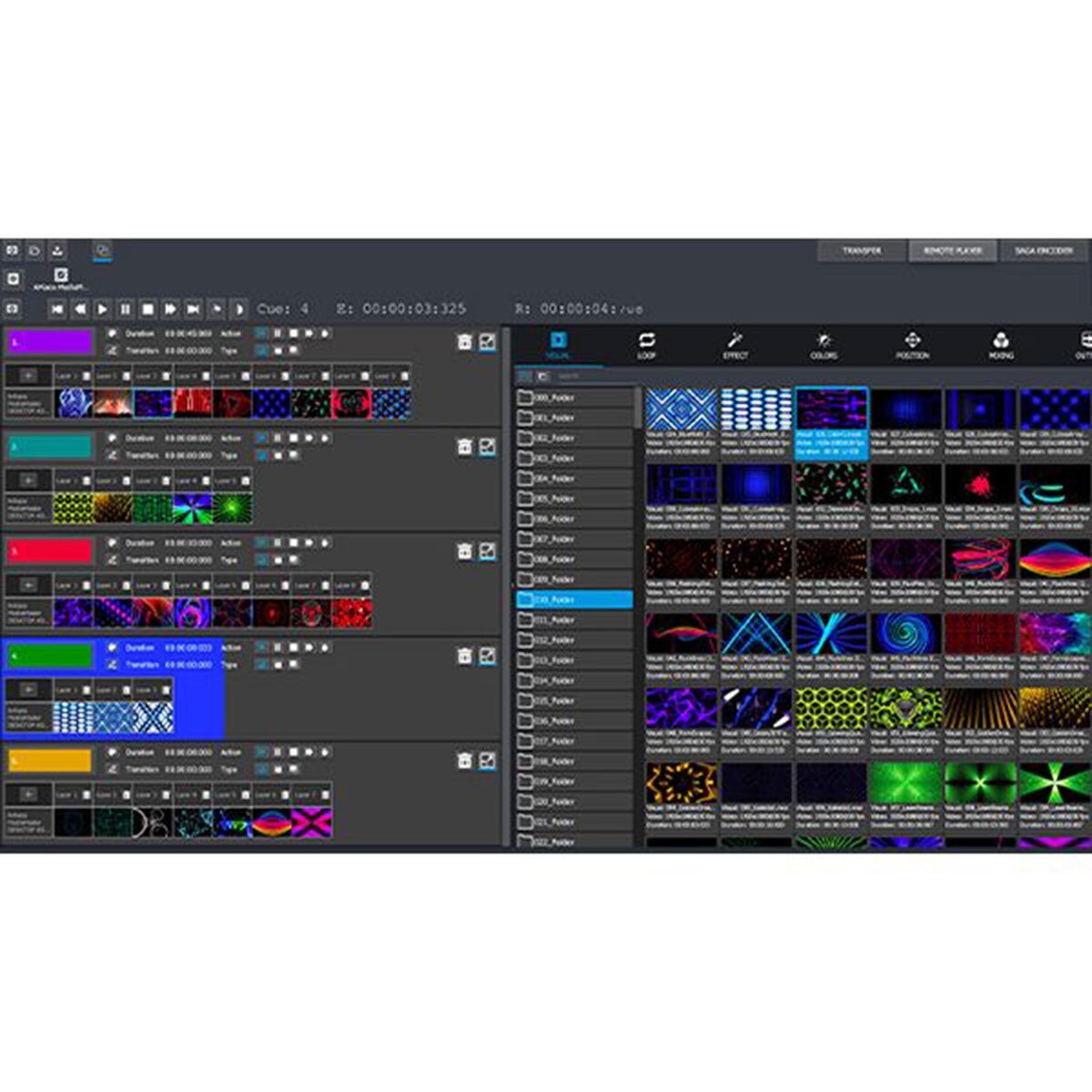

REMOTE PLAYER

The Remote Player which will be of interest to those working on long term shows, permanent installations and in other fixed environment scenarios. Remote Player is a network-based player allowing the control of multiple servers from a single point on the network. The internal encoder means Cue Lists can be allocated to separate applications. Connect your Elgato Stream Deck to maximize workflow and direct access to sources and outputs as needed.

MEDIAMASTER PRO VIDEO MAPPER EXTENSION

MediaMaster Pro ships with the new Video Mapper Extension which allows easy mapping of video onto irregularly shaped surfaces and through multiple outputs. Designed to let you setup mapping projects in very short times, it makes it incredibly simple to flow visuals around complex objects with just a few clicks.

FIXTURE MODE

The fixture profiles allows total control of every MediaMaster parameter straight from the DMX console and turns any powerful computer into a traditional Media Server for professional lighting consoles. With now in MediaMaster 6 two new fixture profiles – Layer extended 2.0 and layer full 2.0 - that can each control up to 112 DMX parameters

HDR VISUAL

MediaMaster is ahead of the game, and will happily play HDR or standard videos and make them compatible with HDR 10 and HLG hardware on the fly. MediaMaster 6 include a specific mode for HDR LED screen, compatible with Novastar or Brompton LED processor. Be compliant with the most demanding picture quality, thanks to MediaMaster 6 HDR output processing.

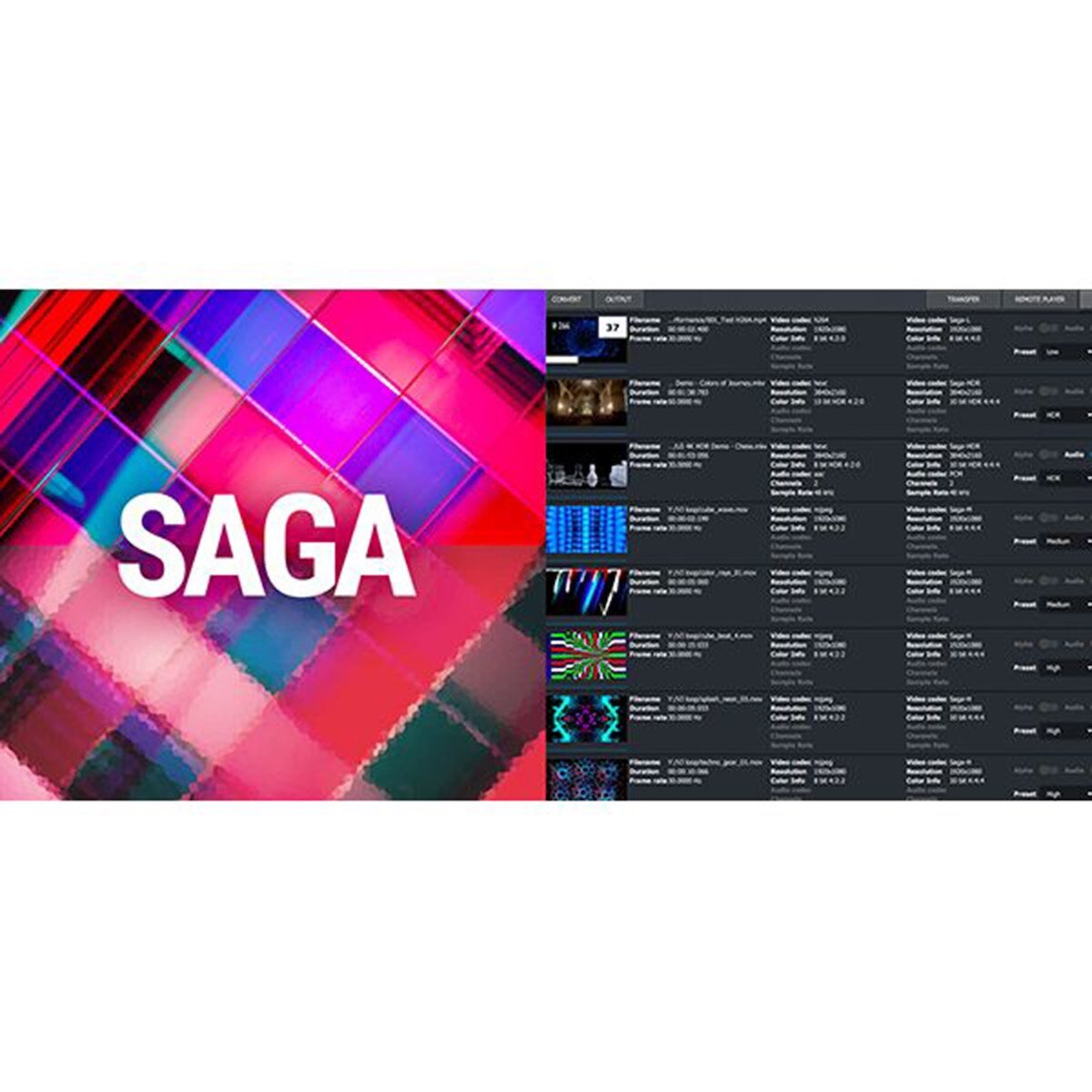

SAGA CODEC

MediaMaster 6 runs the streamlined proprietary ArKaos SAGA codec with 10-bit definition per color and an Alpha Channel. Other advantages of SAGA include lower disc usage than with a standard HAP codec, also boosting the speed, the ability to play clips backwards and accelerated CPU and GPU rendering. There is no chroma re-sampling, and the resolution size is unlimited.

NDI®5 IMPLEMENTED

MediaMaster now also has Multiple NDI®5 inputs/outputs with alpha, as well as being fully integrated in the extensive NDI®5 product ecosystem, cementing it as a versatile live performance software. NDI®5 (or Network Device Interface) is a free protocol to send Video over IP. It is designed to allow the distribution of live professional video content over an existing IP infrastructure, freeing users from current hardware constraints. This means that NDI®5 doesn’t just cut back on cost, but also drastically reduces deployment time.

MEDIAMASTER PRO LED MAPPER EXTENSION

MediaMaster currently includes the intuitive LED Mapper Extension, the flexible software solution from ArKaos to drive LED panels. The Editor now works in the same time than MediaMaster. You can interactively preview your editing by sending the video output or the mapper static pattern to the network. The LEDMapper supports unicast to reduce the load on the network and so allows to drive many LED fixtures. The interface displays the pool of devices detected on the network to make it easy to assign IP address for the fixtures.

MediaMaster 6 New Features (MediaMaster Express and Pro):

  • Remote Player
  • SAGA video Codec
  • Mask Engine
  • 2 Effect Engines
  • NDI°5 input and output with alpha
  • Novastar Smart LC auto configuration
  • HDR output for LED screen
  • HDR compatible with HDR10 and HLG display

Common features (MediaMaster Express and Pro):

  • 24 layers (Express edition) of simultaneous video playback.
  • 64 Visual presets patches, each containing 128 visual presets.
  • Direct access to visual presets and global controls via DMX, MIDI, or Keyboard.
  • Master section allowing to control the following parameters: Brightness and contrast; Keystoning; Soft edge parameters; Audio output volume
  • Live cameras
  • Spout/Syphon outputs and inputs
  • GPU Accelerated decoding
  • High resolution Media decoding up to 16Kx16K
  • Midi learn
  • DMX Merging to combine control such as Pan & Tilt from a light console and video from MediaMaster.
  • 64-Bit support for all applications.
  • Kling-Net support for plug-and-play configuration of LED devices
  • Each visual preset can be fully configured with the following parameters: Visual selected; Playback mode; Movie Speed; Loop start and end frame; Effect and effect control parameters; Trigger for control (Keyboard, DMX, Midi); Controller configuration for live effect control; Position and size of the layer output; Mixing style with other layers including; Maximum transparency; Red / Green / Blue / Hue / Saturation / Lightness Levels; Copy Mode; Mask Mode; Default Fade Time; Tiling

MediaMaster 6 New Features (MediaMaster Pro only):

  • Remote Player
  • SAGA video Codec
  • Mask engine
  • 2 Effect engine
  • NDI°5 input and output with alpha
  • Novastar Smart LC auto configuration
  • HDR output for LED screen
  • HDR compatible with HDR10 and HLG display
  • Fixture layer 2.0 up to 112 DMX control: Single layer transition; 2 effects engines; Mask engine

Advanced features (MediaMaster Pro only):

  • Includes all the features from MediaMaster Express
  • 48 independent video layers
  • Advanced video mapping
  • Build-in support for grandma MA-Net1 and 2
  • GDTF compatible
  • MSEX Compatible: thumbnails preview and live output on your MSEX compatible lighting desk
  • Supports patching fixtures on several DMX universes
  • Advanced Graphic engine: Fully hardware accelerated and Multi-threaded on multi-core CPUs
  • GPU Accelerated decoding
  • High resolution Media decoding up to 16Kx16K
  • Intuitive user interface
  • Computer keyboard
  • Any MIDI controller compatible with your system
  • Any DMX lighting desk
  • Support for the Video Mapper extension
  • Each layer can be sent individually to ArtNet / Kling-Net / video output
  • Faster frame rate with a new multi-threaded decoder for
  • Support for Ma-Net2 protocol with thumbnails through CITP
  • 60+ effects
  • 50+ text animations
  • Audio Visualization Generators
  • Media library of 255 folders and 255 visuals
  • Total control of your media: 3D position/ rotation, movie speed, color levels etc.
  • Frame blending for smooth playback even at very slow speed
  • Software Genlocking to the output monitors for perfect playback up to 60fps without dropping frame
  • Master brightness-contrast, keystone
  • Geometric Correction & Soft Edge Settings per Output
  • Multi-Screen and Wide-Screen with soft-edge
  • Internal MPEG2-MPEG4 codec for enhanced reliability
  • Native support of H.264 through FFMPEG 0.5
  • Support of all common media formats (AVI, MPEG, QuickTime MOV, Flash, WMV, picture files etc)
  • Support for movies with alpha channels

WINDOWS MINIMAL SYSTEM REQUIREMENTS:

  • Version: Windows 10 64-bit
  • Processor: AMD or Intel quad core processor, i5 2.0Ghz or faster
  • Memory: 4 Gb RAM or more
  • Video Card: AMD, Intel or NVidia DirectX 11 graphic card supporting feature level 11.0
  • Sound Interface: Windows Audio Session compatible sound interface
  • Free space: 450 Mb available for application
  • Hard drive: Avoid 5400rpm drives; Minimal required 7200rpm drives (fast codec format); SSD and NVMe advised (balanced and quality codec format)

MAC MINIMAL SYSTEM REQUIREMENTS:

  • Version: macOS 10.14, 10.15 or 11 (M1 currently not supported).
  • Processor: Intel quad core CPU, i5 2.0Ghz or faster
  • Memory: 4 Gb RAM or more
  • Video Card: AMD, Intel or NVidia DirectX 11 graphic card supporting feature level 11.0
  • Sound Interface: Internal sound card or Core Audio compatible interface
  • Free space: 450 Mb available for application
  • Hard drive: Avoid 5400rpm drives; Minimal required 7200rpm drives (fast codec format); SSD and NVMe advised (balanced and quality codec format)
