Aria Wireless DMX
Details

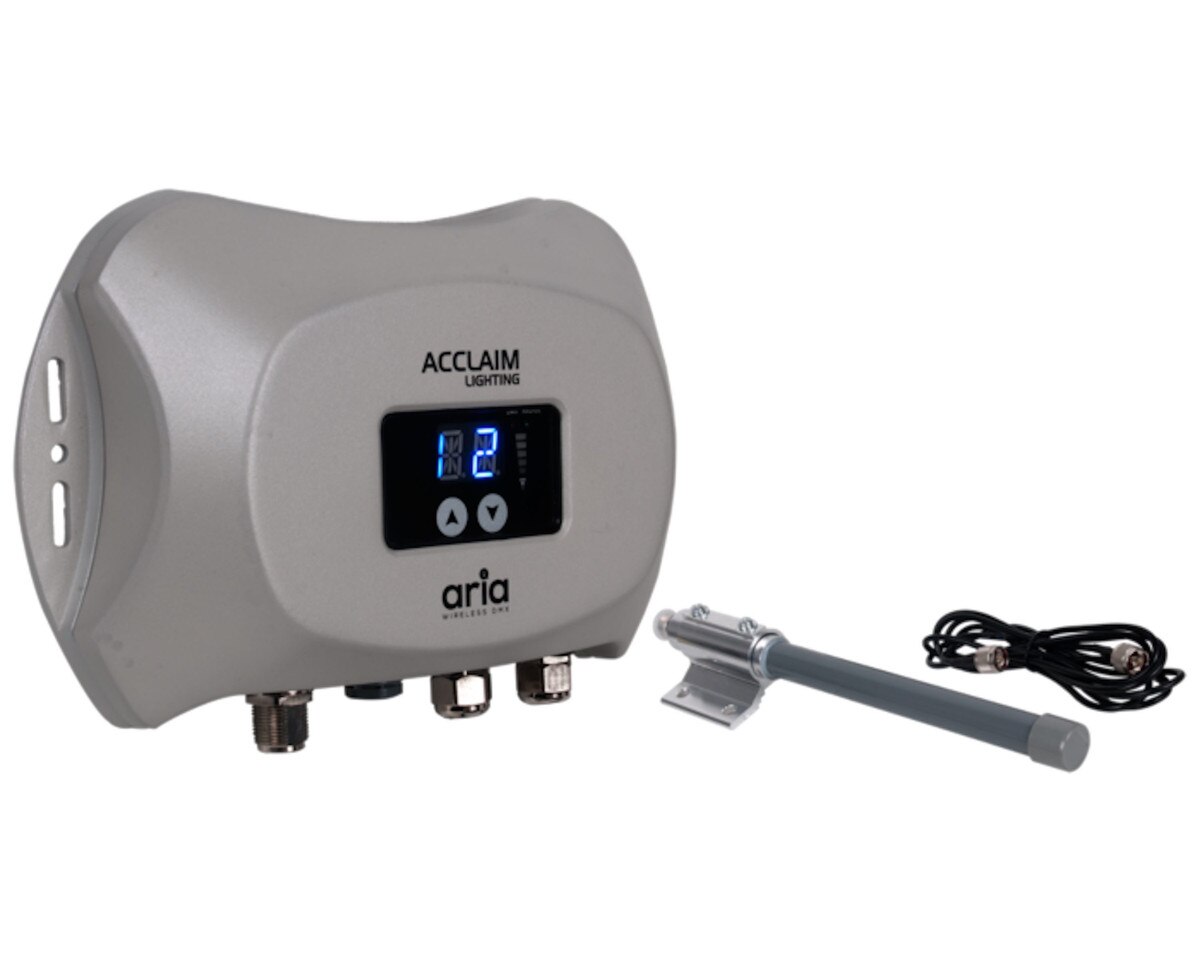

The Aria Wireless DMX system is a compact, local, outdoor-rated wireless DMX system. The Aria transceiver can act as either the sending or receiving point, and you can select up to 15 channels on the 2.4 GHz band. The internal wireless radio features both automatic networking and signal routing optimization to ensure the best possible reception of DMX data. A 5dB, omni-directional antenna is included, which provides transmission up to 2600’ line of sight and 300’ between obstructions and walls. Aria can also make a direct connection (without the need for an additional unit) to fixtures containing the Elation E-FLY receiver.
Over the air: Transmit DMX control signal up to 2,600' (line of sight) and instantly connect to any E-FLY fixture
Link 'em up: Up to 250 connection points in a system and utilize up to 8 universes with multiple transmitters
Ready for the elements: IP66 (wet location) and IK07 impact protection standard
Features
The Aria Wireless DMX system is a compact, local, outdoor-rated wireless DMX system. The Aria transceiver can act as either the sending or receiving point, and you can select up to 15 channels on the 2.4 GHz band. The internal wireless radio features both automatic networking and signal routing optimization to ensure the best possible reception of DMX data. A 5dB, omni-directional antenna is included, which provides transmission up to 2600’ line of sight and 300’ between obstructions and walls. Aria can also make a direct connection (without the need for an additional unit) to fixtures containing the Elation E-FLY receiver.Over the air: Transmit DMX control signal up to 2,600' (line of sight) and instantly connect to any E-FLY fixture
Link 'em up: Up to 250 connection points in a system and utilize up to 8 universes with multiple transmitters
Ready for the elements: IP66 (wet location) and IK07 impact protection standard
Specifications
CONTROL:- Wireless Protocol: 2.4 GHz, IEEE 802.15.4, 15 selectable channels
- Estimated Transmission Distance: 2600’ (792m) line of sight, 300’ (91m) between obstructions and walls
- Data Encryption: AES 128-bit
- DMX Universes: One per transceiver, maximum of 8 simultaneously
- Max number of transceivers: Up to 250 (limited to ensure optimum data transmission)
- Included Antenna: 5dB, includes direct attachment adapter and 9’ extension cable
- Length: 2.2 in (55mm)
- Width: 9.1 in (231.6mm)
- Height: 6.2in (157.7mm)
- Weight: 3.96 lbs. (1.8 kg)
- AC 100-240VAC, 277VAC 50/60Hz
- 3W Power Consumption
- -40°F to 122°F (-40°C to 50°C)
- CE | cETLus | IP66
