Avante Imperio Pro IMP205
Details
440W RMS,Class D Power Amplifier with dual 5.0" Neodymium Low-Mid woofers and six HF drivers. Part of the Imperio Pro Series.
Details:

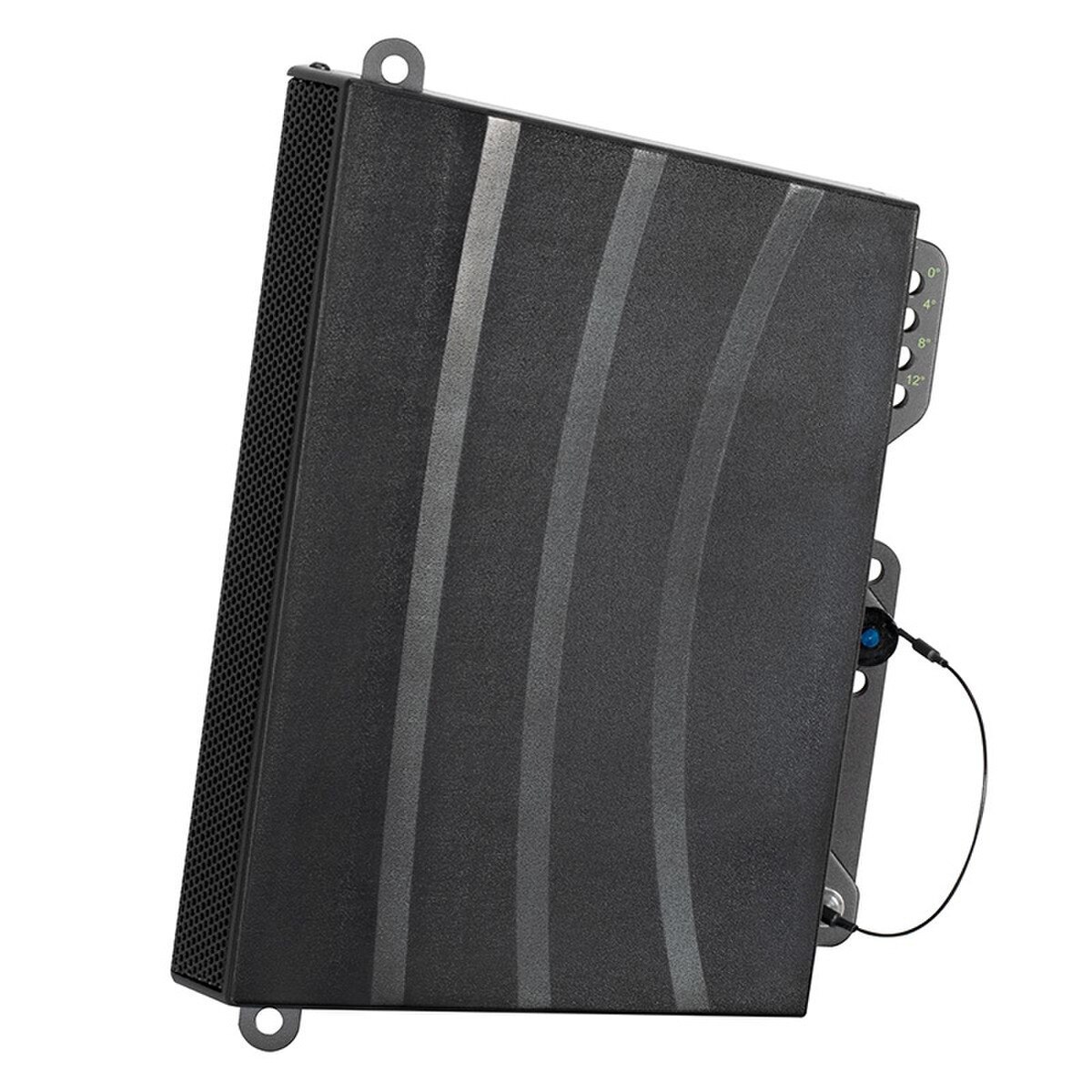

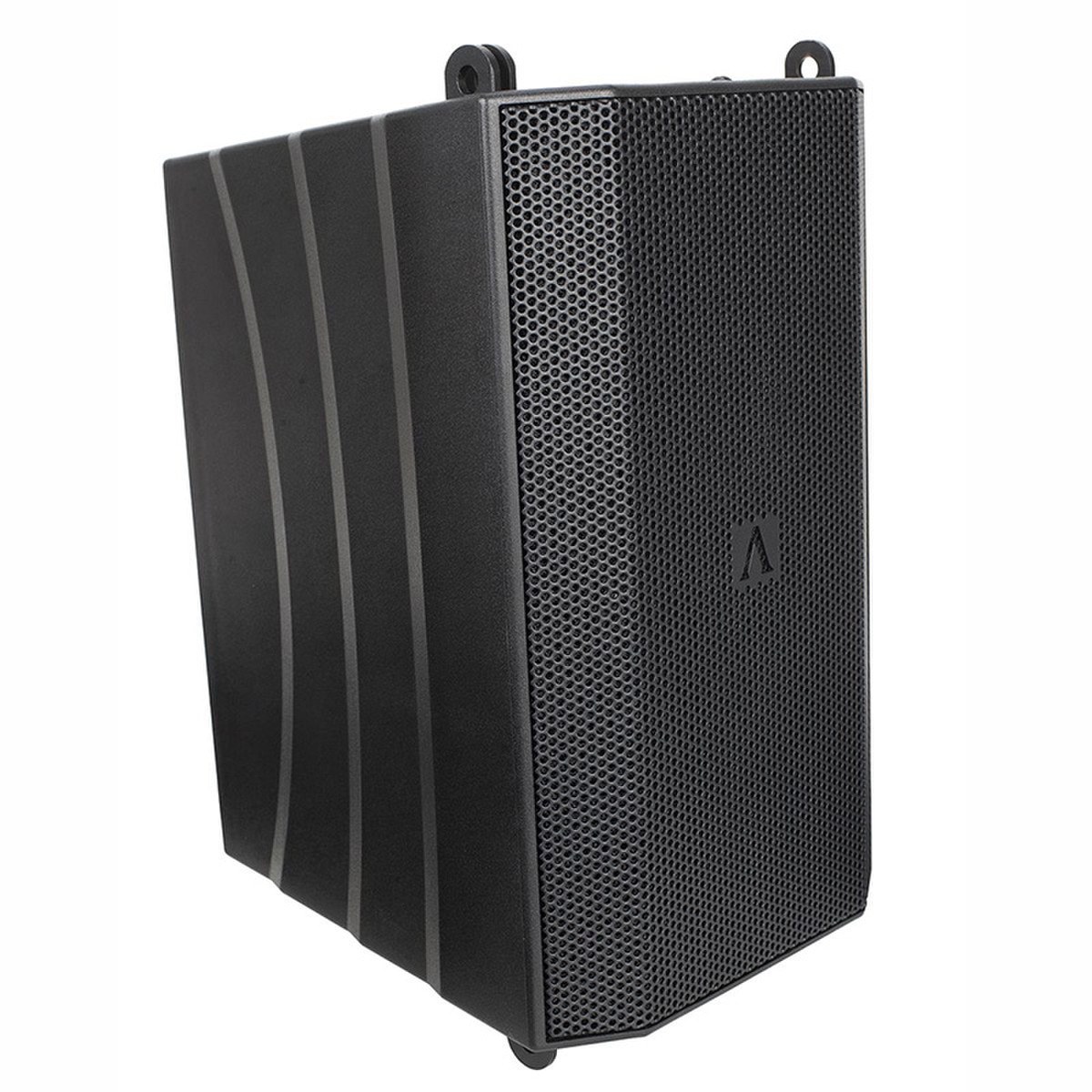

The Imperio Pro Series builds on the success of Avante Audio’s original Imperio Series. Designed for very fast deployment and versatility, the Imperio Pro IMP205 is a light-weight compact, high output active line array system fully equipped with neodymium components: Dual 5-inch Low-Mid transducers and Six 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology). Each array module of IMP205 is driven by 440W RMS (1700W Peak) Class-D Power Amplifier with PFC Switching power supply.
Imperio Pro IMP205 features include: 32-bit DSP with advanced FIR digital filter technology. Controls include selectable DSP and input sensitivity. Rigging offers seven Splay Angles: 0, 2, 4, 6, 8,10, & 12-degrees. The Imperio Pro IMP205 cabinets can also be configured as a flown array with the sub on top or ground stacked on subs.
Imperio Pro accessories include: Imperio Pro NEW Flybar (IFB205), Imperio Flybar LG (IMP265), Imperio Flybar Small (IMP496), Imperio Pole (IMP194) and Link-pin 2 (IMP340), Imperio Pro T-Adapter (IMP224), Imperio QRC Road case (IMP670) Imperio Pro Ground Stack mount and base (IGS205).
Specifications
Amplifier:
- 440W RMS, 1700W Peak Class D Amplifier Module
- Switching Power Design
- LED Power / Signal / Clip Indicator
- 32-bit DSP with FIR digital filters
- Selectable System Configurations

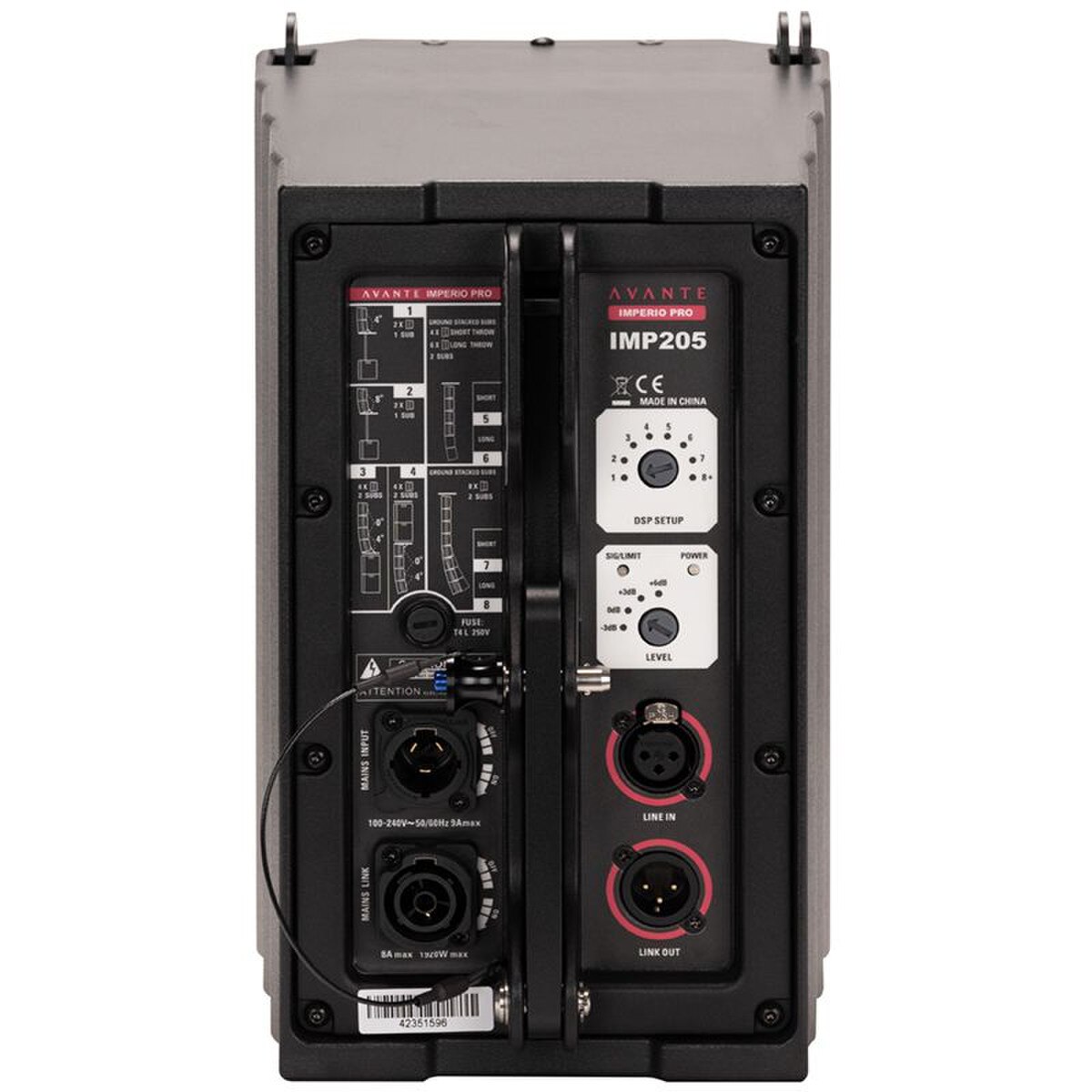

- Input: 1x XLR and IP Locking Power Connector
- Output: 1x XLR and IP Locking Power Connector
- Gain: Selectable Input Sensitivity
- Power Input: 100-240V ~ 50/60Hz
Speaker:
- 2x 5.0" Neodymium Low-Mid transducers.
- 6x 1.75" IDVAT HF Neodymium drivers (Inverted Dome Vertical Array Technology)
- Type: 2-Way Active Closed Design
- Frequency Response: 100Hz – 20KHz
- Max Output SPL: 128dB (single box measured on Axis @1m)
- Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB
- Cabinet: ABS Plastic

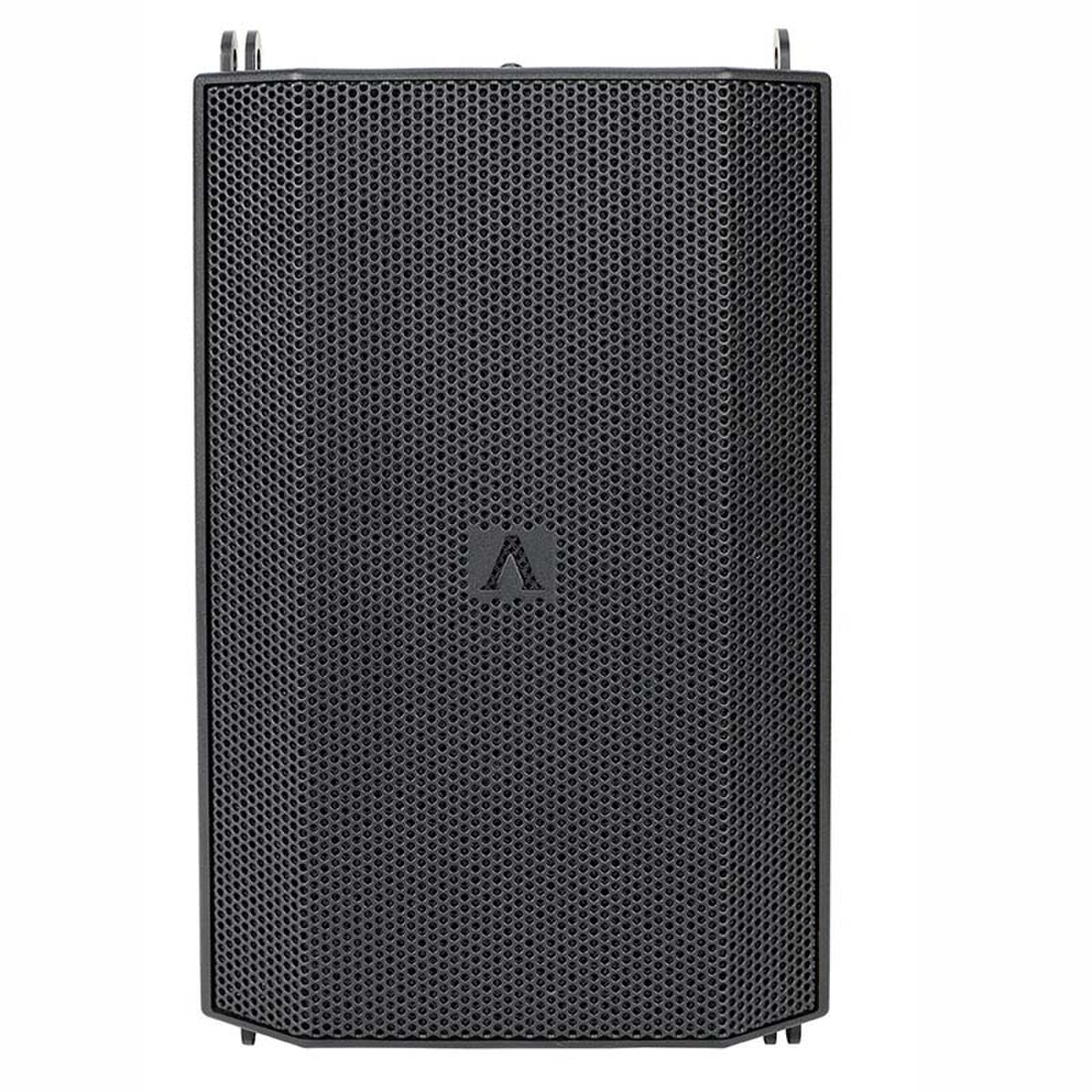

- Grille: Powder coated Steel

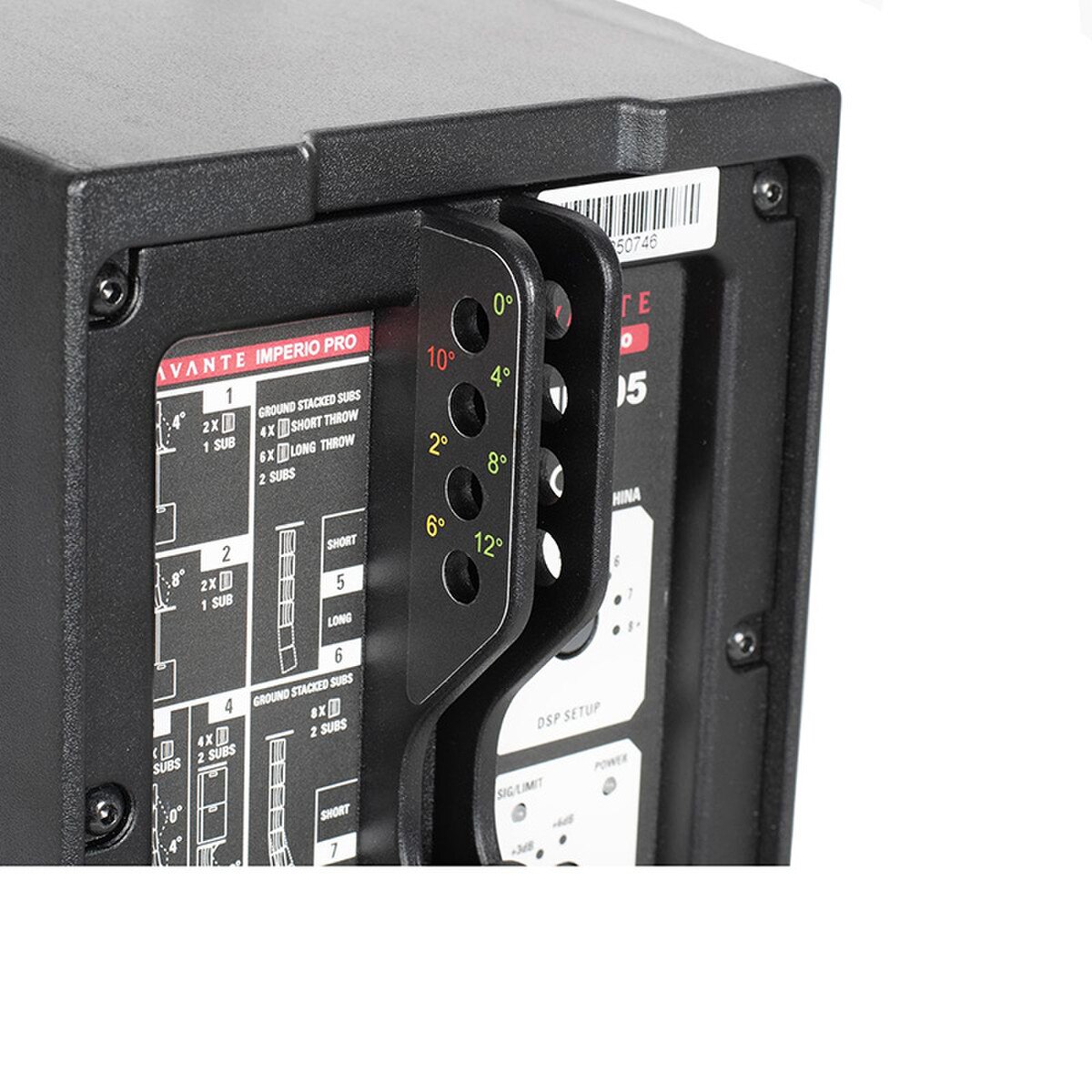

- Splay Angles: 0, 2, 4, 6, 8,10, & 12-degrees
- Integrated Rigging: Yes
- Horizontal Dispersion Angle: 100⁰
- Dimensions (LxWxH) 8.8” x 7.3” x 12.8” / 224mm x 185mm x 324mm
- Weight: 12.5 lbs. / 5.6 kg.
Included Items:
- (1) IMP205 line-source speaker
- (1) IP Locking power link cable
- (1) Link-pin set
- (1) XLR link cable
- (1) User Manual
Avante IMP205 User Manual.pdf
Avante IMP205 Cutsheet.pdf
Avante IMP205 Dimensional Drawing.pdf
Avante IMP205 Frequency Charts.pdf
