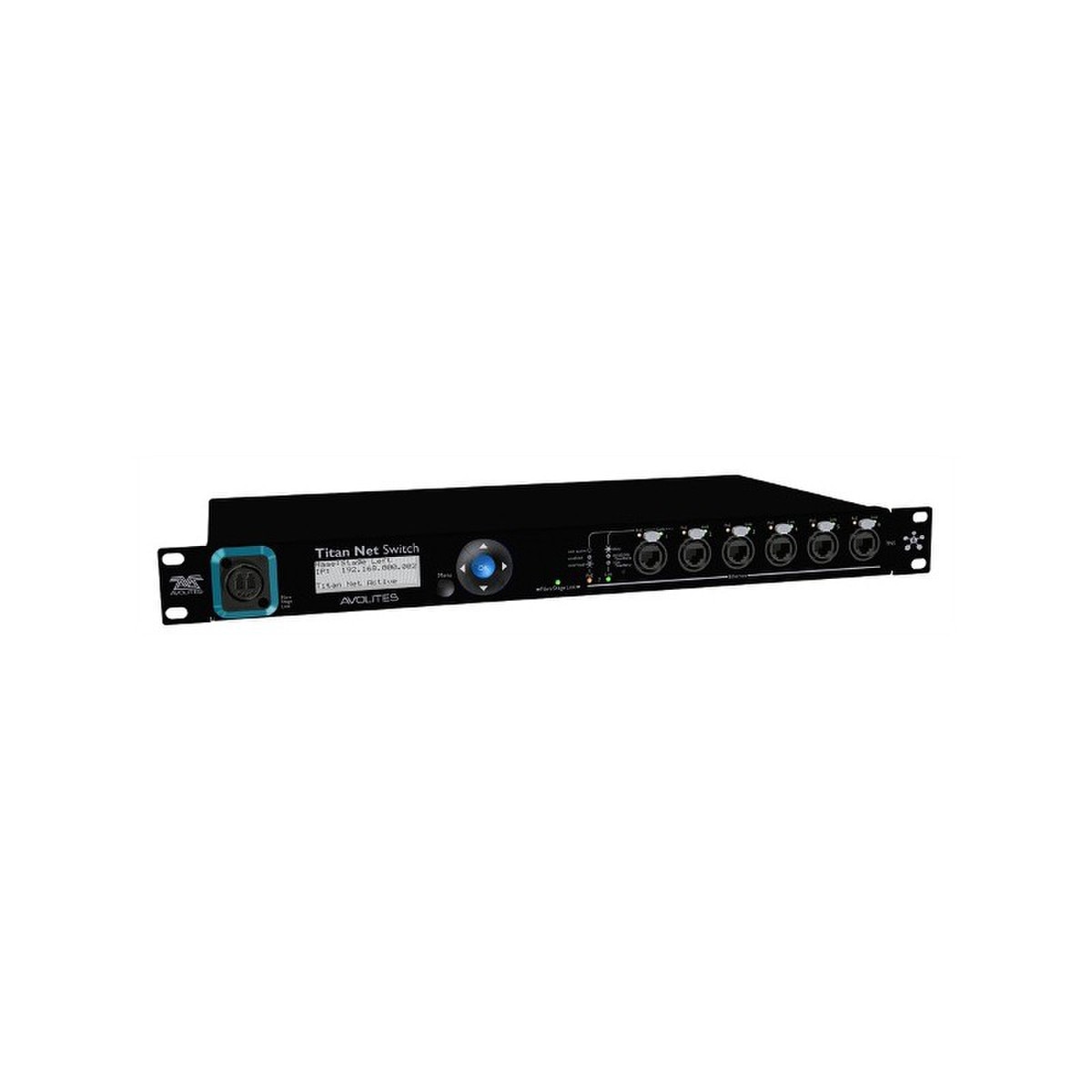

Avolites Optical Titan Net Switch

The Optical TNS is perfect for connecting FOH to stage using Cat5E Ethernet cables for distances under 100m, and an Optical input for fibre connections over distances exceeding 100m. The 1 Gigabyte network switch also features a built in UPS to ensure the stability and resilience of your show setup.

Features:

• 1 opticalCON optical input
• 6 etherCON outlets with status indication above the outlet for easy status checking
• Integrated LCD display for easy configuration and status reporting
• Built in UPS - Maintain the network during mains outages
• Can be used by direct connection to the Avolites Arena console or in pairs to any Avolites Titan console
• Connect FOH to the stage with Cat5E ethernet cables, up to 100m dependent on cable quality
• The Optical port connection can be used to bridge distances larger than the 100m ethernet, depending on the fibre used this can be 225m-550m (multimode) or 10km (single mode)

Switch capacity:

• Ports are usable at 10,100 and 1000 Mbps
• Bandwidth: 20 Gbps full duplex
• Network latency @1000Mbps: Less than 4 μs

Front:

• 1 opticalCON optical input at the front
• 6 etherCON outlets with status indication above the outlet for easy status checking
• 1 status indication for rear mounted etherCON outlet

Rear:

• 1 etherCON outlet with status indication above the outlet for easy status checking
• IEC mains inlet compatible with the ‘IECLock™’ connector
• Compatible with all Titan consoles (except the Titan One)
