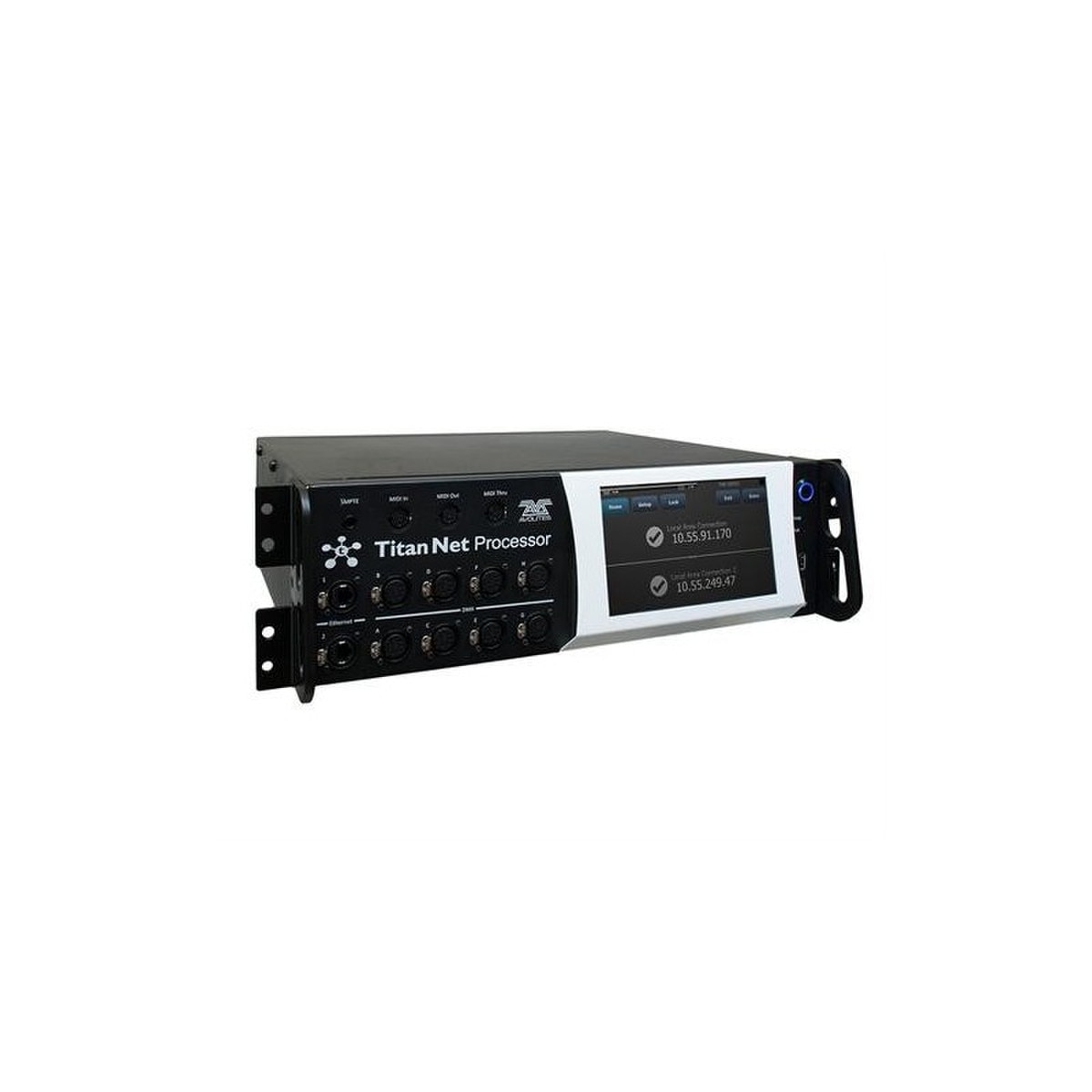

Avolites Titan Net Processor
Details
Features:
- The Avolites Titan Network Processor (TNP) enables any Titan console to be expanded to a total of 64 Universes. Each Titan Network Processor processes up to 16 universes of which 8 are provided as DMX512 on the unit and all 16 universes are available via Art-net over the dual Ethernet port.
- Each DMX outlet is optically isolated from the system and fully floating.
- The TNP has the same processing power as used in the Sapphire Touch and other Titan consoles . The complete processing unit and local SSD storage is mounted on a shock mounted sub-frame inside the TNP case.
- The TNP not only offers more universe but also shares the processing load of your show.
- Use our simple graphical interface to set up and manage your network.
- The clear touch sensitive LCD screen which is slanted upwards, provides direct indication of the system status, and allows for fast setup.
- The TNP is an integral part of the Titan family of consoles and therefore a dedicated UI is provided on the console to closely manage the connected TNP units on a network.
- The Dual Gigabit Network connections can be transferred to the back of the unit so structured cabling can be routed inside the rack for more reliability.
- The TNP is equipped with a built-in UPS increasing the resilience of the network against mains failure.
- The TNP further has a balanced SMPTE input as well as a Midi In, thru and out on the front.
- Two USB sockets are provided for non-networked file transfer and setup when desired.
- The TNP is housed in a custom designed plated and powder coated steel 3HE 19” rack mount case with convenient handles.
- The TNP is compatible with Titan consoles running Titan OS V7 and above.
- 16 Universes processed
- 8 DMX512 outlets optical and galvanic isolation
- SMPTE balanced input
- MIDI in, thru and Out
- 2 Gigabit Ethernet ports, either fitted at the front or back of the unit (fitted to the front ex-works)
- Bright 800x600 touch sensitive LCD slated upwards
- Integral part of the Titan console family with a dedicated UI on the console
- Two USB2 sockets at the front
- Build in UPS (5 x 5 minute session without charging)
- 100~240v AC main input range
- Intel i5 processor, 2Gb Ram, fast SSD drive for the system
- Processing unit is mounted on a shock mounted frame
- Plated and painted steel enclosure, 3HE x 19” x 368mm deep (from front strip), 58mm protrusion from the front strip
- Dimensions: 2.4 x 2.2 x 1.3" (61 x 57 x 34 mm)
- Net weight: 32.0 lbs (14.5 Kgs)
