Ayrton DreamPanel Twin 1050W RGBW/RGB LED 8 / 120°

(0)No Reviews yet
$10,582.50
SKU: Ayrton AY017550

Details

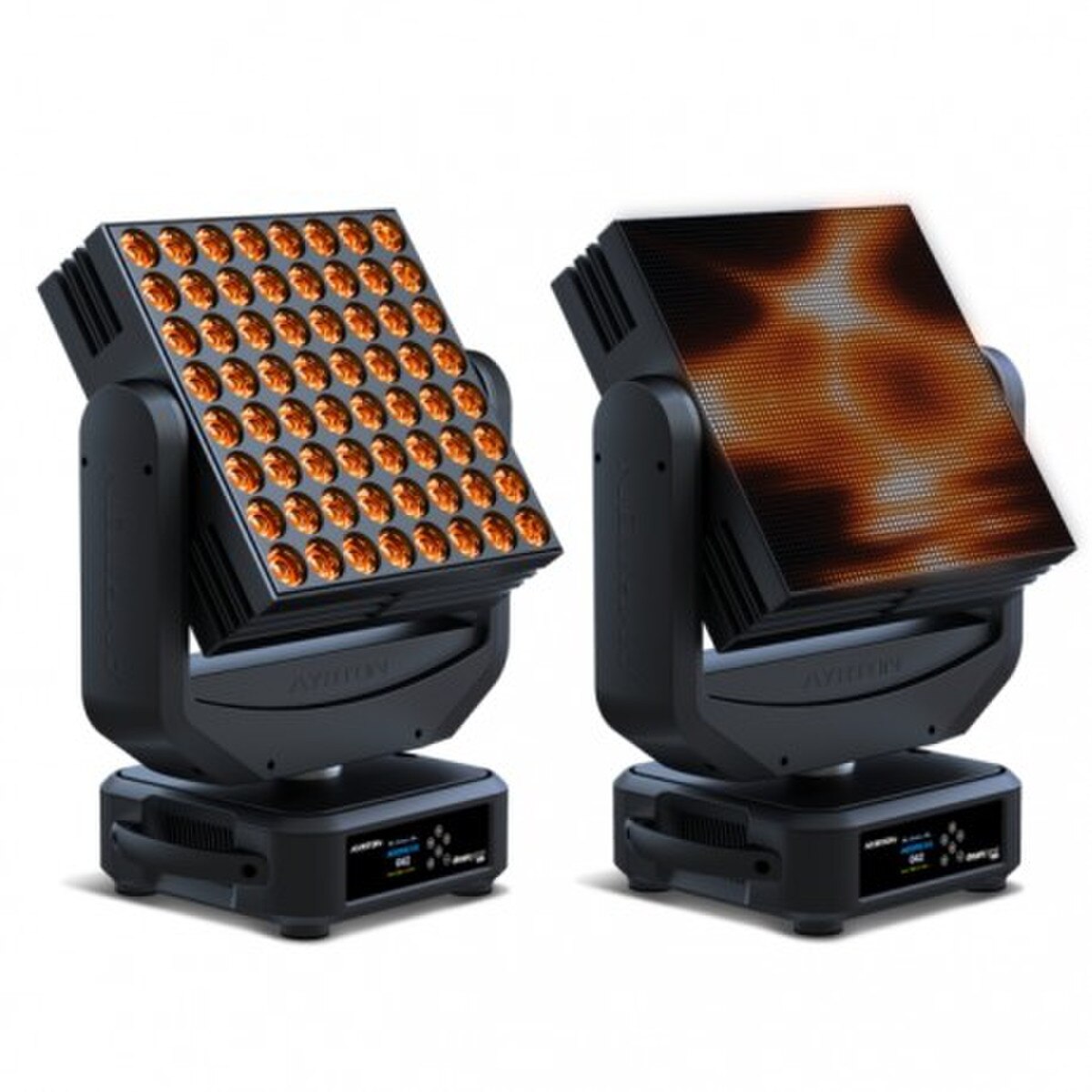

The DREAMPANEL TWIN is a hybrid luminaire with the MAGICPANEL on one side and the DREAMPAENL SHIFT on the other.
Capable of continuous double rotation on the pan and tilt axes, the DREAMPANEL TWIN can alternate between displaying high-definition video images and 3D volumetric lighting effects. The MAGICPANEL side has improved resolution thanks to an 8 x 8 matrix featuring patented 45 mm diameter collimators that can obtain a full 6° angle and centre-beam luminous intensity of over 73 candelas per lumen, a record achievement.

The innovative 45 mm optics enable the DREAMPANEL TWIN to achieve almost the same performance as the MAGICPANEL-R by offering a much higher 64-pixel resolution, ideal for mapping effects.
The video side uses the same array as the DREAMPANEL SHIFT and is equipped with 4,096 RGB LED emitters. Their black casing and internal reflector provide absolute contrast and allow for breathtaking graphic effects, while avoiding stray reflections from the other emitters. The two sides are controlled completely separately-the video side through the entirely new HDMI DREAMPANEL HD-BOX control system, whilst the MAGICPANEL side used for 3D volumetric effects, along with the pan and tilt movement, is managed by Art-Net or sACN through an Ethernet link.

Performance:

  • Light Source: 1,140 W - Hybrid
  • Lumens: 25,000 3D CS side
  • Brightness: 3,500 nit Video side
  • Pitch/Resolution: 6 mm/64 x 64 Video side
  • Movement: Infinite Pan Tilt
