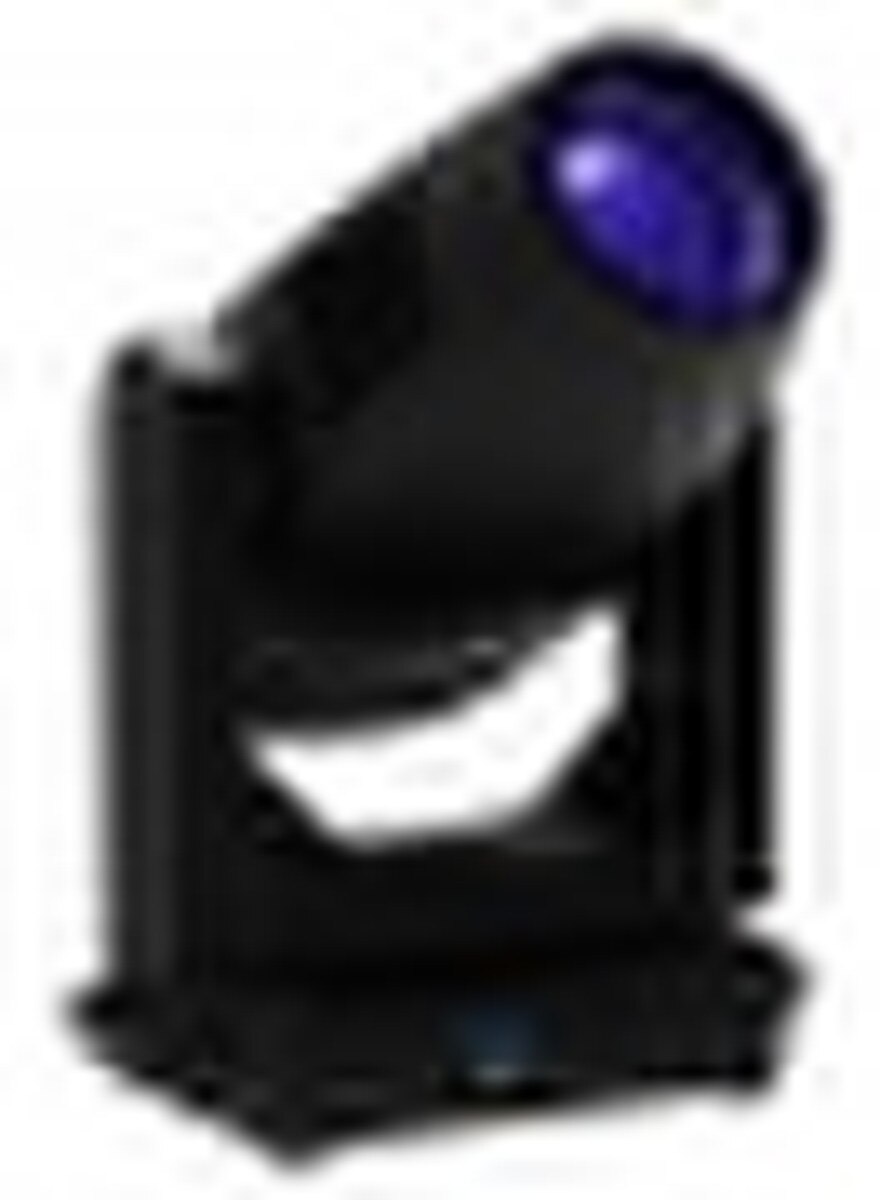

Ayrton Khamsin S/TC 750W LED Profile 7-58° Automated Fixture - S Scenic Profile Fixture

(0)No Reviews yet
SKU: Ayrton AY011640

Add this item to get free shipping! (Motor Freight Excluded)


Ayrton has once again pushed the limits with a newly designed “profile” luminaire… Khamsin… squeezing a 750 W LED module into the highly compact Ghibli format while offering 60% more light output. With such a versatile and compact luminaire you can only imagine the creative possibilities! Like all luminaires in the AYRTON product line, KHAMSIN is available in two versions:

KHAMSIN-S is designed for scenic applications. It is equipped with a new LED module, delivering powerful metallic white light with record-breaking output of 40,000 lumens and a colour temperature of 6500 K.

Devised specifically for applications that require perfect colour reproduction, KHAMSIN-TC is equipped with an entirely new LED module using a monochromatic light source with a native colour rendering index greater than 90, extremely high TM30 readings and a colour temperature of 5700 K.


  • 13 elements 8:1 zoom high-resolution optic system
  • Beam aperture: 7° to 58°
  • 158 mm frontal lens for greater performance
  • Moving-head range: 540° (pan), 270° (tilt)
  • Light Source: Rated life (L70): up to 40,000 hours
  • Gobos: 2 indexable rotating gobo wheels with 6 high-precision glass gobos, plus open position
  • Gobo diameter: 34.0 mm
  • Image diameter: 24.0 mm
  • Gobo thickness: 1.1 mm
  • Effects: Focusable graphic animation effect-wheel with continuous rotation in both directions
  • Sparkle effect: dynamic animation effect with speed and fade adjustment
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5 pin male and female connectors for DMX connection
  • etherCON RJ45 IN / OUT connectors for ArtNet™ connection
  • powerCON TRUE1 male connector for power connection
  • Control: DMX 512 protocol, through DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • ArtNet™ & sACN protocol through Ethernet cable
  • Power supply: Electronic supply with active PFC
  • 120 to 240 Volts – 50/60 Hz
  • Power: 1,150 W maximum
  • Cooling system: Advanced liquid cooling system
  • IP20 protection rating
  • Exterior finish: black (Carbon)
