Ayrton MagicPanel-R 375W RGBW LED 4.5°

(0)No Reviews yet
SKU: Ayrton AY015650

Add this item to get free shipping! (Motor Freight Excluded)

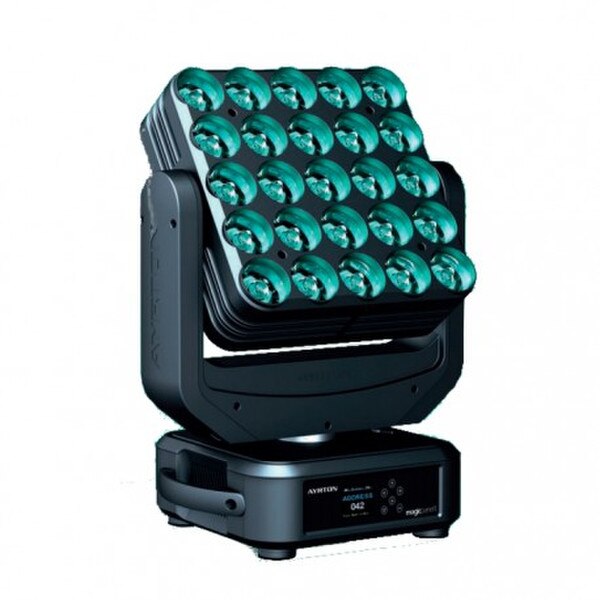

MAGICPANEL™R represents a variant of the world famous MAGICPANEL™602, which has enjoyed huge international success since its launch. The integration of the features specific to the RADICAL™ range, in conjunction with continuous double rotation on two axes and a 5 x 5 matrix of individually-controlled LED sources around a central point, once again allow AYRTON™ to push the boundaries of imagination. Fitted with twenty-five 15 Watt LED RGBW sources paired with 67 mm collimated optics, each MAGICPANEL™R offers an overall flux of 10,625 lumen and a centre beam luminous intensity of 1,115,500 candela from a maximum power consumption of 450 Watt. This translates into a visual perception that is twice as high as the 45 mm optics for 30% less power consumption.


  • Beam aperture: 4.5°
  • Light output: up to 10,625 lumen
  • Luminous intensity: 1,115,500 cd
  • Rated sources life: up to 50,000 hours
  • Moving-head operated via either8 or 16 bit resolution
  • 5 pin male and female connectors for DMX connection
  • PowerCON TRUE1 male and female connectors for power connection
  • IP20 protection rating
  • Exterior finish: black (Carbon)
