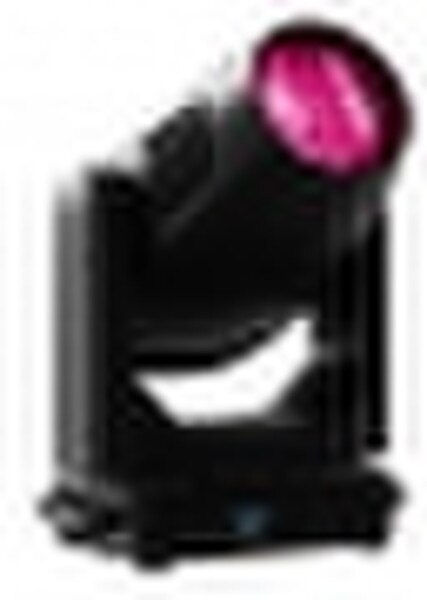

Ayrton Mistral-S/TC 300W LED Spot 7-53° Automated Fixture - S Scenic Spot Fixture

Ayrton has once again pushed the limits with Mistral! A versatile, new fully equipped 300 W spot luminaire in the same ultra-compact format as MERAK. MISTRAL comes in two versions, each to meet the specific requirements of lighting professionals.

MISTRAL-S is designed for scenic applications. It is equipped with a new LED module, delivering powerful metallic white light with record-breaking output of 18,000 lumens and a colour temperature of 6500 K.

Devised specifically for applications that require perfect colour reproduction, MISTRAL-TC is equipped with an entirely new LED module using a monochromatic light source with a native colour rendering index greater than 90, extremely high TM30 readings and a colour temperature of 5700 K.

Specifications:

• Optics:
  • 13 elements 8:1 zoom high-resolution optic system
  • Beam aperture: 6.7° to 53°
  • Fast motorised linear zoom
  • 119 mm front lens for ultimate performance
• Light source:
  • Rated life (L70): up to 40,000 hours
  • Flicker-free source management
• Movement:
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors
  • Pan and tilt with automatic repositioning
  • Moving head range: 540° (pan), 270° (tilt)
• Colours:
  • Sophisticated colour mix system providing CMY colour mixing
  • Variable CTO colour temperature correction
  • Fixed colour wheel with seven saturated colour filters
• Gobos:
  • Indexable rotating gobo wheel with 7 high precision glass gobos plus open position
  • Adjustable speed rotating gobo in both directions
  • Fixed gobo wheel with 9 high precision glass gobos plus open position
  • Gobo diameter: 25.0 mm
  • Image diameter: 20.0 mm
  • Gobo thickness: 1.1 mm
• Iris diaphragm:
  • Iris range: 15 to 100% open
• Frost:
  • Light frost filter (Heavy frost filter in option)
• Effects:
  • Focusable graphic animation effect-wheel with continuous rotation in both directions
  • 5-facet circular indexable rotating prism
  • Sparkle effect: dynamic animation effect with speed and fade adjustment
• Dimmer / Strobe:
  • Electronic dimmer, allowing perfect light adjustment from 0 to 100%
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second
• Hardware Features:
  • Graphic LCD display for addressing and special functions settings, with flip function
  • Clicking jog wheel to set functions
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • XLR 5 pin male and female connectors for DMX connection
  • powerCON TRUE1 male and female connectors for power connection
• Control:
  • DMX 512 protocol, through DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
  • Choice of 3 DMX modes (from 26 to 39 DMX channels)
• Power Supply:
  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60 Hz
  • Power: 450 W maximum
• Housing:
  • Moving-head skeleton made of aluminium and steel metal plates
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)
