Blizzard Colorise Zoom RGBAW - Black
Details
Wireless DMX Magic

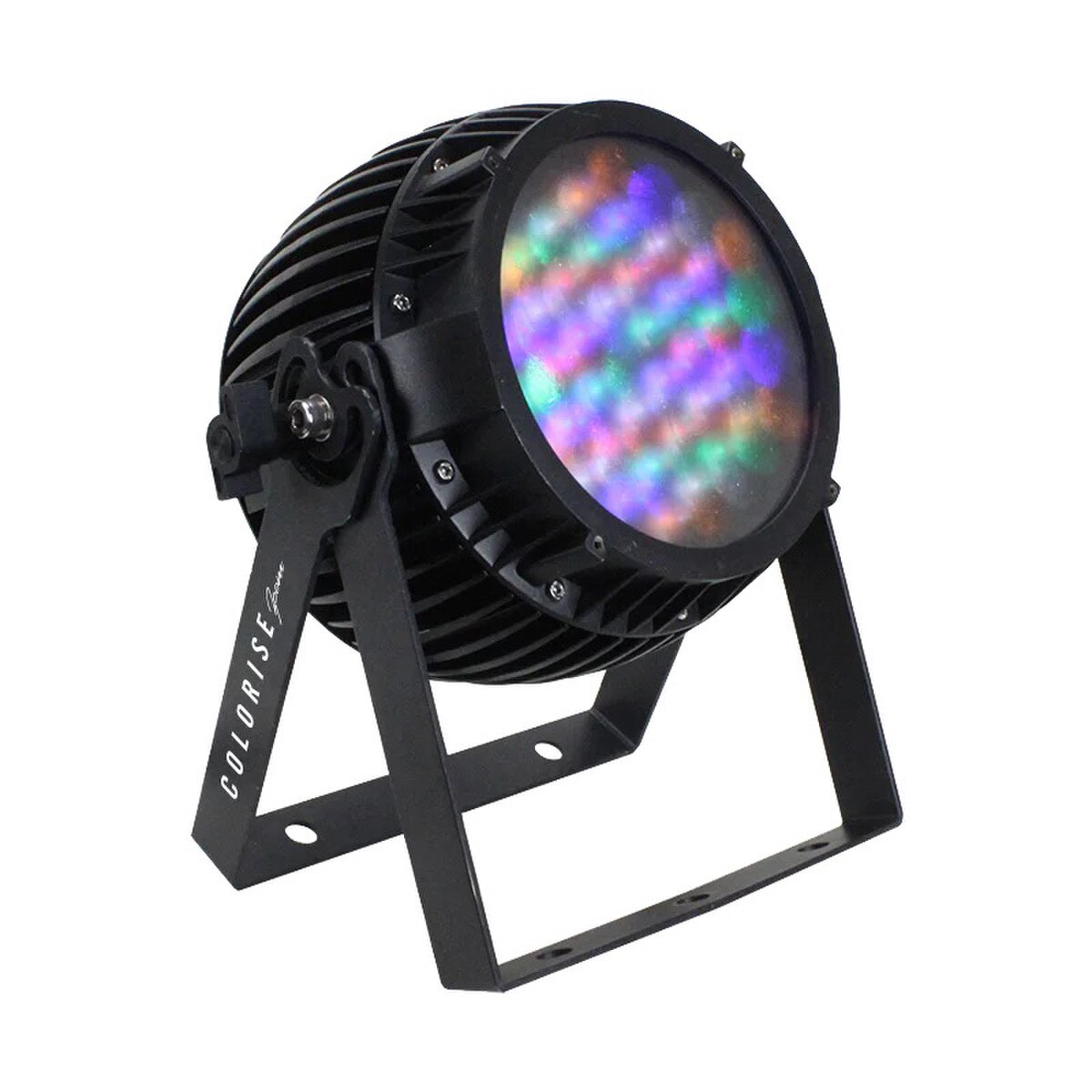

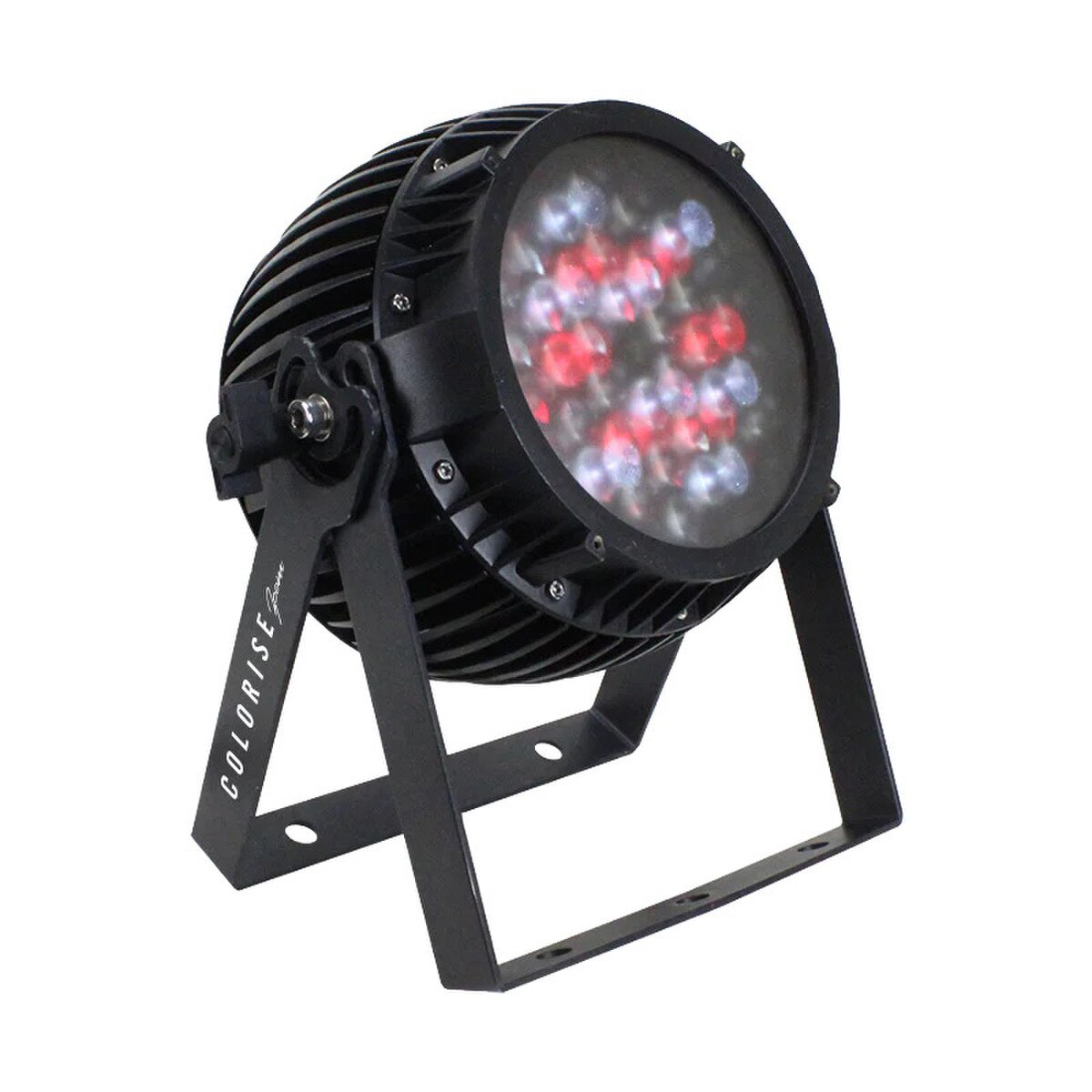

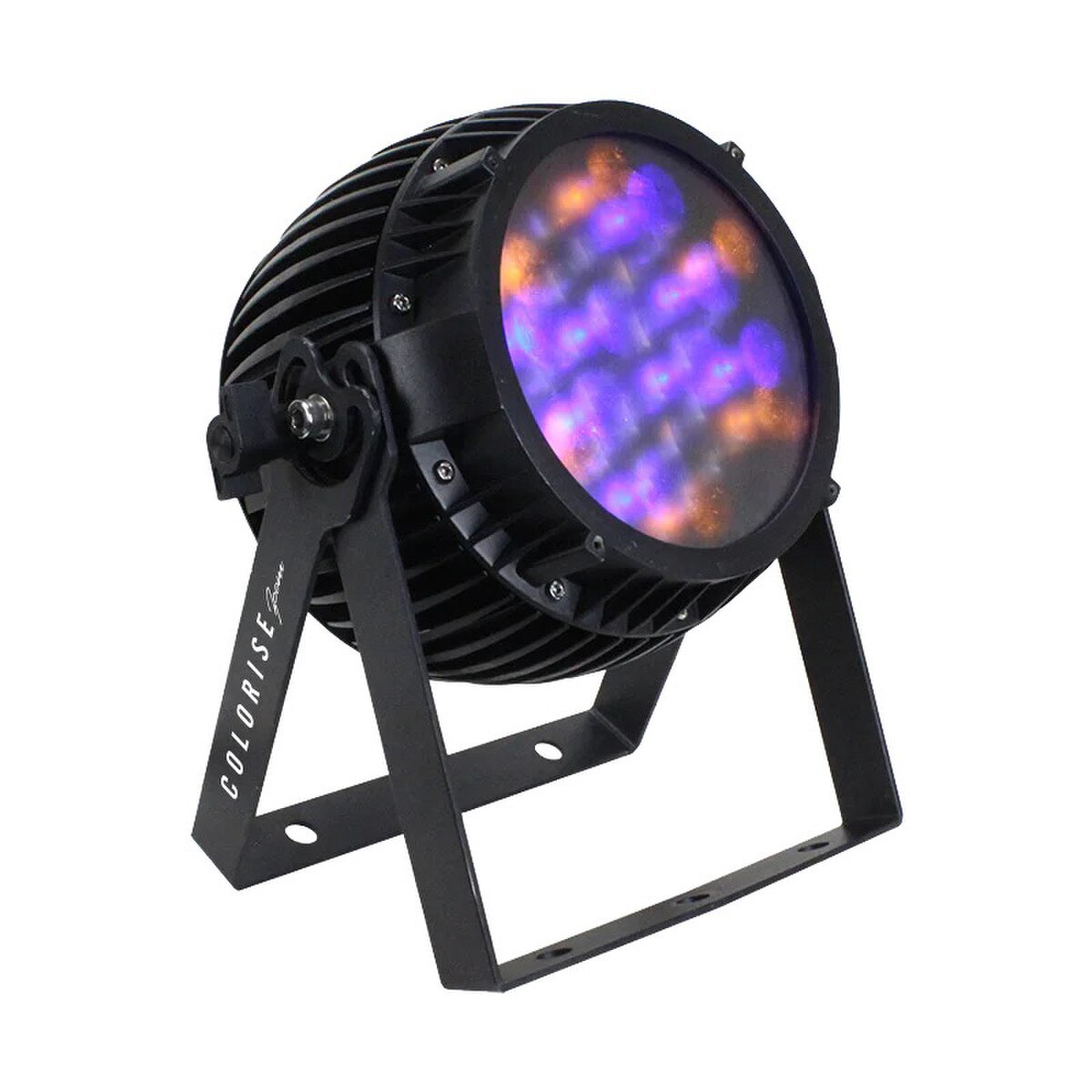

Colorise™ Zoom RGBAW fixtures come fitted with 36x 3W high-output RGBAW LEDs with a 10°-40° zoomable beam angle and diffused lens. They also feature our built-in AnyFi™ wireless DMX receiver which can flawlessly support both Skywire™ and W-DMX™ 2.4Ghz wireless DMX signal types. It’s the ultimate wireless DMX connectivity capability. (Say that five times fast!)
Quiet as a Church Mouse
Colorise™ Zoom RGBAW fixtures are highly efficient and have natural convection cooling thanks to their attractive cast aluminum housing with heat sink design. There are no internal cooling fans in these fixtures so absolutely zero noise is emitted, making them ideal for any "sound-sensitive" environment. Colorise™ Zoom RGBAW fixtures can be easily controlled in master/slave using either 5/7/9 or 11-channels of DMX via the easy to navigate LED control panel.
Features:
Specifications:
- 36x 3W R/G/B/A/W LEDs, 100,000 hours
- Built-in AnyFi® wireless DMX receiver (Skywire™ or W-DMX™)
- Diffused Optical Lens
- Natural convection cooled, totally silent operation
- User selectable 32-bit dimming curves
- Variable electronic dimmer strobe
- Built-in color and chase macros via DMX
- Built-in auto programs in standalone and M/S
- Color mixing ability in standalone mode
- 10-40° zoomable beam angle
- User selectable 5/7/9 or 11-channel DMX modes
- LED control panel with 4x touch sensitive buttons
- Control panel button lock/key

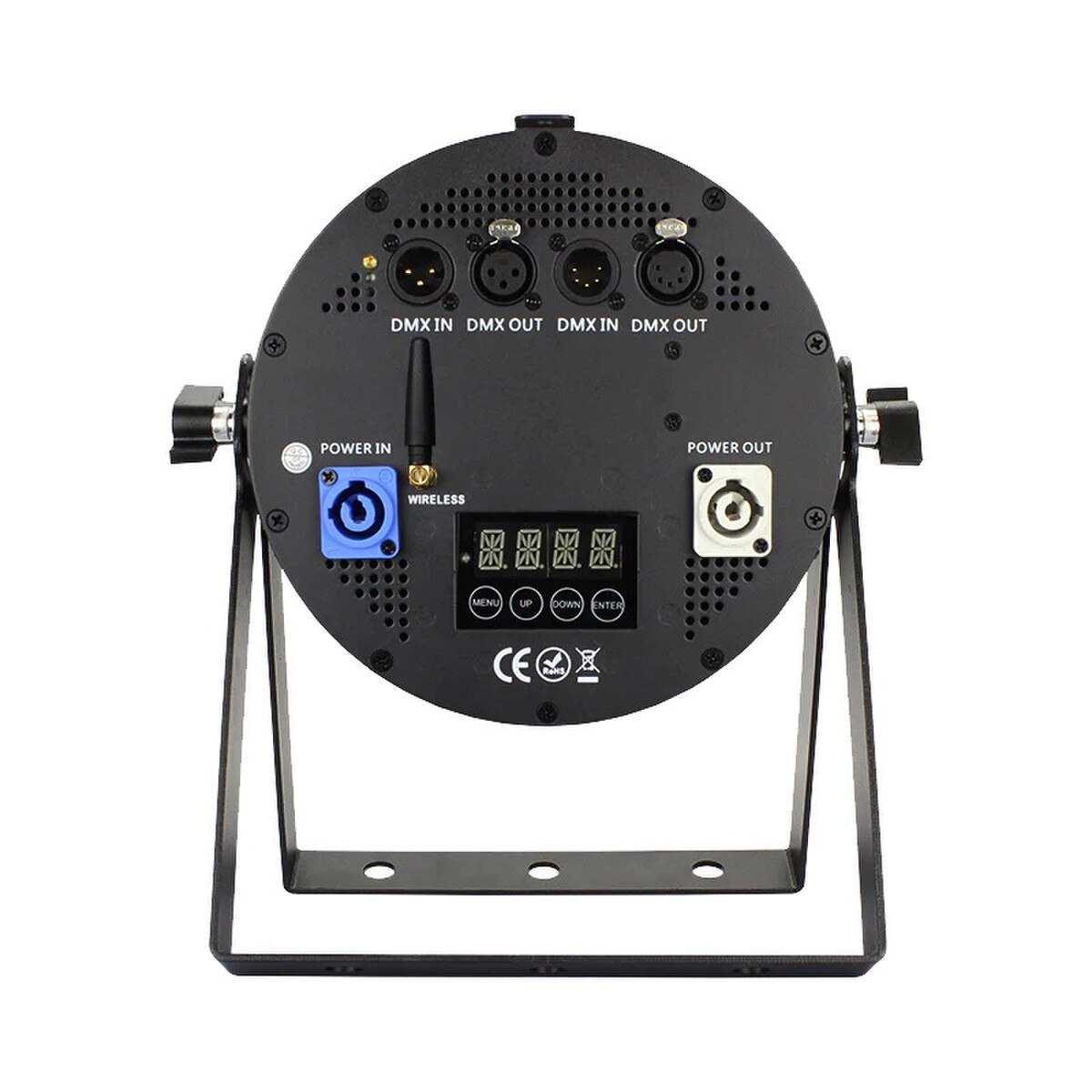

- 3/5-pin male input and 3/5-pin female output
- powerCON® compatible AC power In/Out connectors
Optical:
- Light source: 36x 3W LEDs (R) 6PCS, G (8PCS), B (8PCS), A (6PCS), W (8PCS)
- 10-40° zoomable beam angle
- Luminous Intensity: Wide: 2,132 Lux @ 2m, 407 Lux @ 5m | Narrow: 9,583 Lux @ 2m, 1,996 Lux @ 5m
Wireless Receiver:
- AnyFi® Wireless Receiver
- Frequency Hopping W-DMX™ Protocol
- Skywire 2.4Ghz ISM (2.402-2.48Ghz), 512 channels, 6/7 frequency groups
- Less Than 5ms
- Latency
- Receiver sensitivity: -94dBm
Weight & Dimensions:
- Width 10.7 inches (272.1 mm)
- Depth 5.6 inches (141.4 mm)
- Height 12.4 in (314.1 mm)
- Weight 11.5 lbs. (5.2 kg)
Control:
- Protocol: USITT DMX-512
- DMX Channels: 5/7/9 or 11-channels
- Input: 3/5-pin XLR Male
- Output: 3/5-pin XLR
- Female
- Standalone, Master/Slave, Color Preset
Power & Current:
- Operating Voltage: 100-264VAC, 47-63 Hertz
- Power Consumption: 120W
Warranty:
- 2-year limited warranty, does not cover malfunction caused by damage to LEDs
colorise-zoom-rgbaw-w_cutsheet.pdf
colorise-zoom-rgbaw-w_manual_rev_b.pdf
