Blizzard 2-FER-5PIN
Details

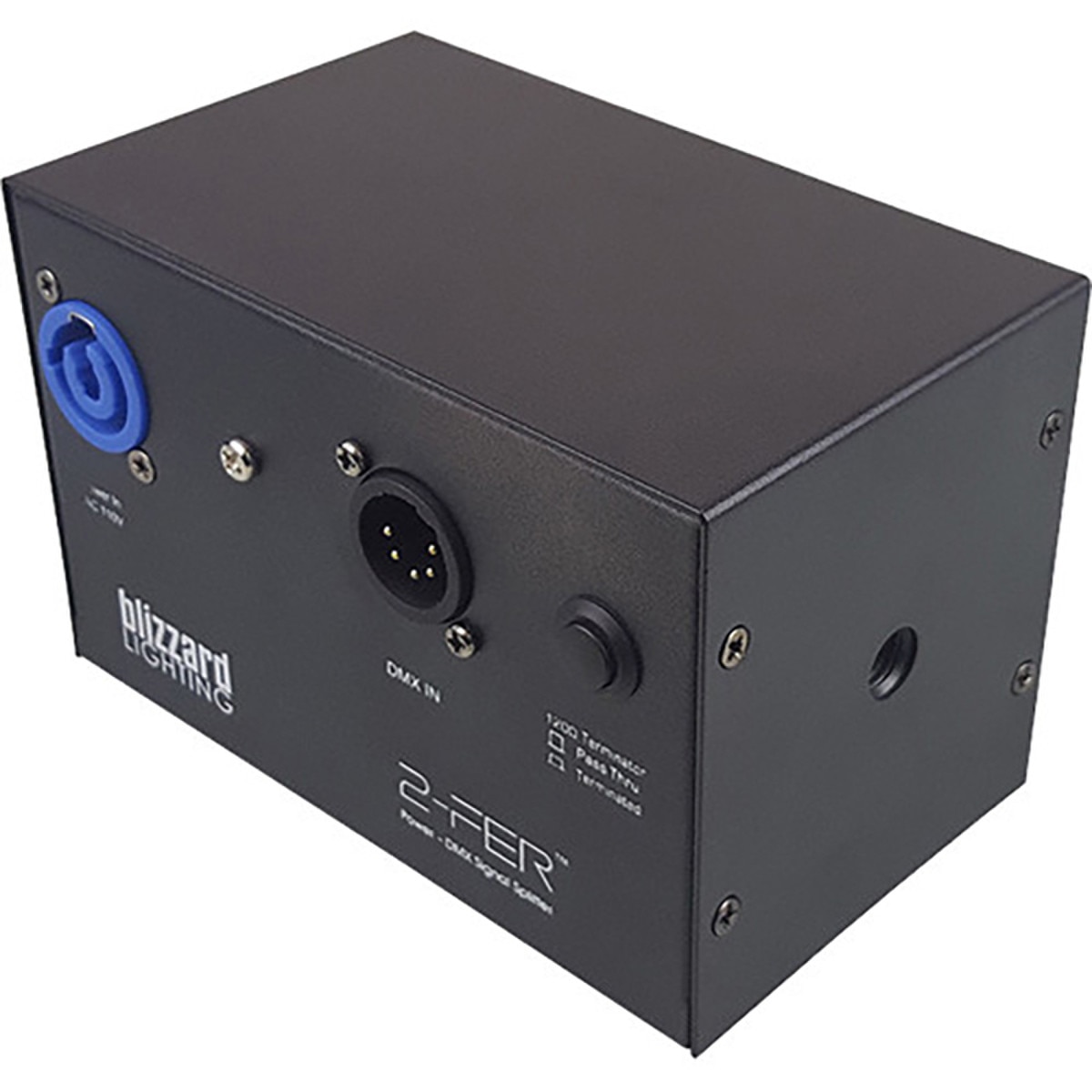

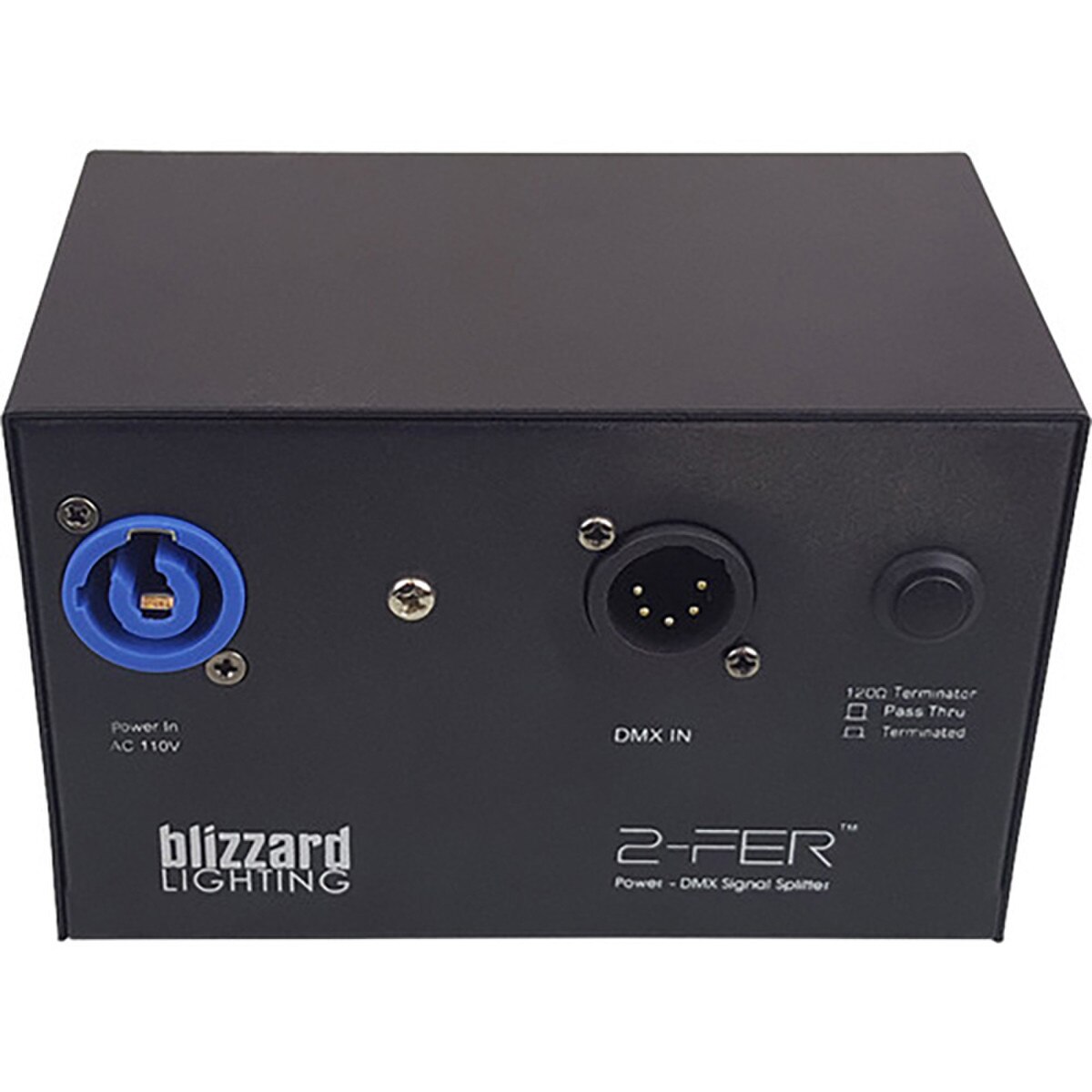

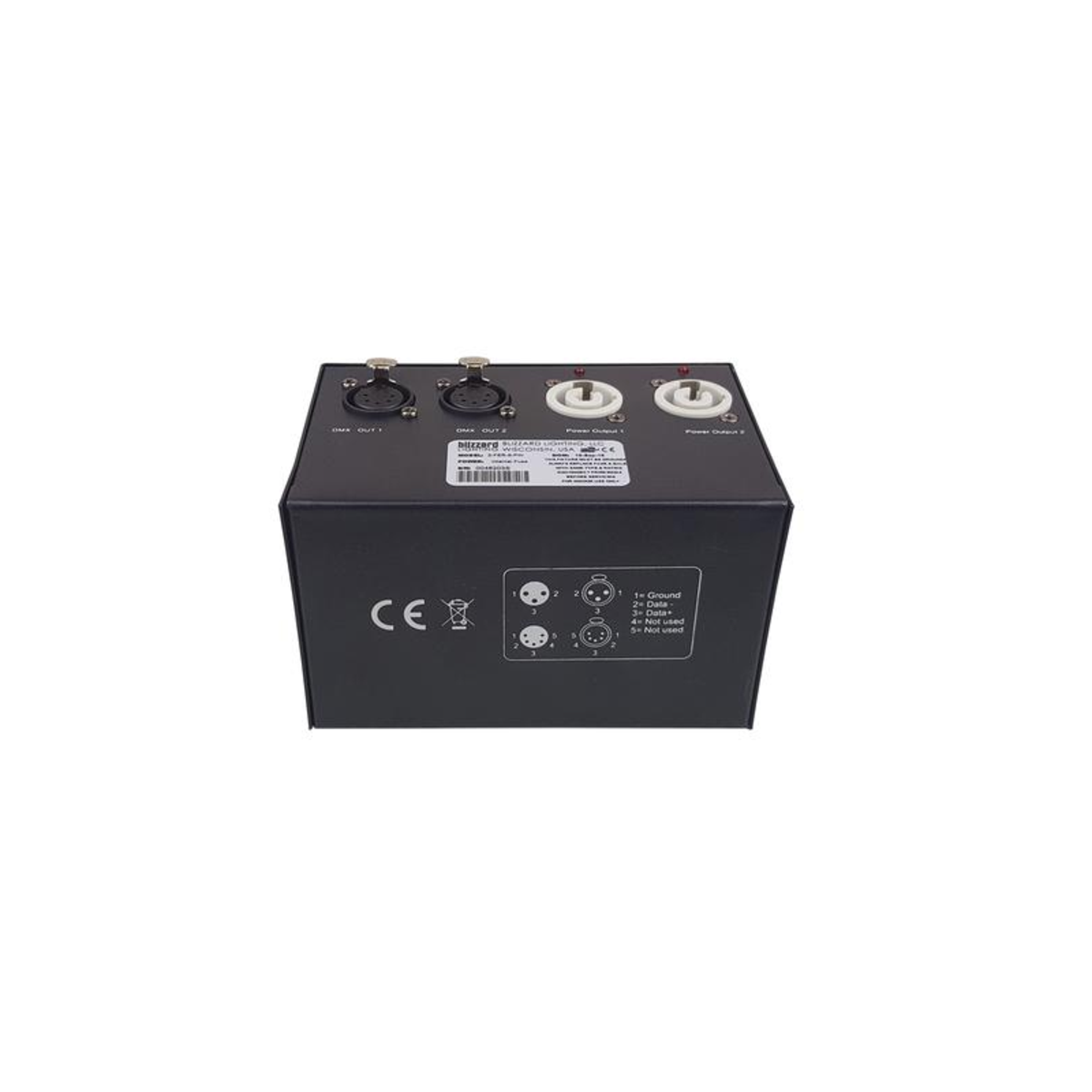

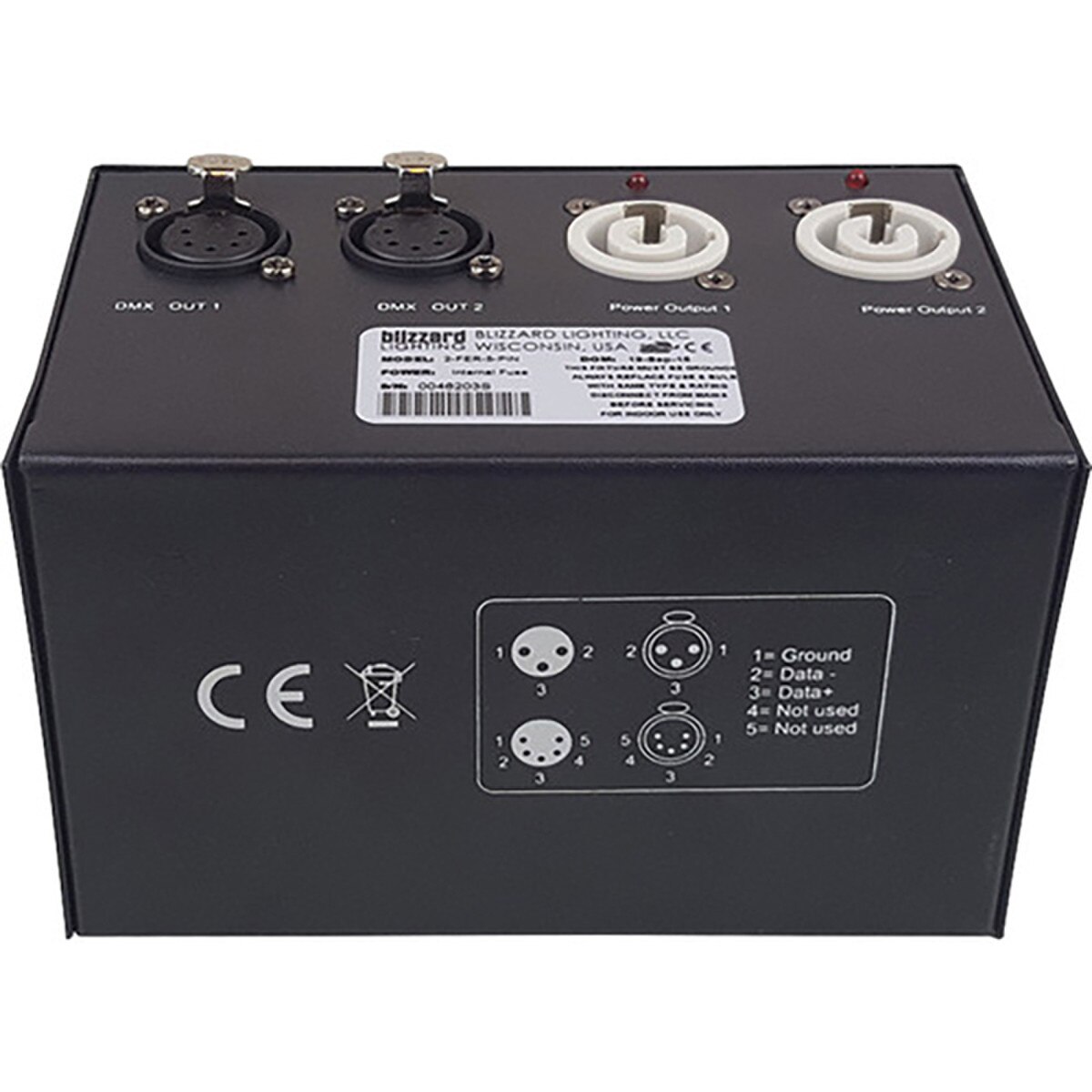

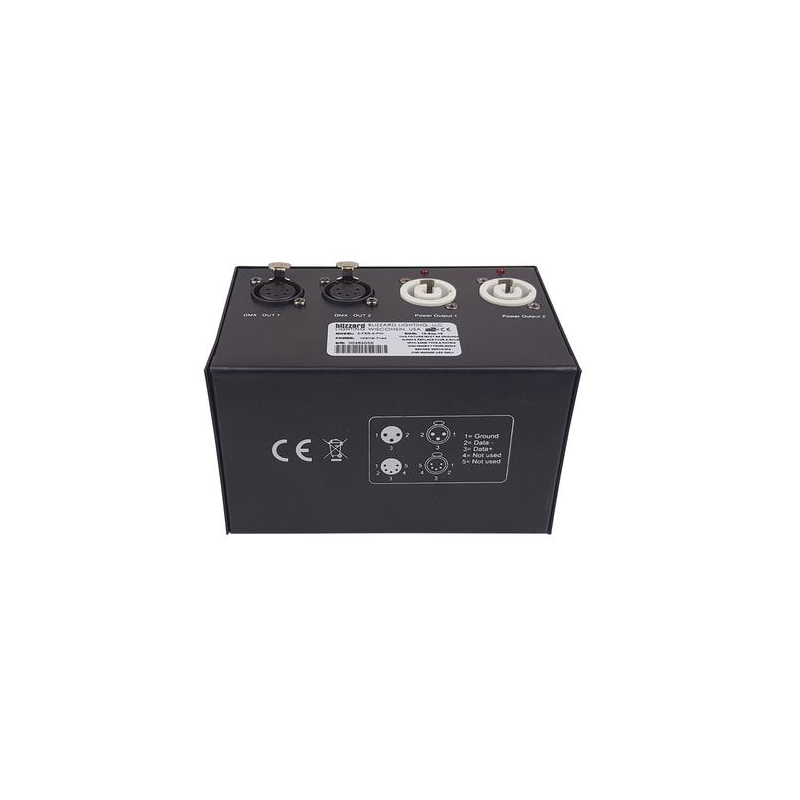

The 5-Pin 2-Fer 2-Way DMX Signal Splitter from Blizzard Lighting is a 2-way power splitter and 2-way DMX splitter in a steel housing that is a valuable asset in situations where powerCON and DMX cables are frequently used. The unit has 1 x 5-Pin DMX input and 2 x 5-Pin outputs to split the signal. Additionally, it has 1 x 20A powerCON input and 2 x powerCON outputs to split the power. The 100% optically isolated splitters also have a built-in 120Ω terminator/pass thru switch to complete the DMX chain and a threaded hole in the splitter box for mounting to truss, pipe, etc.
Benefits:
- 1 x DMX signal input
- 2 x DMX signal outputs
- 1 x powerCON compatible input
- 2 x powerCON compatible outputs
- Optically isolated XLR connectors
- Flush-mounted power connectors
- 5-Pin XLR connectors
- 120 Ohm Terminator/pass thru switch
- 12/14 AWG internal wiring
- Output power/signal LED status indicators
- Steel housing
- Threaded clamp mounting hole (M10)
- Sturdy, reliable build
Key Features:
- 2-Way Power + 2-Way DMX Splitter
- Good Match for Blizzard's DMX-PC Cables
- 1 x powerCON-Compatible Input, 2 x Outputs
- 1 x 5-Pin DMX Input, 2 x DMX Outputs
- LED Status Indicators
- Steel Construction
- 110-240 VAC Power Supply
- Threaded Mounting Hole
- 100% Optically Isolated
