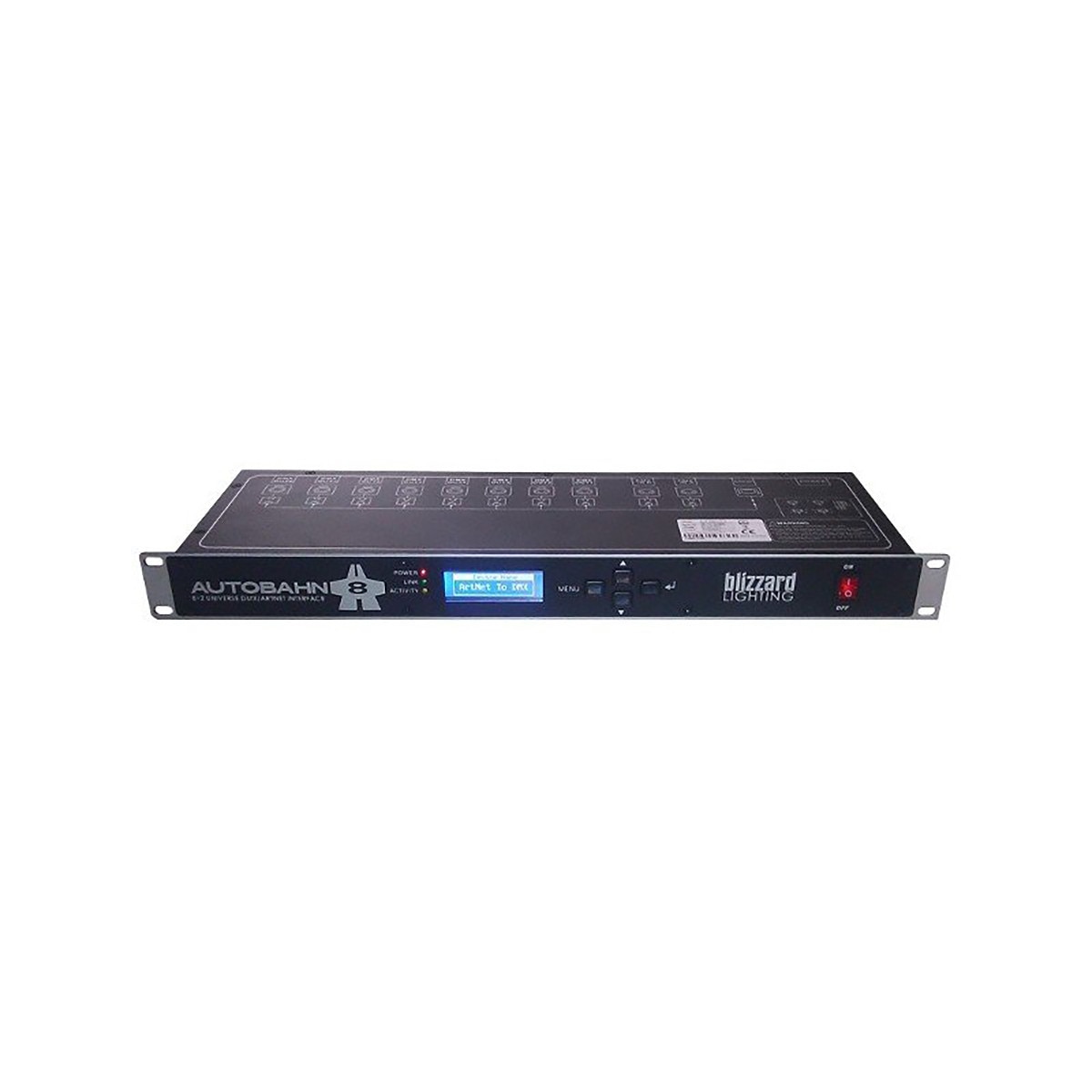

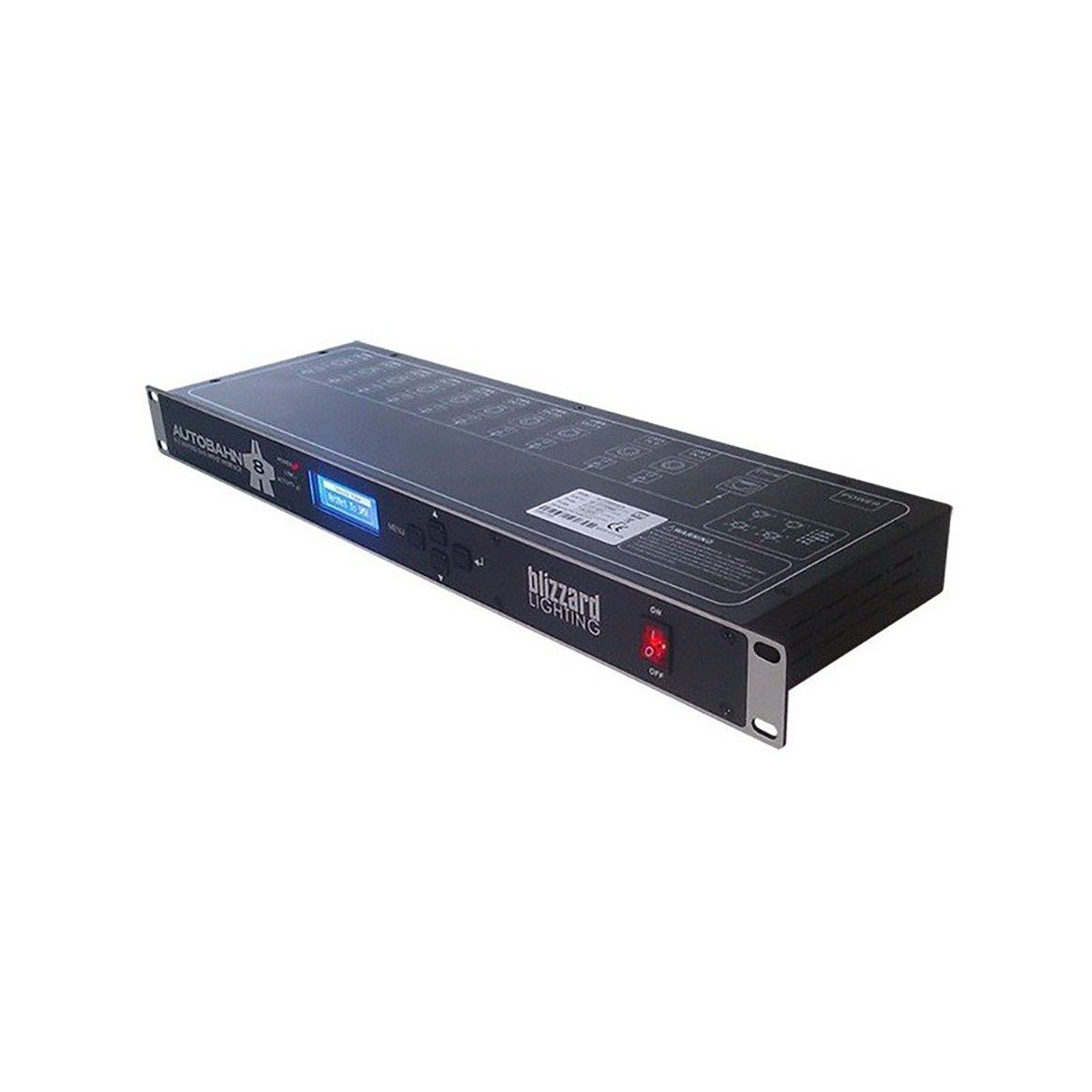

Blizzard AutoBahn 8 DMX to ArtNet Rackmount Interface

At A Glance:

• ArtNet/DMX bilateral signal conversion
• DMX outputs can be set to single, zero, HTP, or LTP
• Supports standard DMX-512 and ArtNet protocol

Fast DMX Response:

With usage of multiple LED fixtures and video mapping, many occasions require thousands of DMX channels. It's important to have fast DMX response and proper network load management. AutoBahn™ 8 not only provides instant response, but also a lower network load. It can allow you to increase the number of DMX universes and easily place DMX universes remotely on any TCP/IP Ethernet network. It can also be used as a DMX merger, DMX splitter, or backup device.

Fine Features:

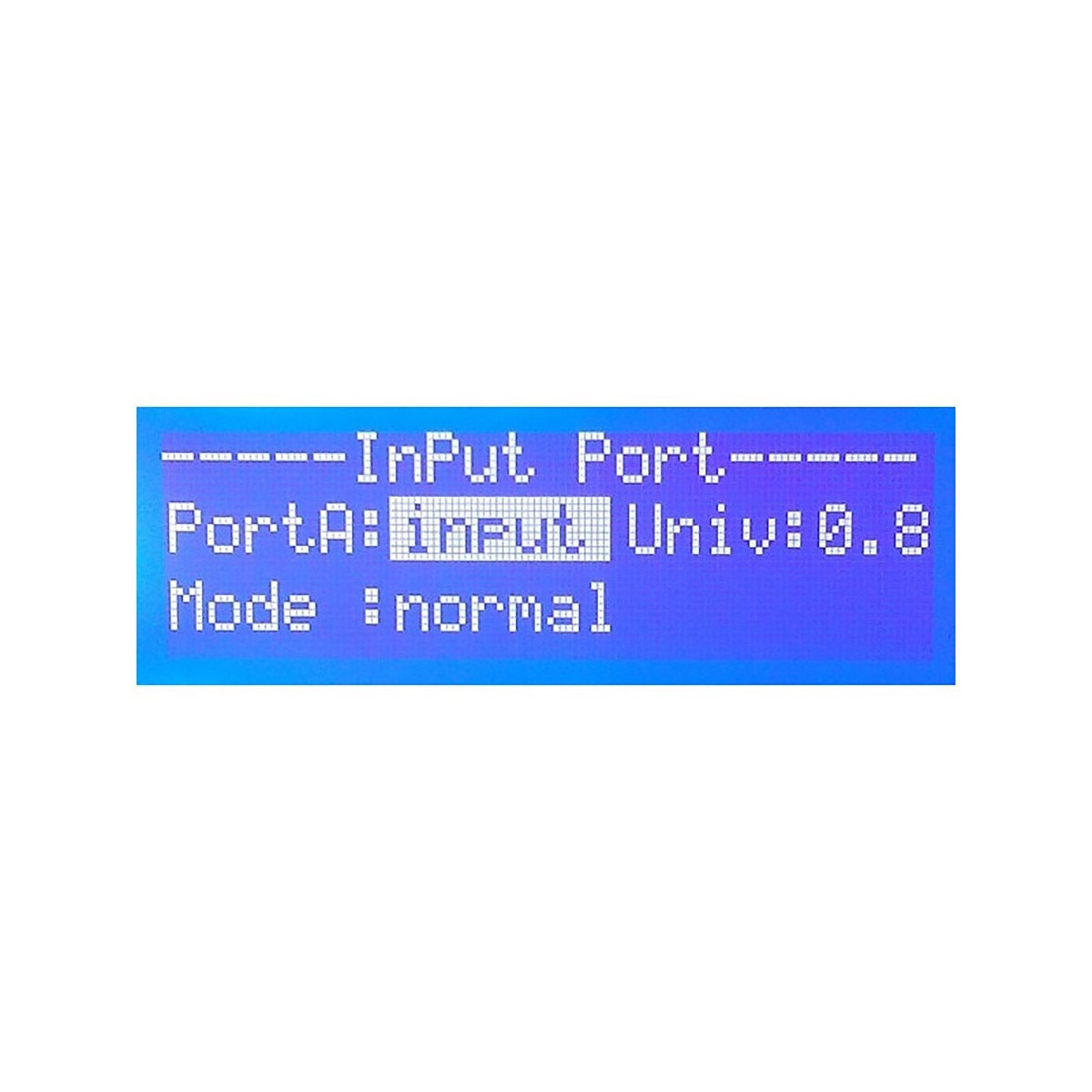

It features 1x RJ45 Neutrik™ EtherCON® 10/100M Ethernet LAN port with auto MDI/MDI-X (universal cable recognition), which eliminates the need of separate MDI and MDI-X ports, selector switches, or special crossover cables. It also has 2 DMX inputs which can be set as "input" or "disabled" status. You can assign each input to a specific "Universe" within the range of 0.0 - F.F. When the DMX port is set as "input", the port mode can be set as "normal" or "backup".

Overview:

• ArtNet/DMX bilateral signal conversion
• Supports standard DMX-512 and ArtNet protocol
• DMX in/outs can be enabled or disabled

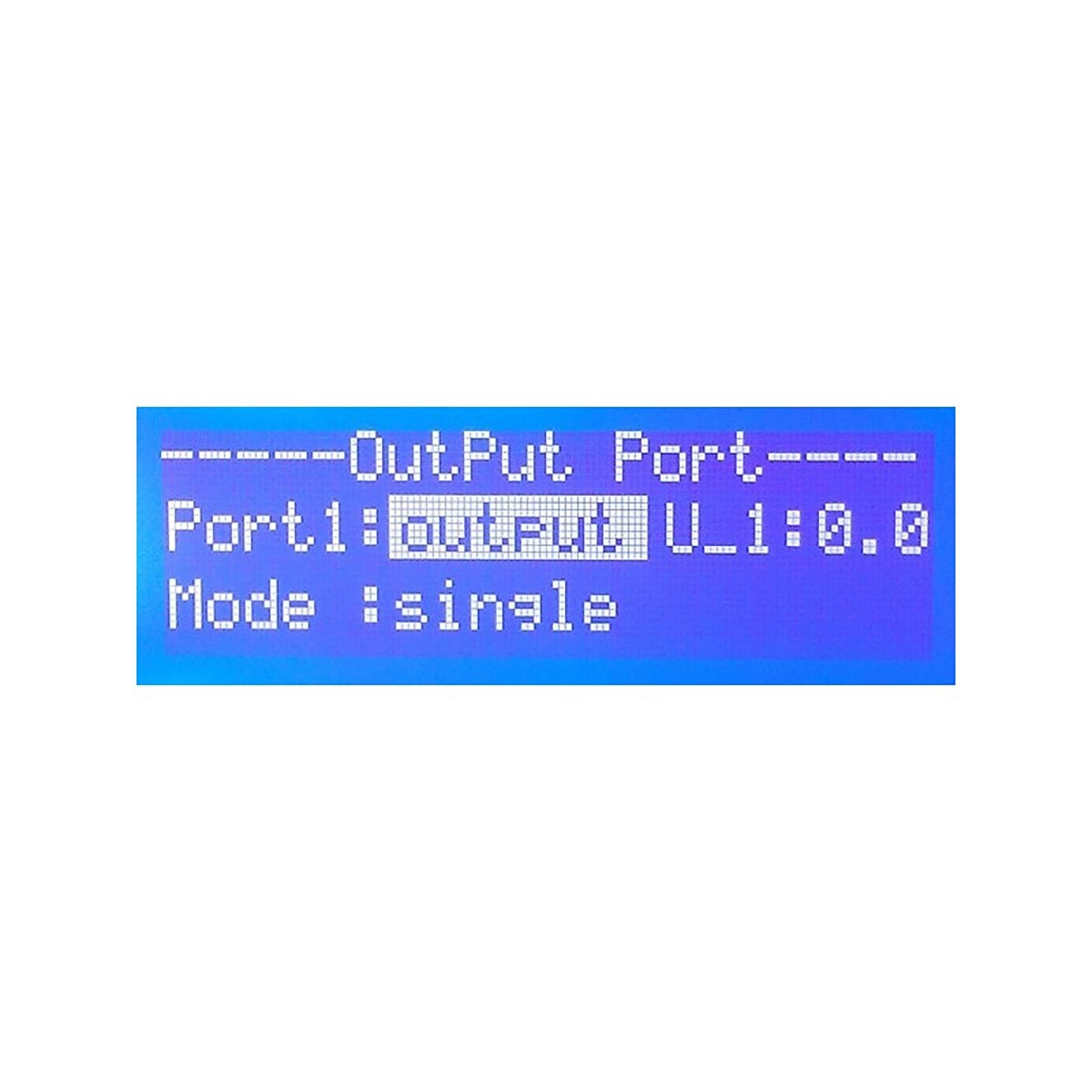

• DMX outputs can be single, zero, HTP, or LTP

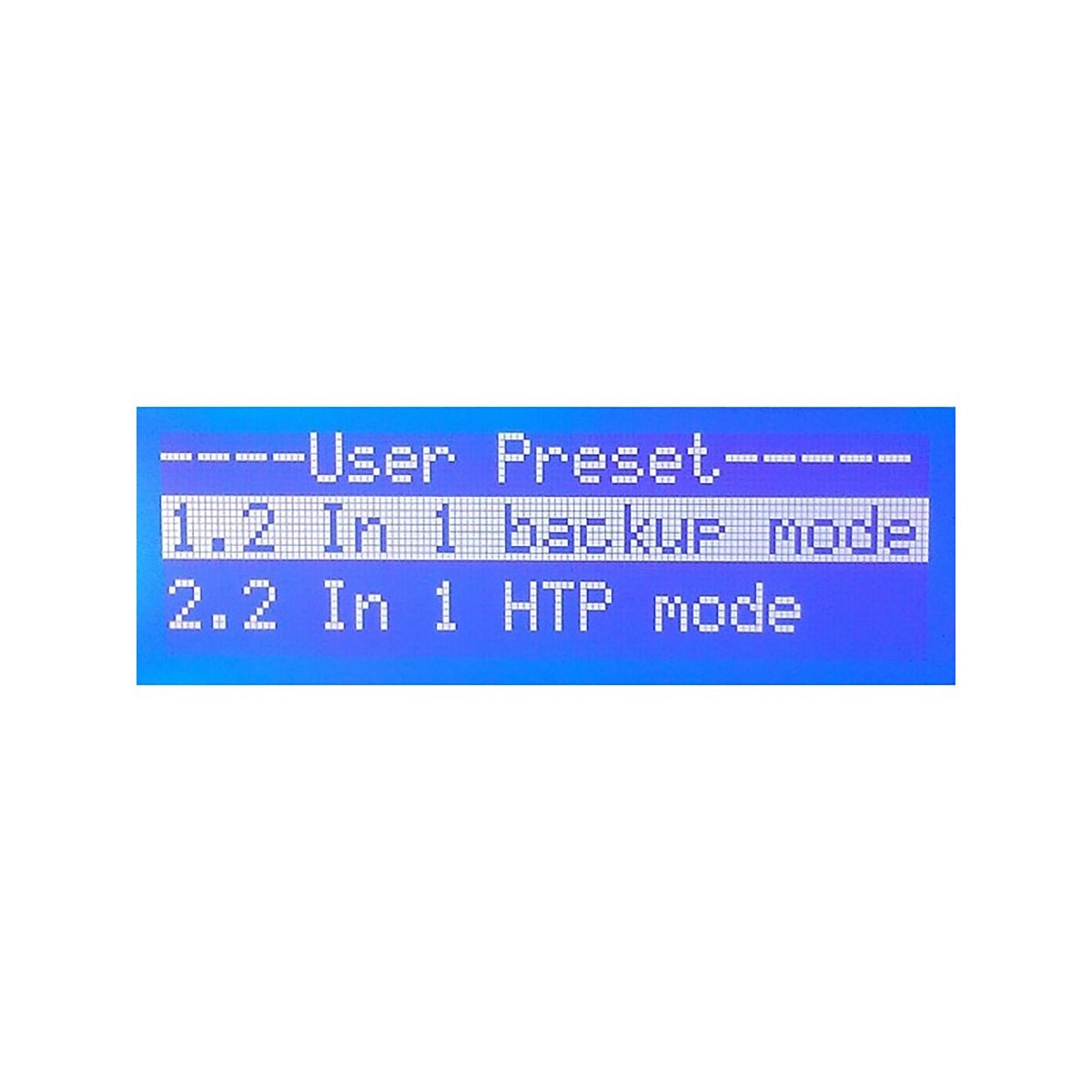

• DMX inputs can be normal or backup mode
• DMX splitter/merger functionality

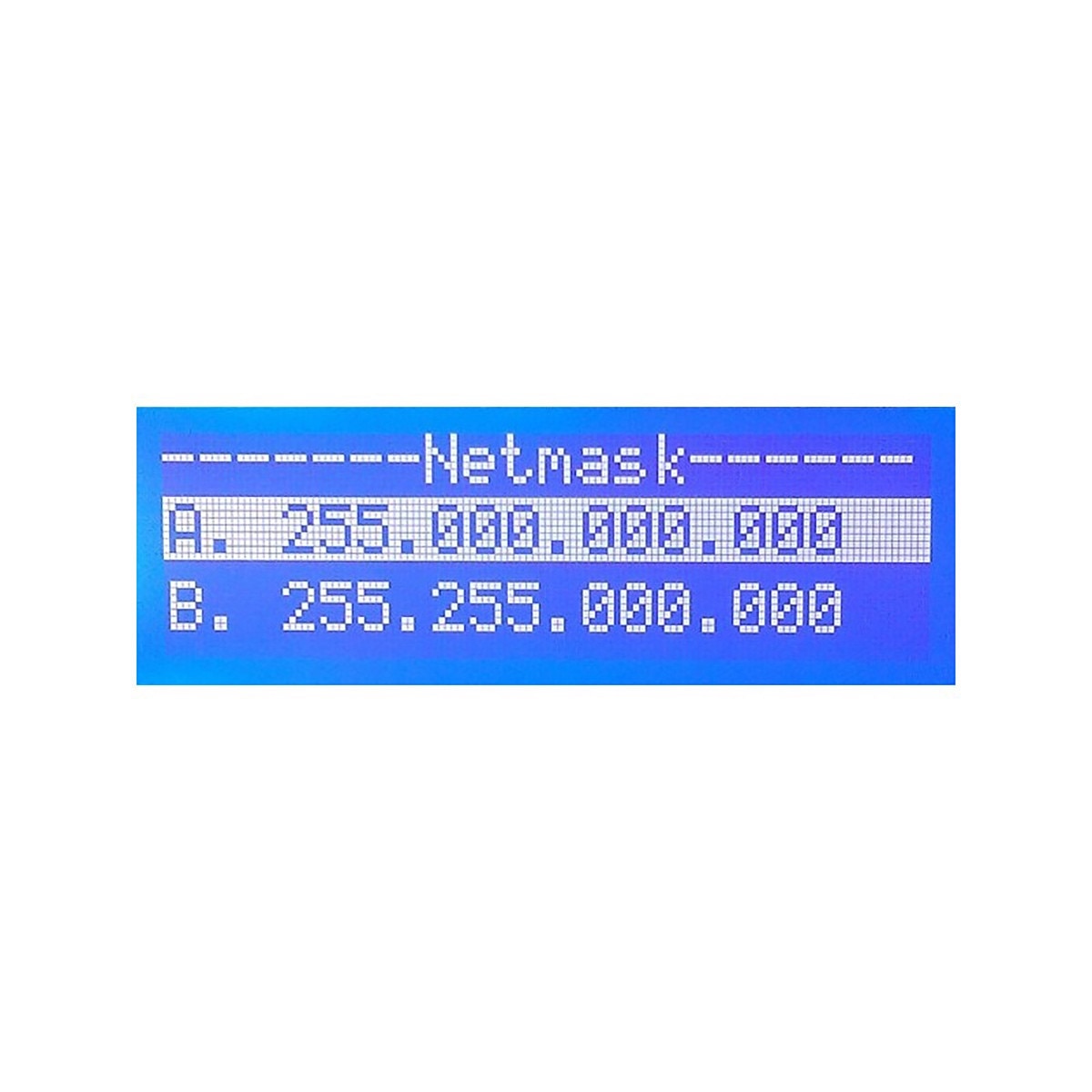

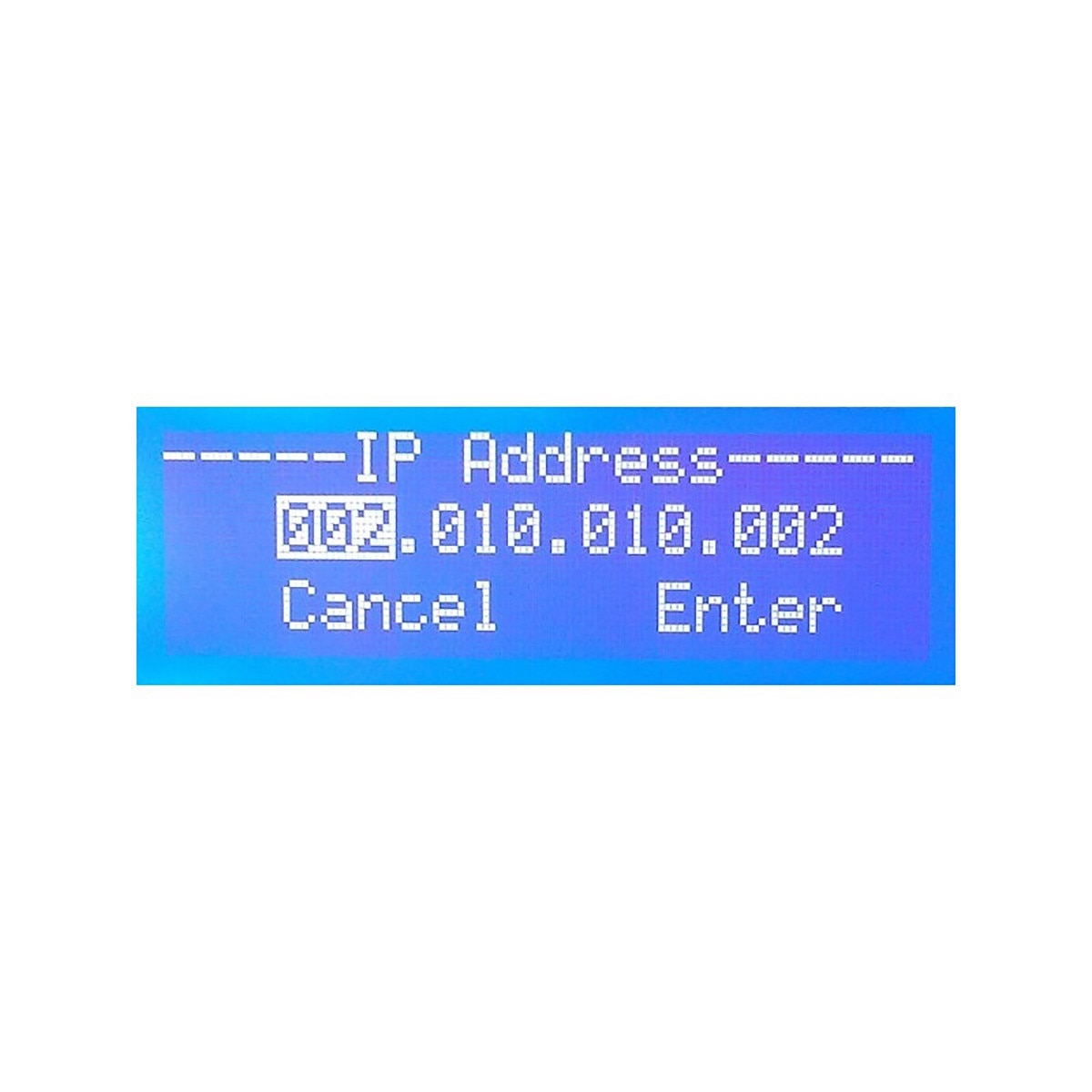

• Manual IP address settings

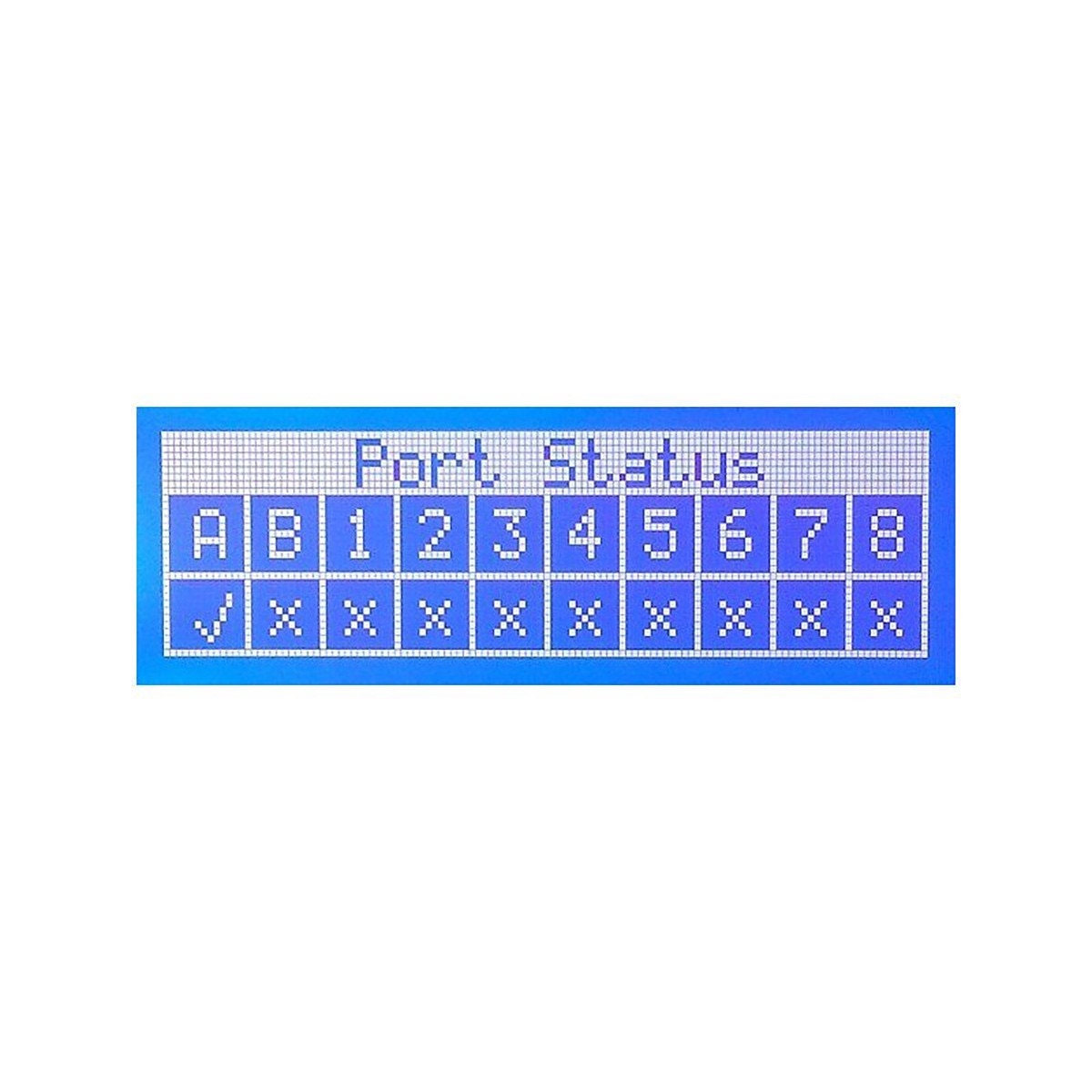

• LCD display indicates each DMX input/output status
• Ethernet LED status indicator

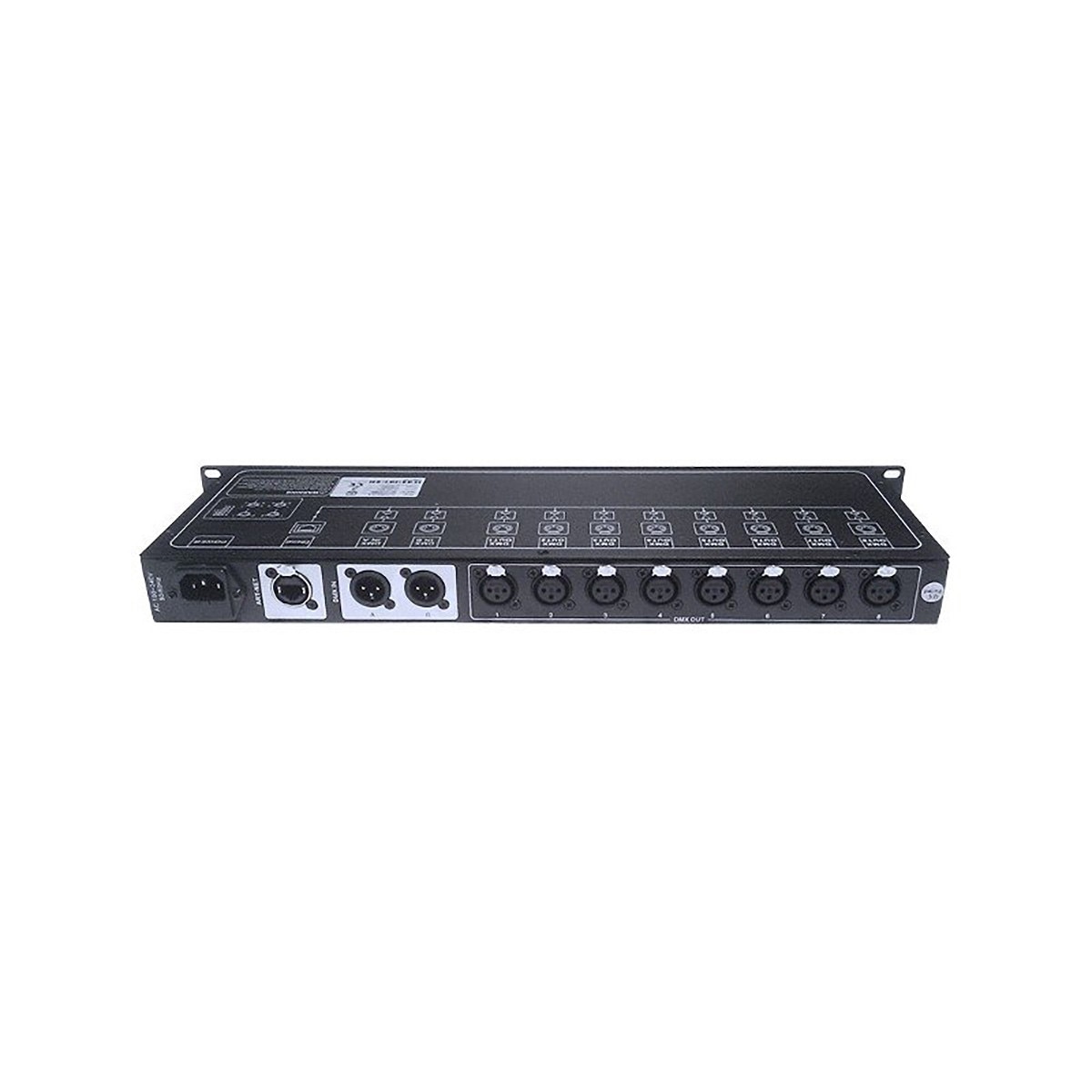

Connectors:

• 1x RJ45 EtherCON® 10/100M Ethernet LAN port (auto MDI/MDI-X)
• 2x DMX inputs
• 8x DMX outputs

Warranty:

• 2-year limited warranty

Dimensions & Weight:

• 19" L x 6.1" W x 1.75" H
• 5.1 lbs
