Blizzard Cable Guy

At A Glance:

• Lossless transmission up to 3,000 meters
• Audio signal indicator
• Durable steel housing
• Sender and receiver units can be separated for through-wall wire testing

Test Everything. Fear Nothing.

This beast of a cable tester is a must-have for lighting designers and stage techs. Brutally simple to use, yet powerful enough to handle 3-pin XLR, 5-pin XLR, powerCON®, powerCON® TRUE1, HDMI, RJ45, and more. Split the sender and receiver to test through-wall wired connections like a pro. Fast. Ruthless. Reliable.

Power On, Problems Off

Power up, plug in, and let Cable Guy™ do the work. LEDs tell you everything—match means good, mismatch means trouble. No guesswork, just answers.

Another Test in the Wall

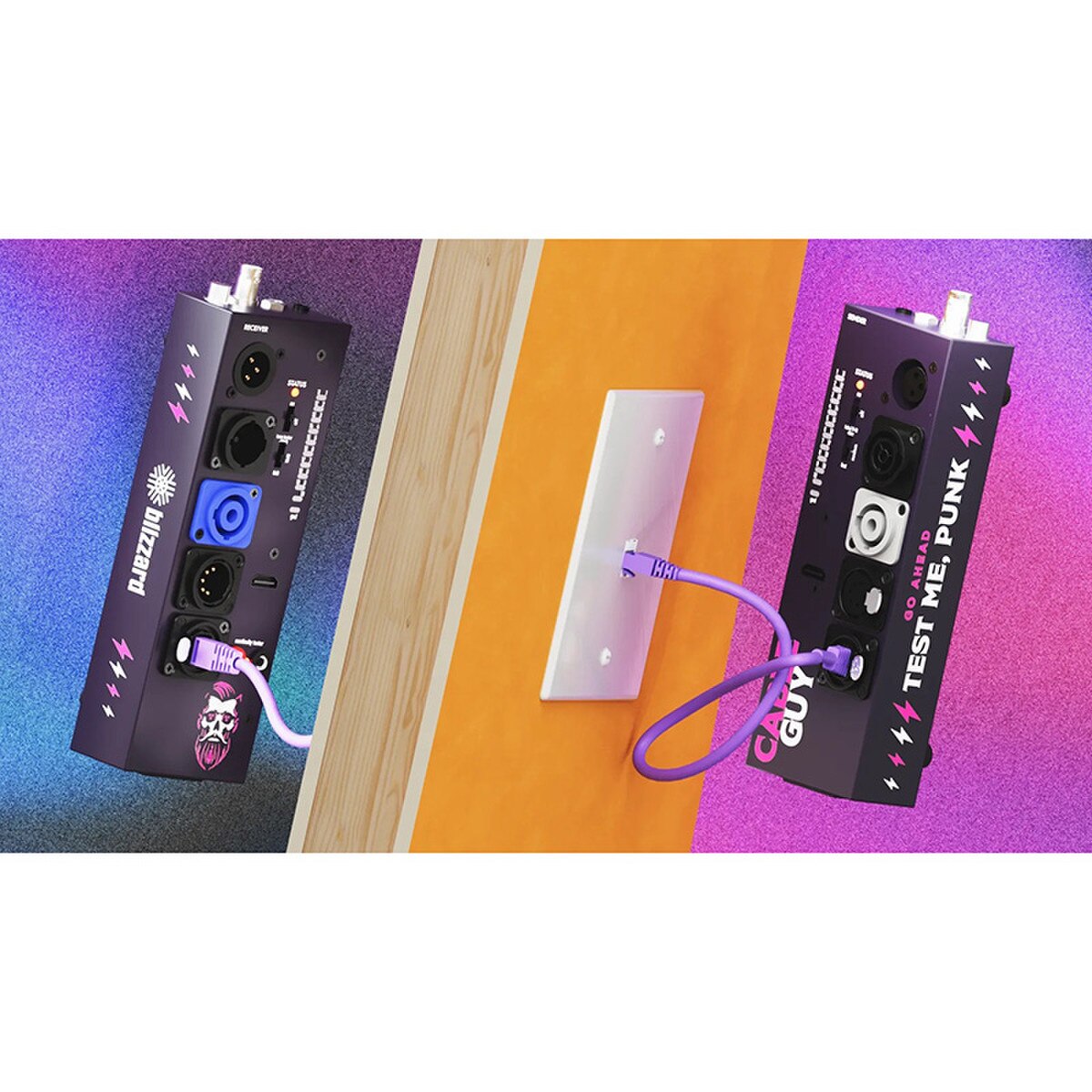

Effortlessly verify RJ45 cables directly through wall ports—making your tester adaptable to any installation scenario. Stop guessing, start knowing.

Your New Best Friend

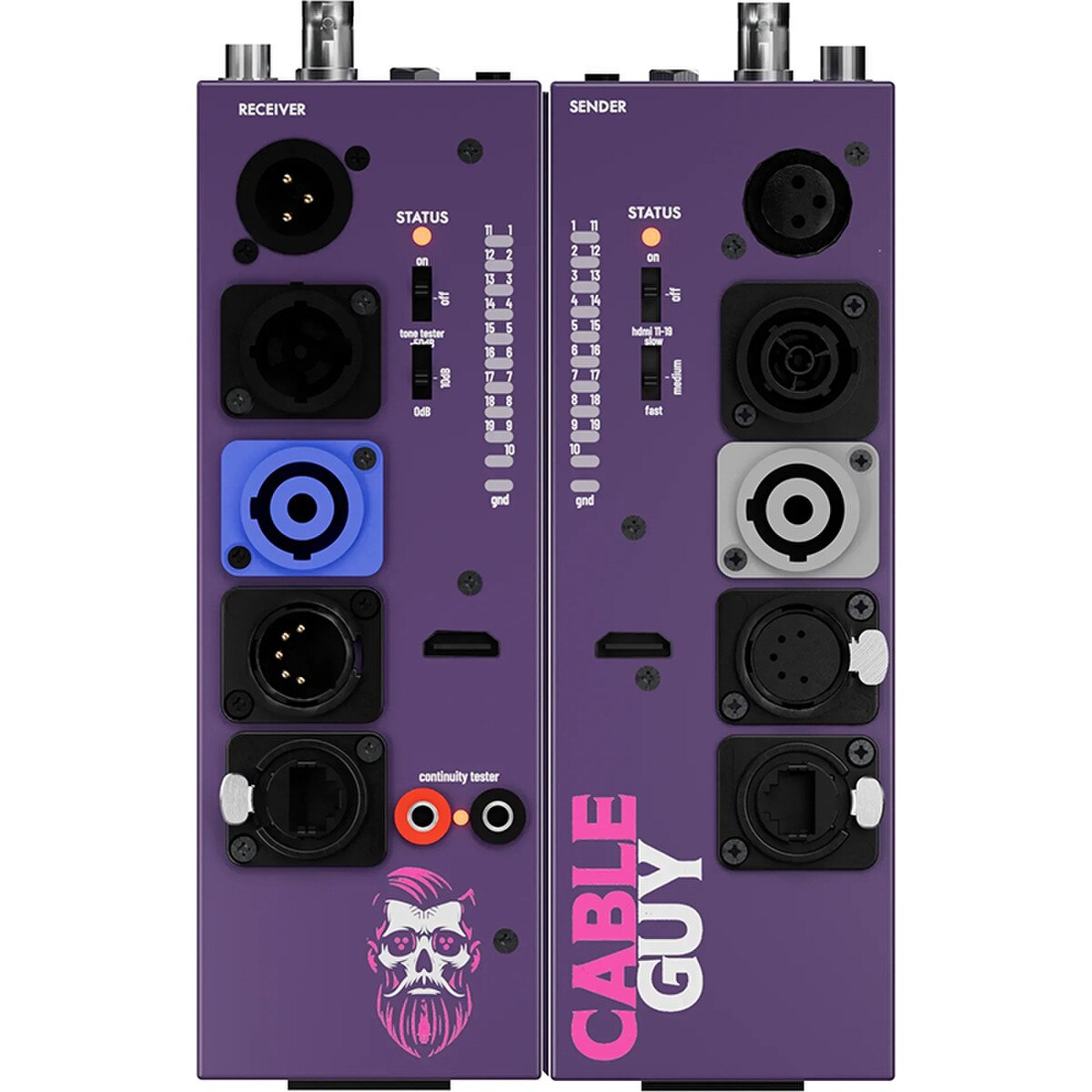

Cable Guy™ is an advanced, professional cable testing tool that no lighting designer or stage tech can afford to be without. Its easy to operate and can be used for testing a wide variety of common cable types including 3-pin XLR, 5-pin XLR, powerCON®, powerCON® TRUE1, HDMI, RJ45, and more. The two piece sender and receiver can even be separated to effectively test throughwall, wired connections.

Test with Ease

Using the Cable Guy™ is as simple as plugging in a cable on each side. The device automatically loops through the possible connections, and the status is displayed via the LEDs. If the LEDs on both sides match, that indicates successful continuity. Mismatched or unlit LEDs signal that there is a problem with the cable.

Specifications:
Control:

• Dual power switches & status LEDs
• Tone tester switch:
• -50dB, 10dB, 0dB
• HDMI switch: slow, medium, fast
• 1-10 (x2) wire tracker + status LEDs + gnd

Power & Current:

• Requires 2x 9V batteries (not included)

Dimensions:

• 1.3" x 7.5" x 5"
• 2.35 lbs

Tech Specs:

• Supported Types:
• 1/4 TRS
• 1/8 TRS
• 3-pin XLR
• 5-pin XLR
• BNC
• HDMI
• powerCON®
• powerCON® TRUE1
• RCA
• RJ45 (EtherCON)

Warranty:

• 2 Year - Extendable
