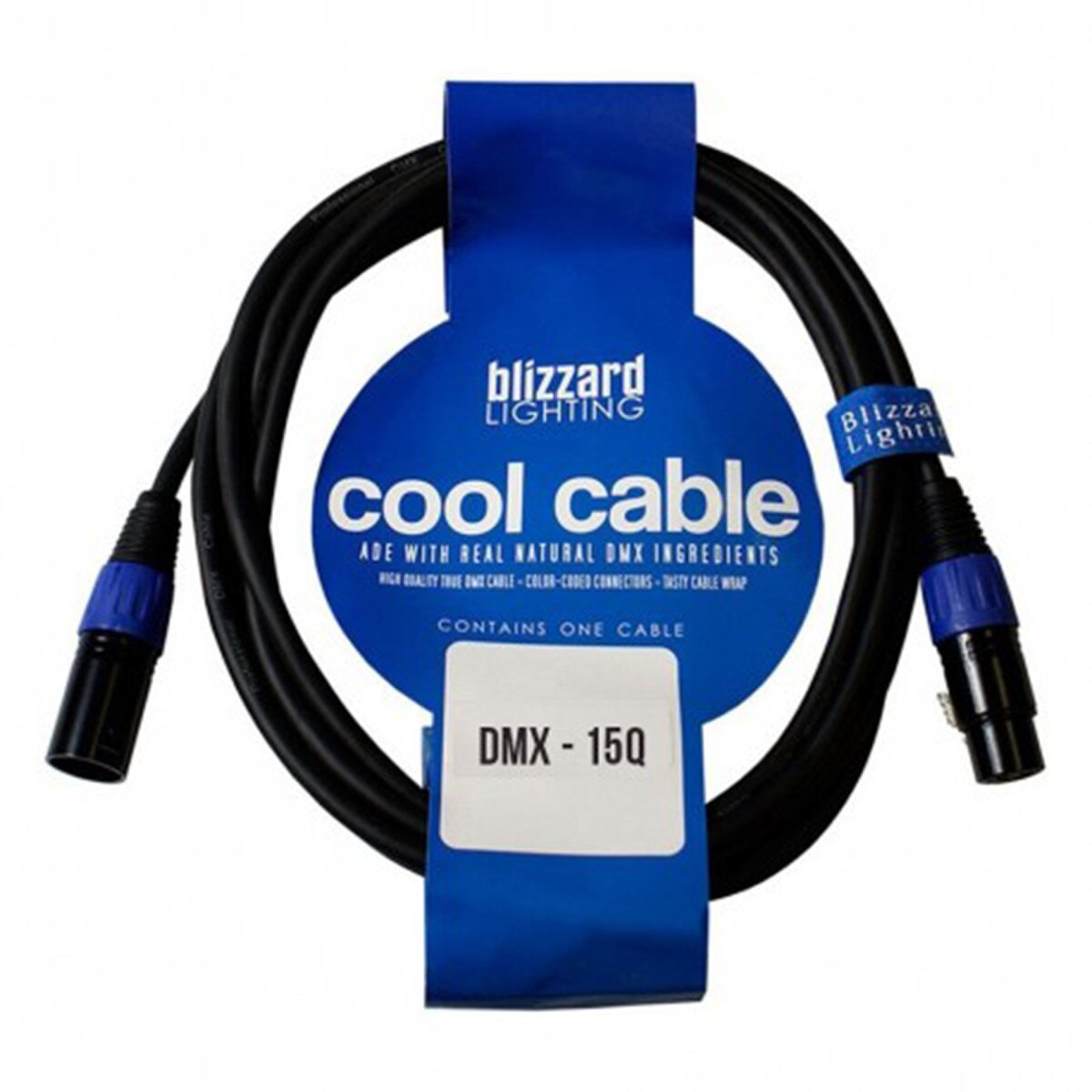

Blizzard Cool Cable 5-Pin XLR Male to XLR Female DMX Cable (15FT)

(0)No Reviews yet
$22.19
SKU: BLIZZARD DMX-5PIN-15Q

Details

Blizzard Lighting's DMX-5PIN-15Q is part of the Cool Cable™ DMX lighting control cable series. This 15' 5-pin XLRM to XLRF DMX cable is ultra-flexible, abrasion-resistant and durable with 120 ohm impedance, low capacitance, and features both foil and braid shields. These high quality cables meet many standards including EIA-485 and USITT standards for DMX512 cable specifications.


A portion of the profits earned by Blizzard Lighting from the sale of these cables is donated to help fund ongoing cancer research.

Features:

  • Double shield (foil and braid)
  • 120 ohm impedance
  • Low capacitance
  • High quality true DMX cable
  • Color-coded connectors
  • Limited lifetime warranty
  • Velcro cable wrap included

Specifications:

  • Length: 15 ft
  • Connectors: 5-Pin XLR Male/Female
  • Number of Conductors: 2
  • Conductor Material: Oxygen free copper wire
  • Insulation Material: PE
  • Outer Shield: Braid and Foil (Double)
  • Outer Jacket Material: PVC
  • Operating Temperature Range: -30°~70°
  • Minimum Bend Radius (Install): ≥ 120 mm
  • Nominal Characteristic Impedance: 100 ohm
  • Nominal Capacitance Conductor to Conductor @ 1KHz: 63PF/m
  • Nominal Cap Cond. To Other Cond. & Shield @ 1KHz: 105PF/m
  • Nominal Velocity of Propagation: 66%
  • Nominal Delay: 1.6 Nanoseconds per foot
  • Nominal Conductor DC Resistance @ 20°C: ≤ 0.098 ohm/m
  • Individual Pair Nominal Shield DC Resistance @ 20°C: ≤ 0.026 ohm/m
  • Nominal Attenuation: 0.6 (@ 1 MH z) dB/100 ft
  • Max Recommended Current @ 25°C: 2.1 Amps per conductor

DMX Cool Cables Datasheet.pdf
