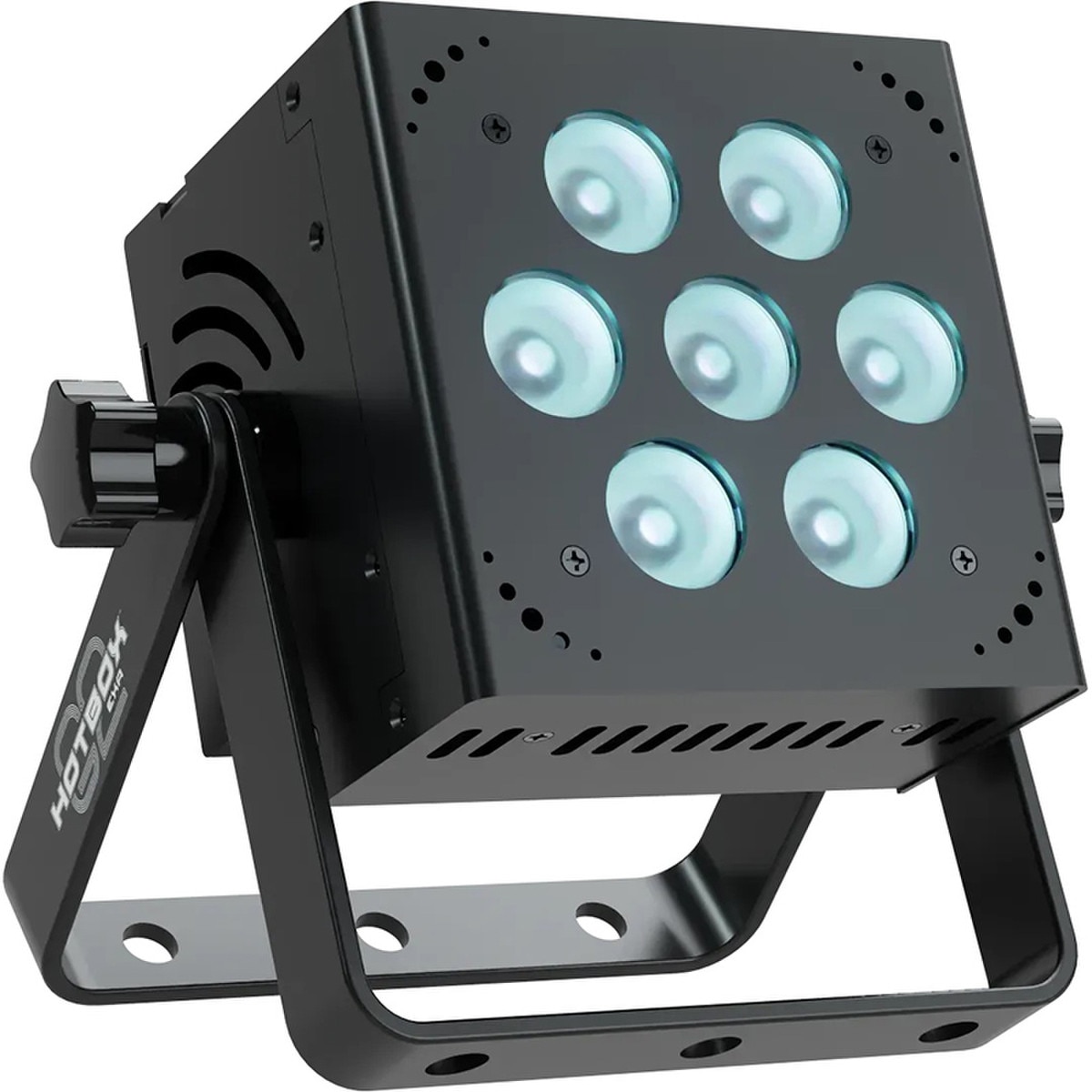

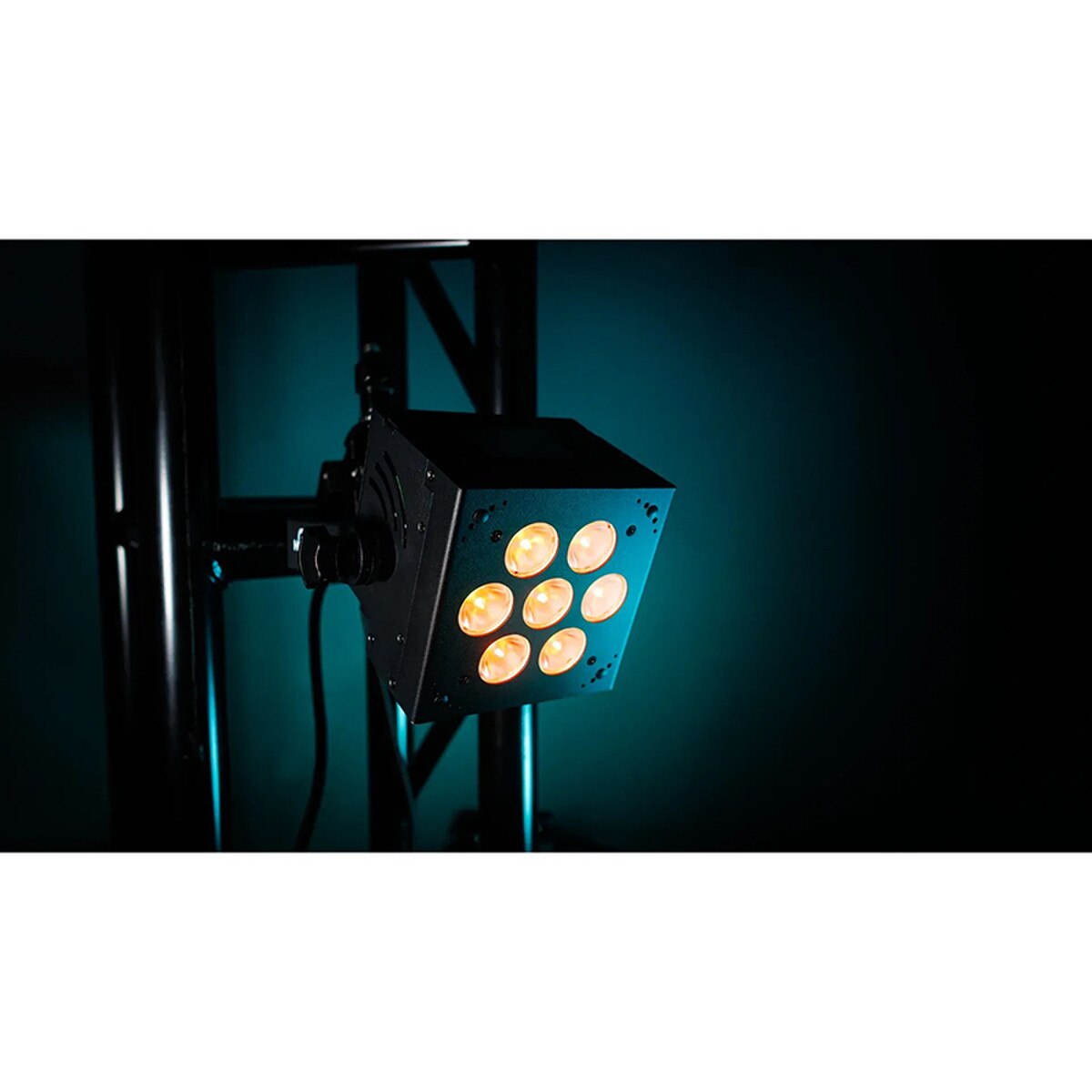

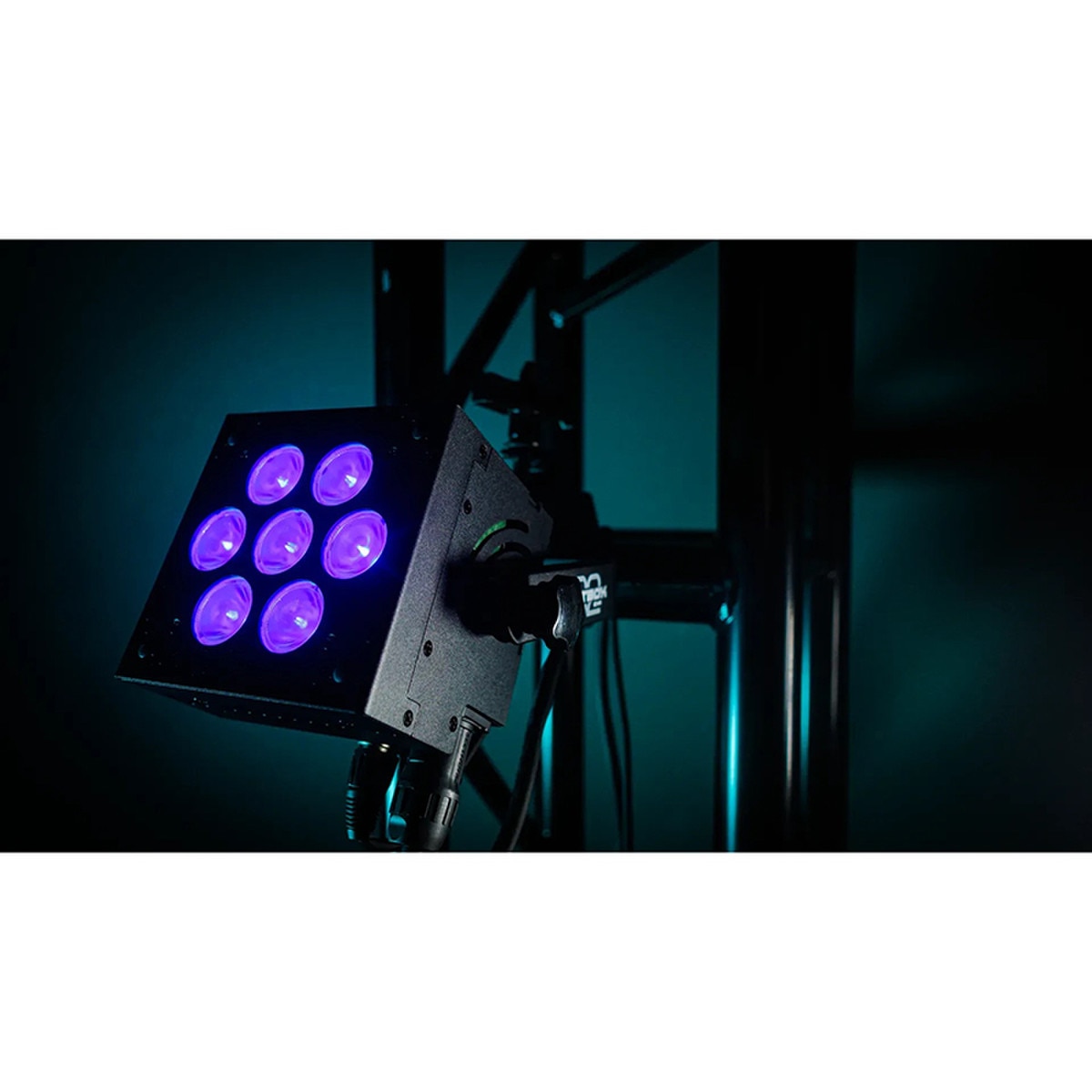

Blizzard HotBox G2 EXA

HotBox G2 EXA At A Glance:

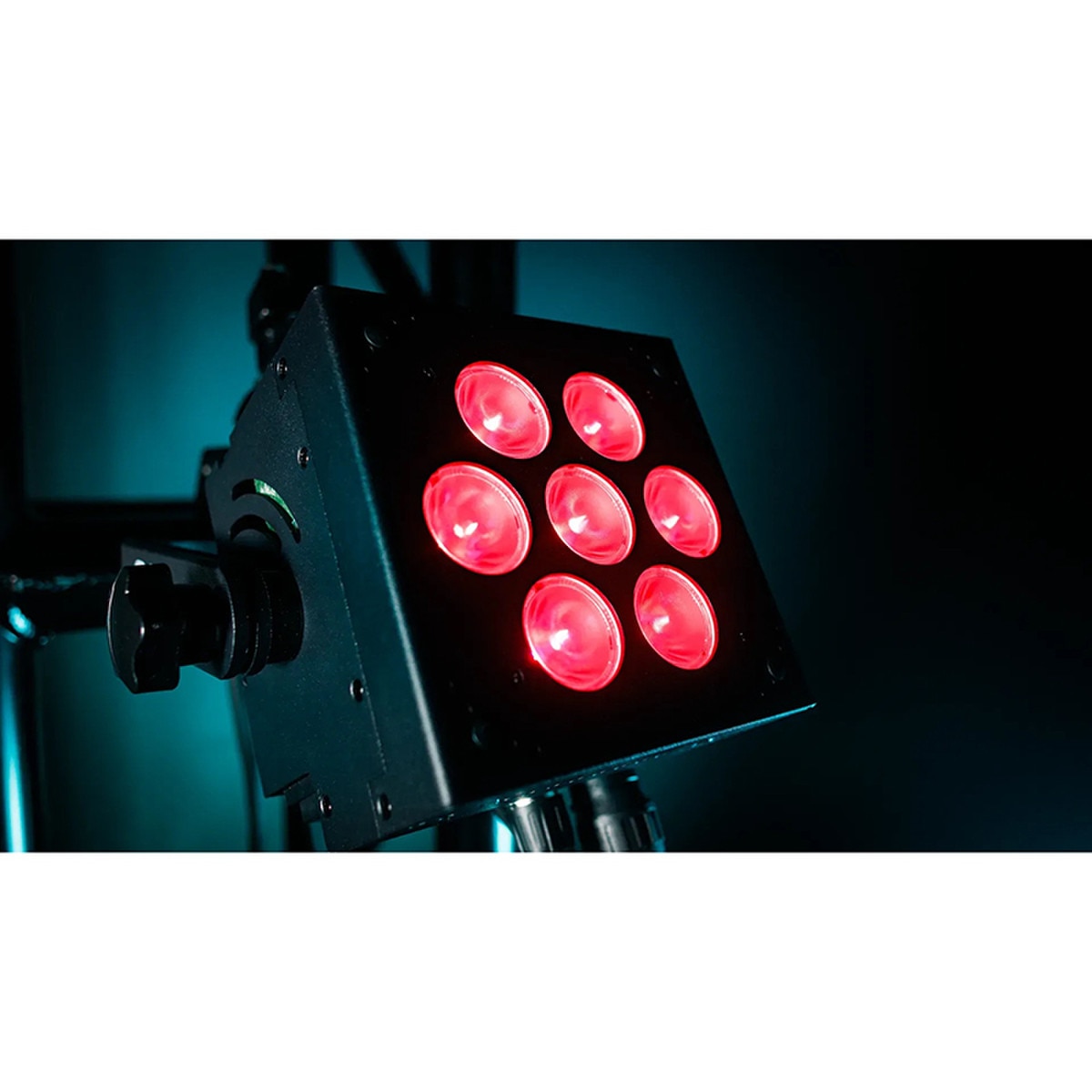

• RGBAW+UV color mixing via 7x 15W 6-in-1 LEDs
• Built-in auto programs + virtual color wheel
• 18 standard + 32 Rosco® matched color presets

No Need to Get Up:

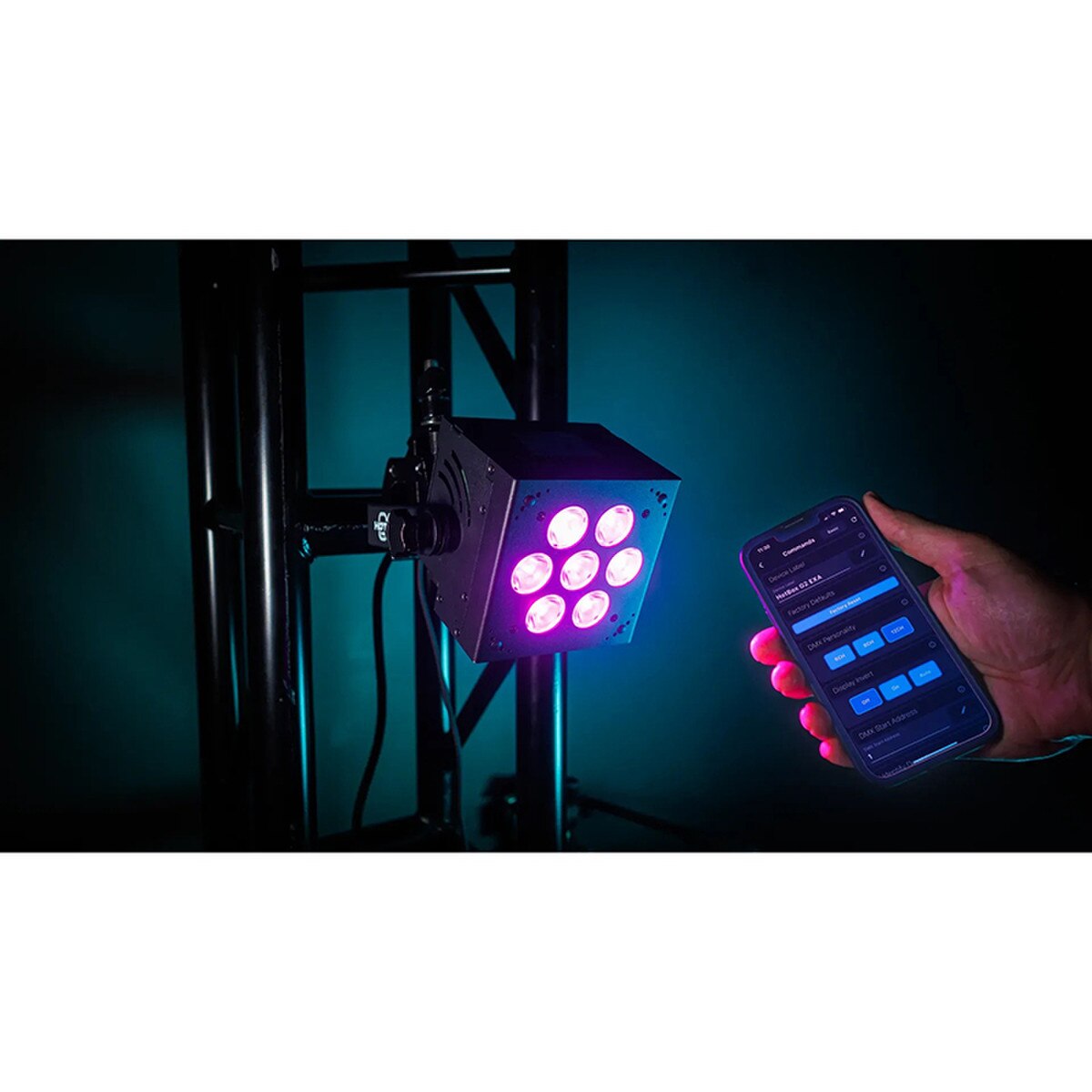

• Built-in RDM makes managing fixture settings a breeze. Remotely change the fixture's address, channel mode, and switch operating modes. RDM functions require an RDM-compatible controller, like the Cueslayer™ or Stingray™.

Ready for the Spotlight:

• With 32 Rosco®-matched color presets, the Hotbox G2 EXA is highly compatible with pre-existing theatrical lighting rigs. On top of that, the adjustable PWM refresh rate helps ensure your lighting looks great on any camera.

Tech Specs:
The Rundown:

• RGBAW+UV color mixing via 7x 15W 6-in-1 LEDs
• Built-in auto programs + virtual color wheel
• 18 standard + 32 Rosco® matched color presets
• 6/8/12-channel DMX profiles
• 8 user-selectable dimming modes
• User-selectable PWM refresh rates
• Flicker-free constant-current LED driver
• RDM (Remote Device Management)
• 25 degree beam angle (40-45 degree with optional Blizzard HotBox Diffusion Panel)

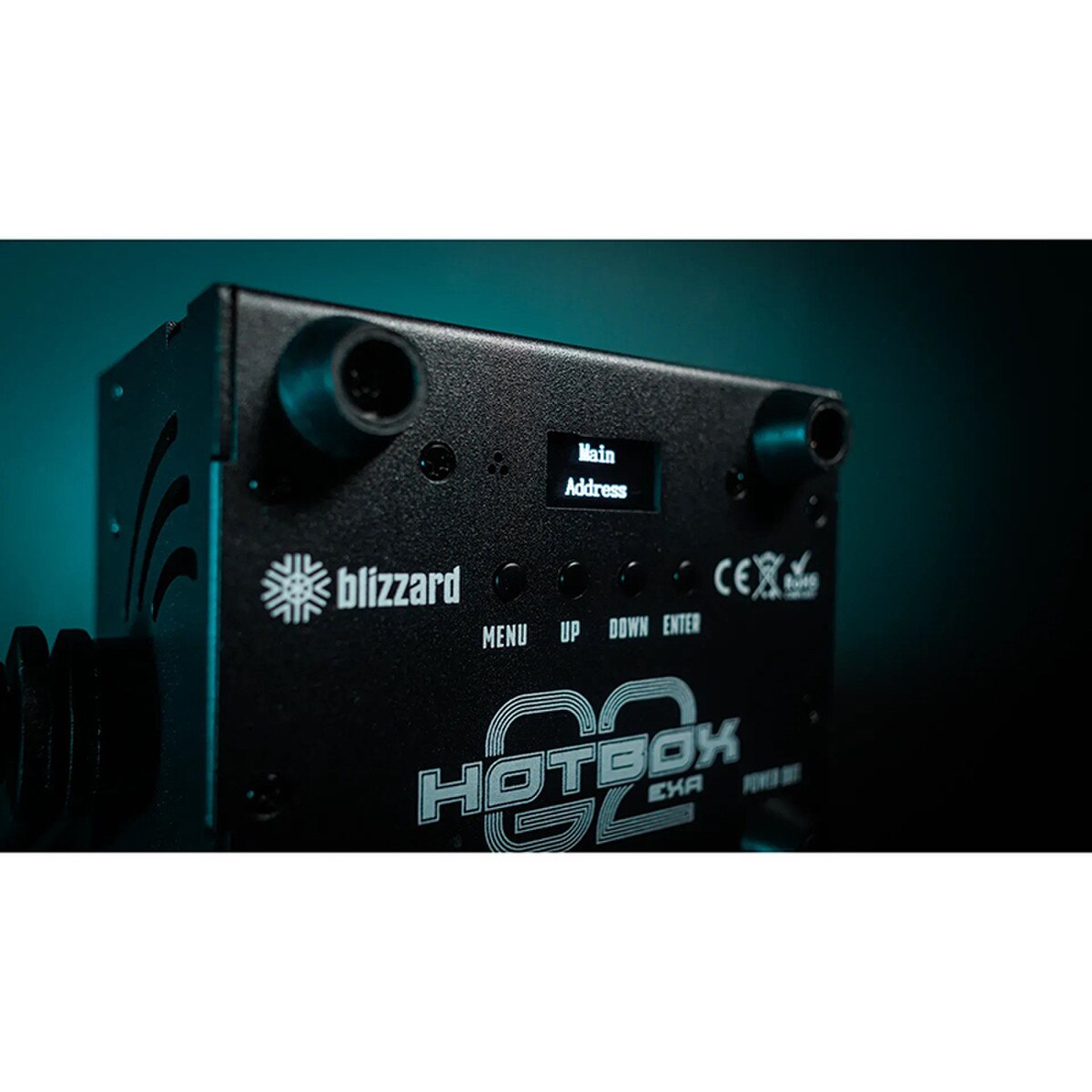

• 4-button control menu with OLED display

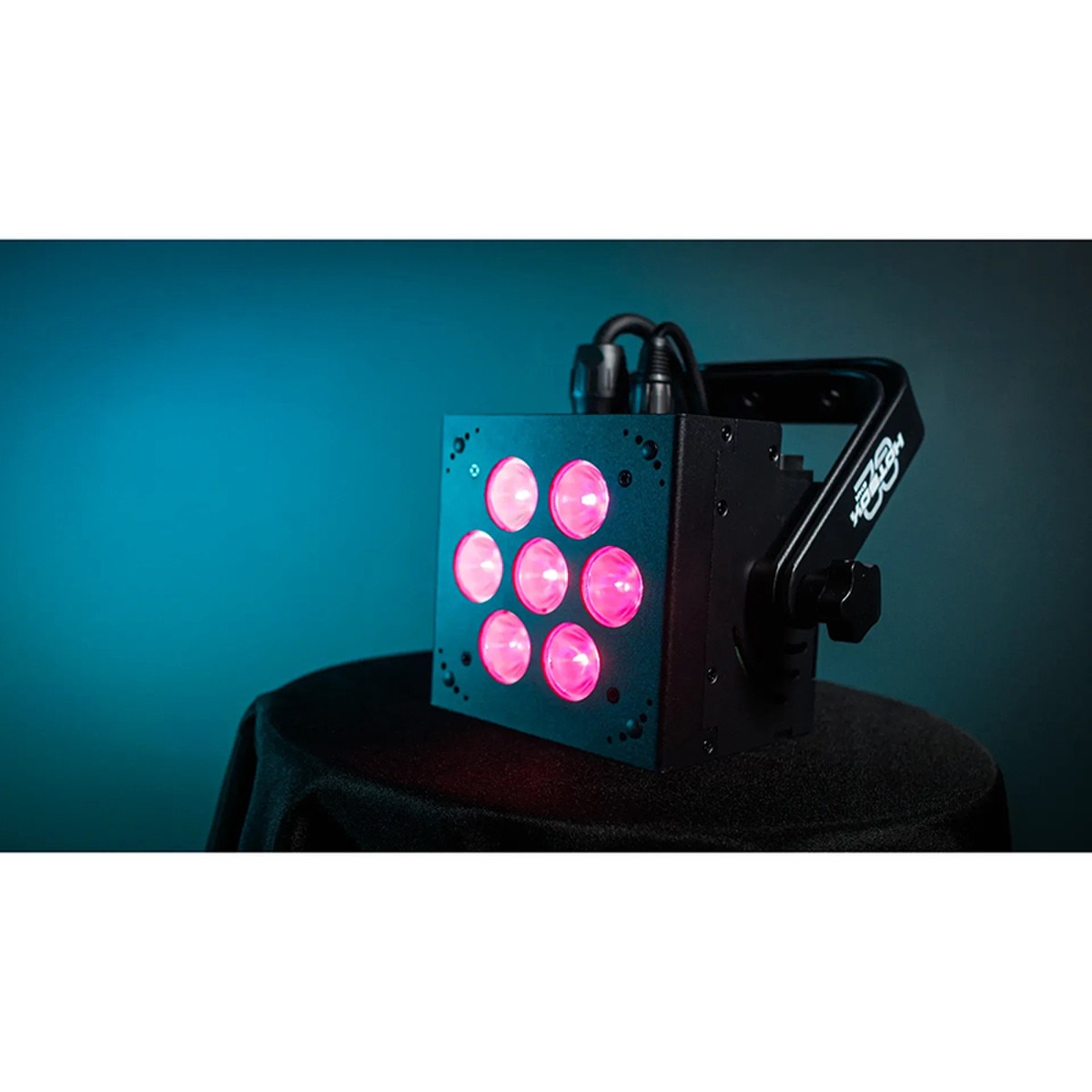

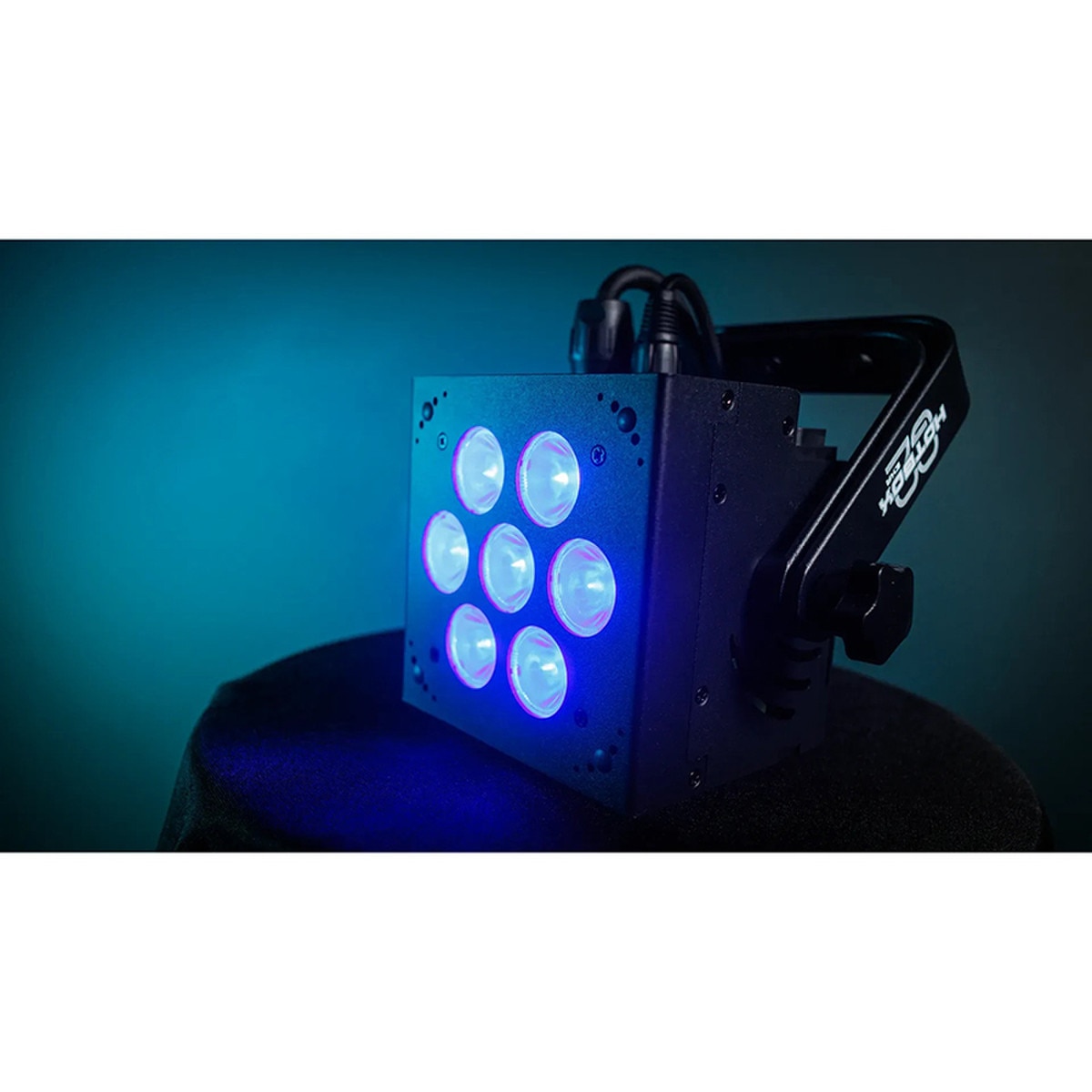

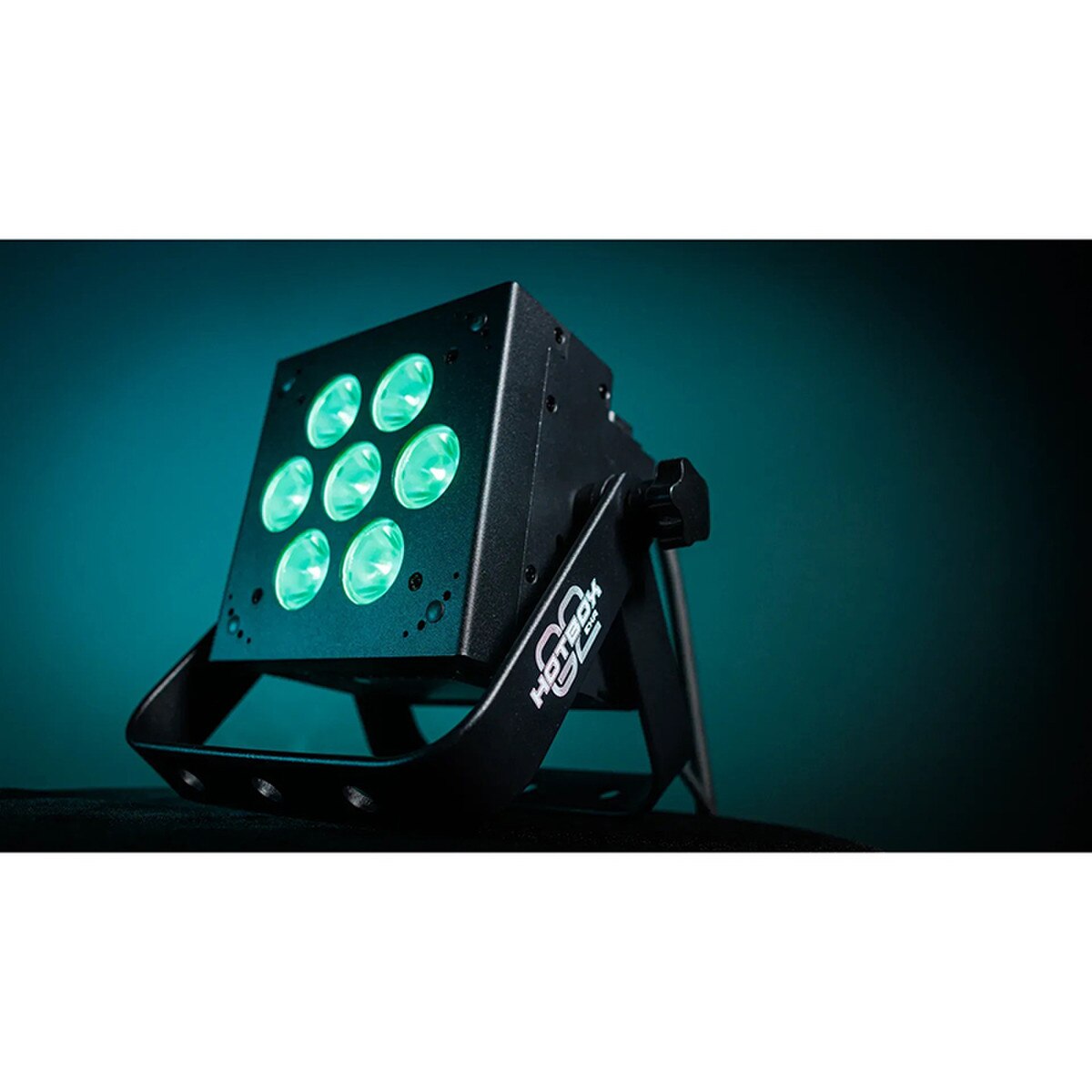

• Dual brackets for mounting or stable freestanding
• 5-pin male/female XLR input/output connections
• powerCON® TRUE1-compatible power input/output connections

Summary:

Building on the legacy of the HotBox™ EXA, the G2 delivers professional wash effects with 7x 15W 6-in-1 RGBAW+UV LEDs in a compact, durable housing. It introduces a host of new features, including upgraded 25° lenses that provide precise beam shaping and uniform color mixing, ensuring dependable performance for any stage, event, installation, or architectural application.

With improved firmware and an easy-to-navigate OLED menu, this fixture offers 6/8/12-channel DMX profiles, built-in and customizable programs, a virtual color wheel, and 50 color presets including 32 Rosco® gel-matched selections. It also provides 5-pin DMX in/out, powerCON® TRUE1-compatible in/out, RDM support, plus 8 dimming curves and adjustable PWM refresh rates.

Warranty:

• 2 Year - Extendable

Certifications:

• ETL, RoHS, CE

Optical:

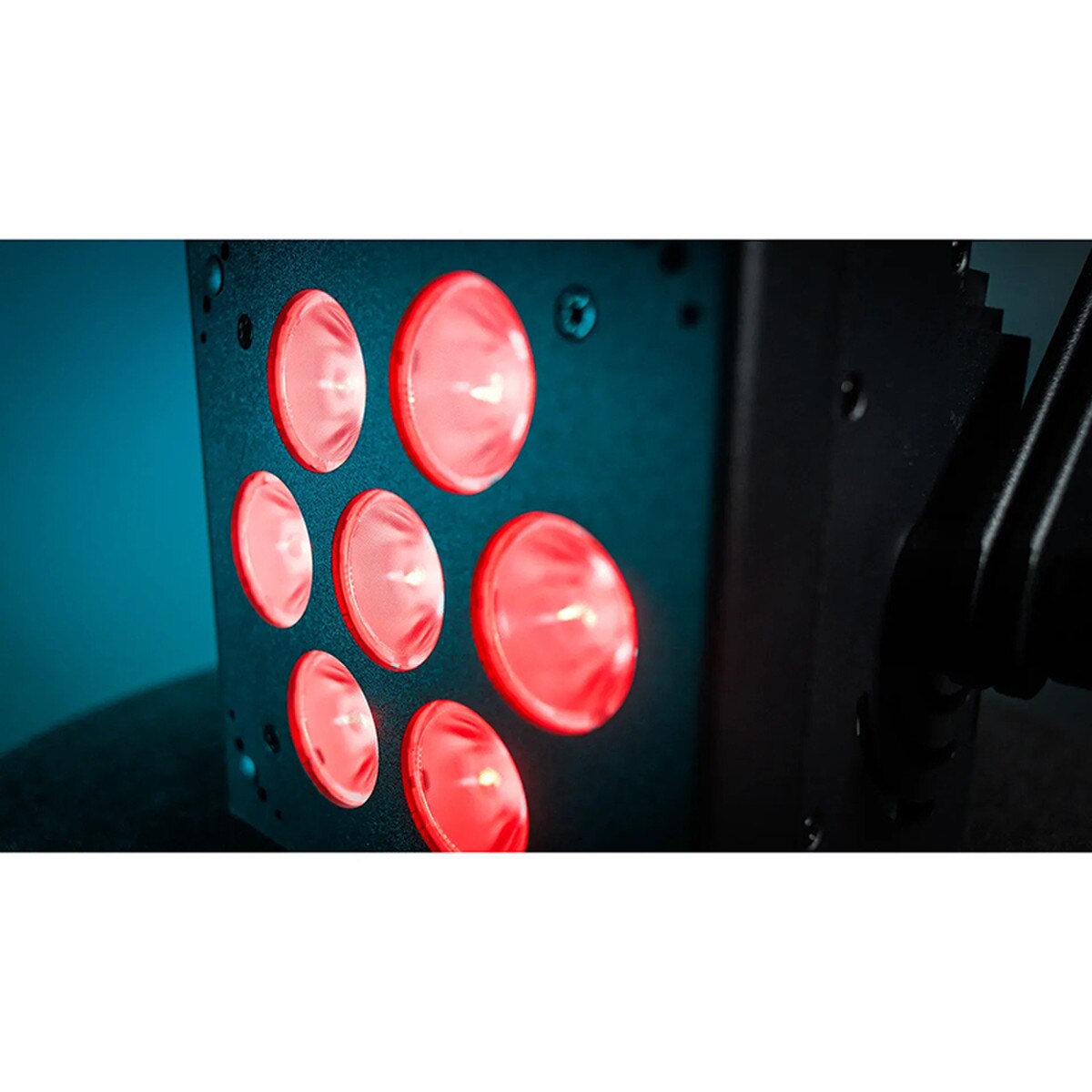

• Light Source: 7x 15W RGBAW+UV 6-in-1 LEDs, 100,000 hours
• Beam Angle: 25° (40-45° with optional Blizzard HotBox Diffusion Panel)
• Luminous Intensity: 2,230 Lux @ 2.5M, 537 Lux @ 5M

Control:

• Protocol: USITT DMX-512, RDM
• DMX Channels: 6/8/12-channel DMX modes
• Input/Output: 5-pin DMX in/out
• Operating Modes: M/S, Sound Active, Auto
• Easy to-use 4-button control menu with OLED display

Power & Current:

• Operating Voltage: 90-240VAC, 50-60 Hz
• Power Consumption: 78W, 1.1A, PF: .61
• Input/Output: powerCON® TRUE1-compatible power in/out

Dimensions:

• 7.2" x 4.4" x 8"
• 4.25lbs
