Blizzard HotBox RGBW LED Q7W Quad Color Par

Blizzard's HotBox RGBW Key Features:

• RGBW color mixing via 7x 10W 4-in-1 LEDs
• Variable electronic dimming & strobe
• 5 user-selectable 32-bit dimming curves

Easy Color Mixing:

Access RGBW (red/green/blue/white) color mixing, 31 built-in programs, flicker-free 32-bit dimming, and even easy HSV color mixing ability in 3-channel DMX mode.

Smart Design:

An innovative design provides power to the system directly from the DMX input, meaning even fewer cords and less setup time.

Tech Specs:

HotBox RGBW fixtures offer 7x 10W 4-in-1 RGBW LEDs, advanced electronics, and a rock-solid aluminum casing with dual hanging brackets, all wrapped up in a cute little package. It weighs in at just 3.5 pounds and is only 4 x 5 x 5 inches (7.25 inches tall including the brackets.)

It puts out a ton of light, and its user selectable 3/4/5/8 or 9 DMX channel modes allow them to work great with any type of controller. It offers RGBW color mixing, 31 built-in programs, flicker-free 32-bit dimming, and even easy HSV color mixing ability in 3-channel DMX mode.

Warranty:

• 2 Year - Extendable

Certifications:

• ETL, RoHS, CE

Optical:

• Light source: 7x 10W 4-in-1 LEDs 100,000 hours
• Beam Angle: 25 degree optics standard, 26 degree beam, 30 degree field (40-45° with optional Blizzard HotBox Diffusion Panel)
• Luminous Intensity: 15,000 Lux @ 1M, 4,390 Lux @ 2M

Control:

• Protocol: USITT DMX-512
• DMX Channels: 3/4/5/8/9

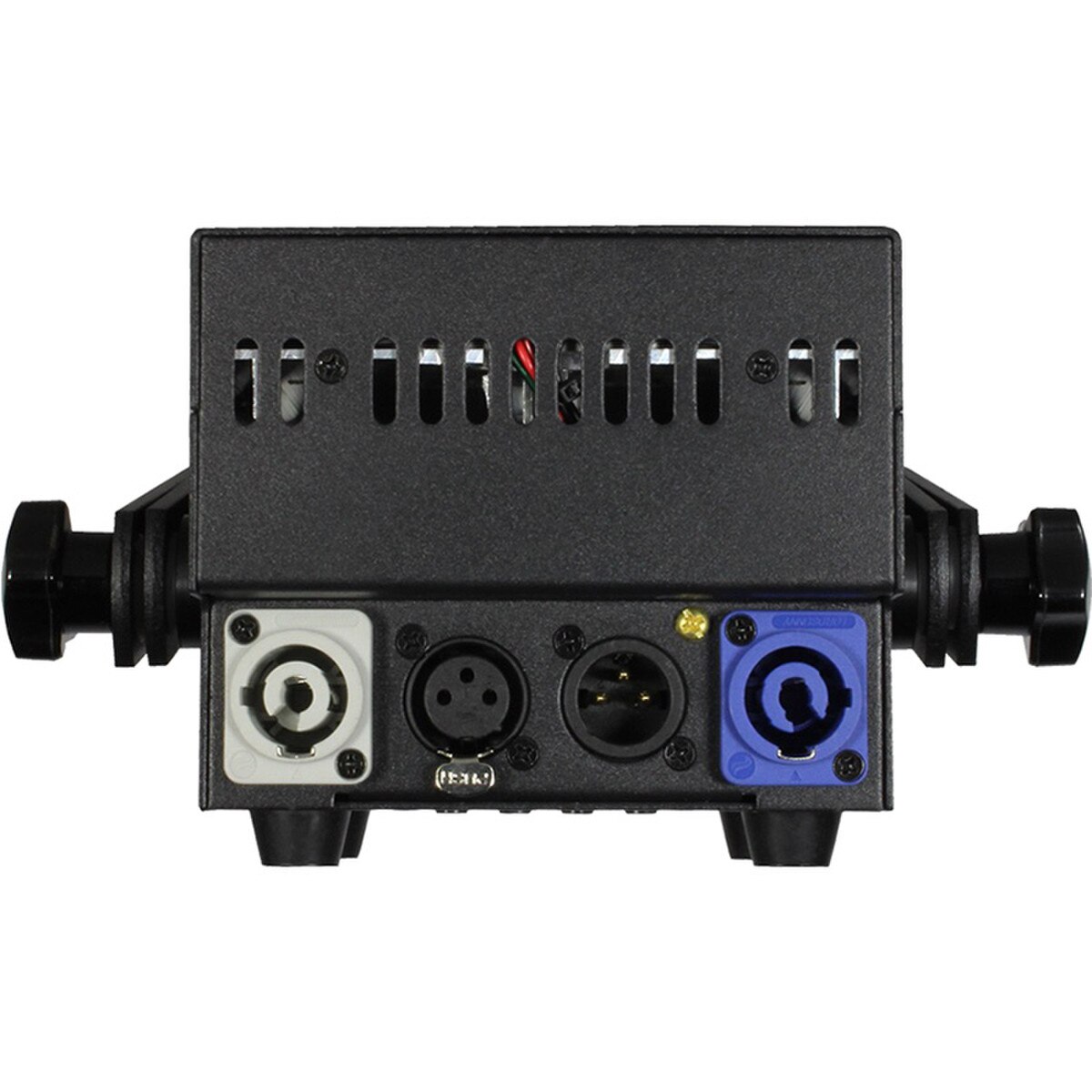

• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• Operating Modes: Standalone, M/S, Sound Active, Color Preset

Power & Current:

• Operating Voltage: 100-250VAC, 40-60 Hz
• Fuse: 2A 250V
• Power Consumption: 47W, .68A
• Power Factor: .55

Dimensions:

• 5" x 4" x 5"
• 3.5lbs

HotBox RGBA/RGBW Cutsheet.pdf
HotBox RGBA/RGBW User Manual.pdf
HotBox RGBW - IES Testing Report.pdf
