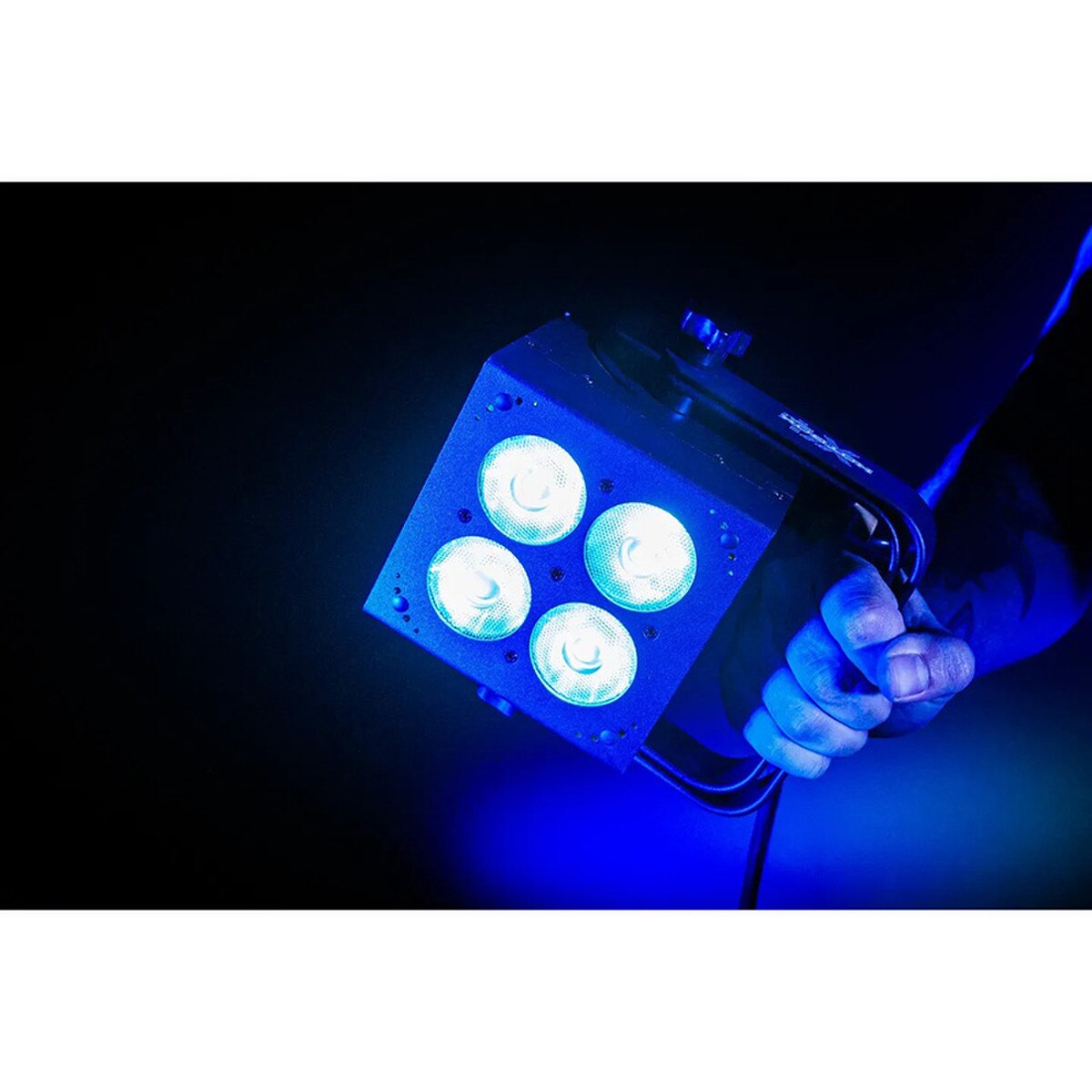

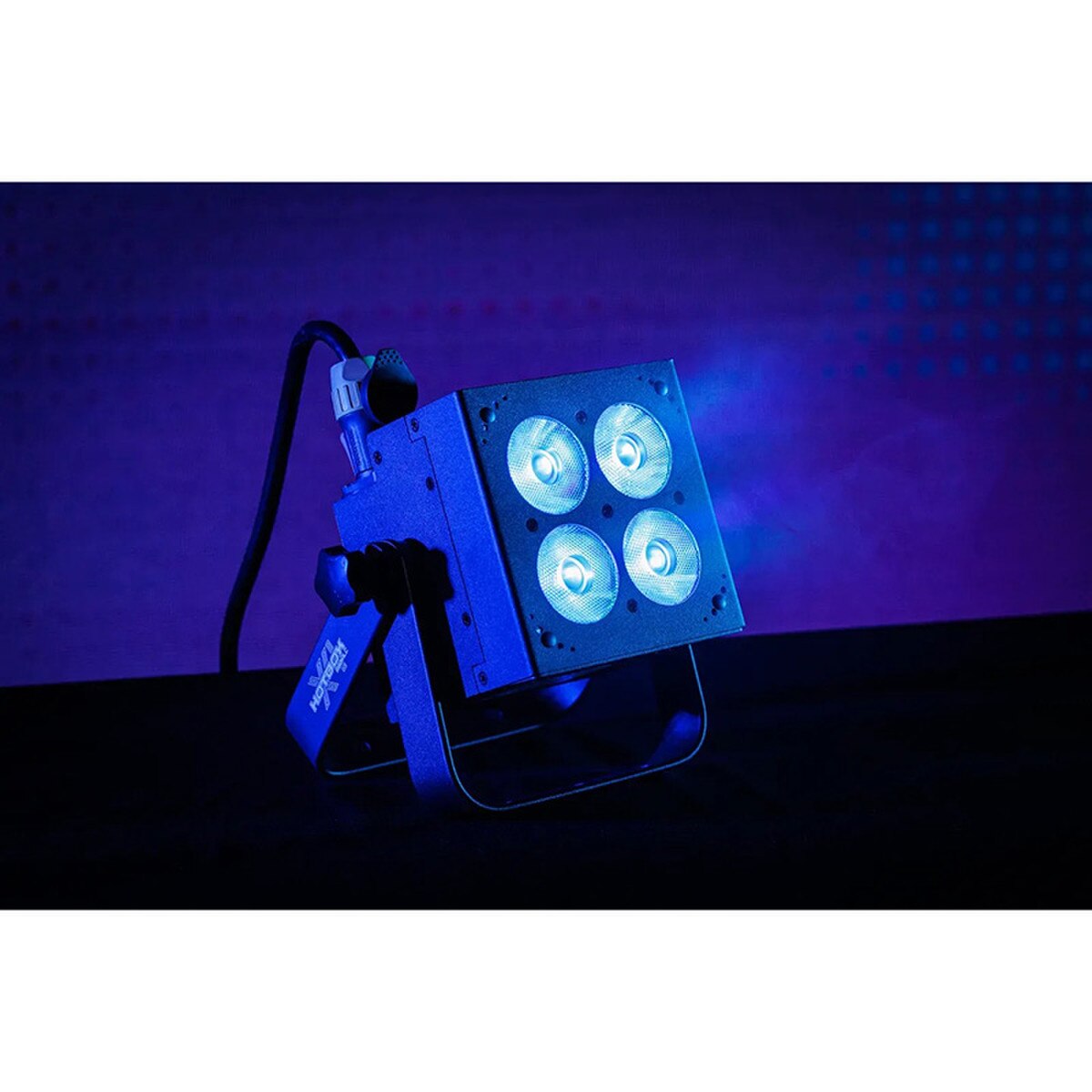

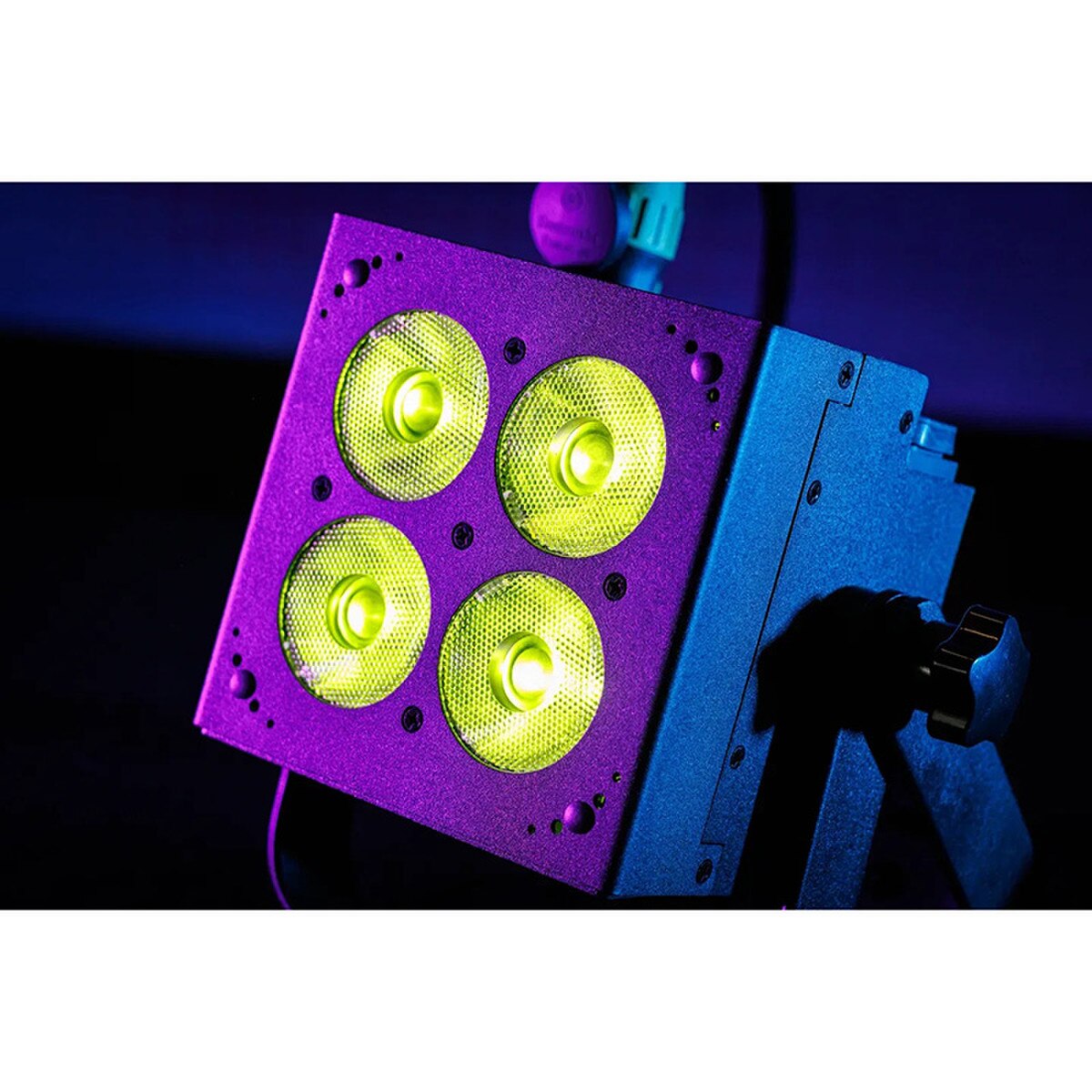

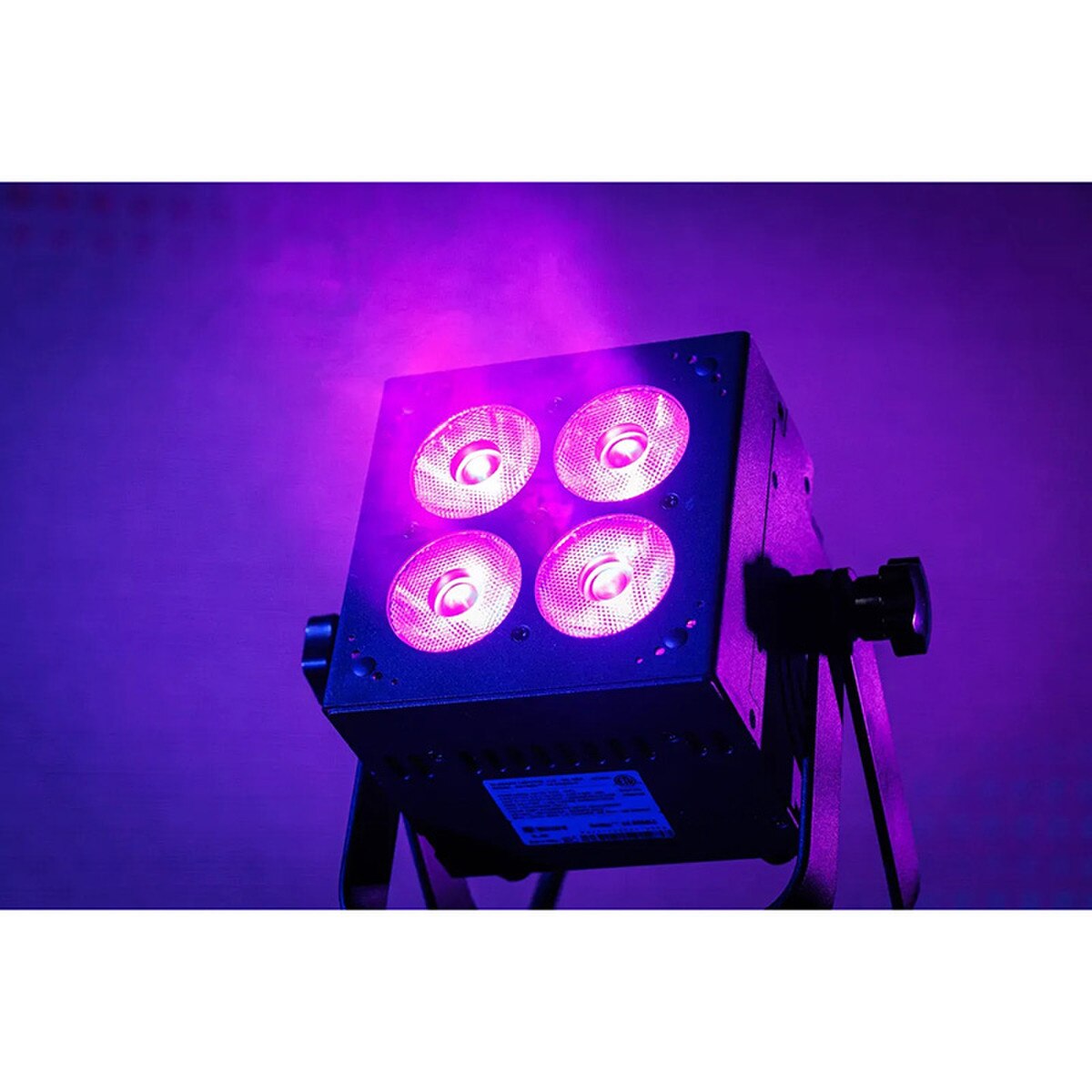

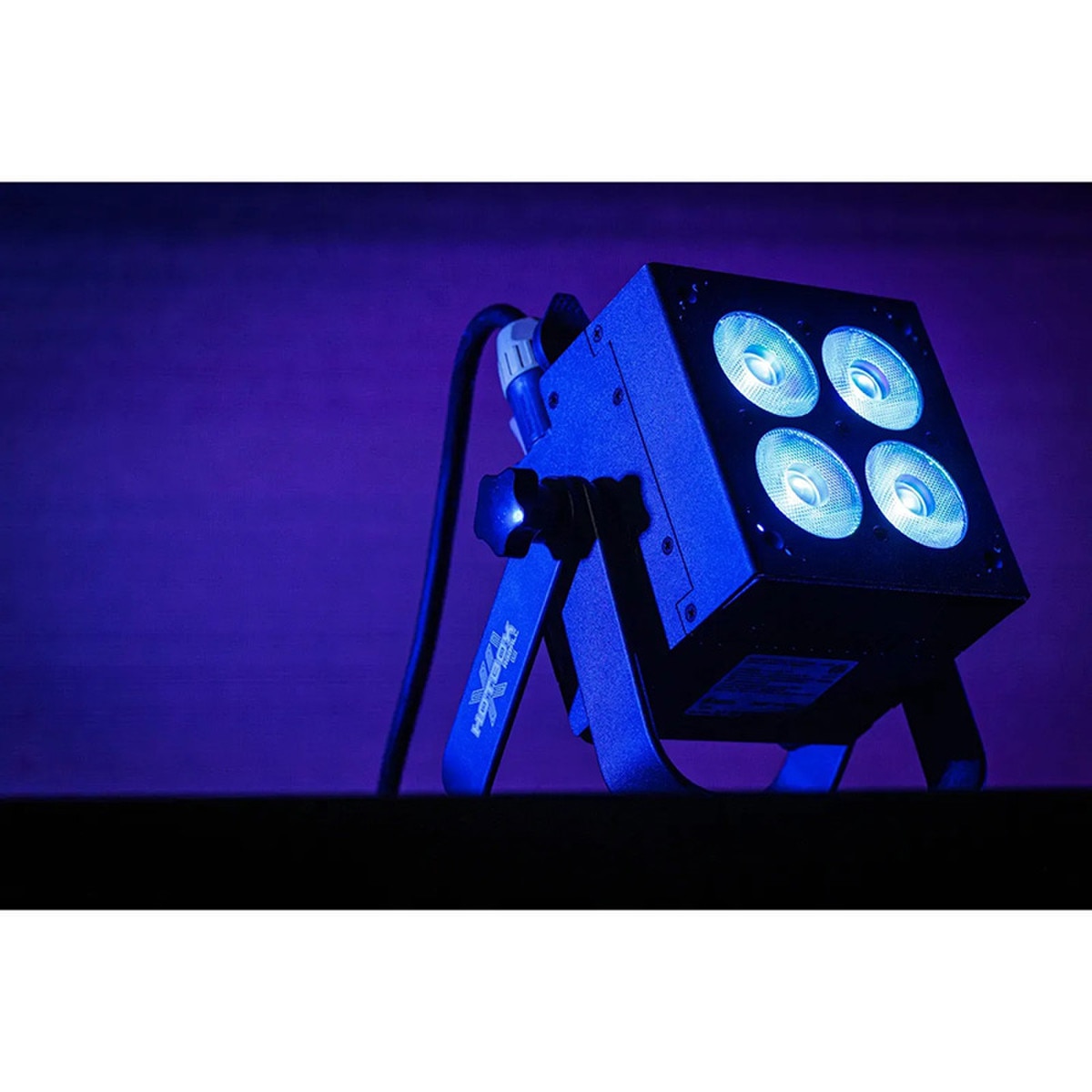

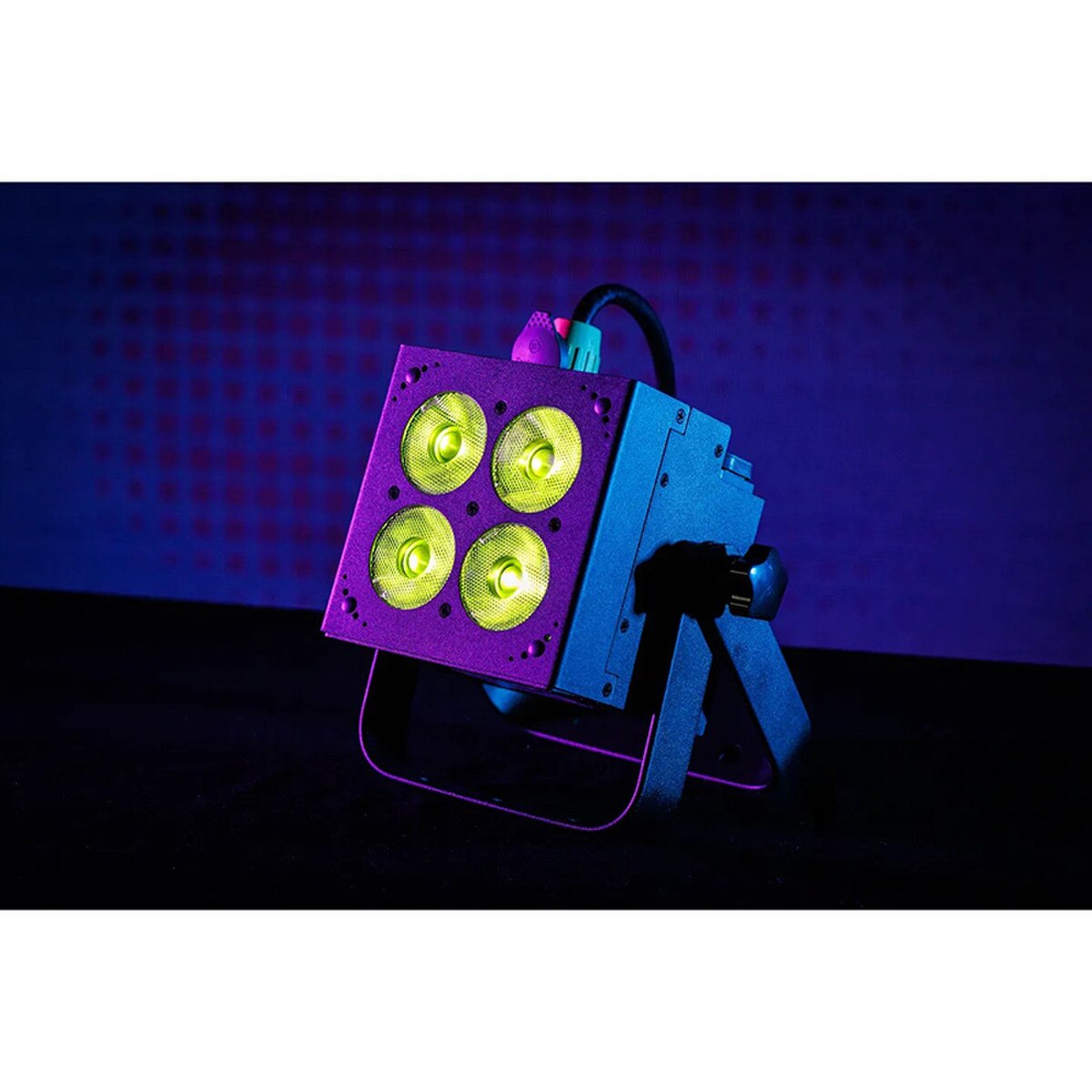

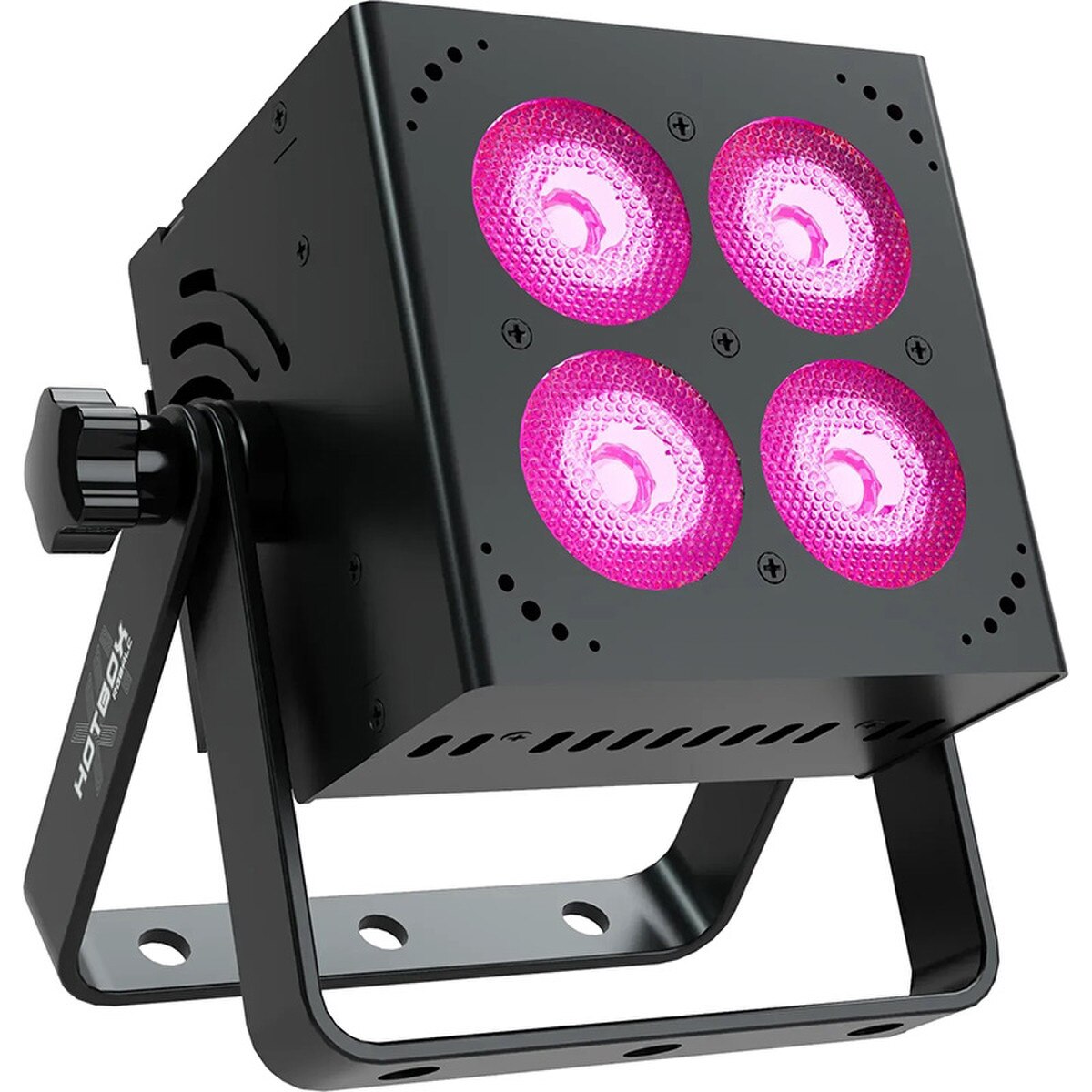

Blizzard HotBox X4 RGBALC

At A Glance:

• RGBALC color mixing
• Portable and high-output full color wash light
• Easy-to-use, 4-button OLED control menu

Summary:

The HotBox X4 RGBALC is a top performer and undoubtedly our most powerful and versatile HotBox to date. Equipped with 4x 20W RGBALC 6-in-1 LEDs, it delivers vibrant color mixing and smooth effects. It can be rigged for stage lighting, used in a freestanding position, or easily fit into standard-sized box trusses for truss warming. With a 25° beam angle, variable dimming curves, and striking strobe effects, it is perfect for a wide range of indoor lighting applications.

Built with advanced features and durability in mind, this fixture offers multiple built-in programs, customizable chase effects, and is ideal for video applications with flicker-free LEDs and user-adjustable PWM settings. Its well-structured 4-button OLED menu ensures easy navigation, while RDM protocol adds another layer of professional control. Housed in a solid metal casing, it features industry-standard powerCON® TRUE1-compatible power and 5-pin DMX in/out connections.

Full Color + Lime

Go big with vibrant color mixing and smooth effects on flicker-free LEDs. With a 25° beam angle, variable dimming curves, and striking strobe effects, it is perfect for a wide range of indoor lighting applications.

Compact & Sturdy

Hotbox X4 features a rock-solid metal housing with dual hanging brackets, all wrapped up in a cute little package that weighs just 4.25 pounds and easily fits into standard-sized box trusses for truss warming.

Tech Specs

The Rundown:

• RGBALC color mixing
• Portable and high-output full color wash light
• Easy-to-use, 4-button OLED control menu
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• 6/8/12-channel DMX profiles w/ 32-bit dimming
• Flicker-free constant-current LED driver
• 25 degree beam angle (40-45° with optional Blizzard HotBox Diffusion Panel)
• Dual mounting brackets for positioning flexibility
• 5-pin male/female XLR input & output connections
• PowerCON® TRUE1™ compatible in/out power connectors

Optical:

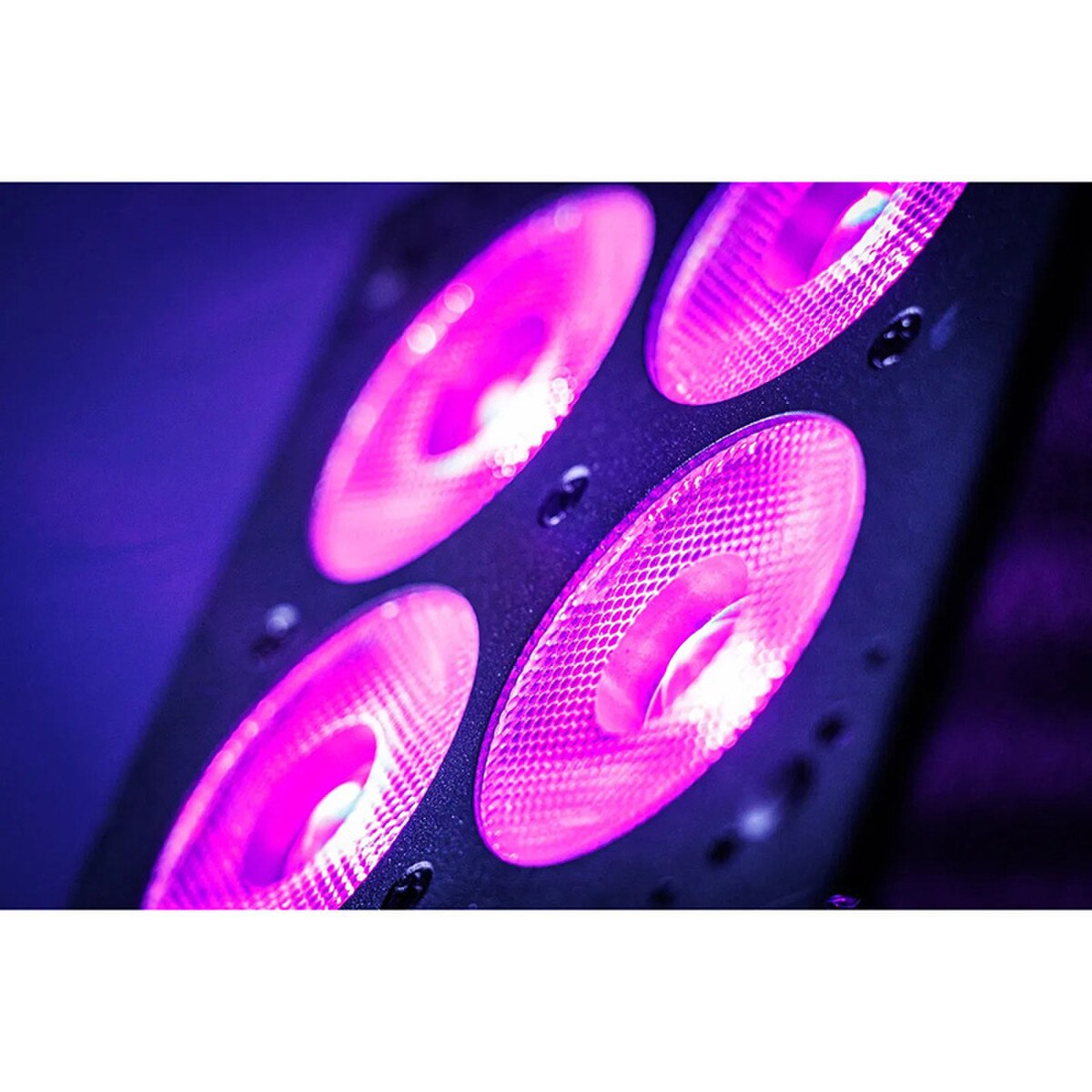

• 4 x 20W RGBALC 6-in-1 LEDs (100,00 hours)
• Beam Angle: 25-degree beam (40-45° with optional Blizzard HotBox Diffusion Panel)
• Flicker-free LEDs

Luminous Intensity:

• 24° Beam Angle
• 5,563 Lux @ 2M
• 2,379 Lux @ 3M
• 1,319 Lux @ 4M
• 820 Lux @ 5M

Control:

• Protocol: USITT DMX-512, RDM
• DMX Channels: 6/8/12-channel DMX modes
• Input/Output: 5-pin XLR Male/Female
• DMX512, M/S, Standalone, Auto Mode

Power & Current:

• Operating voltage: 100-240VAC, 50/60 Hz
• Power Consumption: 67W, 0.95A, PF: .6

Dimensions:

• 4.25lbs
• 8.1" x 4.7" x 7.2" (205.5 x 119.2 x 183.2 mm)

Warranty:

• 2 Year - Extendable

HotBox X4 RGBALC User Manual.pdf
HotBox X4 RGBALC Cutsheet.pdf
