Blizzard Hypno Spot
Details
Transfix the Audience

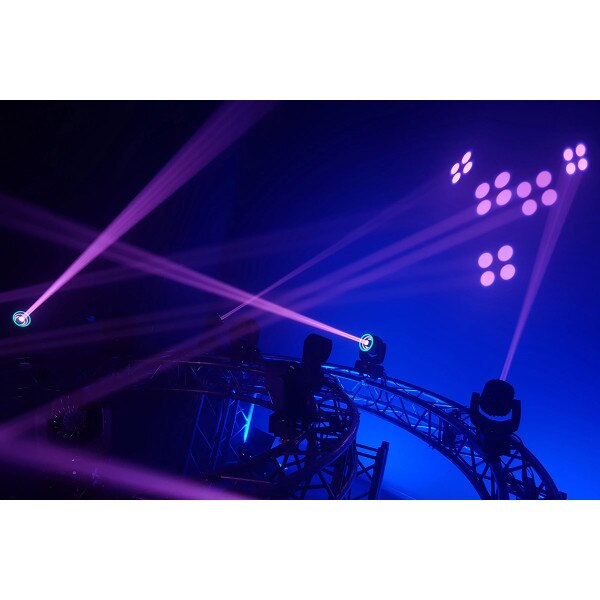

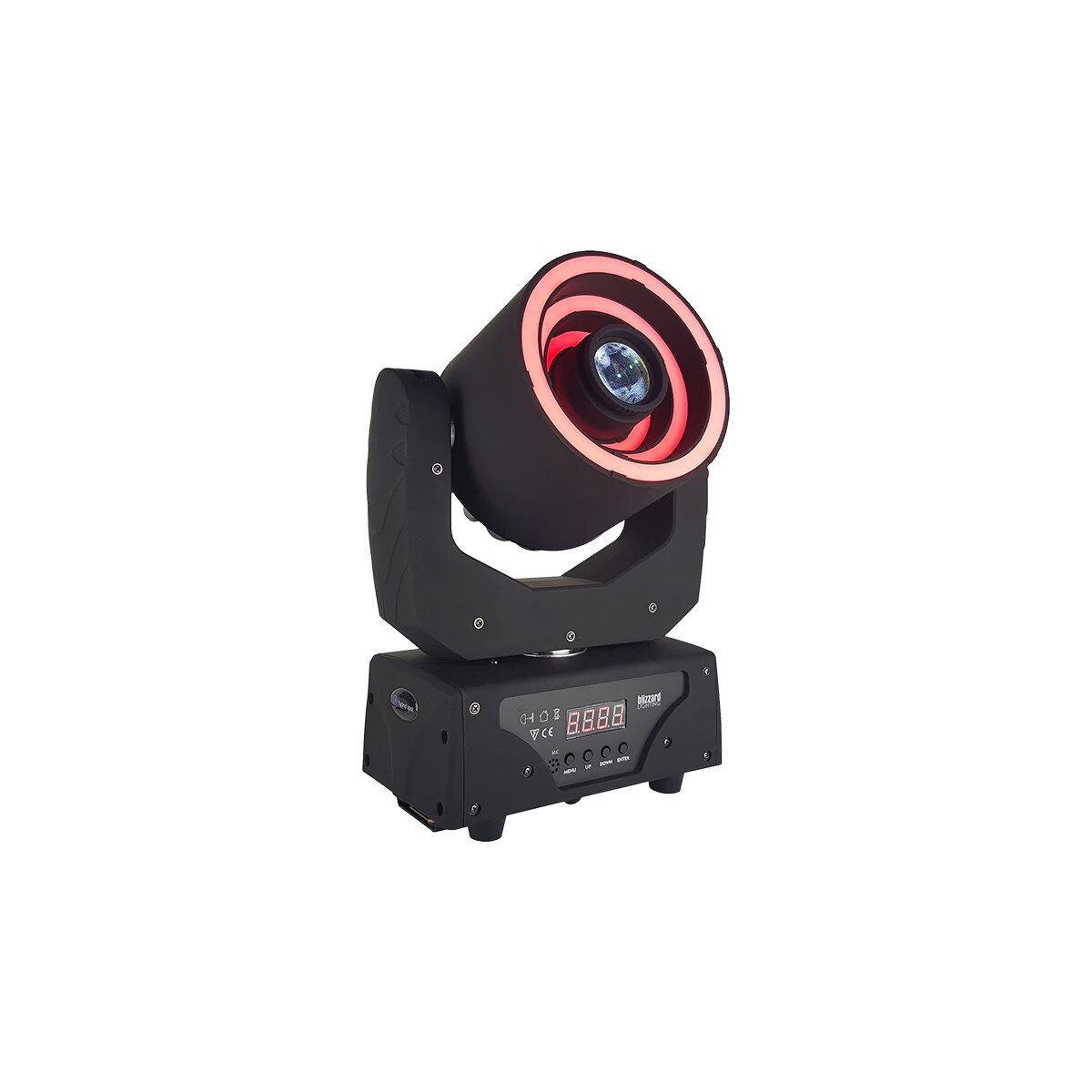

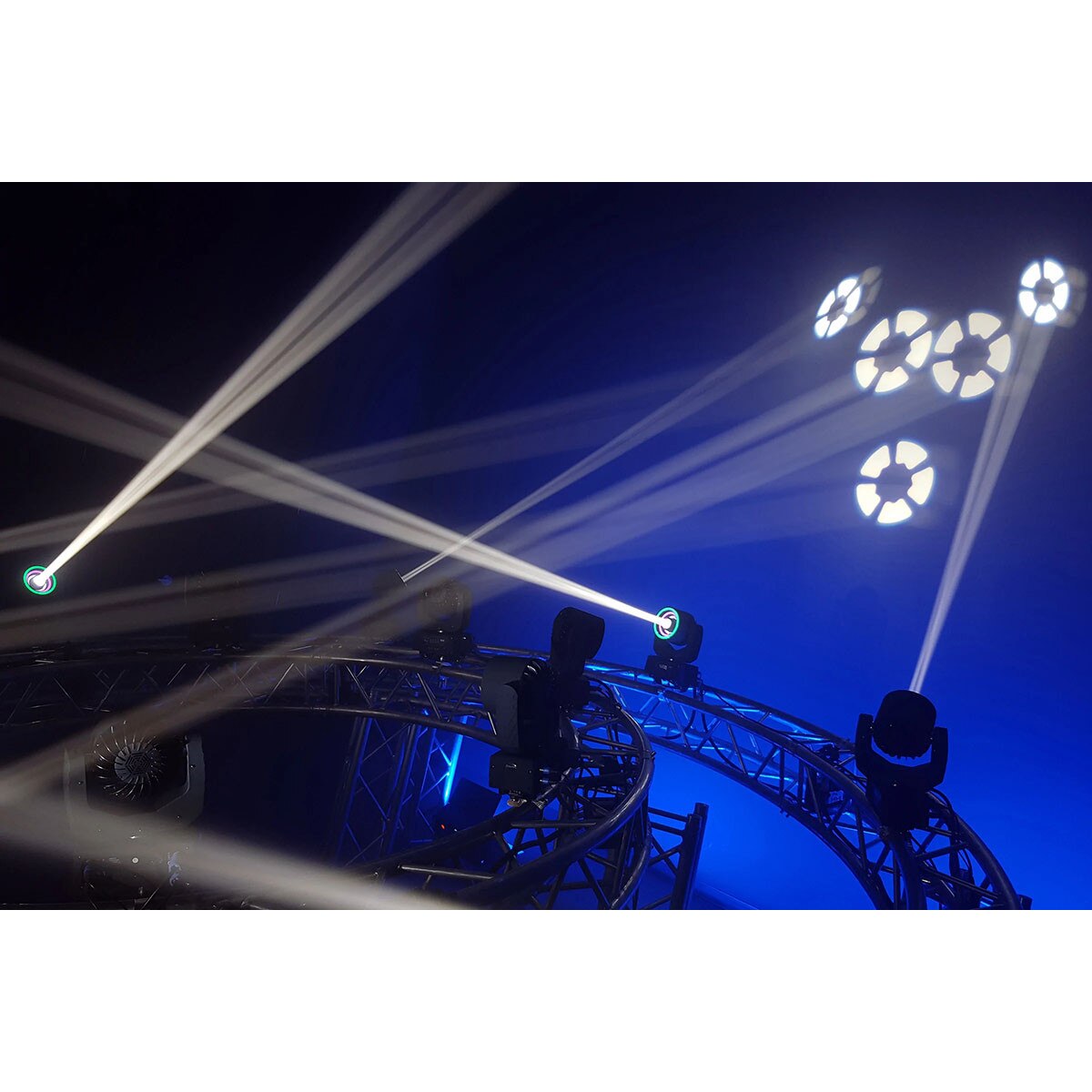

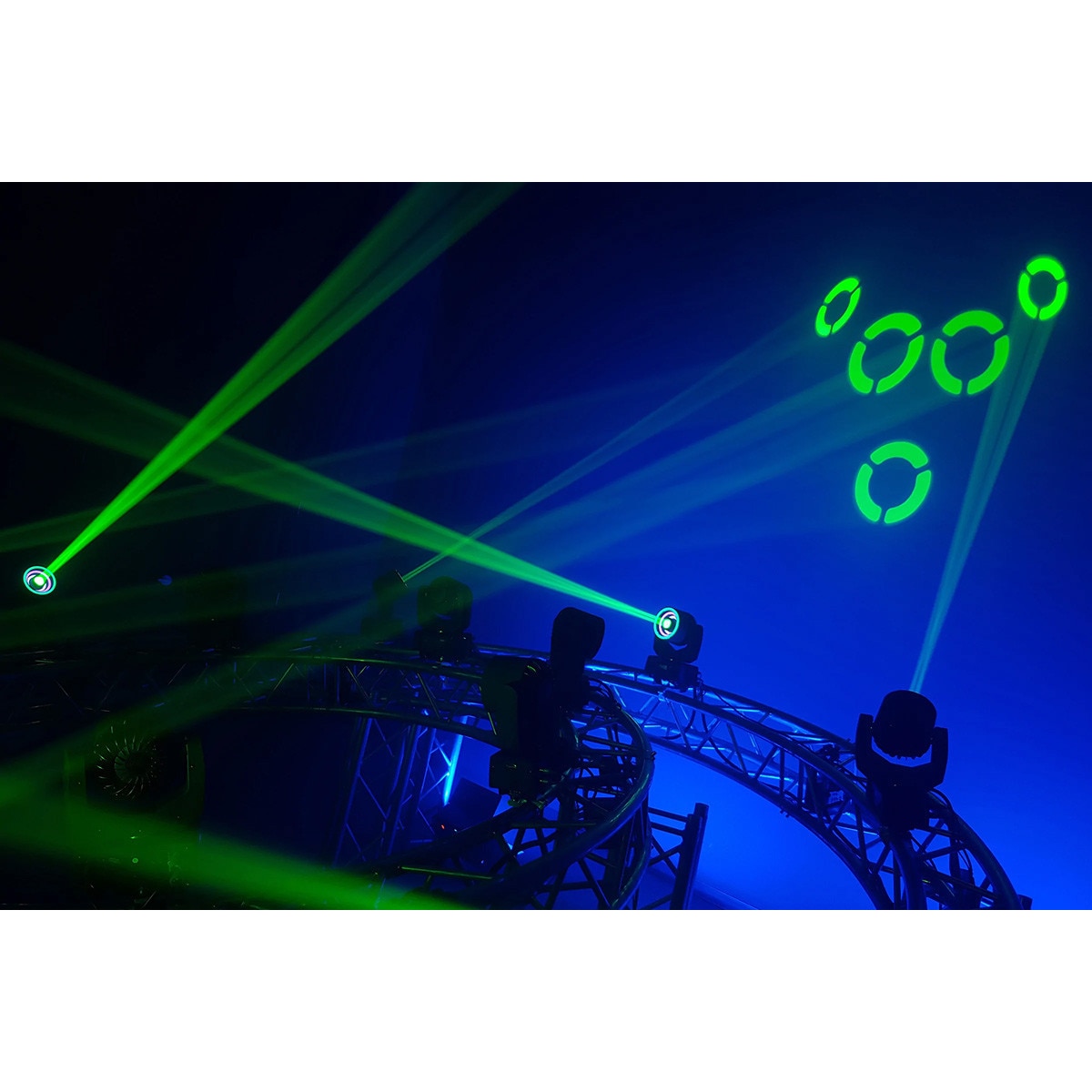

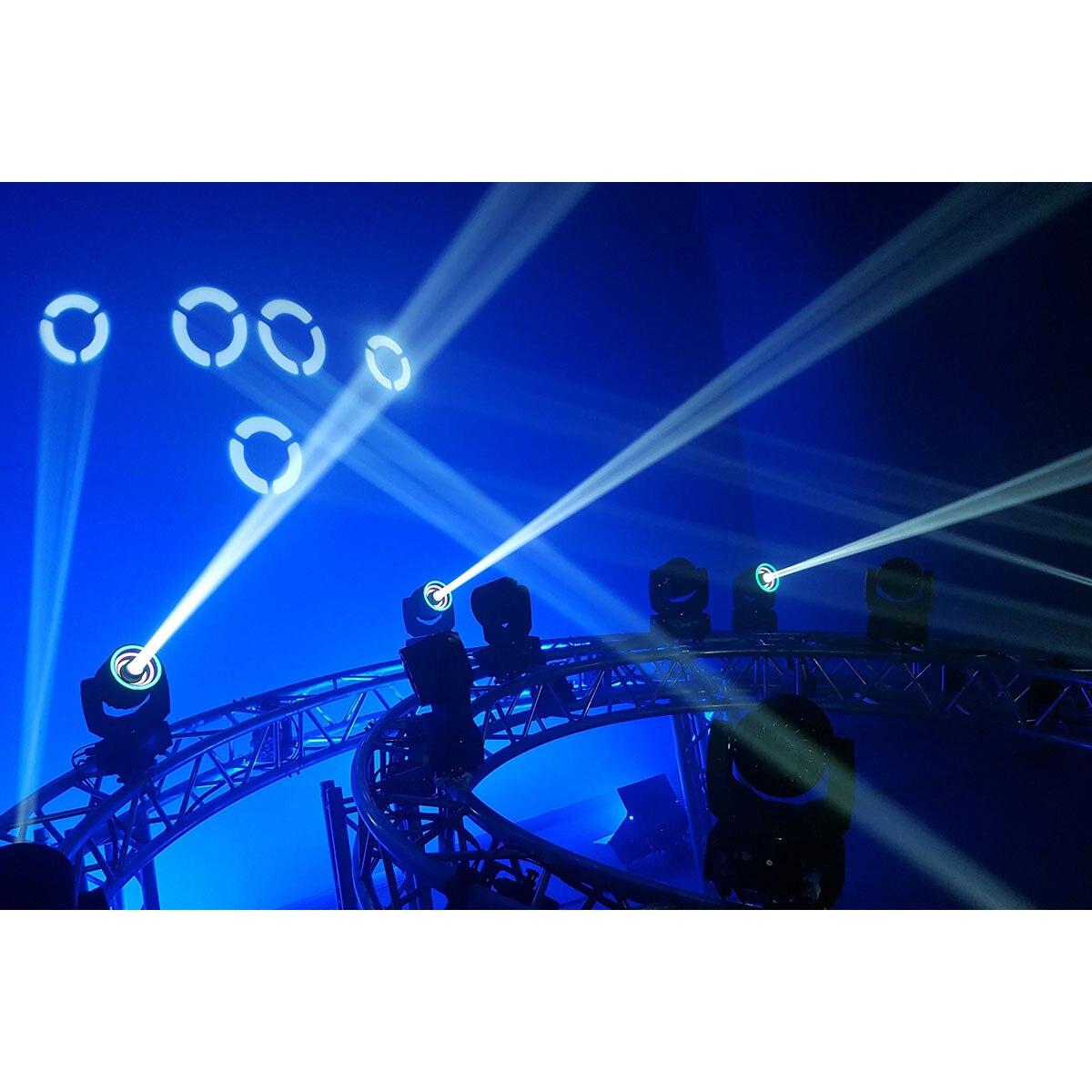

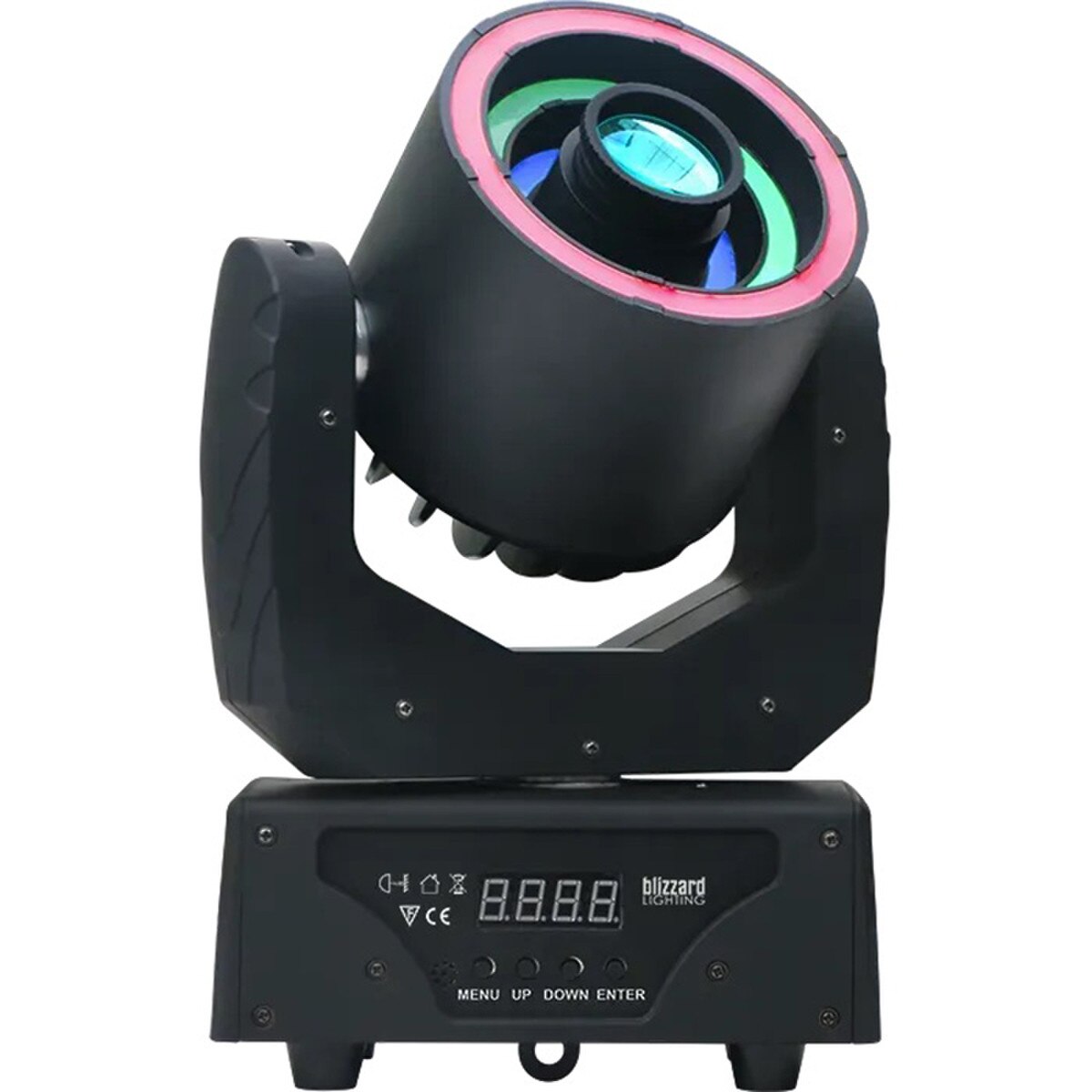

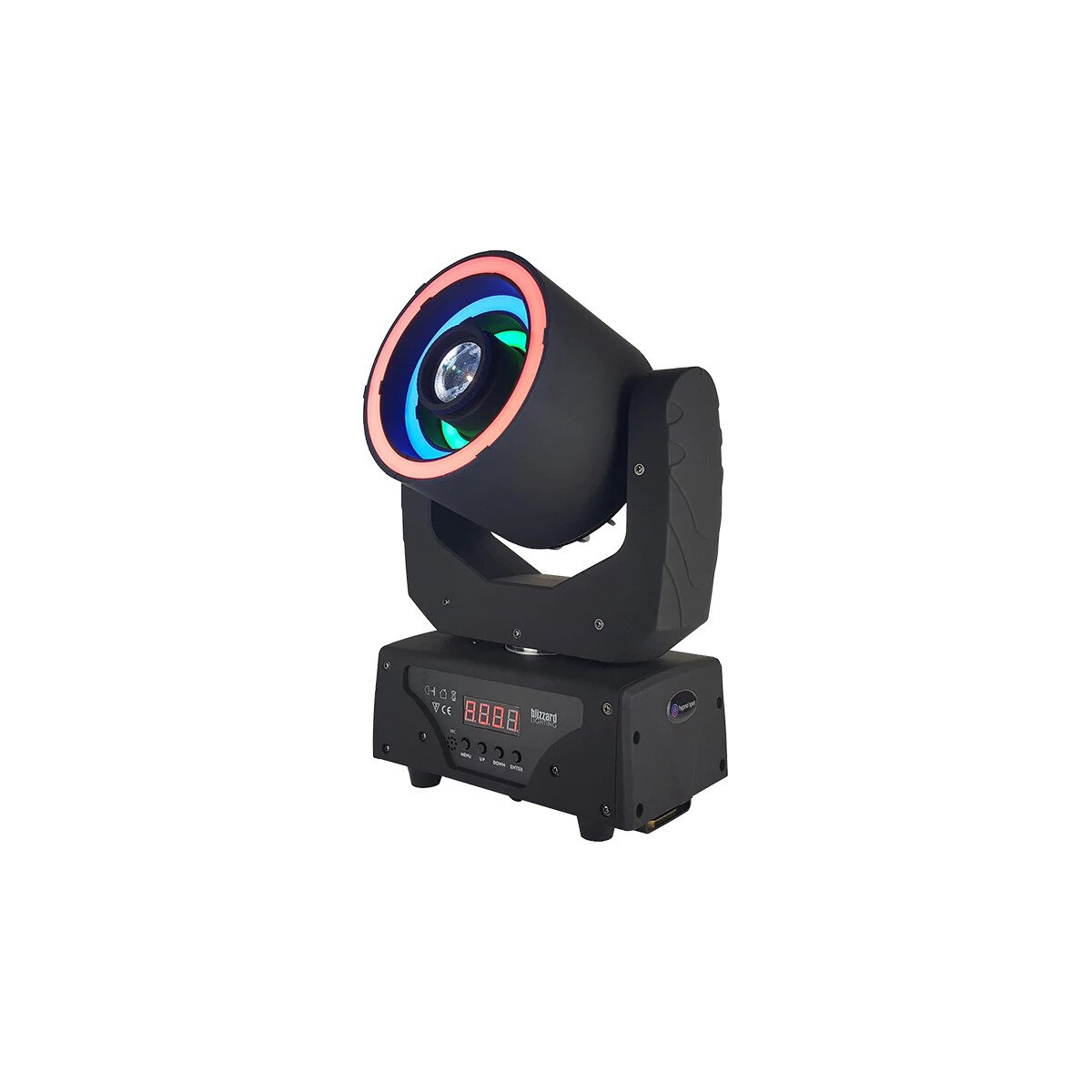

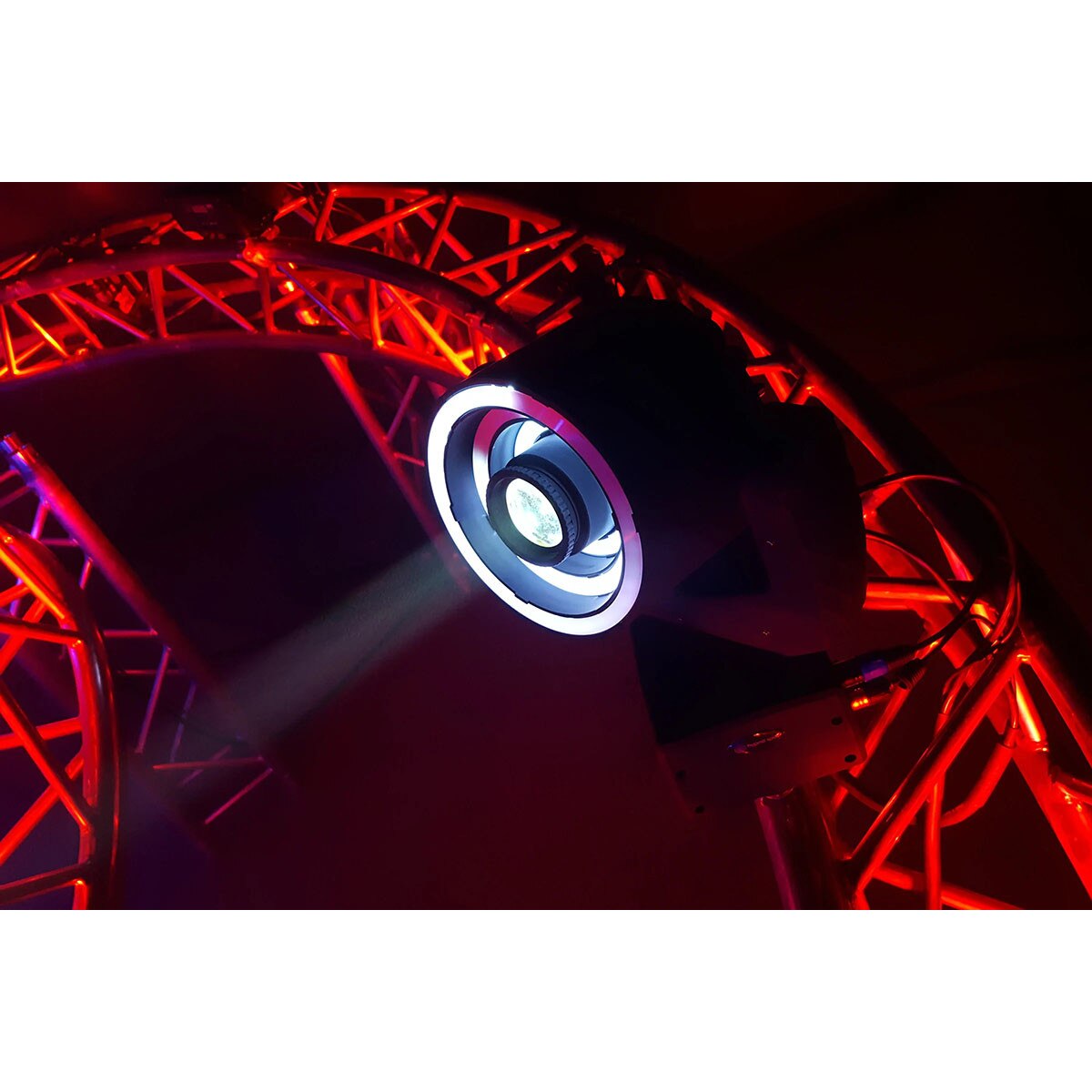

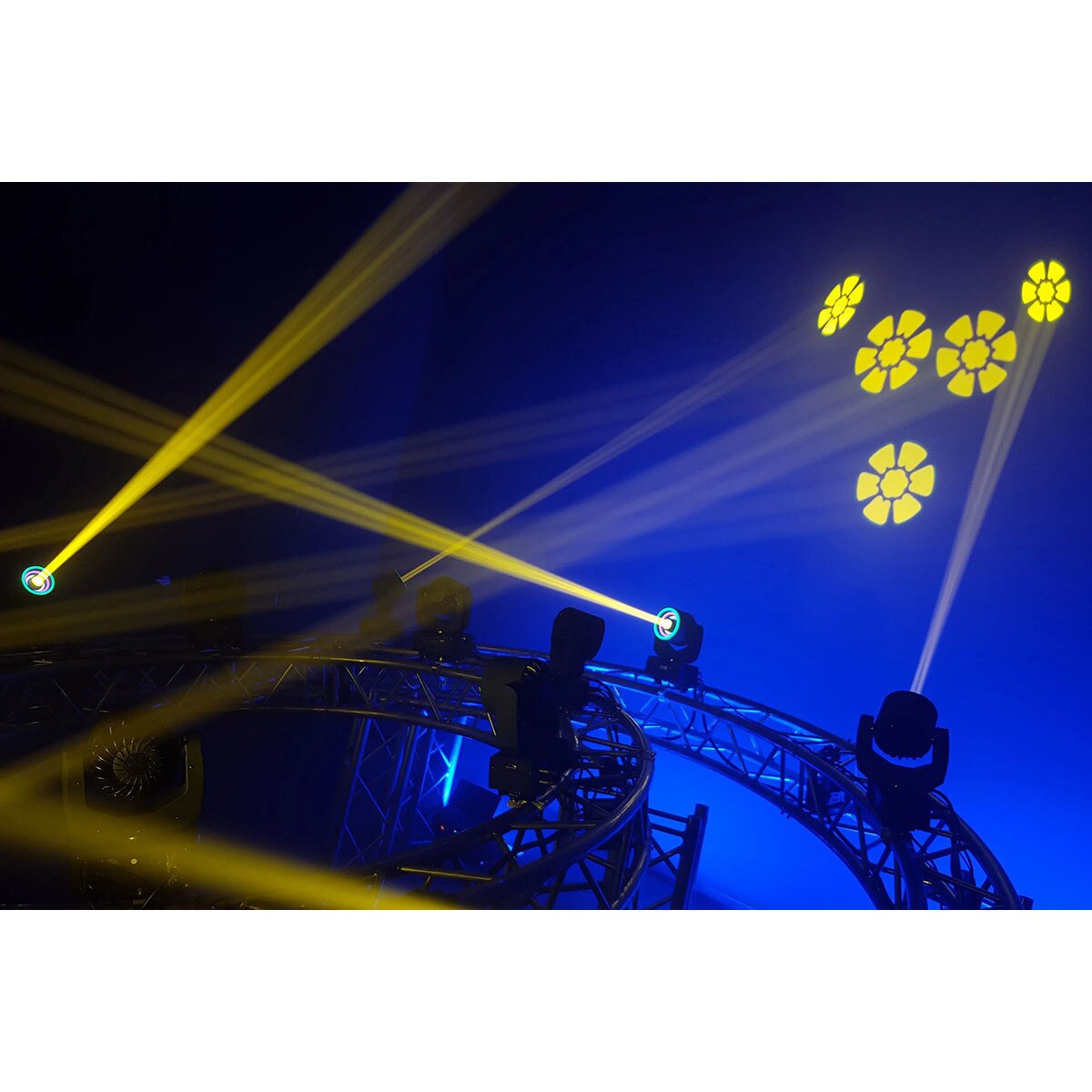

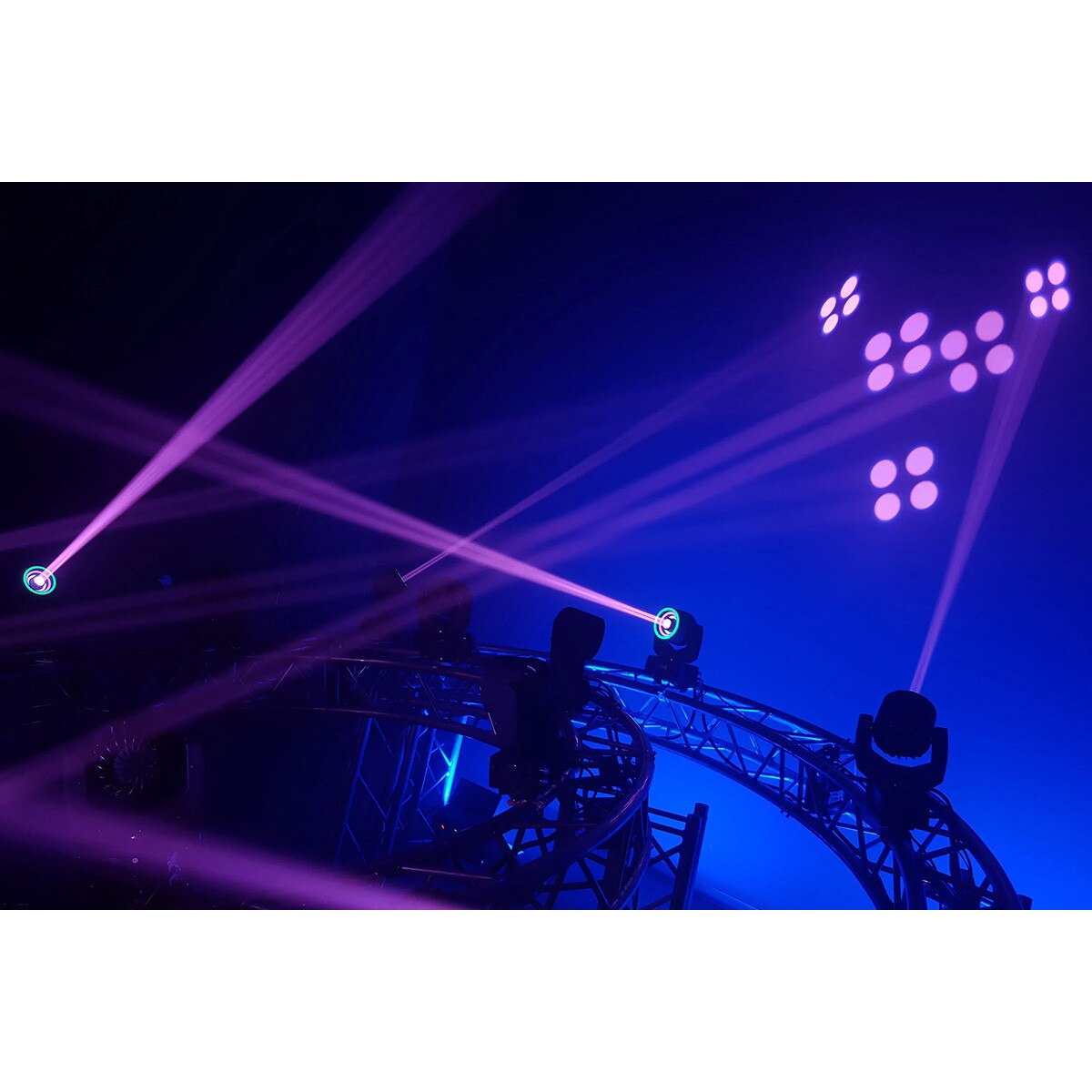

Hypno™ Spot is an LED spot moving head designed to transfix your audience! It comes loaded with a high-output 30W white LED in the center for stunning 4.7° beam effects with a 9 filter color wheel +open and 9 gobos +open. The center LED is surrounded by 3x LED rings that can perform mesmerizing chase effects, single LED chases, full color changes, and strobe.
Loaded with Features

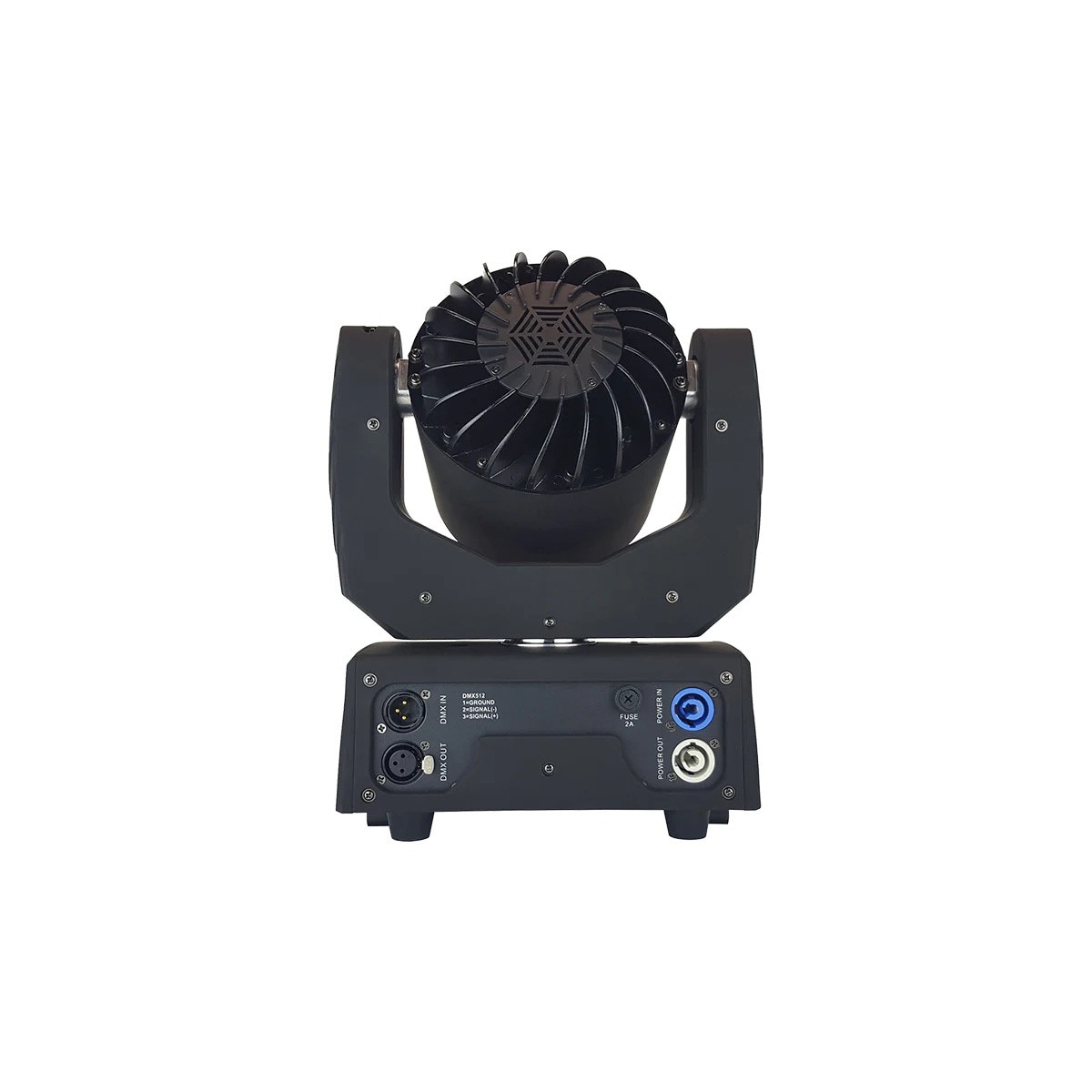

Hypno™ Spot offers two user-selectable DMX modes (12/23-channels) and an easy-to-use 4-button LED control panel. The power connections are industry standard powerCON® compatible In/Out, and it is also equipped with 3-pin DMX In/Out jacks and a quarter-turn “Omega” quick connect type clamp bracket.
Features:
- 4.7° spot effects via 30W white LED, 50,000 hours
- 3x LED rings with 76pcs RGB 3-in-1 SMD5050 LEDs
- Gobo wheel with 9 gobos + open
- Color wheel with 9 colors + open
- Compact and lightweight
- Independent DMX control of beam and LED ring effects
- Pan: 540/630°, Tilt: 200° (8-16 Bit Resolution)
- Built-in auto/sound active programs
- 0-100% linear LED dimmer
- Pan/tilt invert
- 1-25Hz strobe
- User selectable 12/23-channel DMX modes
- Easy-to-use 4-button LED control panel menu
- 3-pin DMX In/Out connections
- powerCON® compatible AC power In/Out
Specifications:
Optical:
- Light Source: 1x 30W high-output white LED +76* RGB 3-in-1 SMD5050 LEDs (rings)
- Beam Angle: 4.7°
- CCT = 6500K
Luminous Intensity:
- 63,163 Lux @ 1M
- 9,480 Lux @ 2.5M
- 2,185 Lux @ 5M
Movement:
- Pan: 540/630° (8-16 bit resolution)
- Tilt: 200 degree (8-16 bit resolution)
Weight & Dimensions:
- Width: 10.5” (265 mm)
- Depth: 6.6” (168 mm)
- Height: 11.9” (301 mm)
- Weight: 11 lbs. (5 kg)
Control:
- Protocol: USITT DMX-512
- 12/23-channel DMX modes
- Standalone, M/S, Sound Active, Color Preset
- 3-pin XLR In/Out connections
- 4-button LCD control panel
Power & Current:
- 100-240VAC, 50-60 Hz
- Power Consumption: 84W, 1.11A, PF: .66
- Fuse: 2A, 250V
Warranty:
- 2-year limited warranty, does not cover malfunction caused by damage to LEDs
