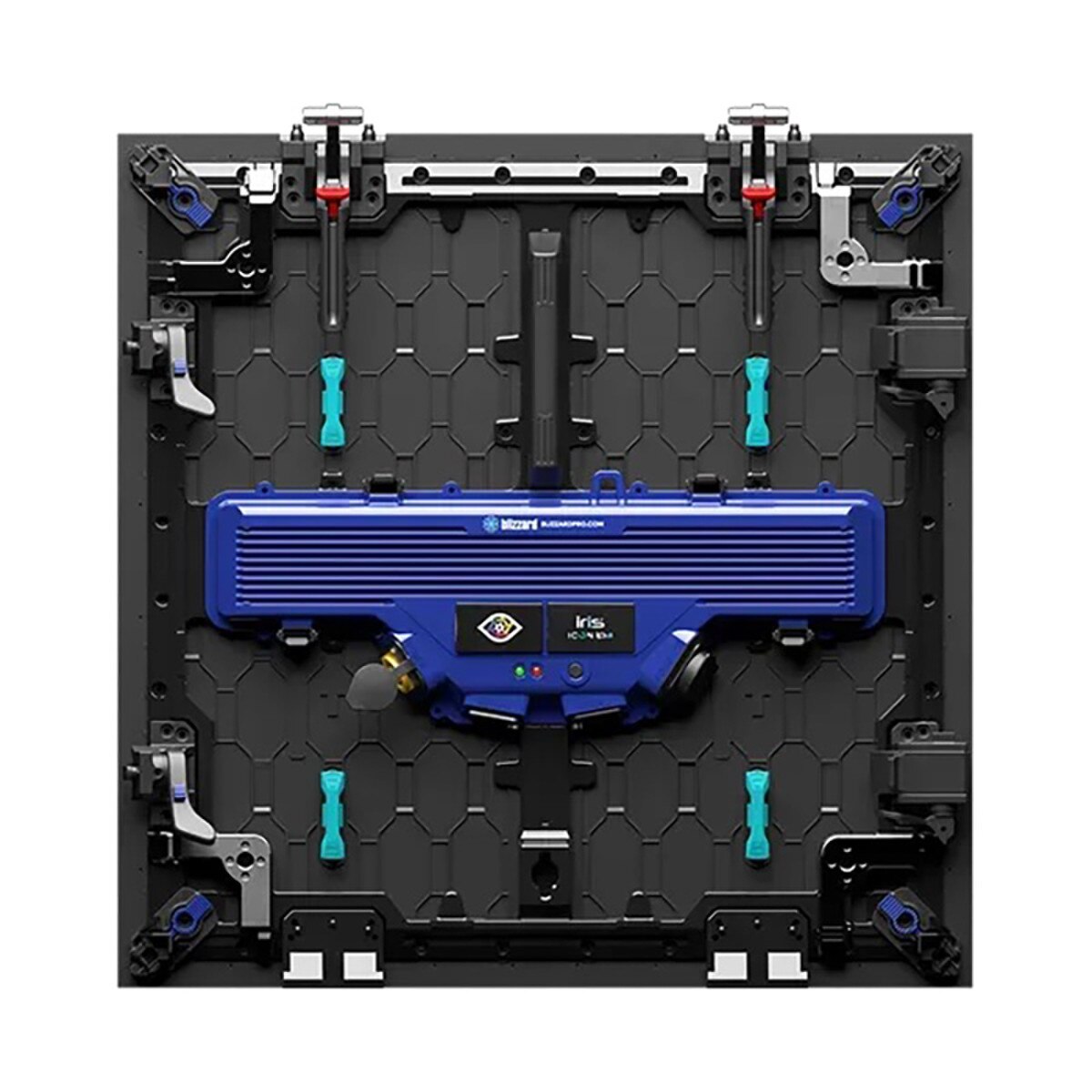

Blizzard IRiS Icon IP3
Details
Blizzard IRiS Icon IP3 Key Features:
- 3.9 mm Pixel Pitch
- 6500 Nit Brightness
- IP65 (front) / IP54 (rear)
ADAPTIVE HDR TECHNOLOGY:
Built around NovaStar™ A8s-N receiving cards (customizable), ICON panels offer HDR10 & HLG support, automatic module calibration, and image rotation; along with an advanced 3-in-1 SMD LED configuration.
THE ALL-WEATHER ICON:
Outdoor-rated ICON IP panels can handle any application under the sun – or clouds – while hitting the road in their ATA-spec roto-molded cases, which feature self-aligning magnetic casters.
FASTER, LIGHTER, STRONGER:
Quick-thumb locks make any setup a breeze, along with blackout gaskets, retractable corner protectors & ground support locks – all designed in panels as light as 6.6 kg (14.5 lbs).
Specifications:
- Brightness: 6500 Nit
- Certifications: FCC, ETL, CE, RoHS
- Color Depth: 14 Bit
- Curvature: ±9°
- Grayscale: 22 Bit+ / Clearview
- HDR: HDR10-Optima / HLG
- IP Rating: IP65 (front) / IP54 (rear)
- Input Power: 1,000 W/m2
- LED Configuration: SMD RGB 1921
- Lifespan: 100,000 Hours
- Max Power Usage: 200W
- Module Quantity: 2
- Panel Dimensions: 500 x 500 x 73 mm
- 16.6 lbs.
- Panel Resolution: 128 X 128
- Pixel Density: 65,536 Dots/m2
- Pixel Pitch: 3.9 mm
- Receiving Card: NovaStar™ A8s-N (customizable based on project)
- Refresh Rate: ≥3,840 Hz
- Scan Mode: 1/16
- Primary Usage: Multipurpose
- Serviceability: Front or Rear
- Special Features: Corner Protectors, Ground Support Locks, Blackout Gaskets, Quick-Thumb Locking
- Warranty: 7 Year
- Working Humidity: 10% - 90% RH
- Working Temp: -20° ~ +50° C
