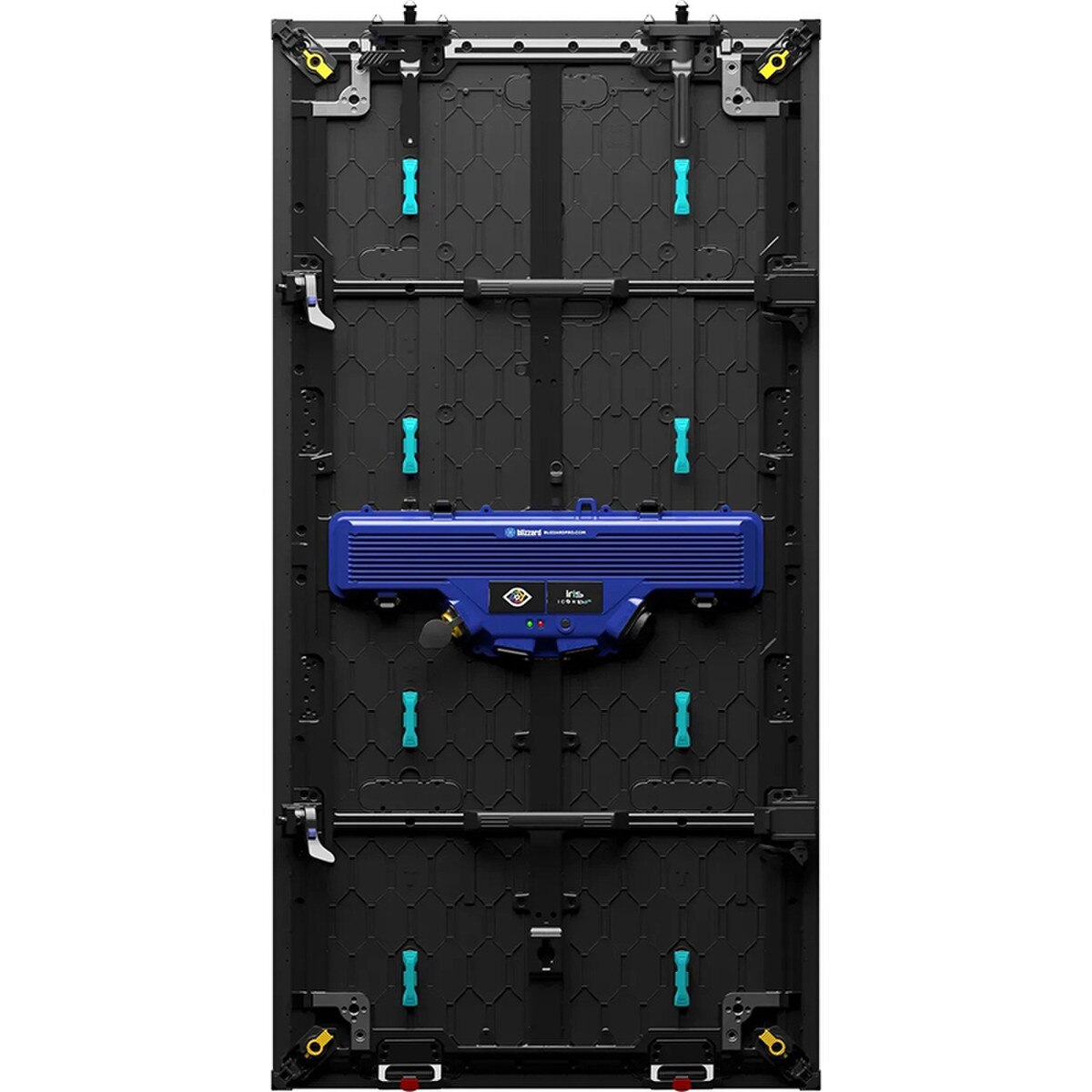

Blizzard IRiS Icon IP3 XL

Blizzard IRiS Icon IP3 XL Key Features:

• 3.9 mm Pixel Pitch
• 6500 Nit Brightness
• IP65 (front) / IP54 (rear)

ADAPTIVE HDR TECHNOLOGY:

Built around NovaStar™ A8s-N receiving cards (customizable), ICON panels offer HDR10 & HLG support, automatic module calibration, and image rotation; along with an advanced 3-in-1 SMD LED configuration.

THE ALL-WEATHER ICON:

Outdoor-rated ICON IP panels can handle any application under the sun – or clouds – while hitting the road in their ATA-spec roto-molded cases, which feature self-aligning magnetic casters.

FASTER, LIGHTER, STRONGER:

Quick-thumb locks make any setup a breeze, along with blackout gaskets, retractable corner protectors & ground support locks – all designed in panels as light as 6.6 kg (14.5 lbs).

Specifications:

• Brightness: 6500 Nit
• Certifications: FCC, ETL, CE, RoHS
• Color Depth: 14 Bit
• Curvature: ±9°
• Grayscale: 22 BIT+ / Clearview
• HDR: HDR10-Optima / HLG
• IP Rating: IP65 (front) / IP54 (rear)
• Input Power: 1,000 W/m2
• LED Configuration: NationStar® RGB 1921
• Lifespan: 100,000 Hours
• Max Power Usage: 400W
• Module Quantity: 2 x 2
• Panel Dimensions: 500 x 1000 x 73 mm
• 26.3 lbs.
• Panel Resolution: 128 x 256
• Pixel Density: 65,536 Dots/m2
• Pixel Pitch: 3.9 mm
• Receiving Card: NovaStar™ A8S-N (customizable based on project)
• Refresh Rate: ≥3,840 HZ
• Scan Mode: 1/16
• Primary Usage: Multipurpose
• Serviceability: Front and Rear
• Special Features: Corner Protectors, Ground Support Locks, Blackout Gaskets, Quick-Thumb Locking
• Warranty: 7 Year
• Working Humidity: 10% - 90% RH
• Working Temp: -20° ~+50° C
