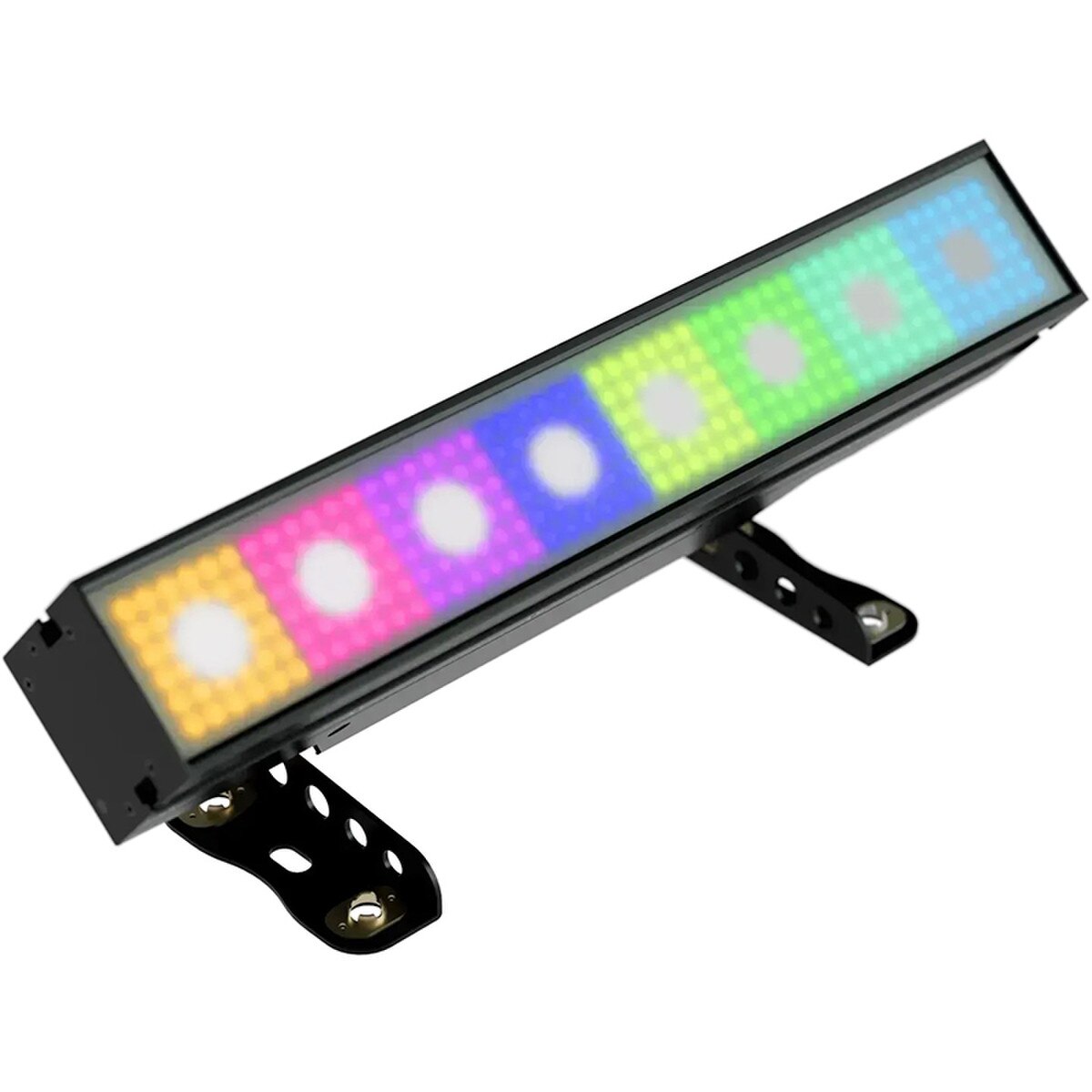

Blizzard InfiniPix Arcade

At A Glance:

• Electronically controlled clear/frosted smart lens
• Narrow white beam + RGBW LED background effects
• Heavy-duty aluminum enclosure w/ interlocking design for connecting multiple fixtures

New Tech + Retro Flair

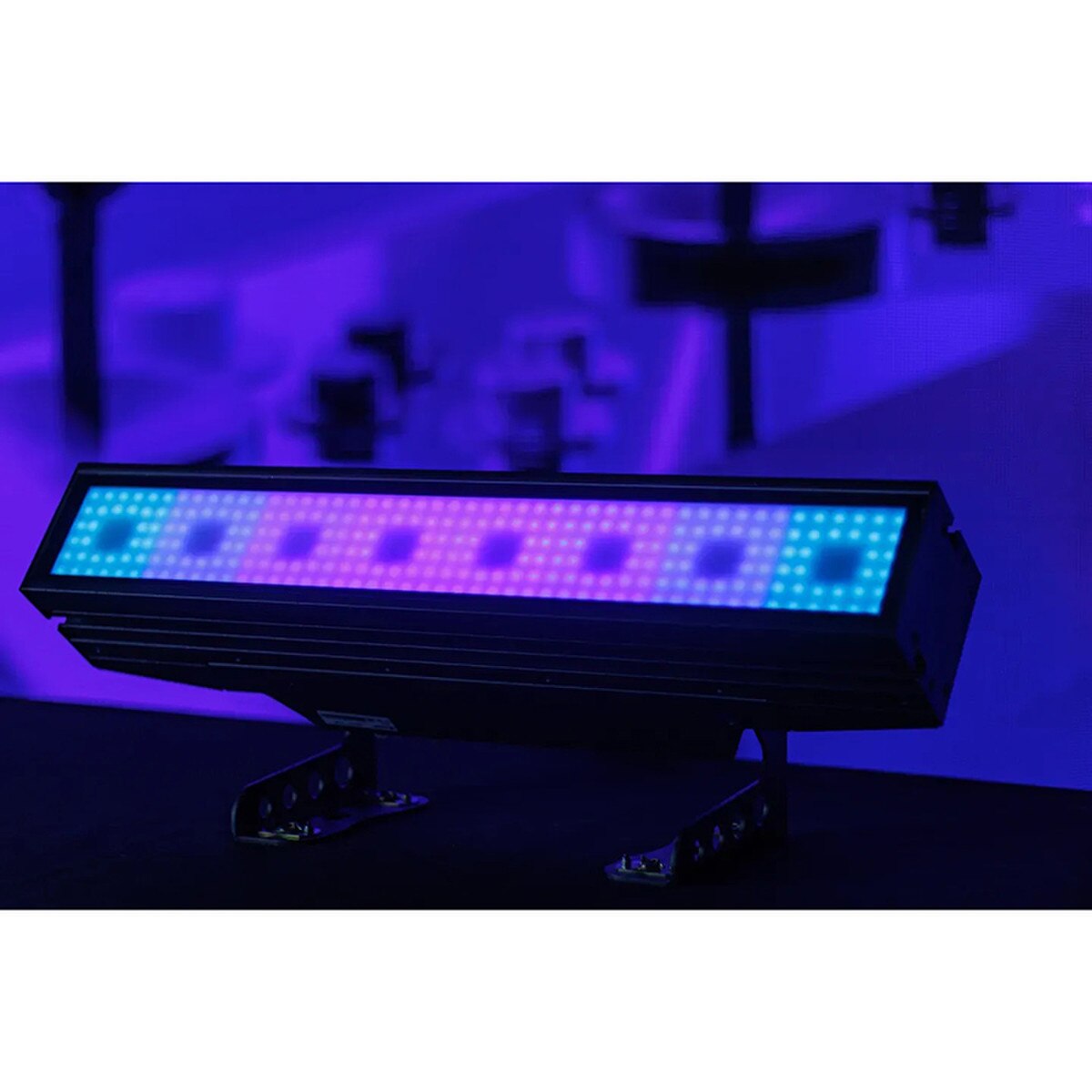

Design flashy, fun and totally rad light shows on any budget. InfiniPix Arcade features 32x8 pixel mappable sections and a secret cheat code (fine it's an electronic smart glass lens) to go from 8 sharp beams of light to a soft glow, instantly.

'Game Over' Never

Heavy-duty aluminum housing and a 2 year extendable warranty will keep your fixture in play for the long haul. Level up your rig and build arrays or connect 36 to frame a replay of your favorite '80s arcade game. It's easy with the interlocking housing design!

Tech Specs

The Rundown:

• Electronically controlled clear/frosted smart lens
• Narrow white beam + RGBW LED background effects
• Heavy-duty aluminum enclosure w/ interlocking design for connecting multiple fixtures

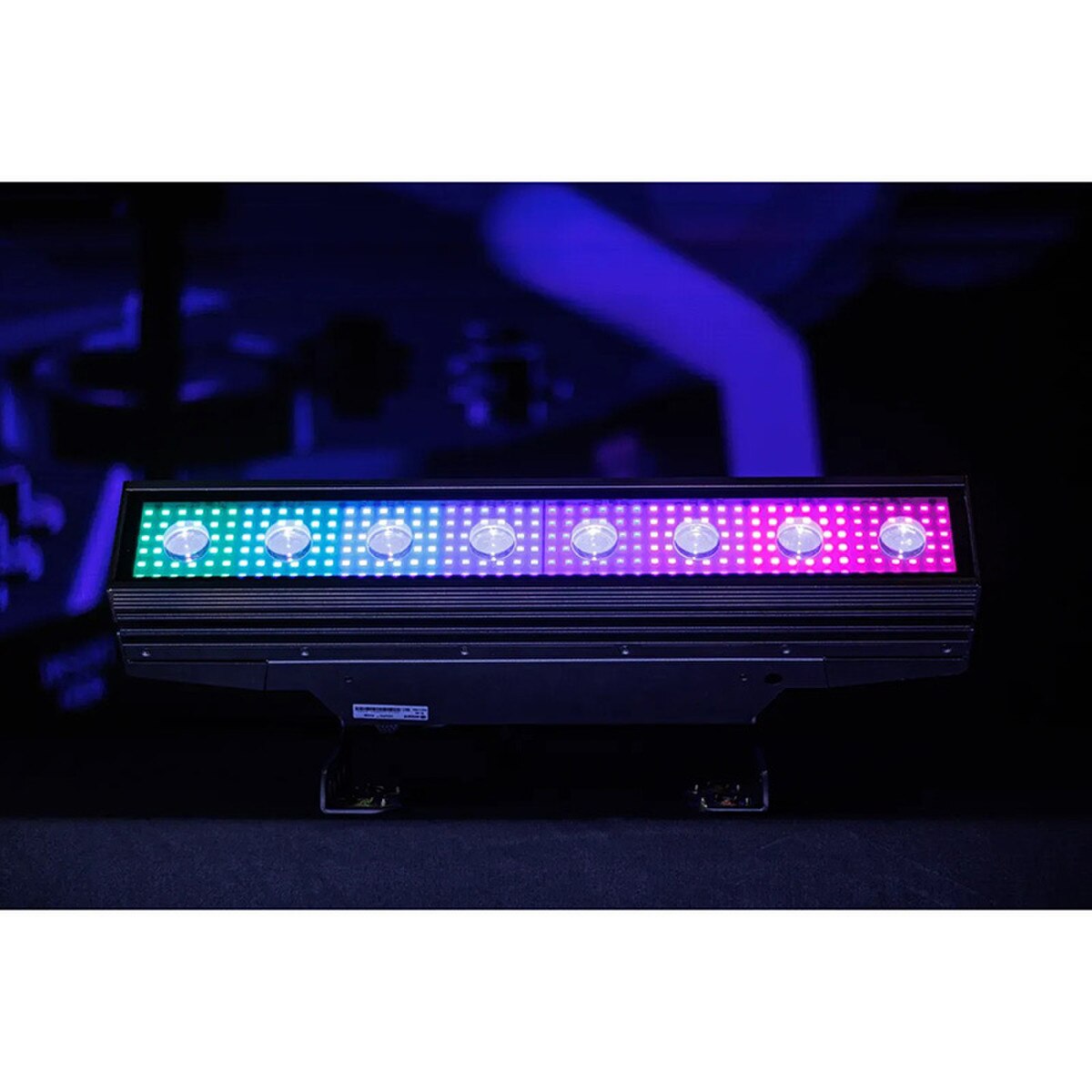

• 8x 20W white LEDs w/narrow 3° beam angle

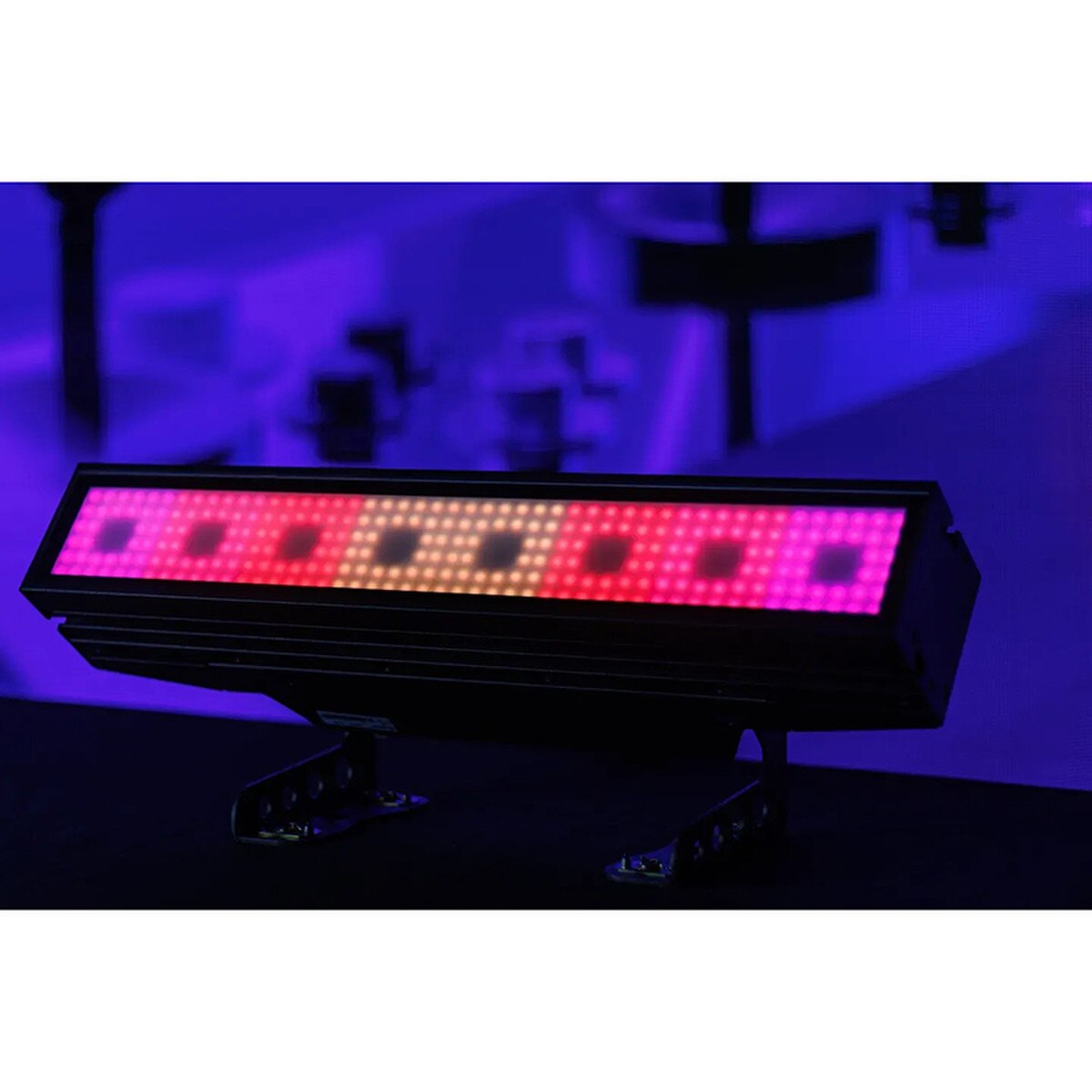

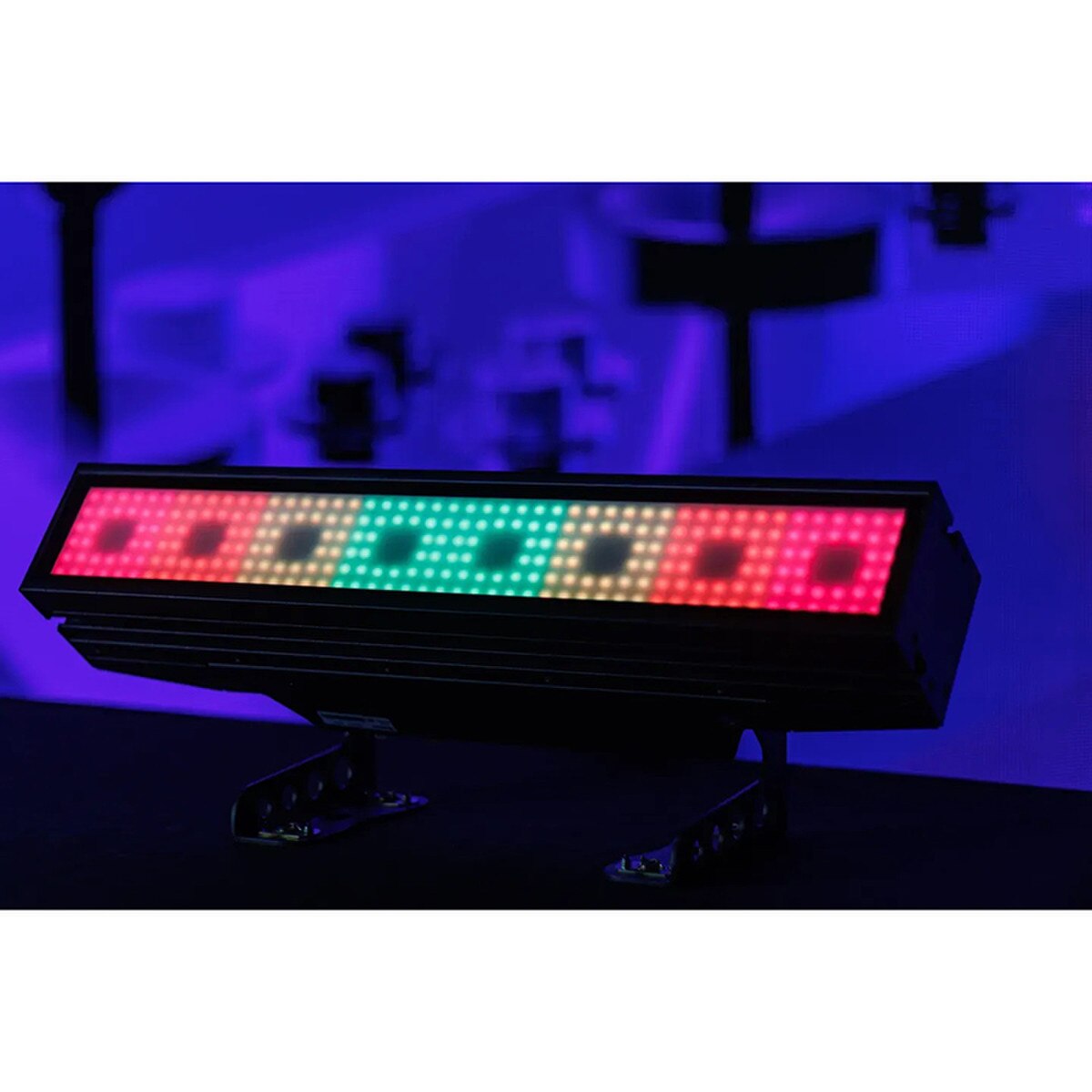

• 256x SMD 5050 RGBW 0.5W LEDs (32x8 LED sections)
• Smooth dimming (0-100% )
• Built-in programs and manual color mixing
• 5-pin DMX in/out connections
• powerCON™ TRUE1 compatible power in/out
• Dual mounting brackets + omega clamp bracket

Optical:

• 256x SMD 5050 RGBW/0.5W LEDs (32x8 Sections)

Beam Angles:

• White LEDs: 3° beam angle (x8)
• RGBW LEDs: 104° (110° with frost)

Control:

• Protocol: USITT DMX-512, RDM
• 11/20/21/41-channel DMX
• LED control panel
• DMX512, M/S, auto
• 5-pin DMX in/out

Power & Current:

• 100-240VAC, 50-60 Hz
• Power consumption: 265W
• PowerCON TRUE1 compatible power in/out

Dimensions:

• 5.6" x 6.9" x 21.7"
• 13.3lbs

Summary:

Step Up Your Game

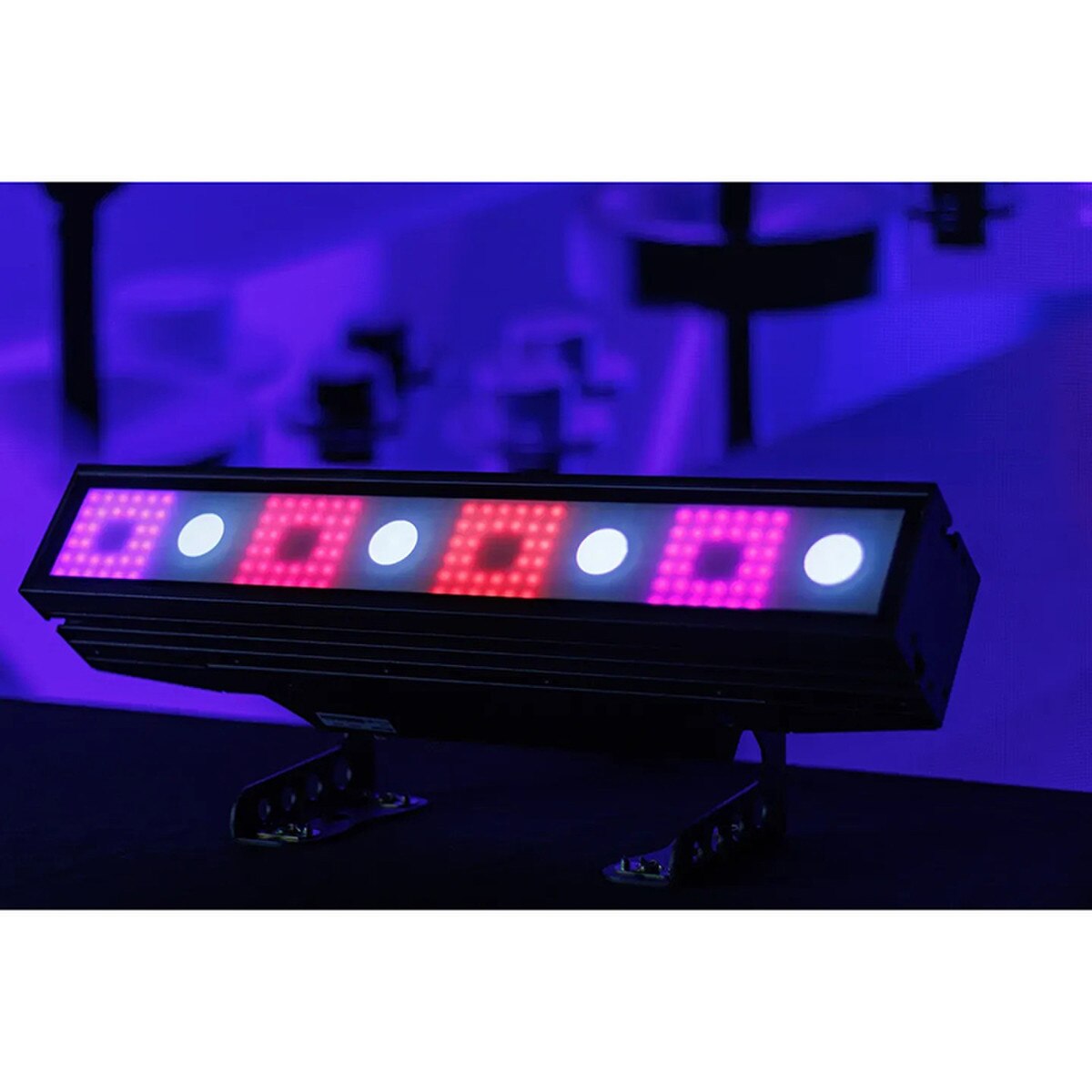

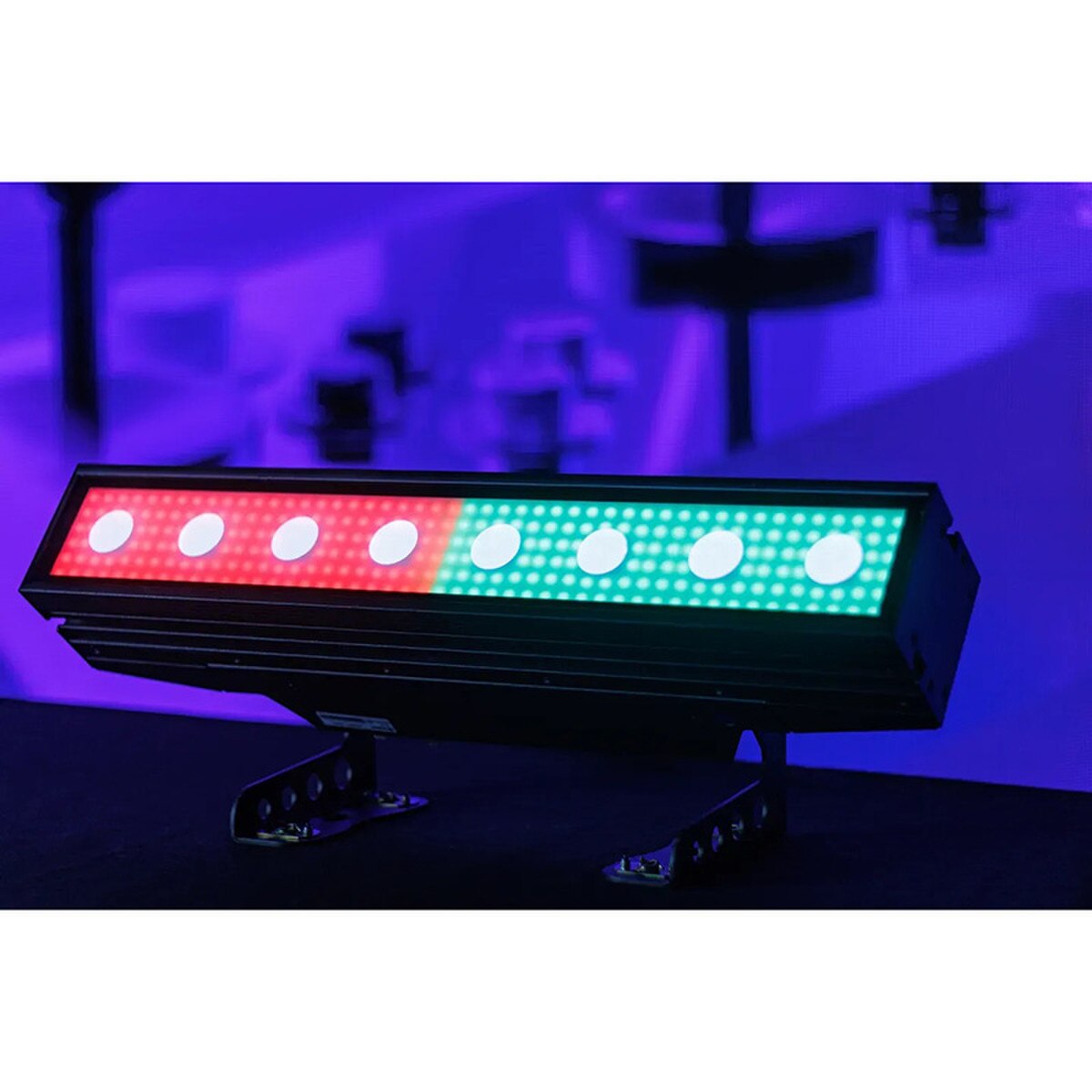

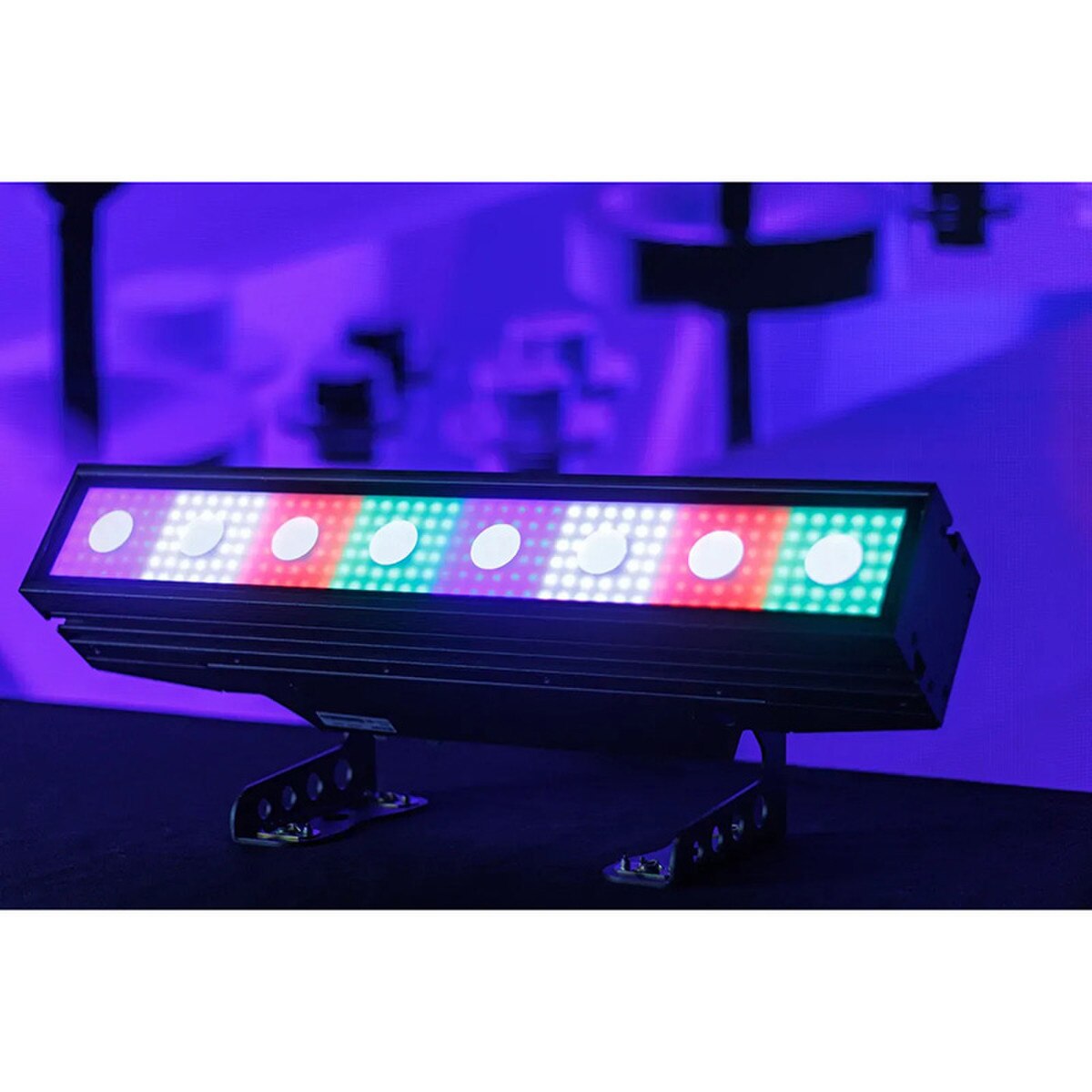

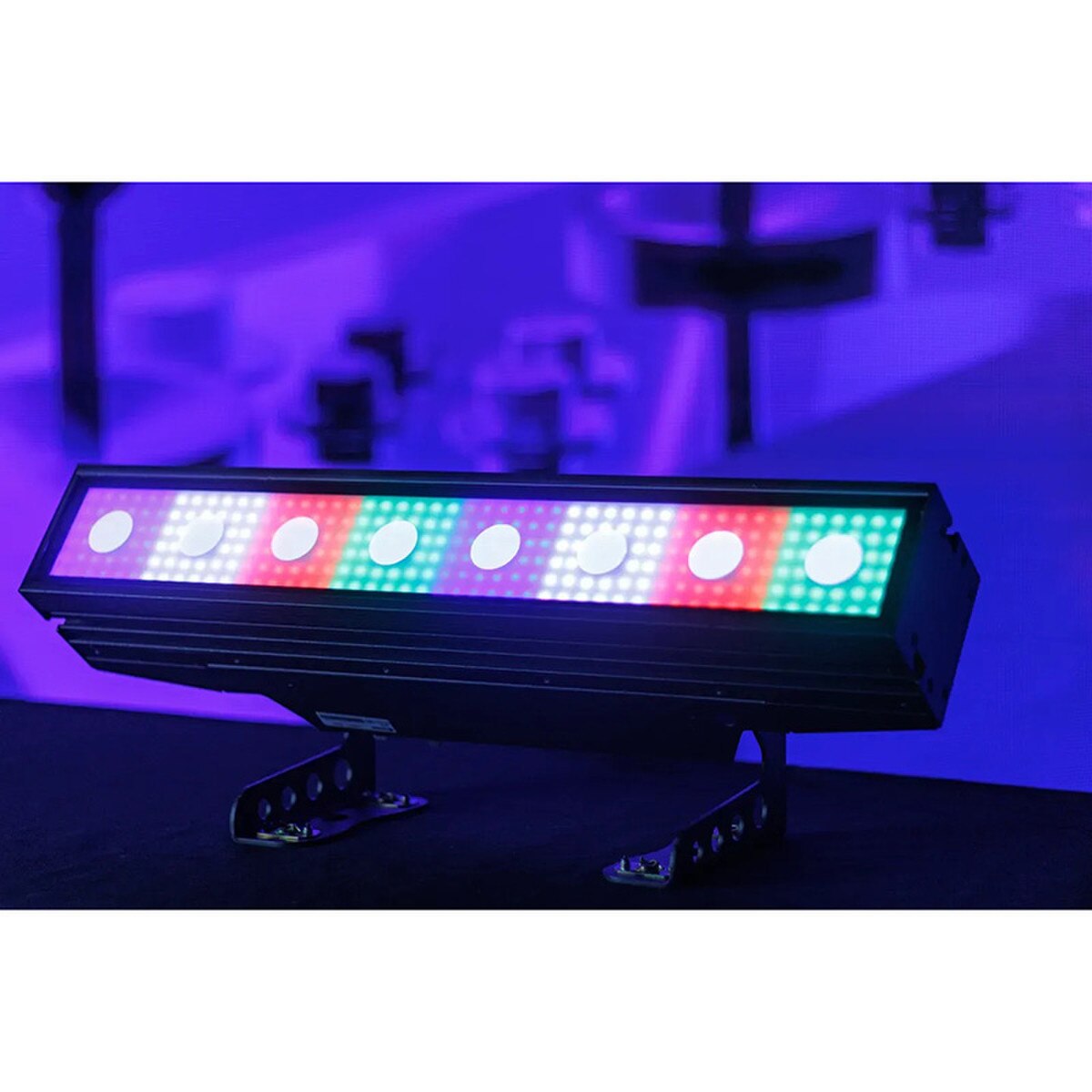

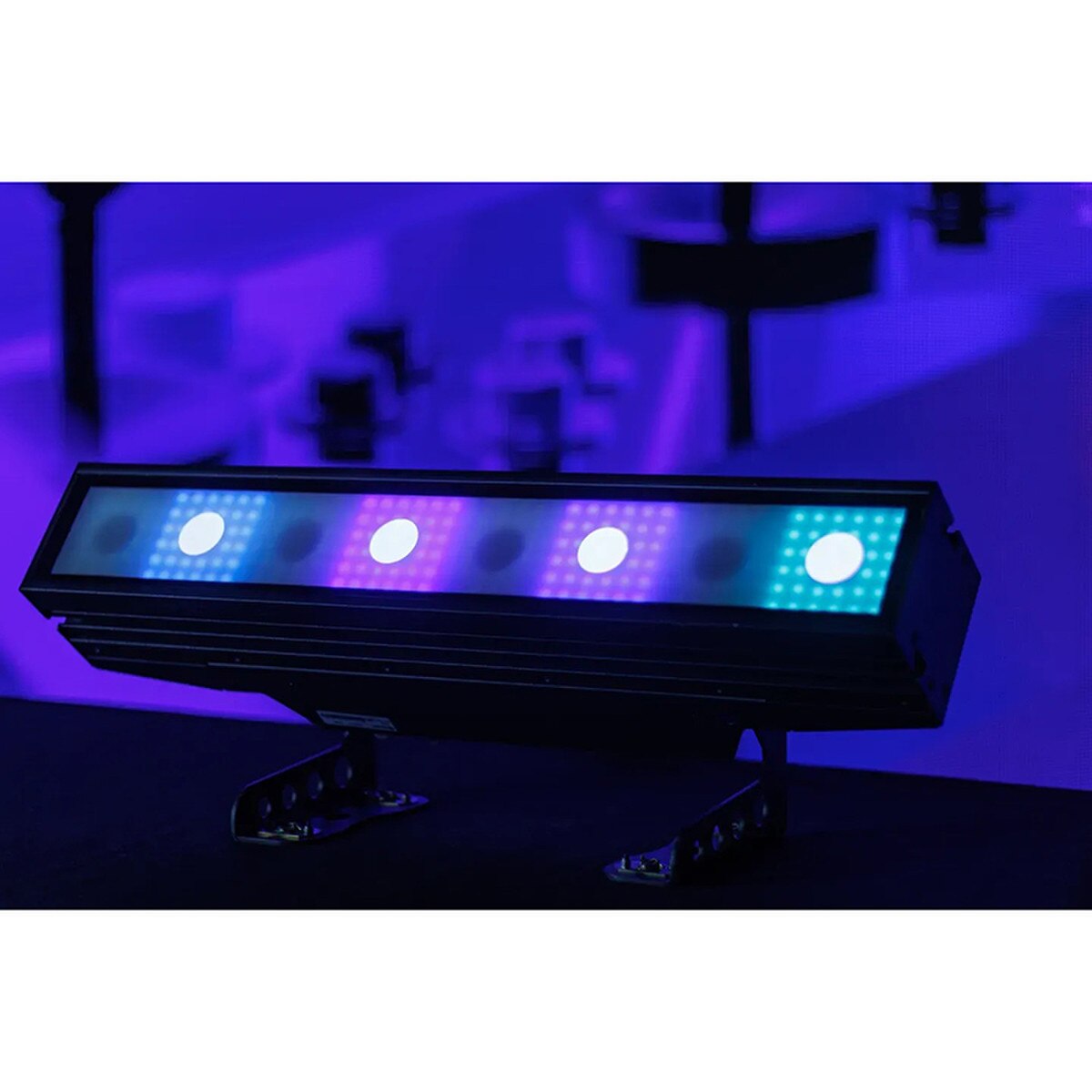

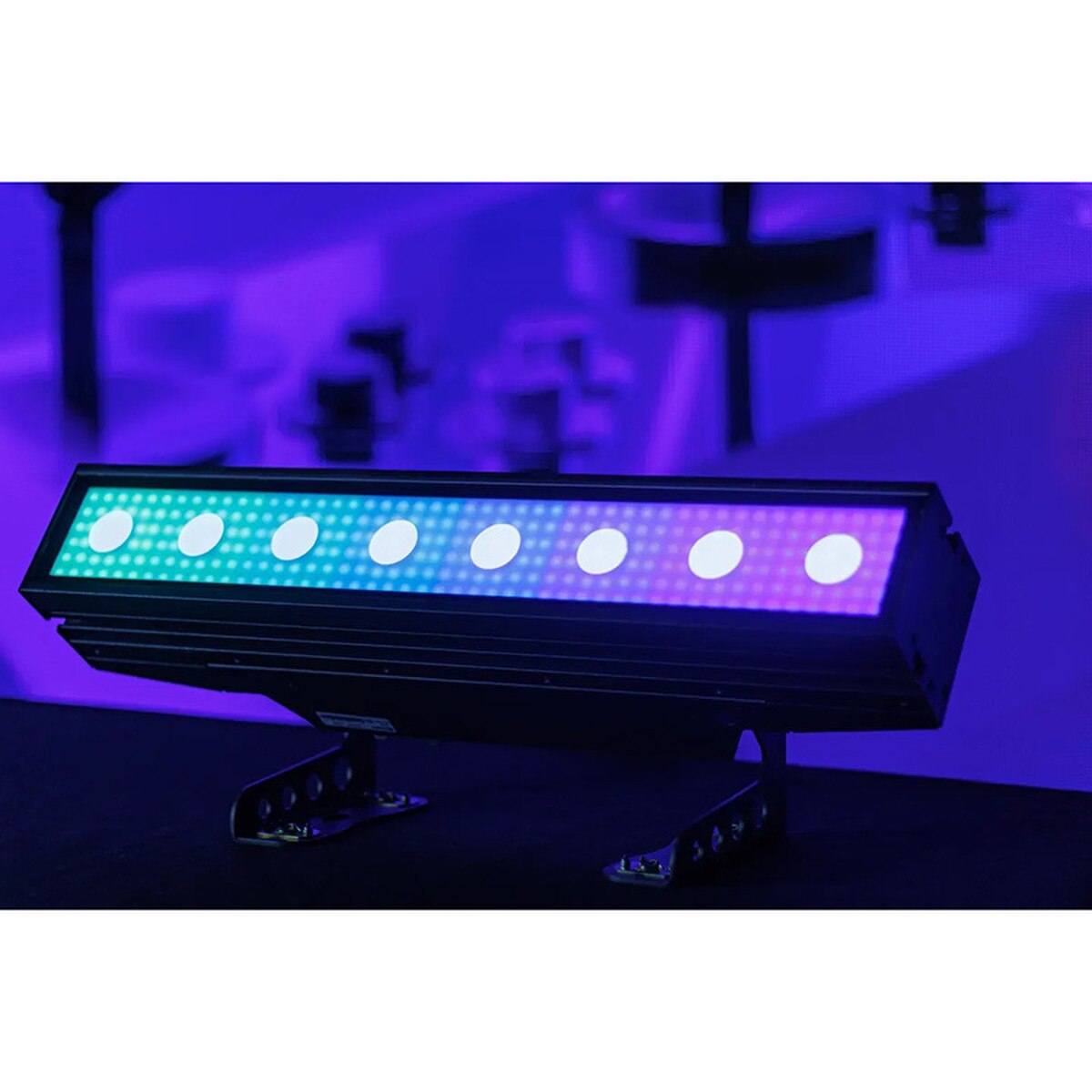

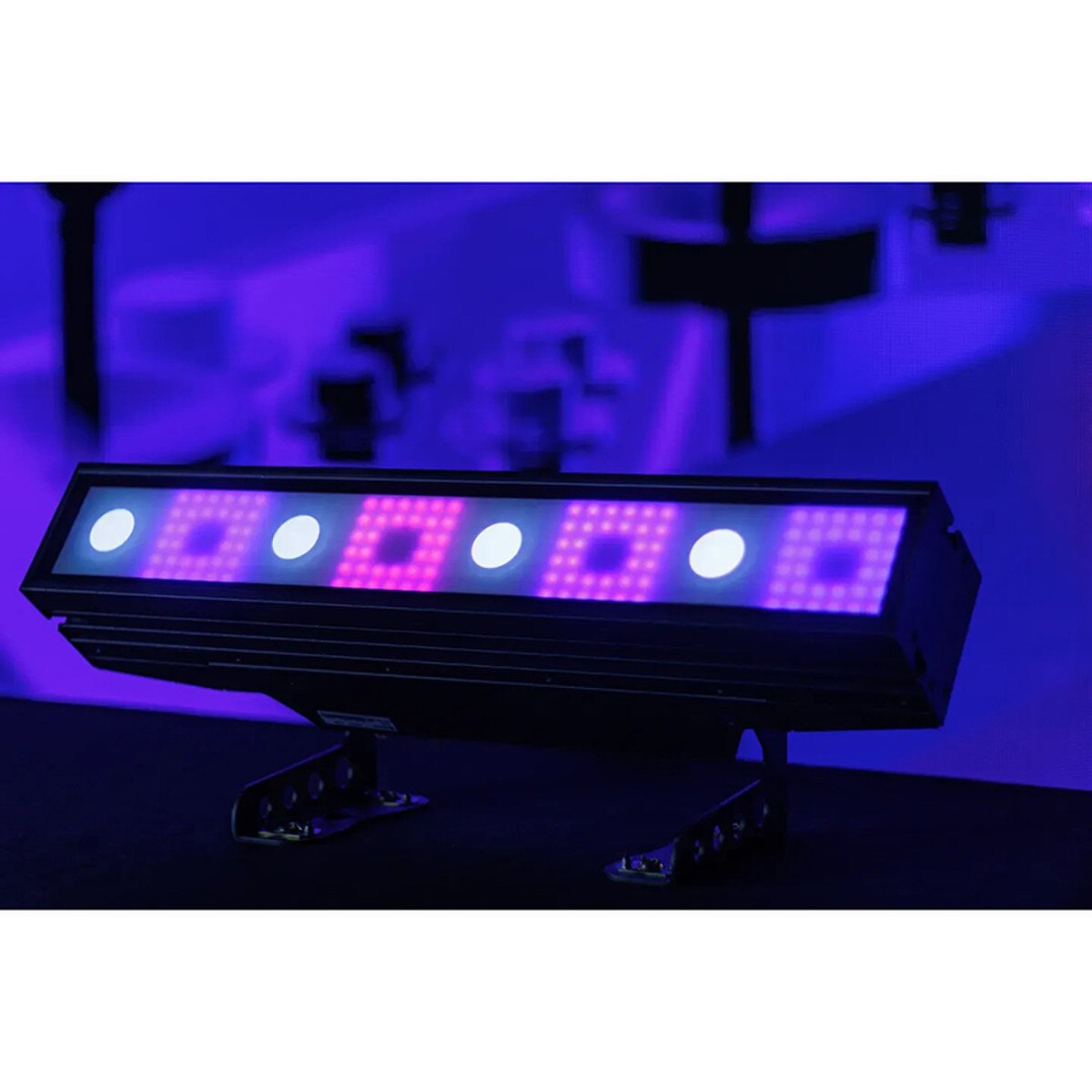

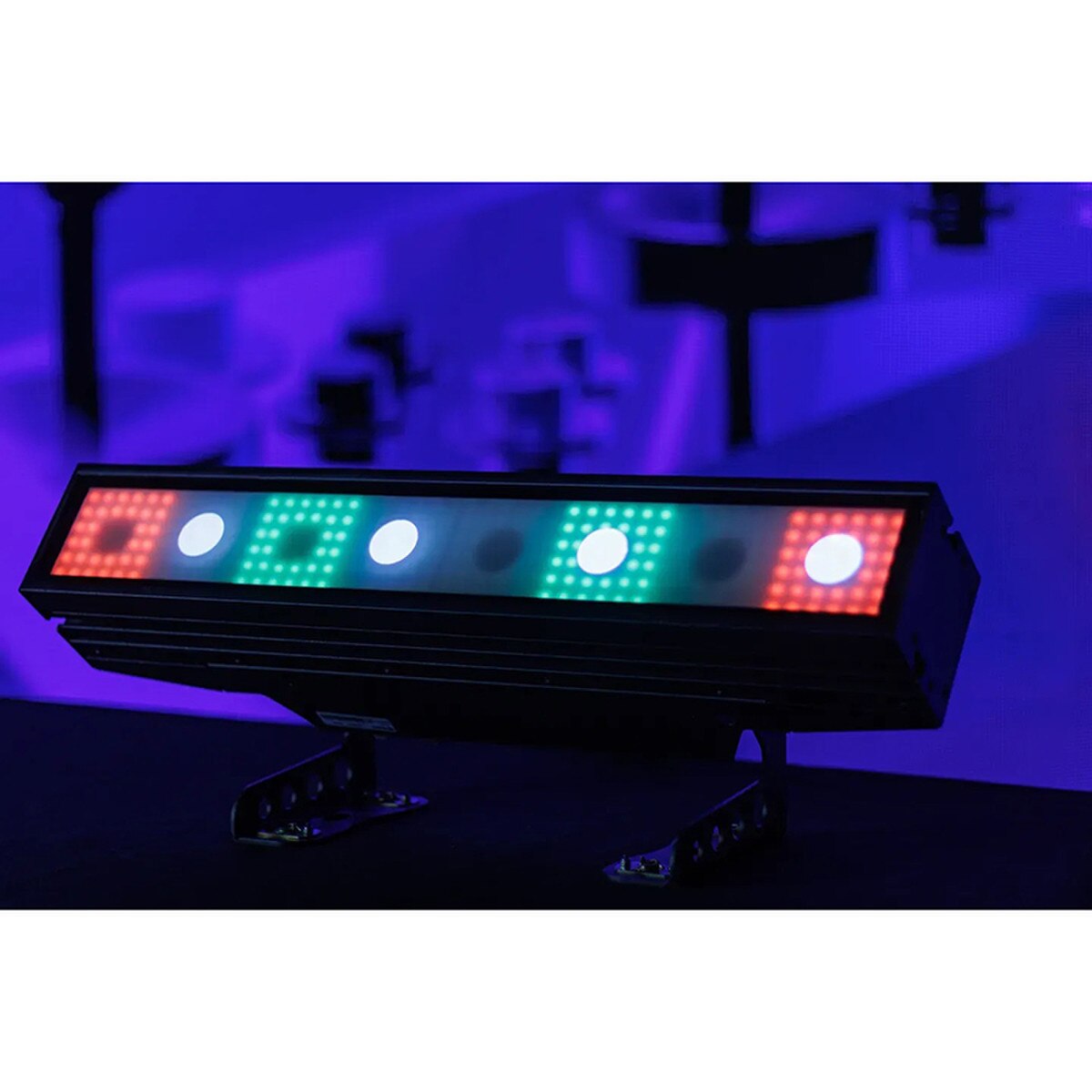

Infinipix™ Arcade isn’t just another lighting fixture... it’s a game changer. With 8x 20W white LEDs and 8x sections of SMD 5050 RGBW LEDs, it combines sharp 3° beams with dazzling colored eye-candy. Its beams and background colors are independently dimmable with separate strobe, chase, and trail effects, and it can be operated in auto, M/S, or be controlled via 11, 20, 21, or 41 DMX channels with pixel mapping capabilities.

Level Up!

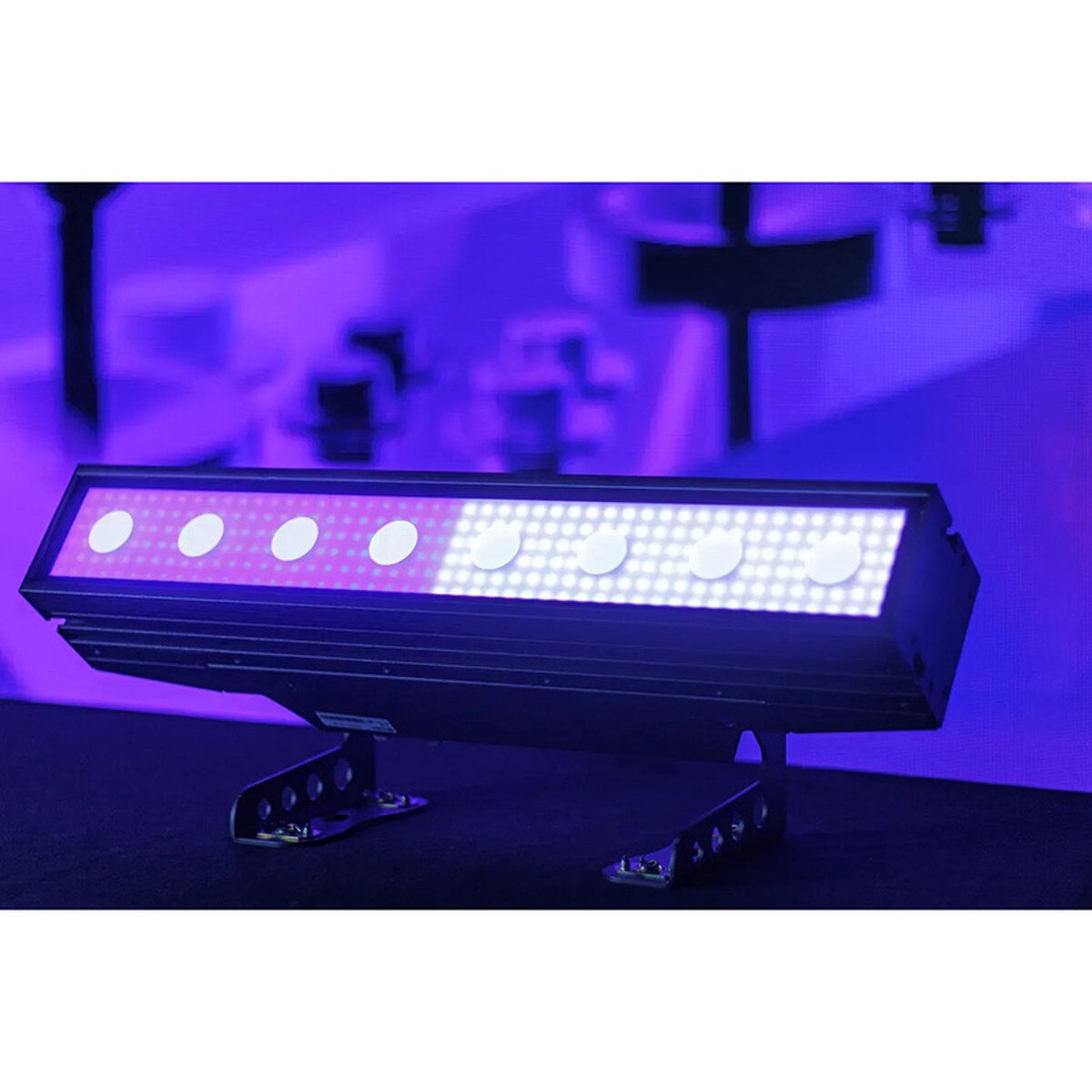

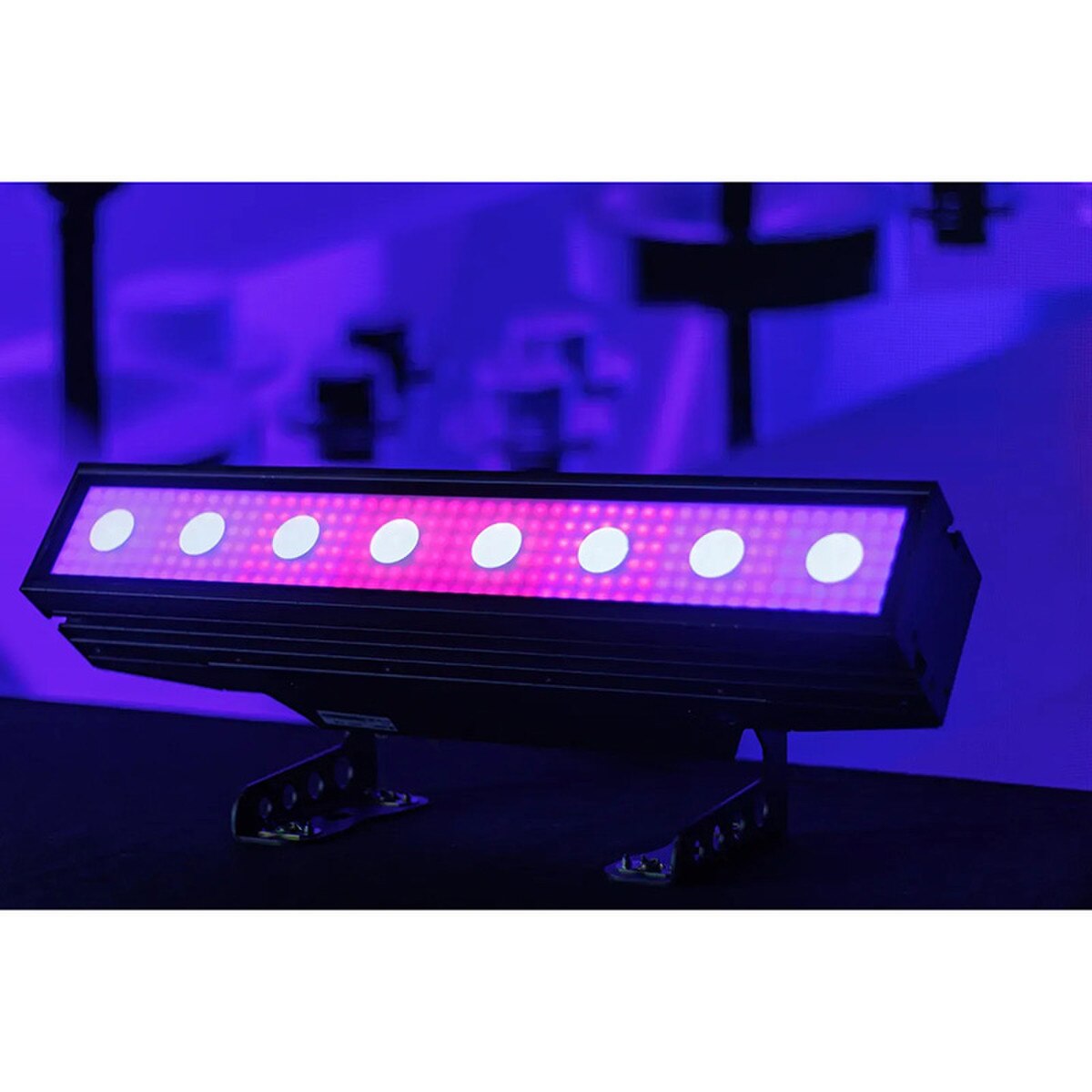

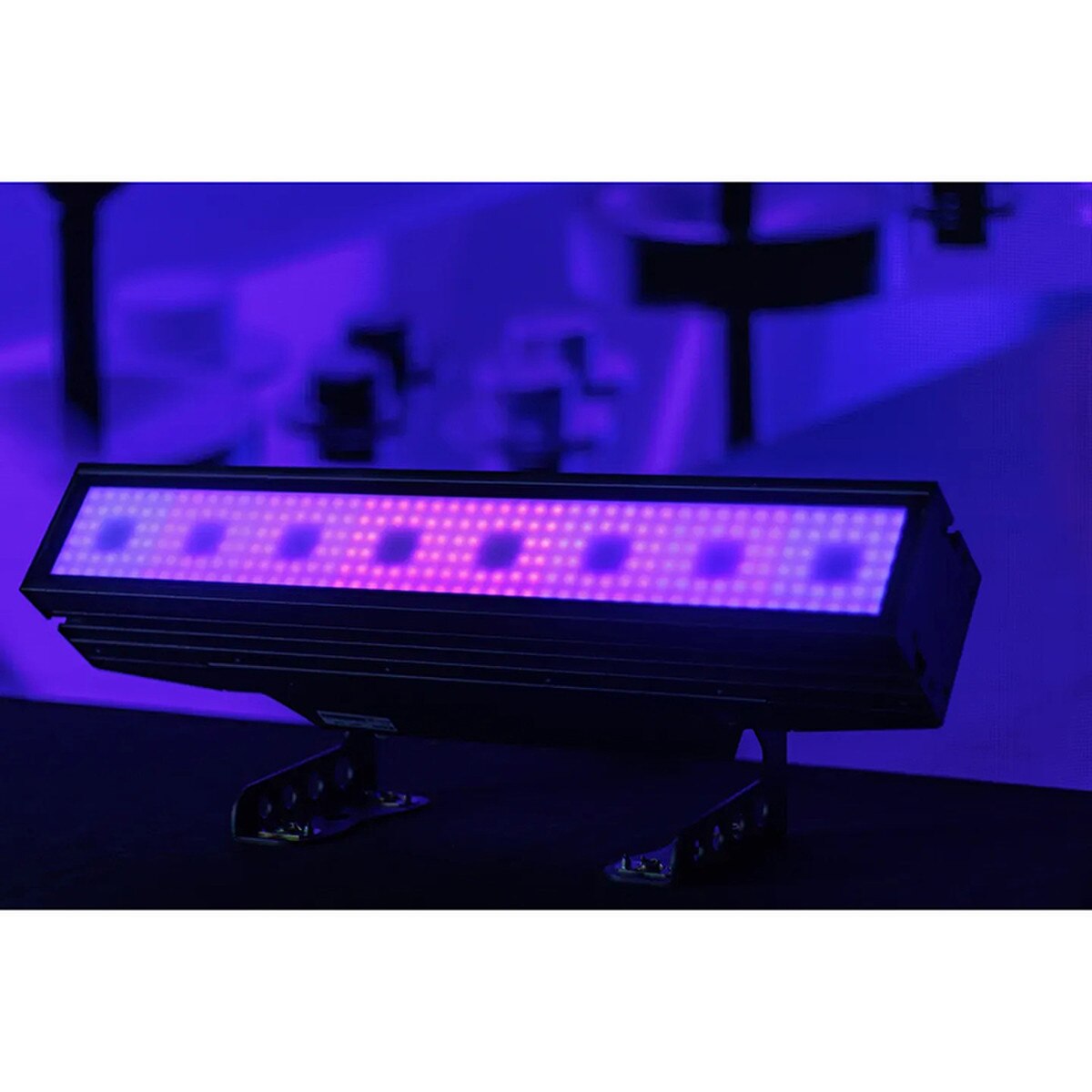

In addition to its many spectacular effects, it offers electronic frost on the front lens. When applied, this cuts the beams at the surface, turning them into 8 perfectly round white dots, while softly diffusing the RGBW background colors. Multiple fixtures can be perfectly aligned with its included hardware, and it also comes with powerCON TRUE1-compatible power in/out, 5-pin DMX in/ out, and Omega brackets for versatile mounting.

Warranty:

2 Year - Extendable

Blizzard InfiniPix Arcade User Manual.pdf
Blizzard InfiniPix Arcade Cutsheet.pdf
Blizzard InfiniPix Arcade Dimensions.pdf
