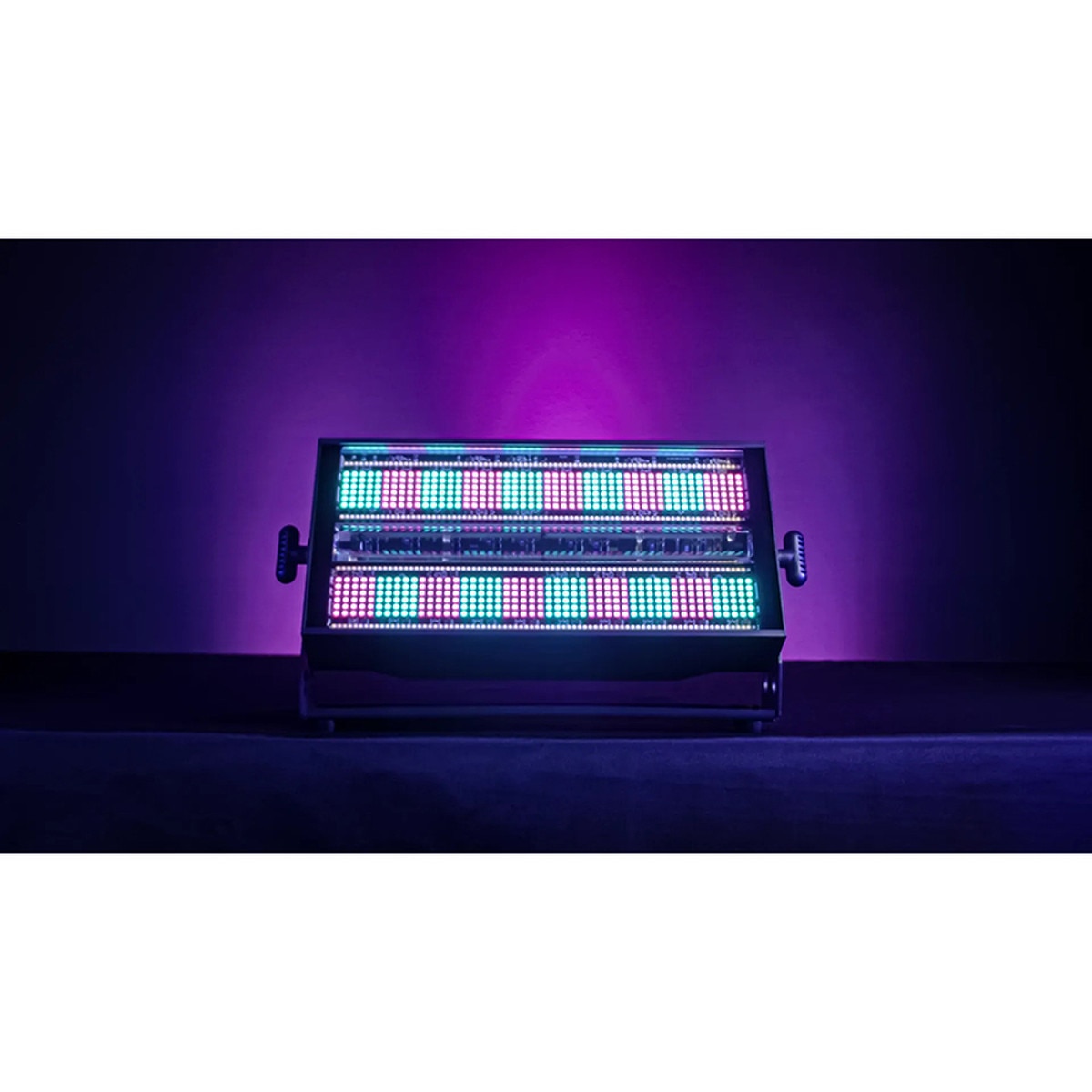

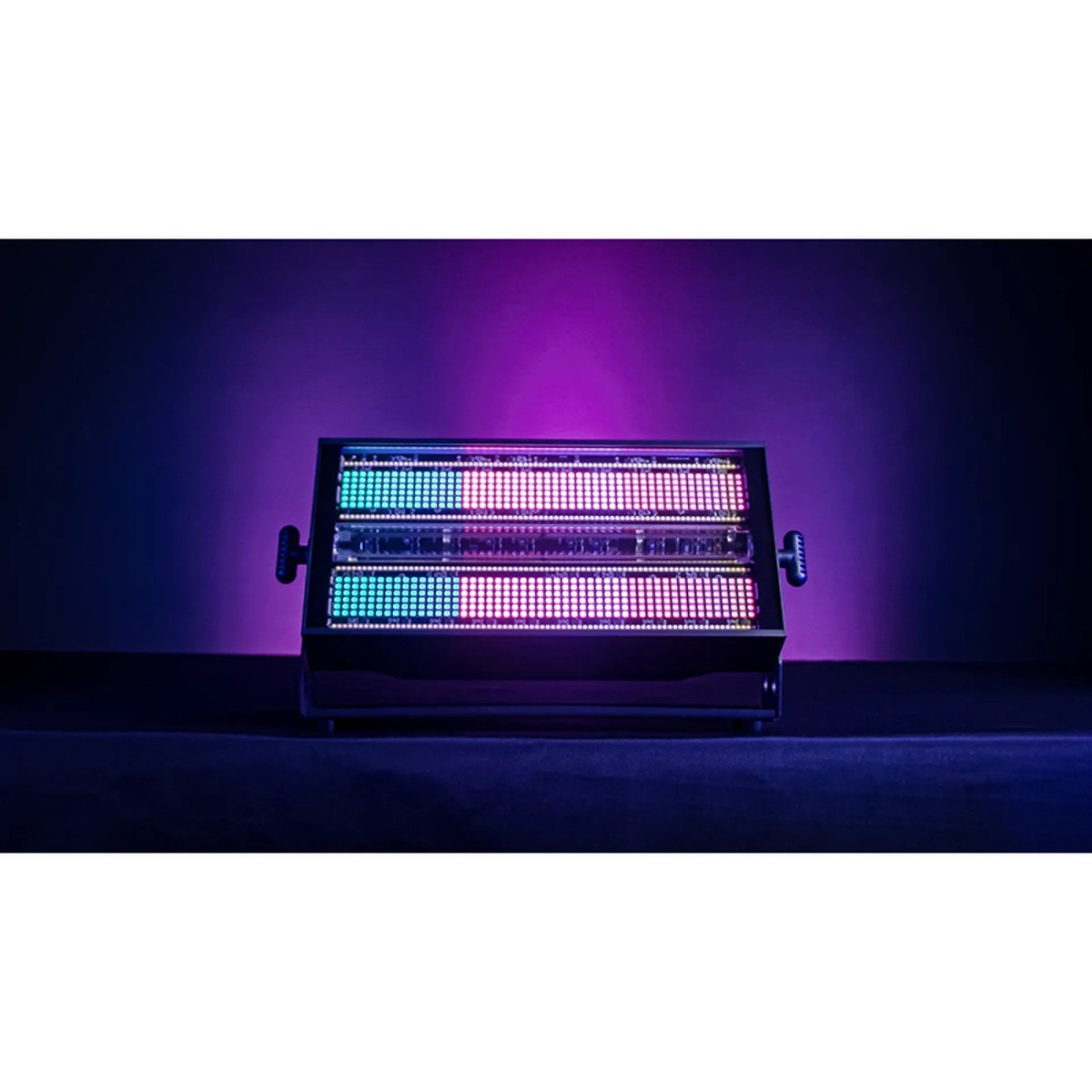

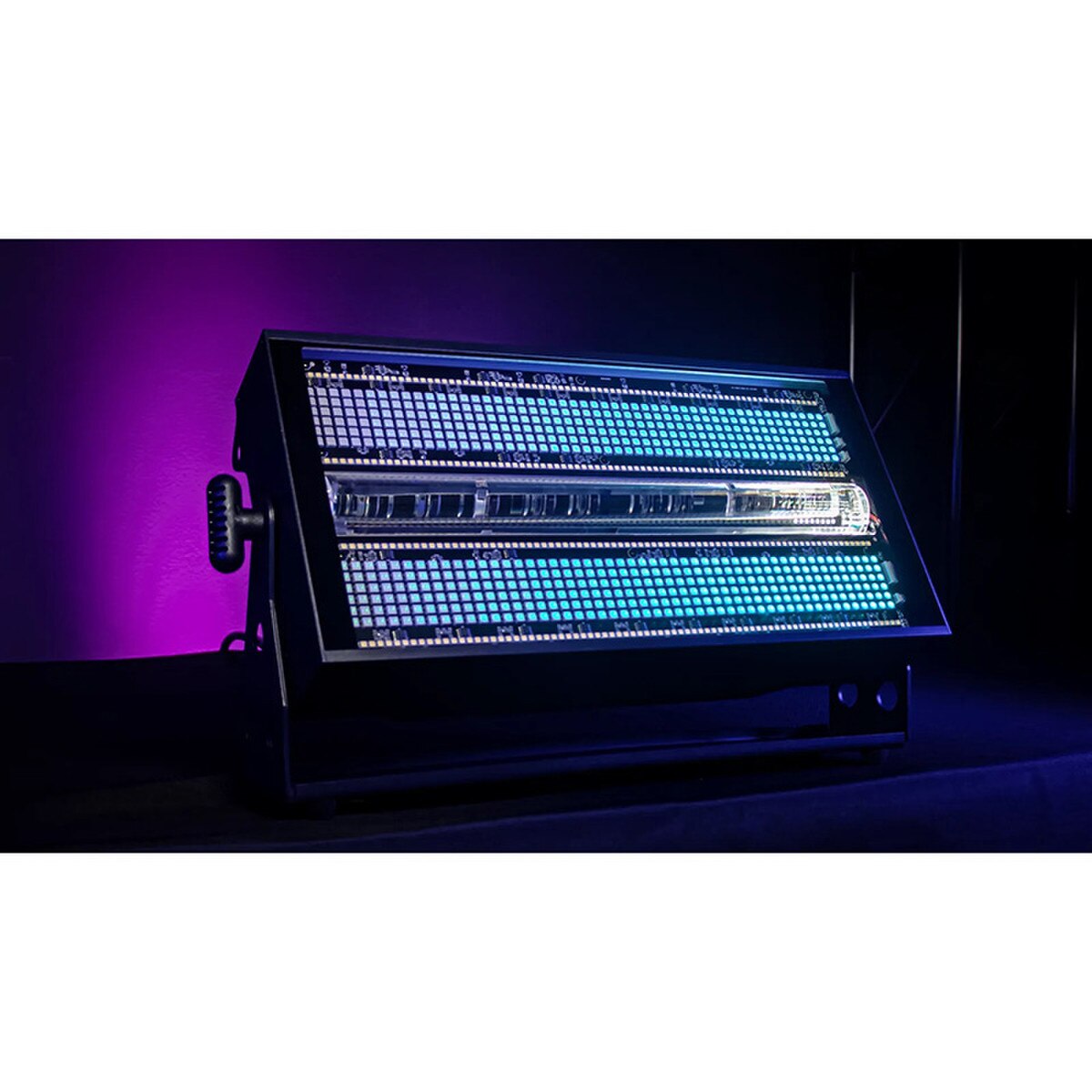

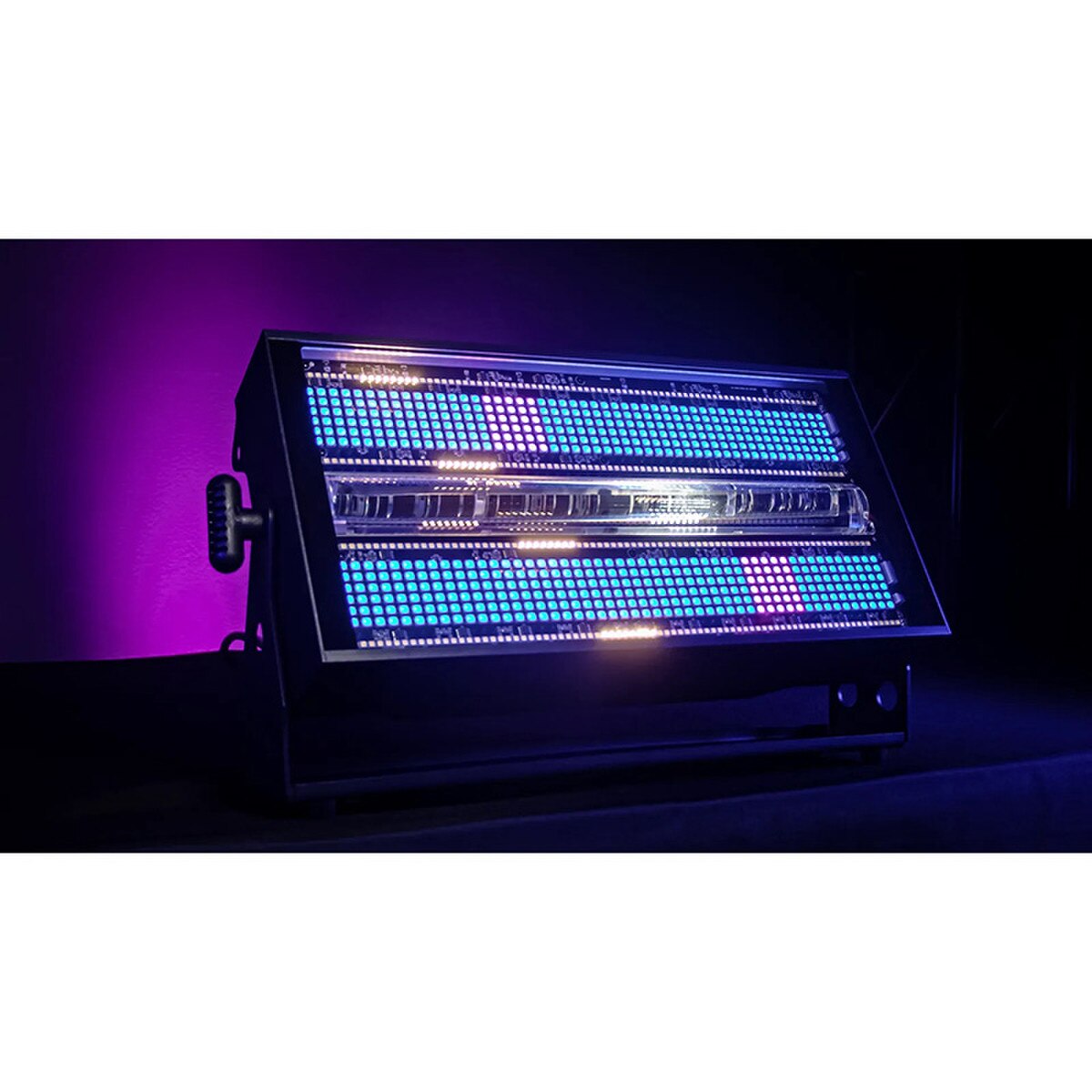

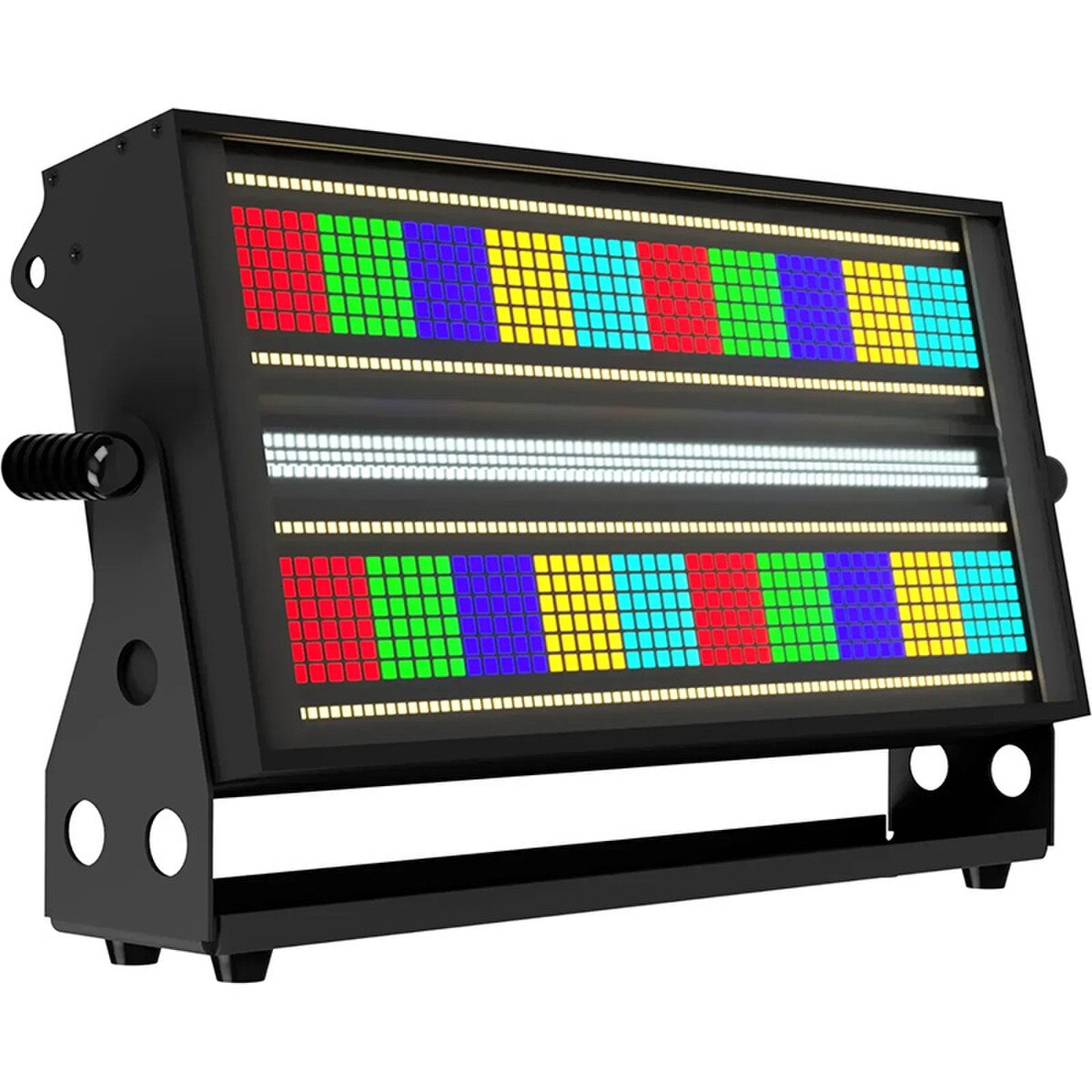

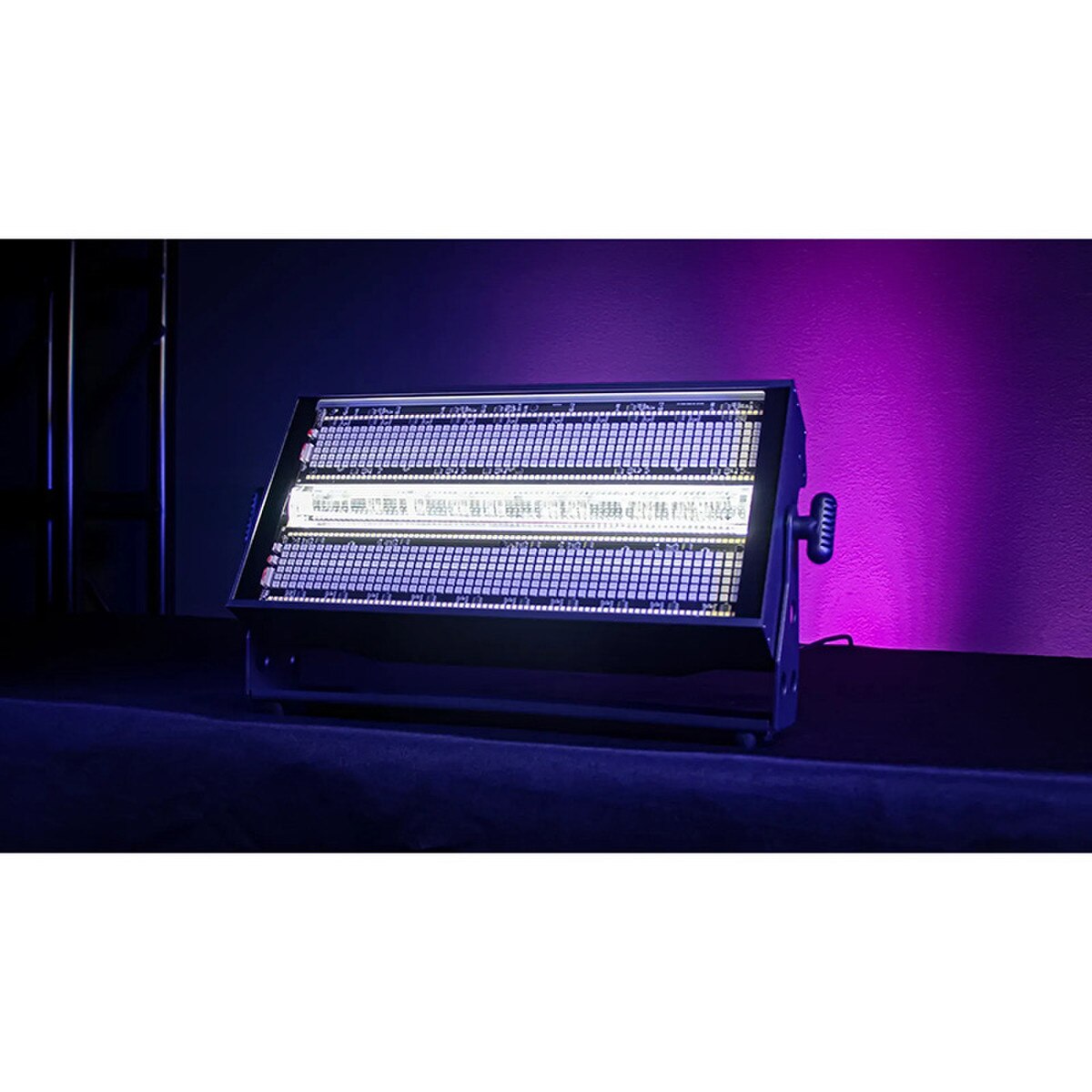

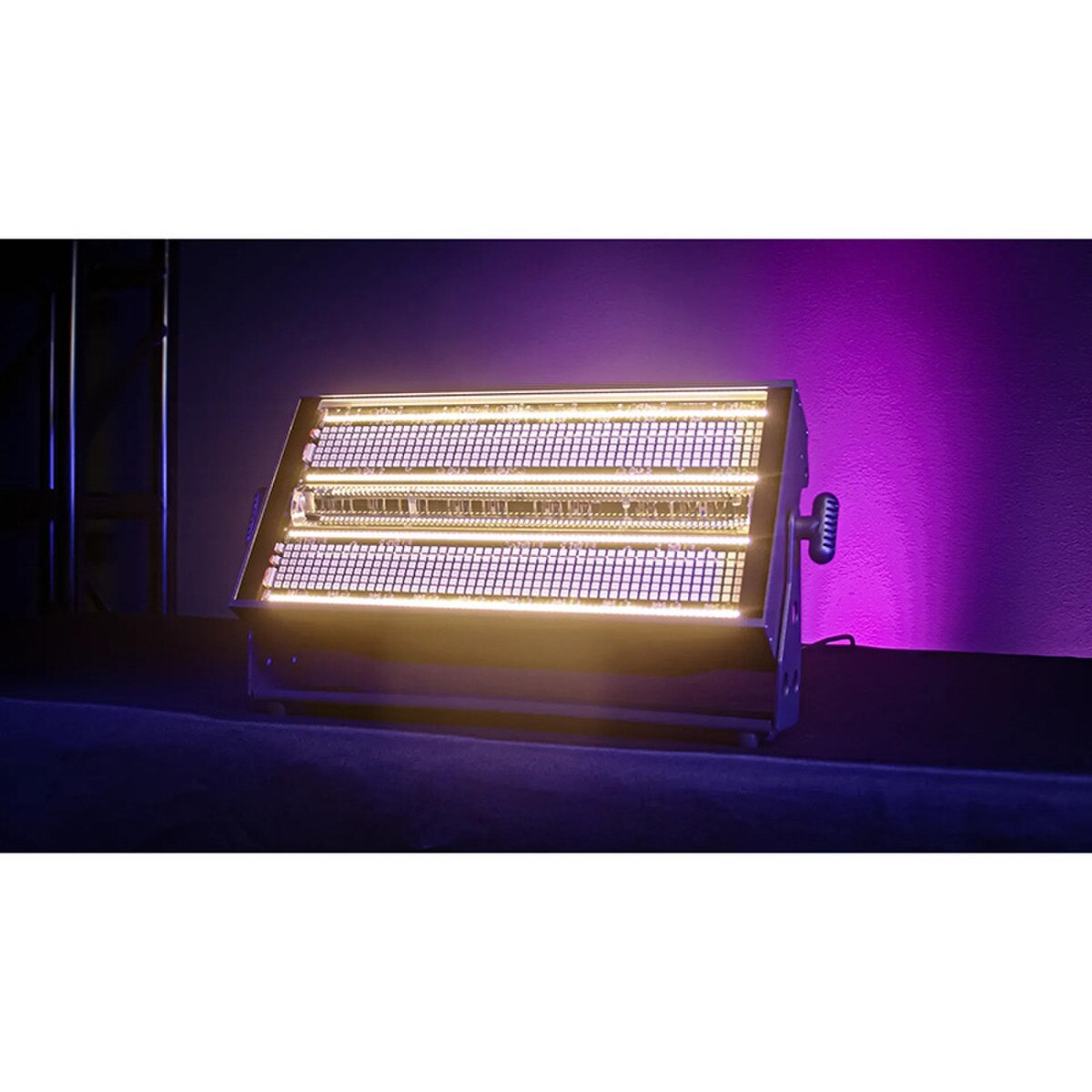

Blizzard InfiniPix Big Blind

At A Glance:

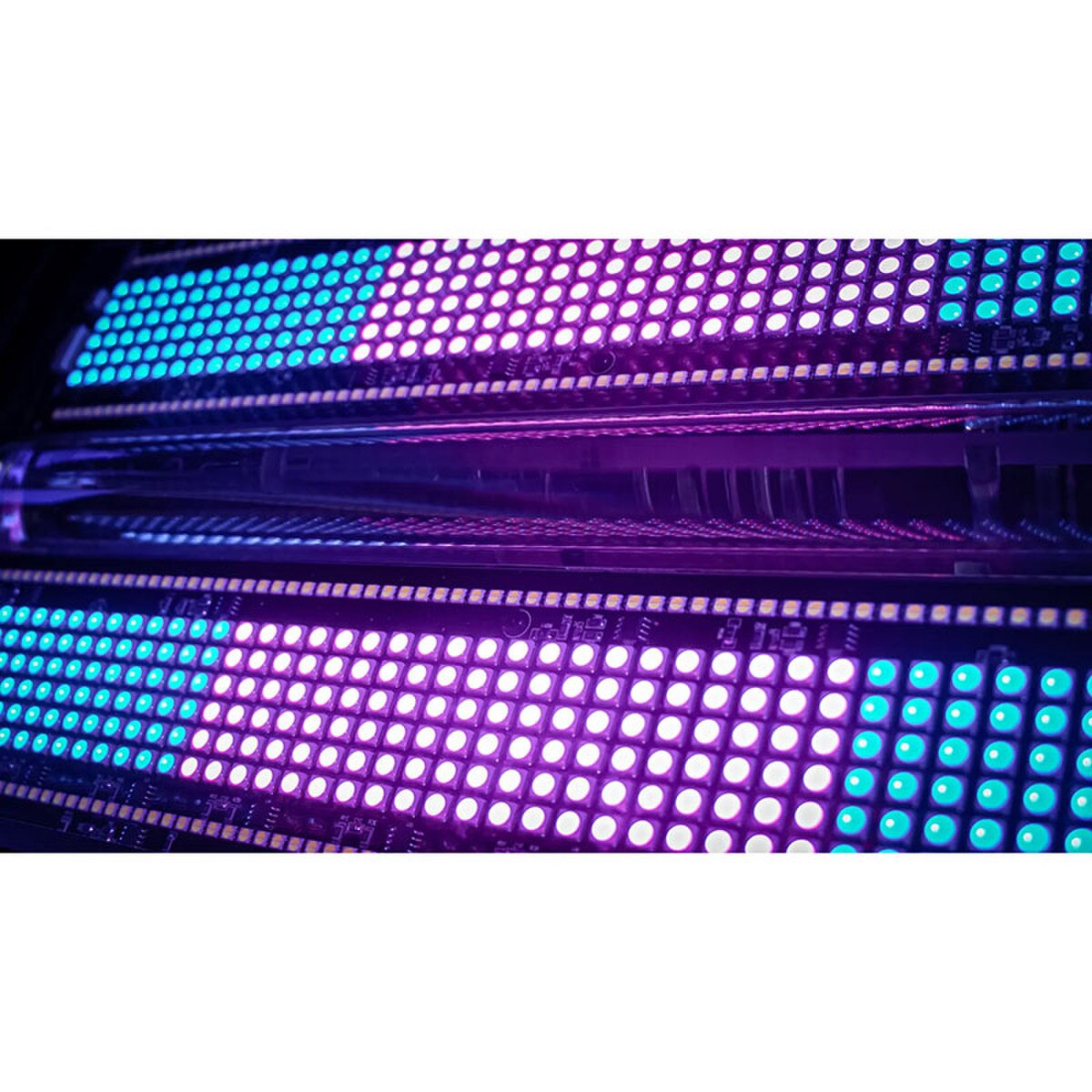

• 600x RGB 5050 SMD 3-in-1 LEDs

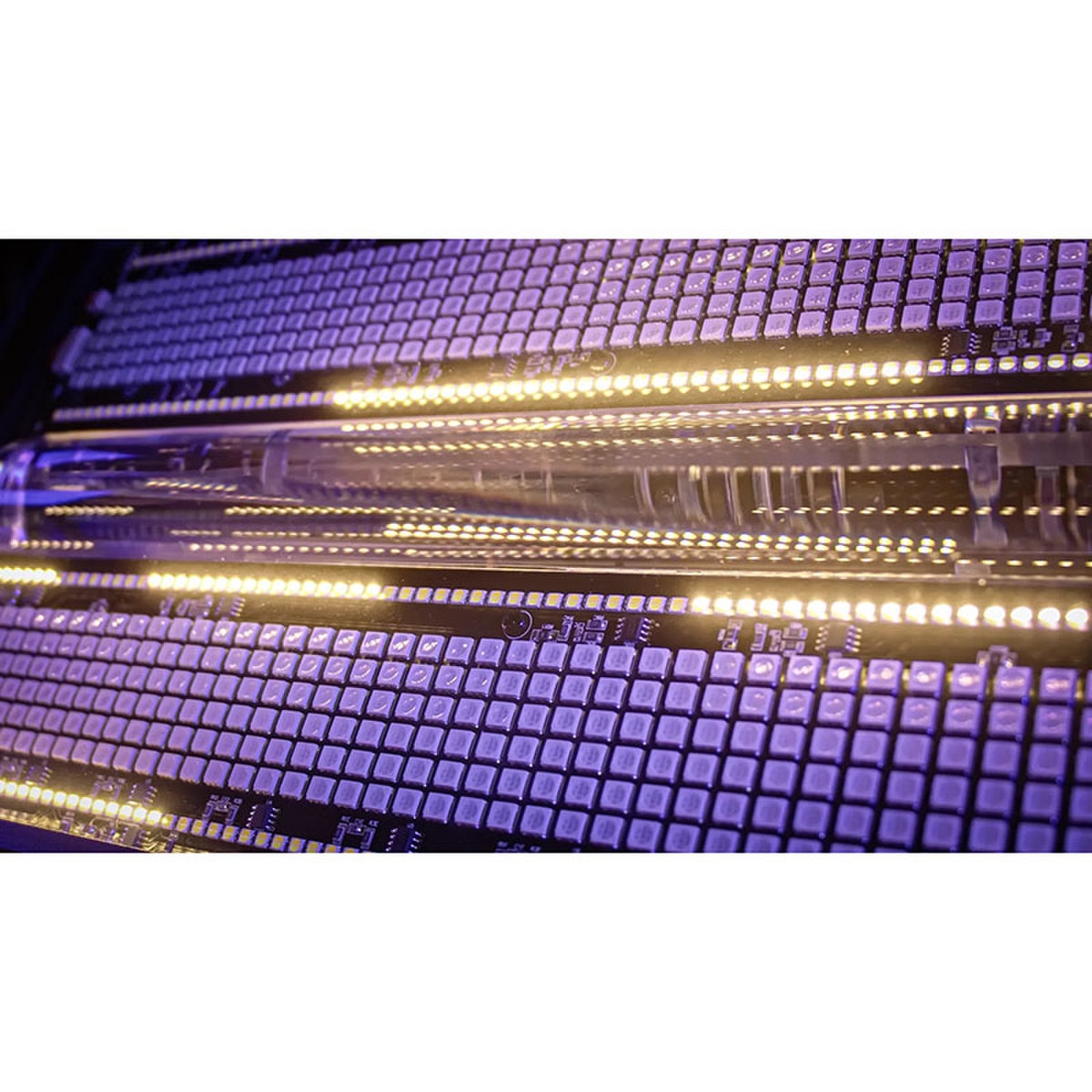

• 240x 1 W Cool White (6,200 K) 5730 SMD LEDs
• 320x 1 W Cool + Warm White (2,900 K – 5,600 K) 3030 SMD LEDs

Dial It In Pixel By Pixel

The Blizzard InfiniPix Big Blind gives you hands-on control of every LED zone, from deep color washes to balanced white output. It’s a precision instrument that rewards fine-tuning, not guesswork.

Icy Hot

From warm and cinematic to ice-cold and clean, InfiniPix™ Big Blind puts full temperature control in your hands. No filters, no fuss, just pure output.

Built for the Big Show

With a solid metal frame, fast setup points, and PowerCON© TRUE1 connections, Big Blind was made for designers who need gear that keeps up with their ambition, not just their schedule.

Tech Specs

The Rundown:

• 600x RGB 5050 SMD 3-in-1 LEDs
• 240x 1 W Cool White (6,200 K) 5730 SMD LEDs
• 320x 1 W Cool + Warm White (2,900 K – 5,600 K) 3030 SMD LEDs
• 20 + 10 + 40 pixel-mappable LED groups
• 1 – 20 Hz strobe effects with independent control
• 7 / 14 / 21 / 150 DMX channel modes
• Independent dimmer and macro speed for each LED type
• Rugged metal housing with manual tilt head
• Clamp-mountable or freestanding design
• 4-button OLED control menu
• 5-pin DMX in / out and PowerCON© TRUE1 in / out
• Master / Slave, Auto, Sound Active, and DMX control modes
• 2-year limited warranty

Summary:

InfiniPix™ Big Blind redefines the modern LED blinder with layers of power and precision. It features 600 RGB, 240 Cool White, and 320 dual-temperature LEDs across pixel-mapped zones that blend rich color and smooth white. With independent dimming, macro speed control, and a rugged metal chassis, it performs as both a creative canvas and a show-stopping wash. Whether on tour or on camera, Big Blind is engineered for visual impact that hits hard and clean.

Warranty:

2 Year - Extendable

Optical:

• 600x RGB 5050 SMD 3-in-1 LEDs
• 240x 1 W Cool White 5730 SMD LEDs (6,200 K CCT)
• 320x 1 W Cool + Warm White 3030 SMD LEDs (2,900 K – 5,600 K CCT)

Control:

• Protocol: USITT DMX-512 / RDM
• DMX Channels: 7 / 14 / 21 / 150
• Interface: 4-Button OLED Display
• Modes: DMX, Master / Slave, Auto, Sound Active
• Power & Current:
• Voltage: AC 100 – 240 V, 50 / 60 Hz
• Power Consumption: 385 W (3.41 A, PF 0.99)
• Fuse: 5 A, 250 V
• Max Ambient Temp: 104 °F

Dimensions:

• 7.9" x 16.3" x 4.7"
• 15.2lbs

Connectors:

• DMX In / Out: 5-Pin XLR Male / Female
• Power: PowerCON© TRUE1 In / Out
• Mount: Single Yoke with Clamp Holes + Safety Loops
