Blizzard InfiniPix Spektro

At A Glance:

• 196 tri-color SMD 5050 LEDs (RGB)
• 7 blocks (23 x 23 cm), each with 28 LEDs
• 4 horizontal LED sections per block

Tech Specs

RGB Retro FX:

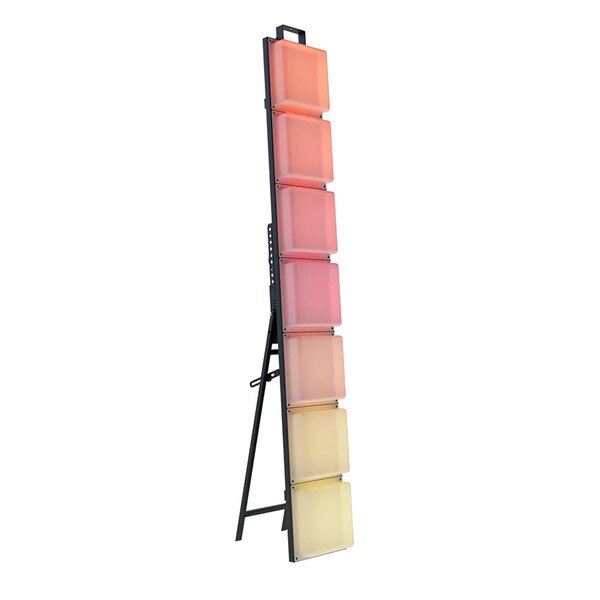

Infinipix™ Spektro is unique, lightweight, and delivers larger than life retro-style graphic EQ LED effects that’s perfect for installation and mobile entertainers alike. It offers 7x diffused LED blocks, each containing 28x SMD 5050 RGB LEDs, and comes with mounting brackets, hardware to connect fixtures together (horizontally and vertically), plus a flip-out stand for quick floor-standing setups.

Fully Loaded:

It comes loaded with a total of 196x video friendly (flicker-free) LEDs, offers a wide selection of DMX control modes, or simple setup with master/slave, auto, and sound active capability. Other features include 3/5-pin DMX in/out connections, powerCON-compatible power in/out, and it even has a +5V USB port that can supply power to our SoC-It™ wireless DMX control solution.

Optical:

• 196x SMD 5050 RGB LEDs
• 7x blocks
• Viewing angle: 120°
• Brightness: 2,150 nits
• Flicker-free LEDs

Control:

• Protocol: DMX, RDM
• 3/5-pin DMX in/out
• 3/4/5/7/21/28/84 DMX channel modes
• 4-button LED menu
• DMX512, m/s, auto, and sound active

Power & Current:

• 110-240VAC, 50-60 Hz
• Consumption: 47W, .66A, PF: .61
• PowerCON-compatible input/output

Dimensions:

• 62.5" x 5.2" x 9.1"
• 17lbs

Warranty:

• None

Blizzard InfiniPix Spektro User Manual.pdf
Blizzard InfiniPix Spektro Cutsheet.pdf
