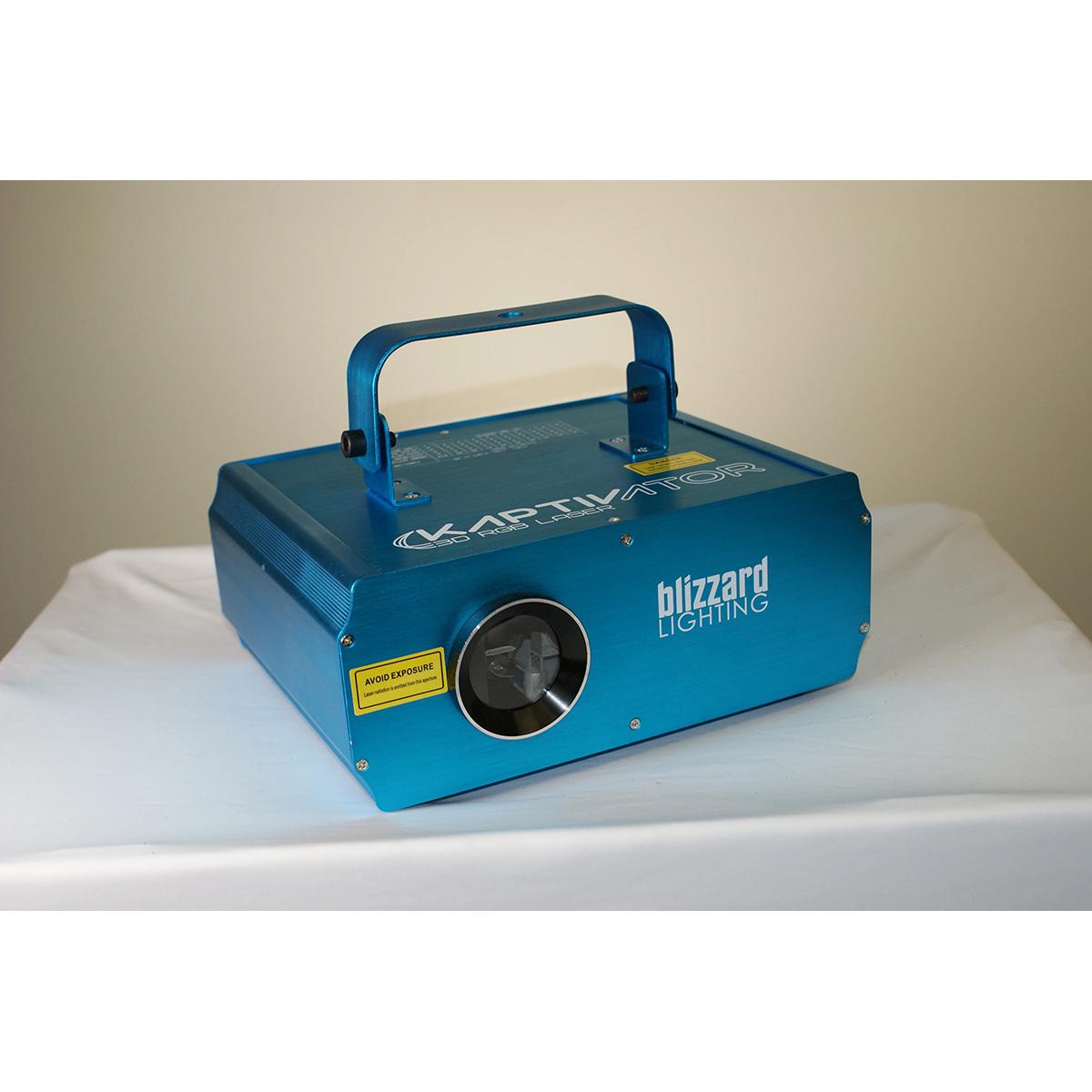

Blizzard Kaptivator RGB 3D Laser

At A Glance:

• High power class 3R RGB laser
• Sound active mode, auto mode, DMX512 (llch) & master/slave
• 120 static patterns and 7 animated graphic show patterns

High Power Laser:

Meet the Kaptivator™, a high power class 3R 250mw RGB laser effect fixture that aims to please with a dazzling display of 120 static and 7 animated patterns.

Stunning 3D Laser FX:

Richly saturated colors from separate red/green/blue laser modules and a high-speed 15,000 point per second (15kpss) scanner system generate incredible 3D effects, smooth shapes and fast moving aerial effects from its gorgeous royal blue housing.

Optical:

• Wavelength: 650nm (red), 532nm (green), 450nm (blue)
• Power output: 100mW (red), 50mW (green), 100mW (blue), 250mW (white - all)

Control:

• Protocol USITT DMX-512
• DMX Channels 11 Channel
• Input 3-pin XLR Male
• Output 3-pin XLR Female
• Other Operating Modes Standalone, Master/Slave, Sound Active

Power:

• Operating Voltage 100-240VAC, 50-60 Hertz
• Fuse 2A 250V
• Power Consumption 50W

Warranty:

• 2-year limited warranty

Dimensions & Weight:

• 10.25" L x 8" W x 4" H
• 5.45 lbs

Kaptivator Manual Rev B (Saddle Stitch).pdf
