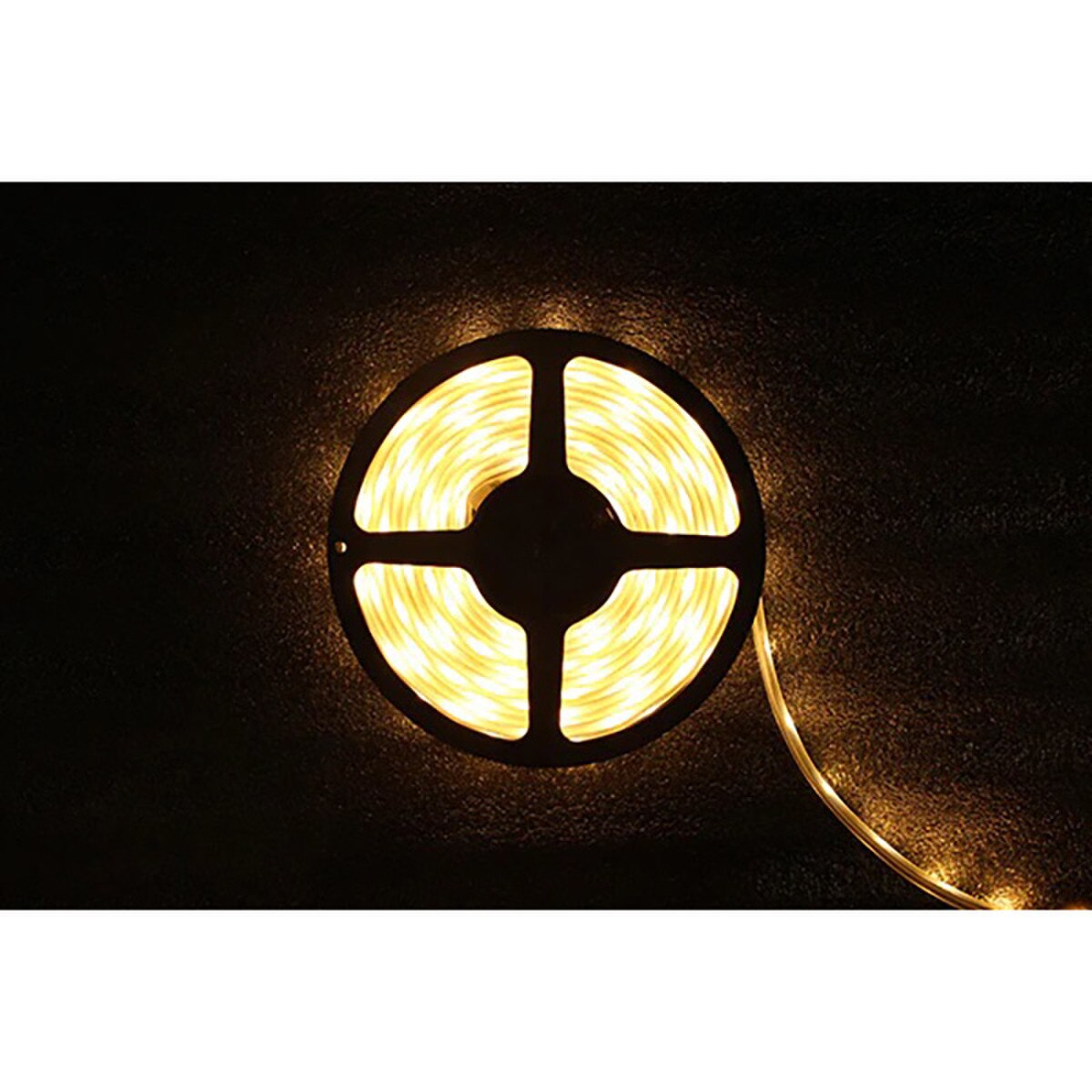

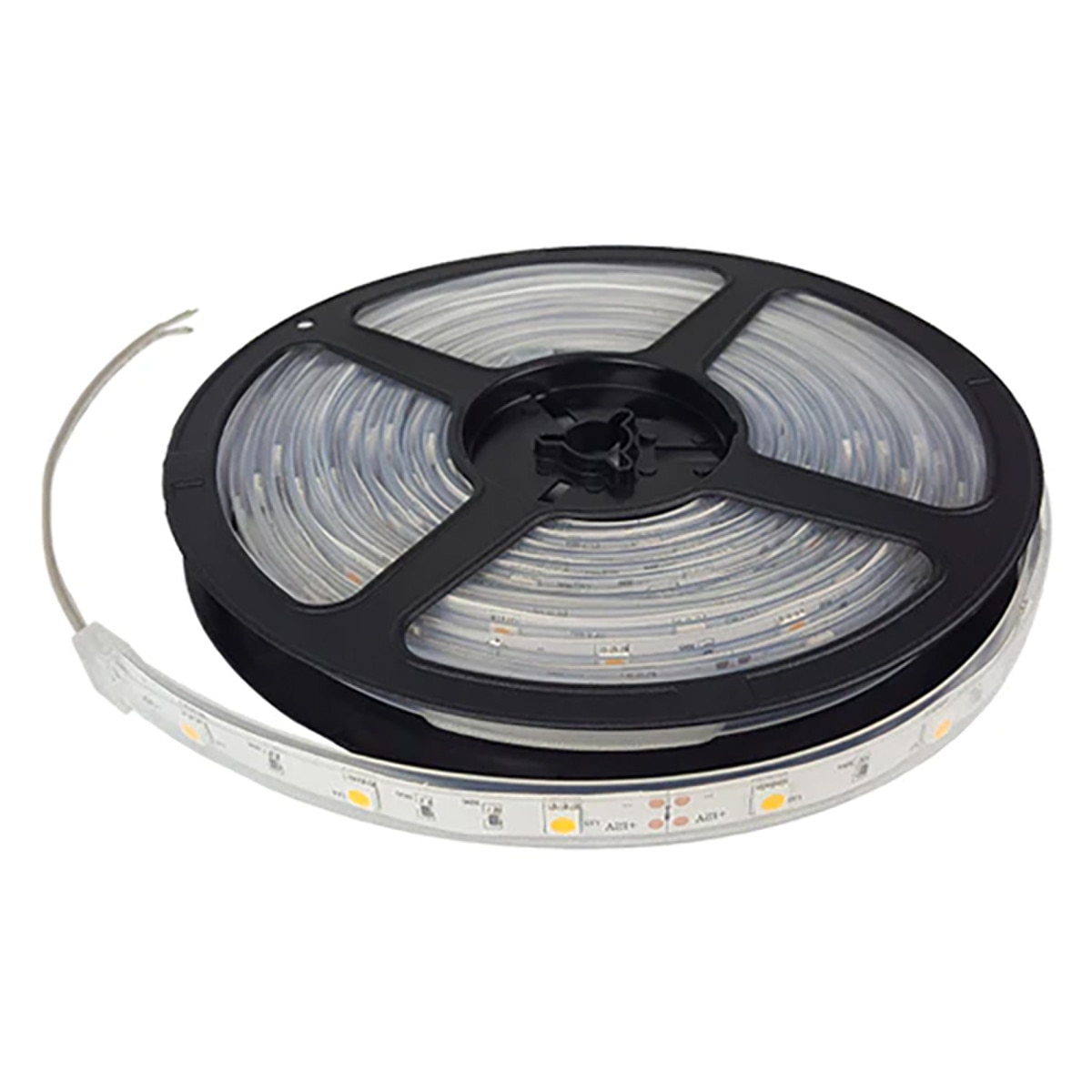

Blizzard Komply WW5050 Waterproof Warm White LED Ribbon 5-Meter Roll with 30 LEDs per Meter

At A Glance:

• 150x WW SMD LEDs per 5m reel
• IP65, outdoor rated
• Input voltage: 12VDC

Flexible, 12V WW Ribbon:

Komply™ WW5050 is an IP65 rated 12V flexible LED ribbon that has 30* warm white LEDs per meter on a 5-meter reel, and is a wonderful architectural LED lighting solution for numerous indoor or outdoor applications. There are cut points every 10cm (between every 3 LEDs), so no matter what length the situation calls for, you're sure to get a great fit!

Power & Accessories:

For simple projects, you can power up to 2 rolls connected (directly) to a Komply™ LED driver and a decoder. Longer runs or wiring distances may require the use of additional accessories or setup methods. If you have any questions regarding the specific needs of an installation, please consult with a professional installer, or you can contact us directly.

Overview:

• Storage temperature: -40° to 176°F (-40 to 80°C)
• Operating temperature: -13° to 140°F (-25 to 60°C)
• IP65 rated
• PCB thickness: 2mm, PCB width: 10mm
• Silicone mounting clips included

Optical:

• 30 LEDs per meter, 150 per reel
• View angle: 120°
• CCT: 2700K
• LED Brand: Epistar
• Luminous flux: 600Lm/M

Power:

• Input: 12VDC
• Max power: 7.2W/M
• 36W per full reel
• Current: 0.6 A/M

Warranty:

• 2-year limited warranty

Dimensions & Weight:

• 196.9" L x 0.4" W x 0.1" H
• 1.9 lbs
