Blizzard LB-Par Quad RGBA LED 12x 10-Watt Fixture

At A Glance:

• 12 x 10-watt, 4-in-1 RGBA LEDs
• User selectable 4/9 DMX channels
• Built-in auto & sound active programs

Rich, Vibrant Colors:

• Create high impact colored stage lighting scenes for your audiences with full RGBA color mixing and built-in programs.

Lightweight and Durable:

• Weighing just 5 lbs and made of a durable, scratch resistant composite housing, LB PAR™ Quad RGBA is built for life on the road.

Tech Specs

Tough Little Guys:

• Whether you are a mobile DJ, in a band, or just want quality lighting for any permanent installation, these fixtures are specifically designed to keep up with rigorous demands of life on the road. The LB PAR™ Quad RGBA has a ton of features to offer from its 12x high-output 10W RGBA 4-in-1 LEDs to its stunning physical features which include a very durable, scratch resistant composite housing and dual mounting brackets for flexible positioning.

Loaded With Features:

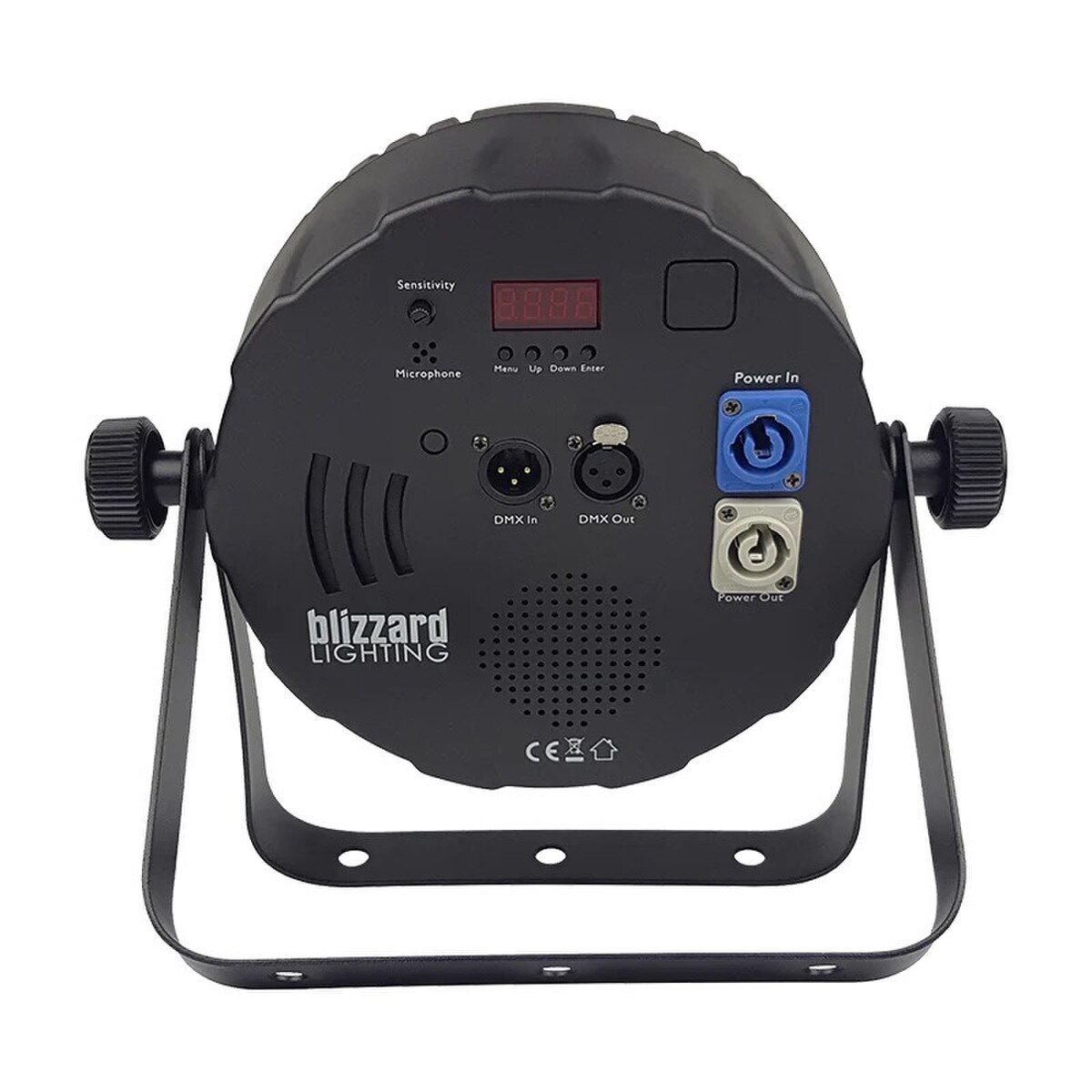

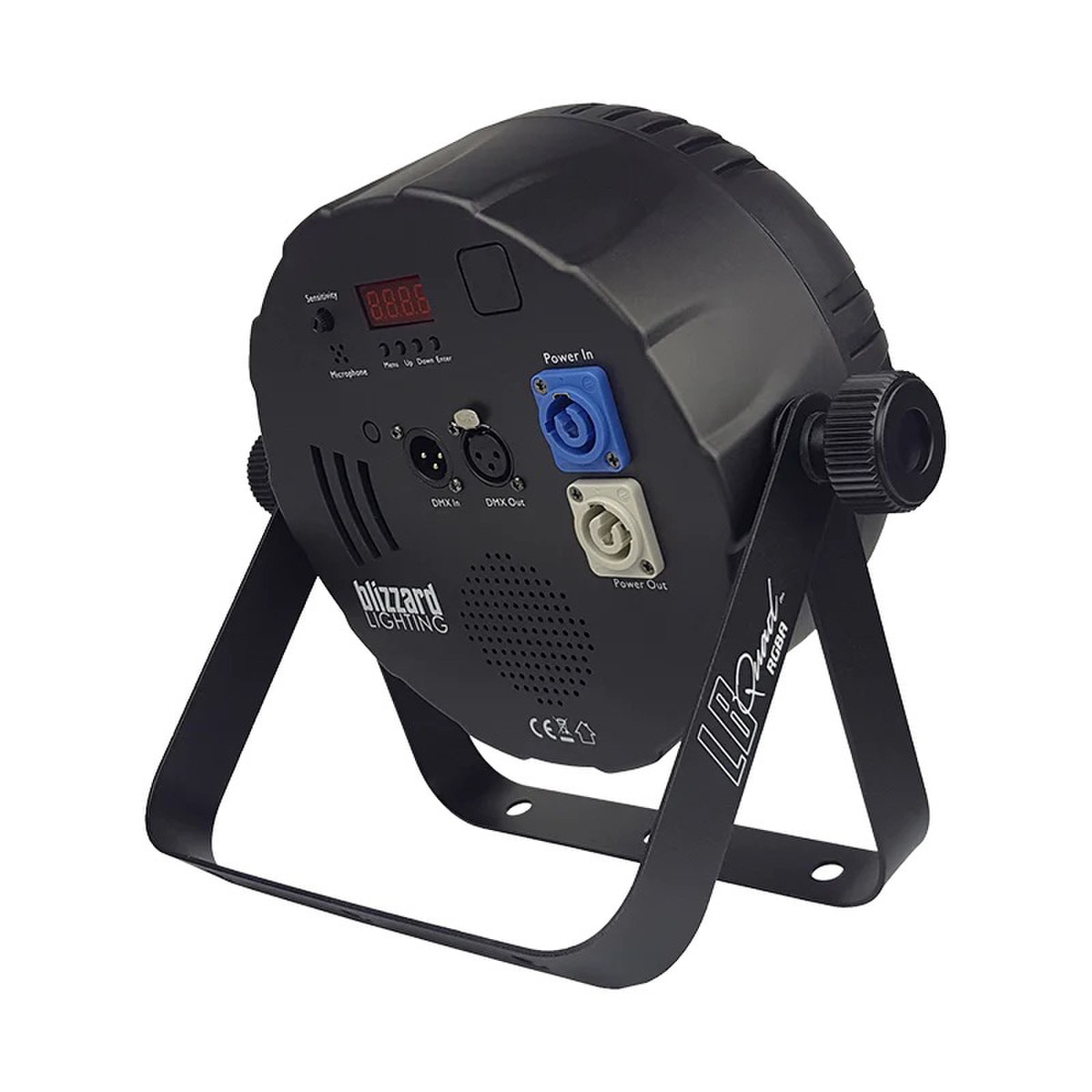

• All the features you can hope for are loaded into the LB PAR™ Quad RGBA, including 12 incredible built-in programs with auto mode, sound active mode, strobe effects, and 3 user selectable 32-bit dimming curve options. It can perform full RGBA color mixing with 4/9-channels of DMX, or be easily controlled via its 4-button LED control panel. The LB PAR™ Quad RGBA also comes equipped with powerCON® compatible AC in/out and 3-pin DMX in/out jacks.

Warranty:

• 2 Year - Extendable

Optical:

• Light source: 12 x 10-watt, 4-in-1 RGBA LEDs
• Beam Angle: 25°
• Luminous intensity: 17,000 Lux @ 1m, 5,260 Lux @ 2m

Control:

• Protocol: USITT DMX-512
• DMX Channels: 4/9
• 3-pin DMX Input/Output
• Operating Modes: Standalone, M/S, Sound Active, Color Preset

Power & Current:

• Operating Voltage: 100-240VAC, 50-60 Hertz
• Power Consumption: 73W, .64A, PF: .99

Dimensions:

• 4.25" x 10.5" x 11"
• 5lbs
