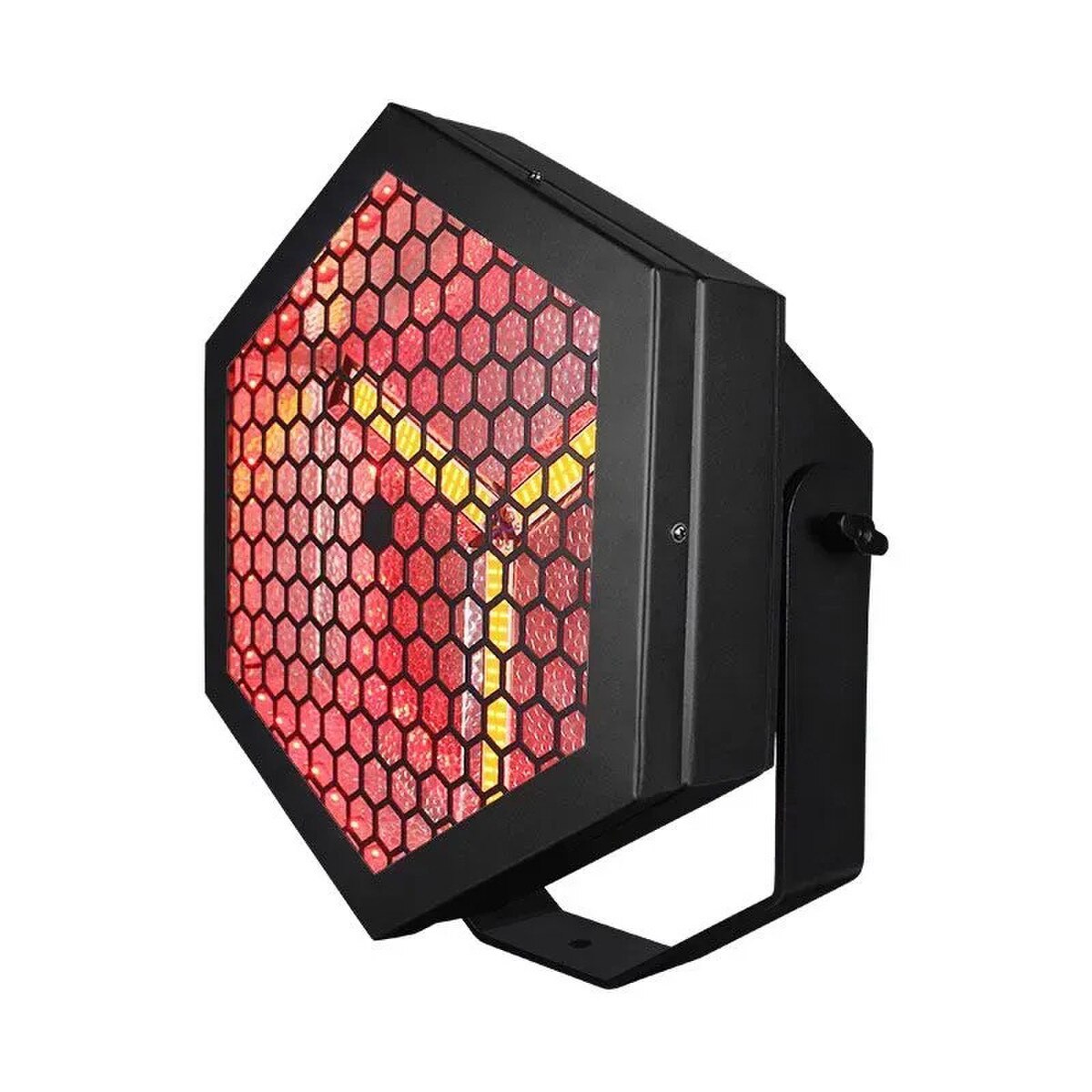

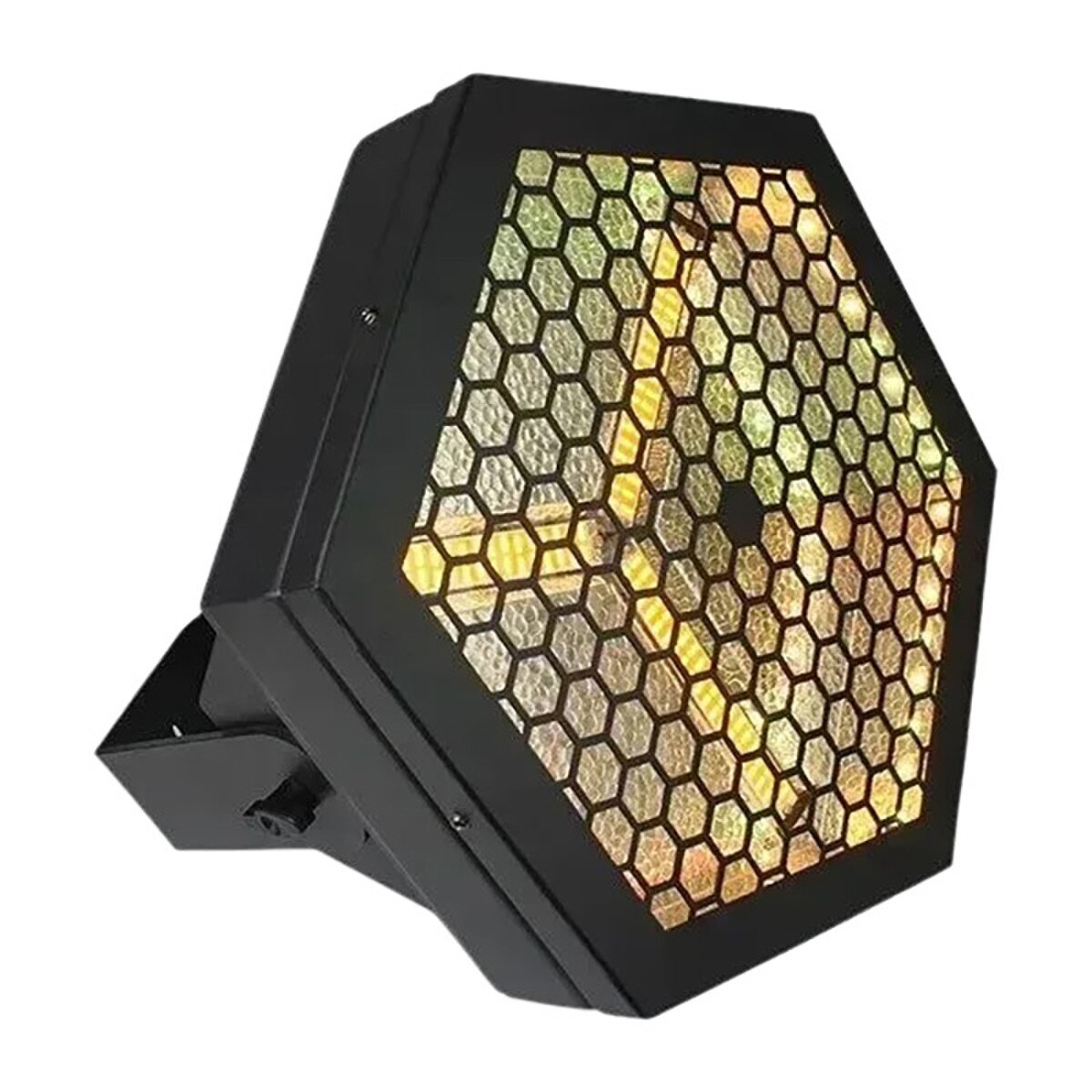

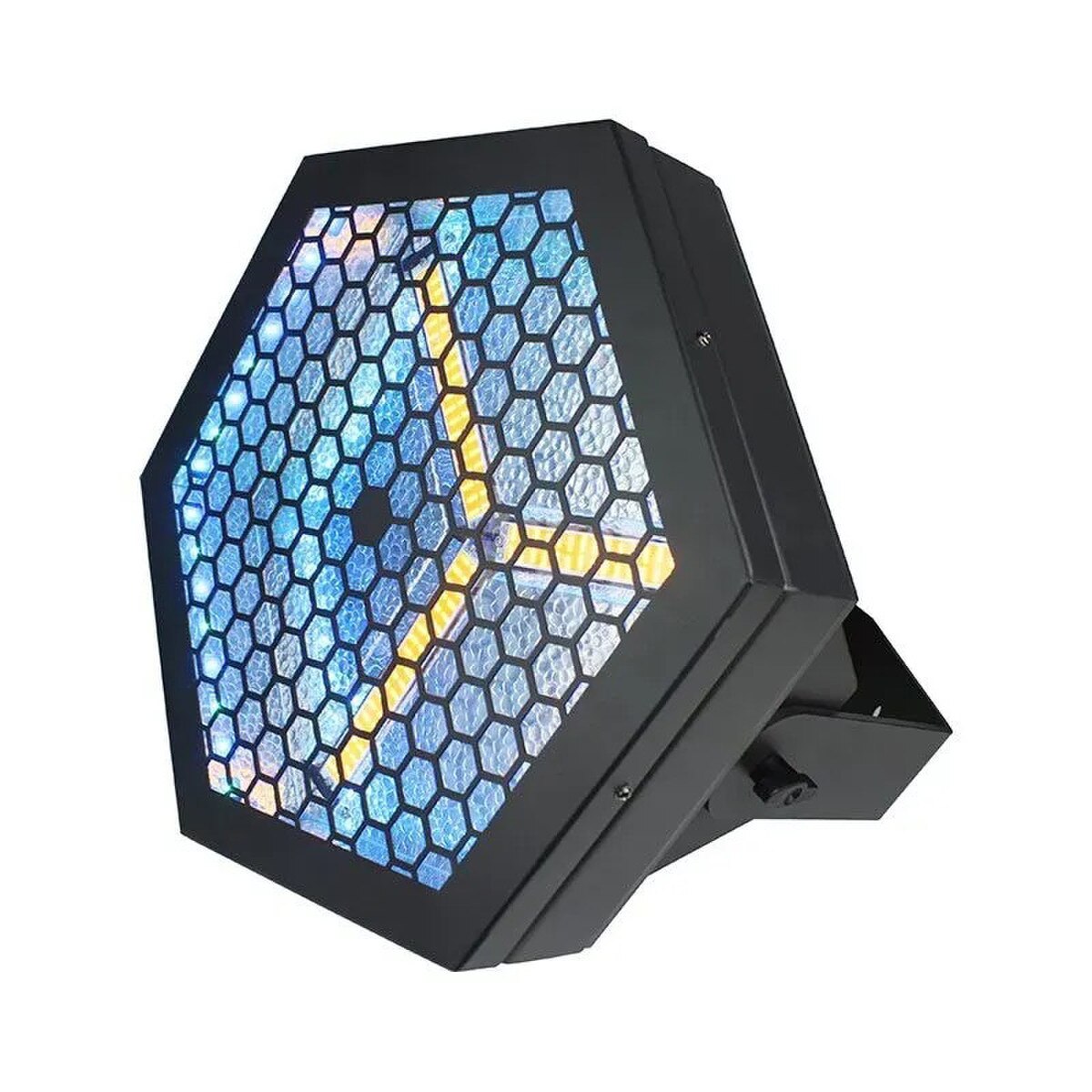

Blizzard Lux Capacitor

At A Glance:

• 3x 60W warm white LEDs (2200K)
• 48x 0.5W RGB LEDs (background effects)
• Individual control of warm white LEDs

Tech Specs

Retro Blinder + RGB Effects:

Lux Capacitor™ is a unique blinder effect that can emit very warm, vintage 2200k color temperature light output from its 3* 60W LEDs, as well as RGB colored effects via an additional 48* 0.5W LEDs located around the perimeter of its highly reflective aluminum inner housing.

Each of its warm white LEDs can be independently controlled, and it offers R/G/B color mixing + an ultra-smooth overall master dimmer. Features also include auto and sound active mode.

Optical:

• 3x 60W warm white LEDs (2200K)
• 48* 0.5W RGB LEDs (background)

Control:

• Protocol: USITT DMX-512
• DMX channels: 6/8/12-channel modes
• Easy-to-use 4-button control panel with LCD display
• Operating modes: DMX512, master/slave, auto, sound active

Power & Current:

• 110-240VAC, 47-63 Hz
• Power Consumption: 274W, 2.49A, PF: .99
• PowerCON™ compatible AC power In/Out connectors

Dimensions:

• 16" x 19" x 18"
• 18.6lbs

Warranty:

• 2 Year - Extendable

Blizzard Lux Capacitor User Manual.pdf
Blizzard Lux Capacitor Cutsheet.pdf
