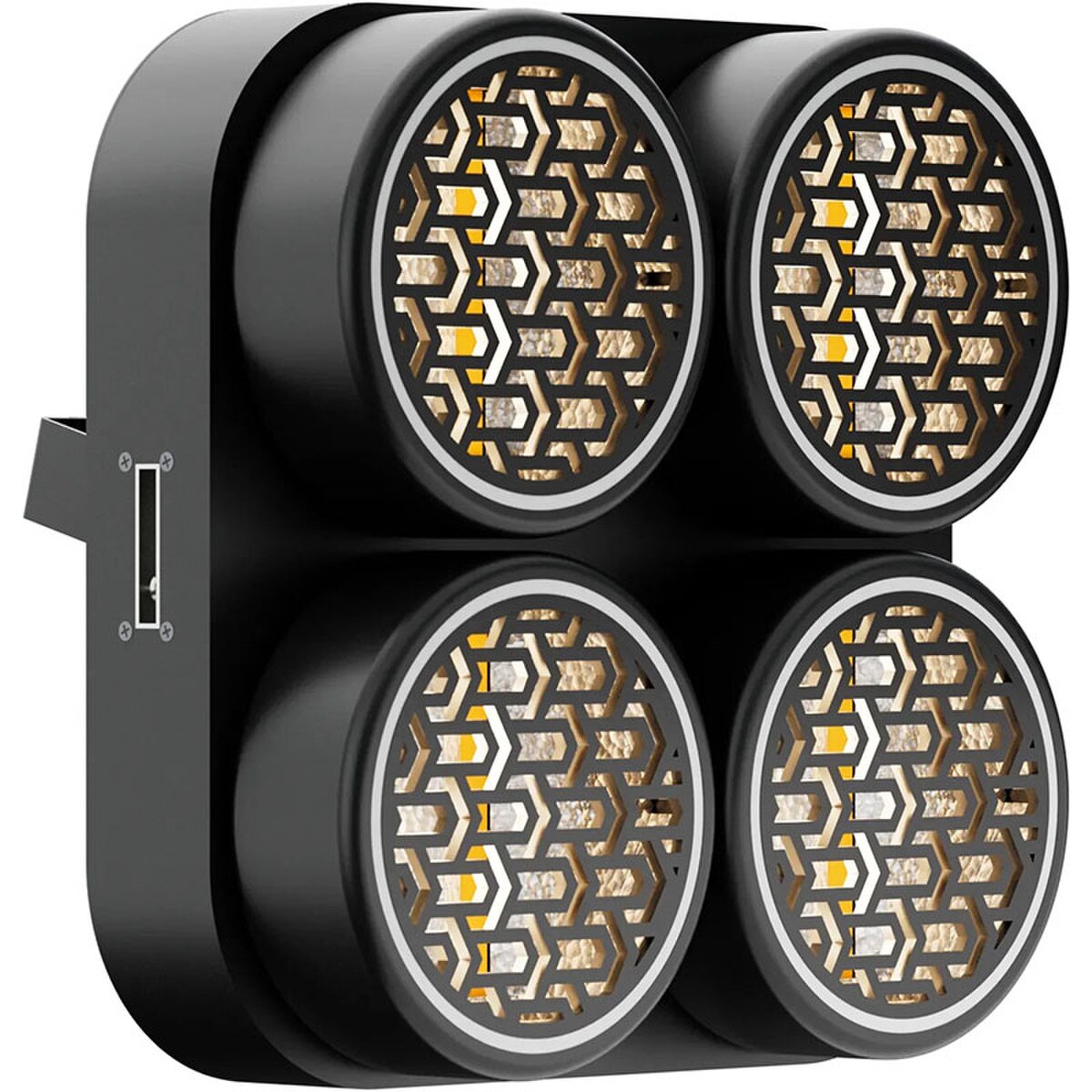

Blizzard Lux Quadra X4

At A Glance:

• Quad-cell WW blinder with RGB effects
• 4x 50W vintage warm white (amber) 1900K LEDs
• 128 x 0.2W RGB LEDs for aura/background effects

Up the Ante

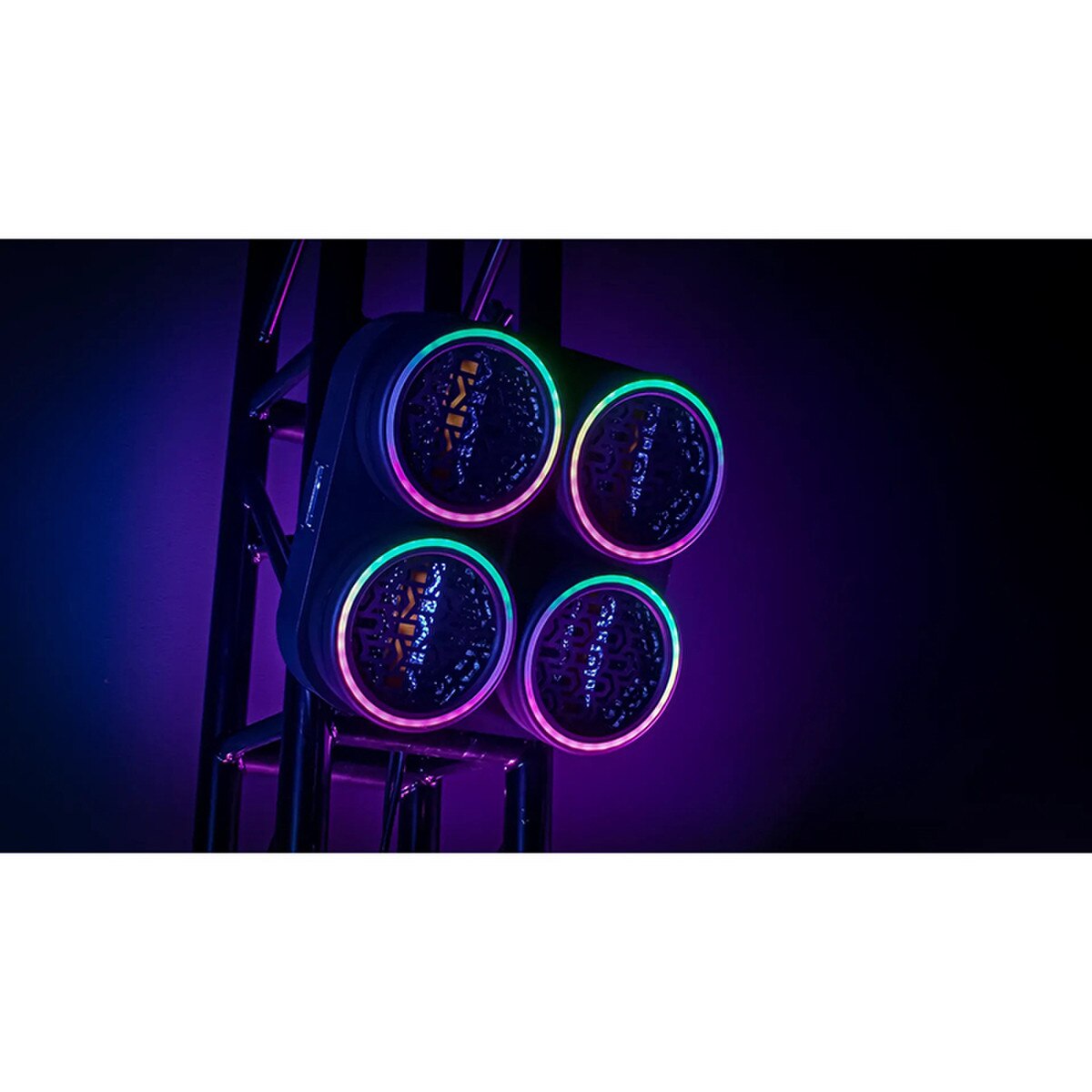

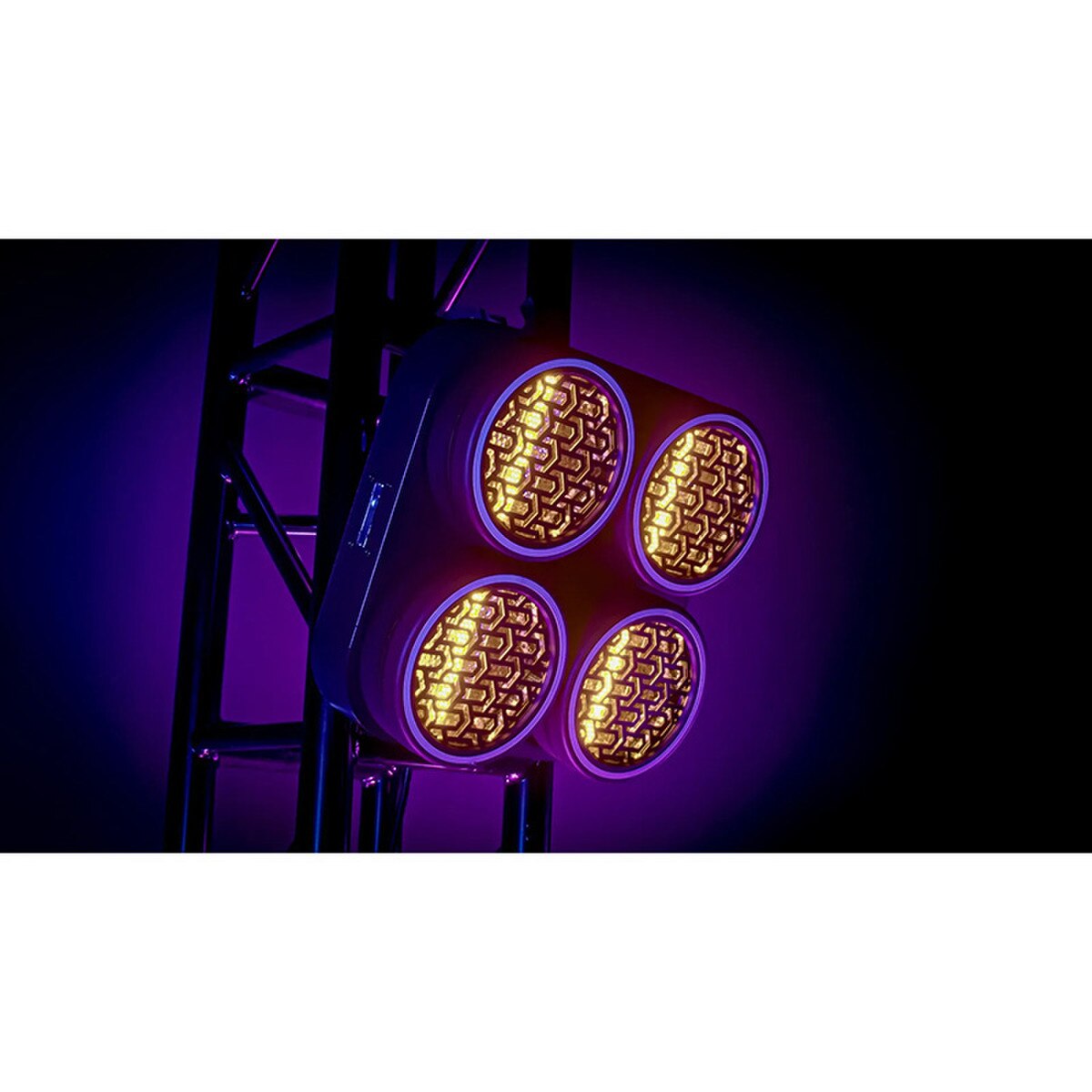

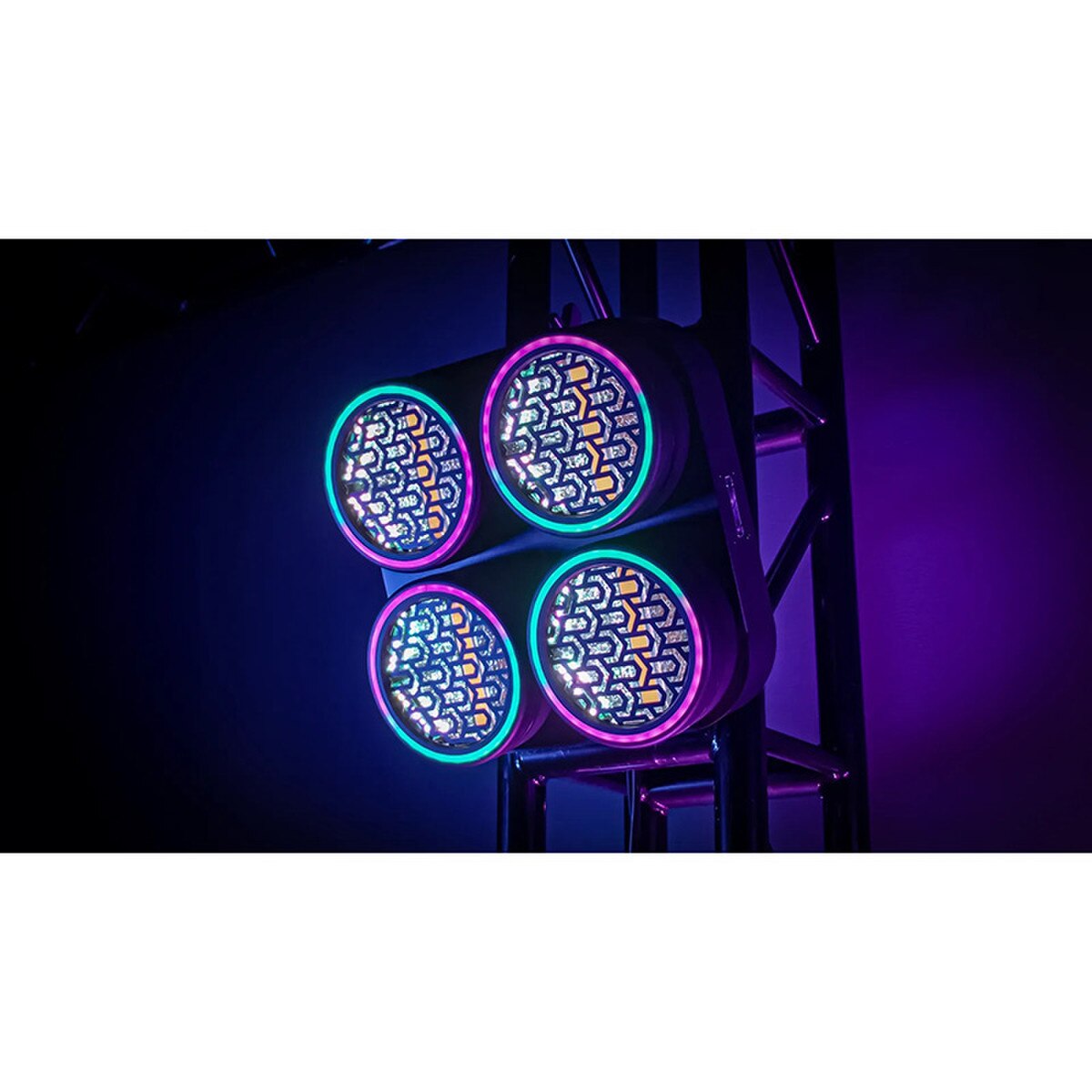

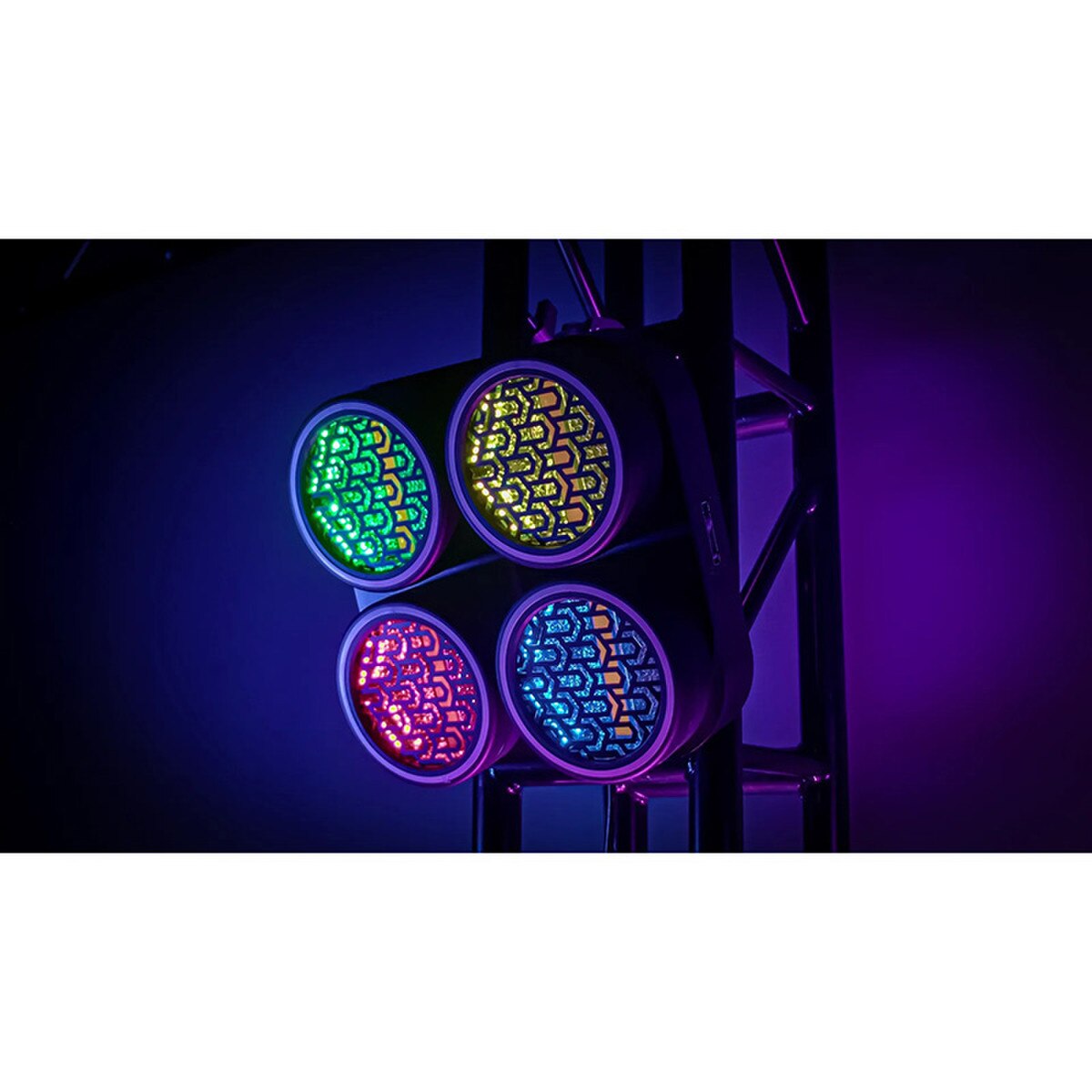

Combine intense WW LEDs, RGB background LEDs, and RGB FX rings for a triple-threat party starter. Use the WW for strobes or a warm glow, and bring in the RGB in time for the drop.

Ready to Rock, Remotely

Built-in RDM (remote device management) makes it easy to change addresses, channel modes, and switch operating modes. RDM functions require an RDM-compatible controller, like the Cueslayer™ or Stingray™.

Tech Specs

The Rundown:

• Quad-cell WW blinder with RGB effects
• 4x 50W vintage warm white (amber) 1900K LEDs
• 128 x 0.2W RGB LEDs for aura/background effects
• 124 x 0.2W RGB LEDs for LED ring effects
• Separate WW and RGB color control
• Multiple built-in programs with adjustable speed
• 2 sound-active modes (DMX or standalone)
• Variable electronic dimming
• 1–25Hz strobe effects
• Durable metal housing with locking bracket
• Easy-to-use 4-button control panel
• Interlock multiple fixtures via built-in latches
• 5-pin DMX input/output
• powerCON® TRUE1-compatible AC input/output

Summary:

The Lux Quadra™ X4 is a quad-cell blinder and RGB effect fixture that combines 1900K vintage-style warm white (amber) output with vibrant background and ring effects. Each cell features 1 x 50W WW LED with 32 x 0.2W RGB background LEDs that reflect off the aluminum inner housing, and surrounding each cell is a ring of 31 x 0.2W RGB LEDs that create dynamic color effects.

This fixture offers 11/23/32-channel DMX modes with separate or combined LED cell control, multiple built-in programs, and sound active operation. Variable dimming and 1–25 Hz strobe effects add flexibility, while its metal housing with interlocking side latches, 4-button control panel, 5-pin DMX in/out, and powerCON® TRUE1-compatible connectors make setup quick and reliable.

Warranty:

• 2 Year - Extendable

Certifications:

• CE, RoHS

Optical:

• Light Source: 4x 50W warm white 1900K LEDs, 252x 0.2W RGB LEDs (BG + rings)
• Luminous Intensity: 300 Lux @ 2.5M, 84 Lux @ 5M

Control:

• Protocol: USITT DMX-512, RDM
• DMX Channels: 11/23/32-channel DMX modes
• Input/Output: 5-pin DMX in/out
• Operating Modes: M/S, Sound Active, Auto
• 4-button LED control panel menu

Power & Current:

• Operating Voltage: 100-240VAC, 50-60 Hz
• Power Consumption: 198W, 2.18A, PF: .79
• Input/Output: powerCON® TRUE1-compatible in/out

Dimensions:

• 15" x 15" x 13.5"
• 14.7lbs
