Blizzard Motif Atelier 8FX
Details
At a Glance:
- Color mixing via 8x 15W RGB+WW 4-in-1 LEDs
- 10-40° asymmetrical beam spread
- Wash effect, grouped pixels, and pixel mapping
RGB+WW 4-in-1 LEDS:
Rugged yet elegant… that's not just a description of the Blizzard Modern Interpretive Dance Troop. It also describes the Motif™ Atelier 8FX. Our IP65-rated 0.5-meter wash offers RGB+WW 4-in-1 LED color mixing and pixel effects via 8x 15W, individually controllable high output LEDs. It mimics tungsten-source lighting to produce soft, warm white tones or add more warmth to the blend of any RGB mixed color.
Asymmetrical 10x40° Optics:
Motif™ Atelier 8FX innovative asymmetrical 10x40° optics are ideally suited for vertical wash applications along walls, scrims, and other boundaries. It projects a 10° soft edge parallel to minimize spill away. Atelier's™ 40° angle is perpendicular; its long axis mixes individual LEDs into a homogeneous wash or allows multiple swaths of color to overlap for spectacular gradients and pixel effects.
Specifications:
Optical:
- 8x 15W RGB+WW 4-in-1 LEDs, (2700k Warm White)
- 10-40° asymmetrical degree beam
- Flicker-free LEDs
- Luminous intensity: 1,037 Lux (96.4 fc) @ 2m | 242 Lux (22.5 fc) @ 4m
Control:
- Protocol: USITT DMX-512
- 3/4/5/10/16/24/32 or 40-channel DMX
- Standalone, M/S, color preset, auto mode
- 3-pin DMX input/output

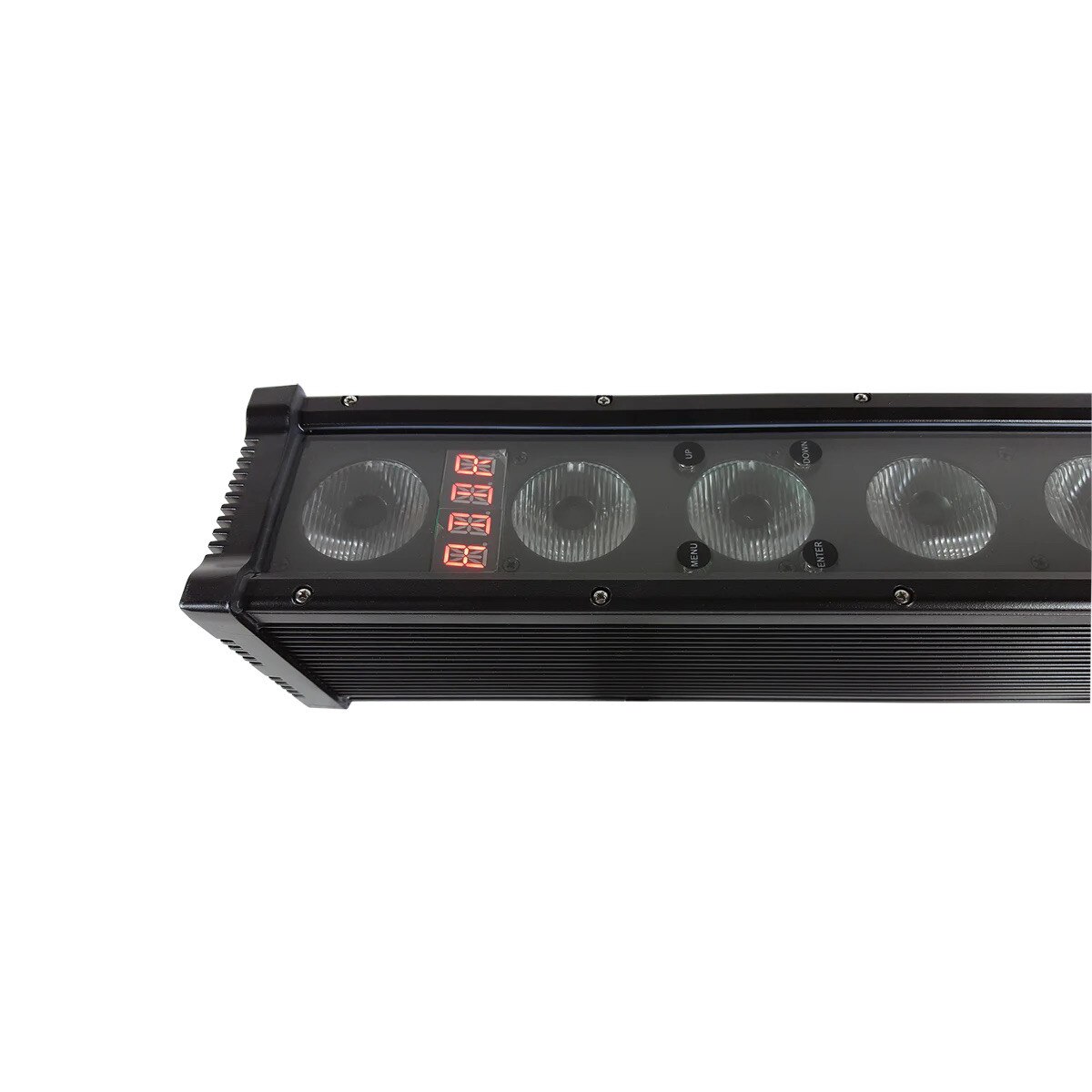

- 4-button LED control menu display
Power:
- 100-264VAC, 47-63 Hz
- 107W, .87A, PF: .99
Warranty:
- 2-year limited warranty, does not cover malfunction caused by damage to LEDs
Dims & Weight:
- 20.6" L x 3.7" W x 7.1" H
- 11.0 lbs
motif-atelier-8fx_manual_rev_a.pdf
motif-atelier-8fx_cutsheet.pdf
