Blizzard Motif Risplendi 150 (SG)

At A Glance:

• Light source: 150W RGBAL COB LED
• Built-in color & chase macros via DMX
• 4x light collimating lenses (35°, 45°, 60°, 80°)

Tech Specs

RGBAL Color Mixing:

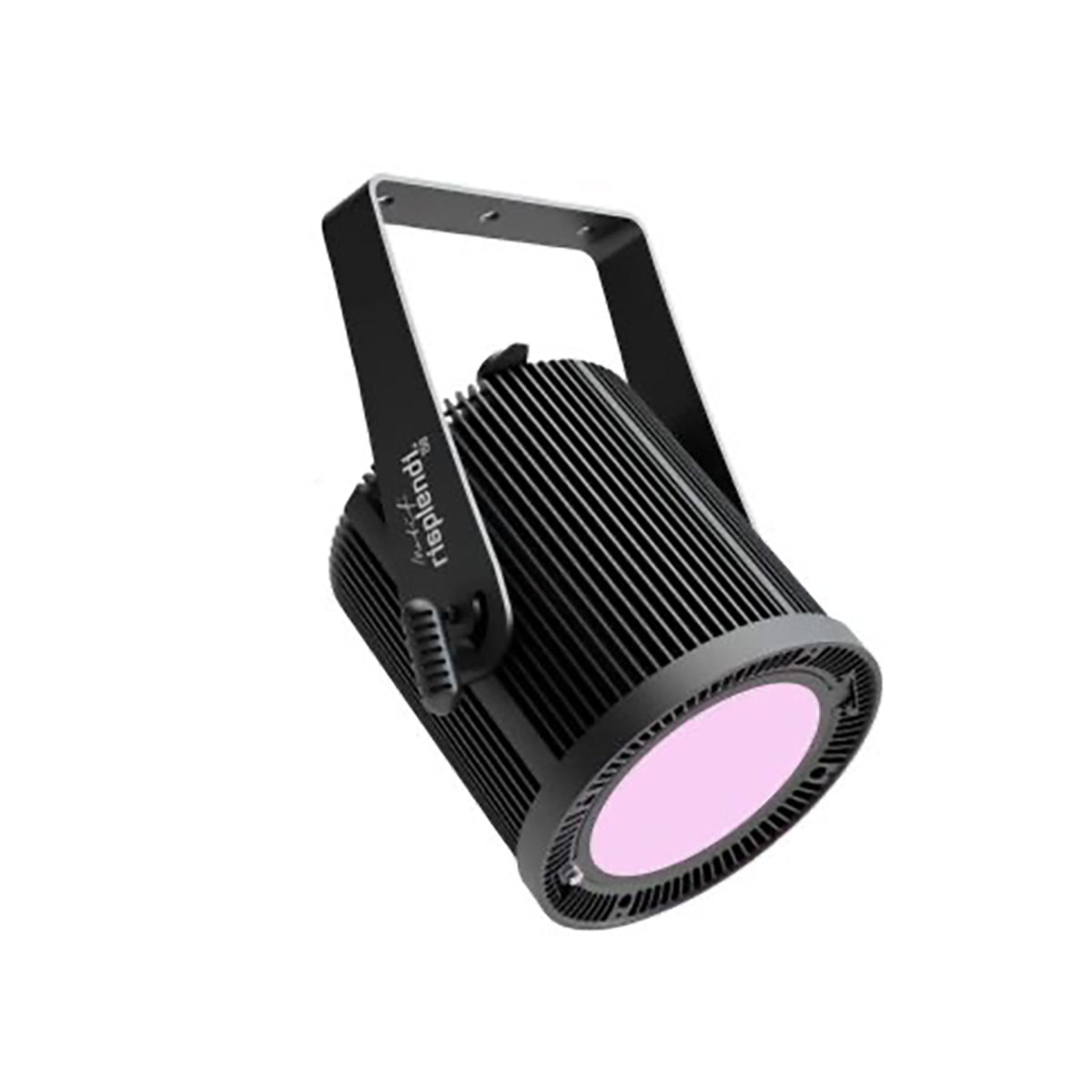

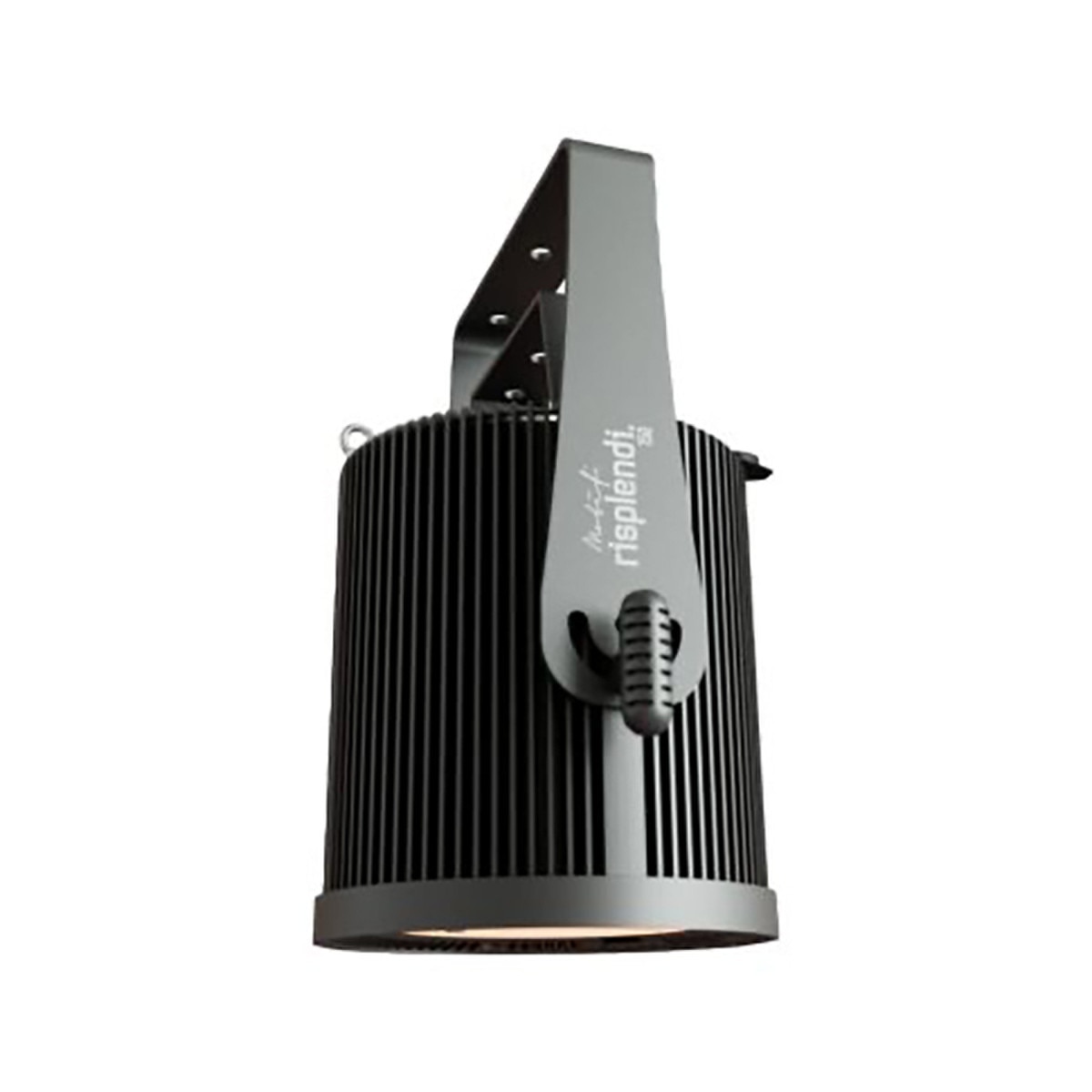

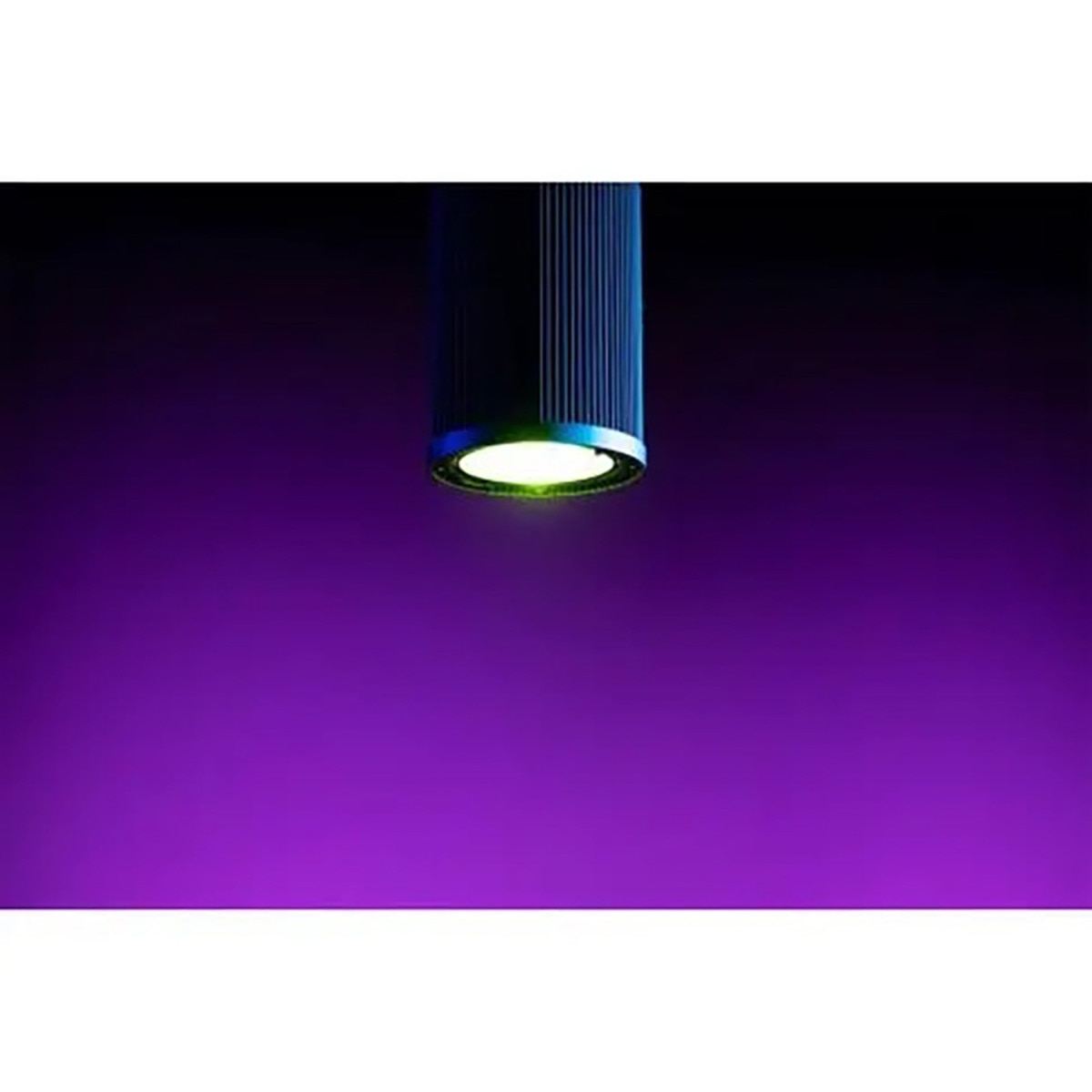

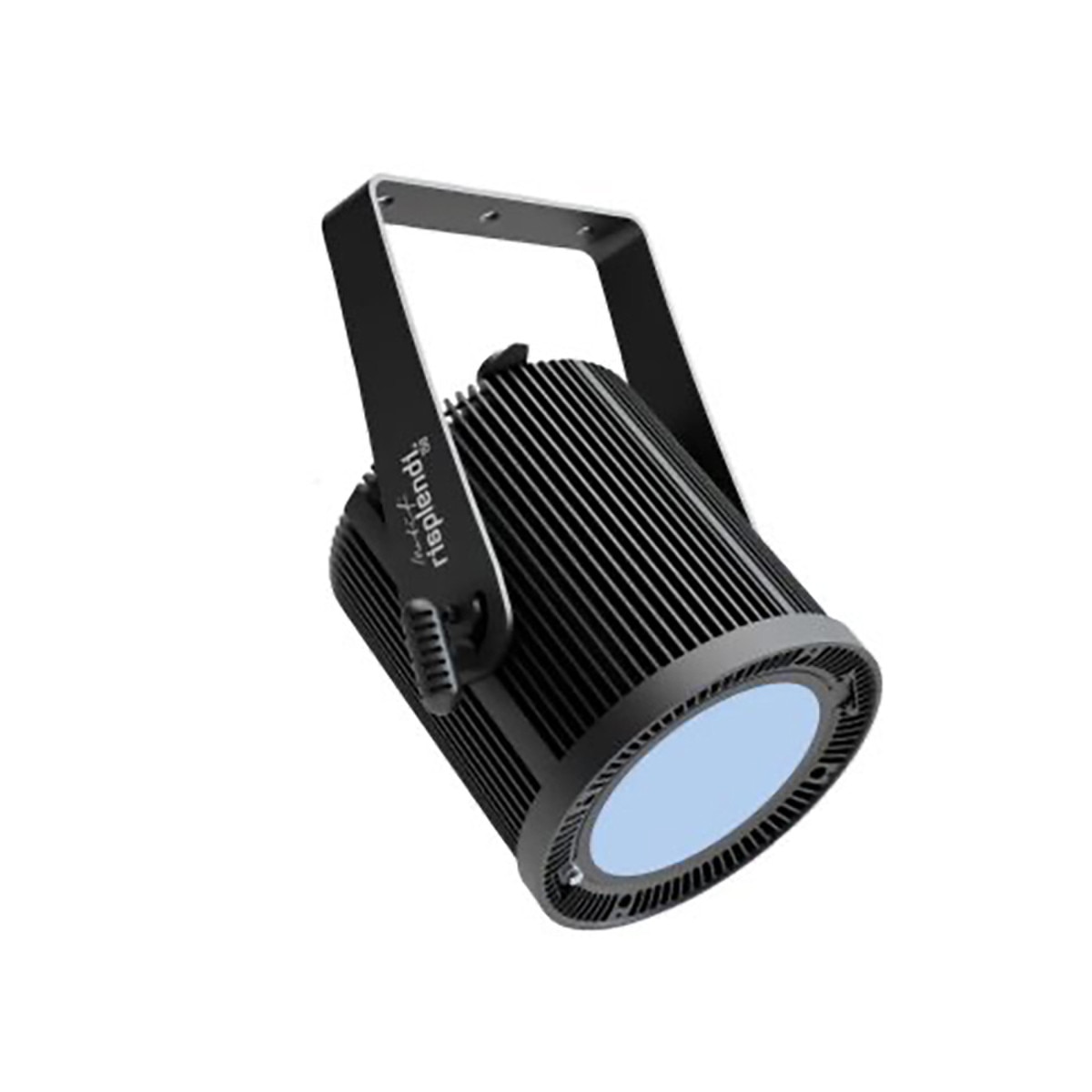

Motif™ Risplendi 150 is an ETL-listed, full color architectural pendant light with a 150W RGBAL COB LED light source. It offers high CRI white and vivid mixed colors that can easily provide reading-level brightness when installed in high ceilings. It comes with a pre-installed 80° diffuser lens and 3 replaceable Fresnel lenses (35°, 45°, and 60°) for a variety of beam angles.

Versatile & Adaptable:

Its stylish aluminum housing comes in your choice of black, white, or space gray, and its mounting options include an adjustable yoke or a stable bracket for permanent vertical installations. It offers switchable power that includes a powerCON TRUE1™ compatible input and terminal block for hardwiring, plus it also has emergency power connections, so you’ll never be left in the dark.

Optical:

• 150W RGBAL COB LED,
• 100,000 hrs.
• 4x interchangeable light collimating lenses: 35°, 45°, 60°, 80°
• PWM refresh rates: 1200Hz-20KHz

Control:

• USITT DMX-512, RDM
• 5-pin DMX in/out
• 5/7/11-channel DMX
• 4-button menu with OLED display
• DMX512, M/S, standalone, auto mode

Power & Current:

• 100-240VAC, 50-60 Hz
• Consumption: 141W, 1.24A, PF: .98
• PowerCON™ TRUE1-compatible input + hardwire connections

Dimensions:

• 11.3" x 7.9" x 7.9"
• 11.3lbs

Warranty:

• 2 Year - Extendable

Certifications:

• ETL

Blizzard Motif Risplendi 150 (SG) User Manual.pdf
Blizzard Motif Risplendi 150 (SG) Cutsheet.pdf
Blizzard Motif Risplendi 150 (SG) Dimensions.pdf
