Blizzard Motif Settelenti (B)

At A Glance:

• 7x 40W 4-in-1 RGBW LEDs (60,000 hours)
• 96x 0.2W RGB SMD LEDs
• IP65 rated, suitable for outdoor use

Tech Specs

Innovative Illumination:

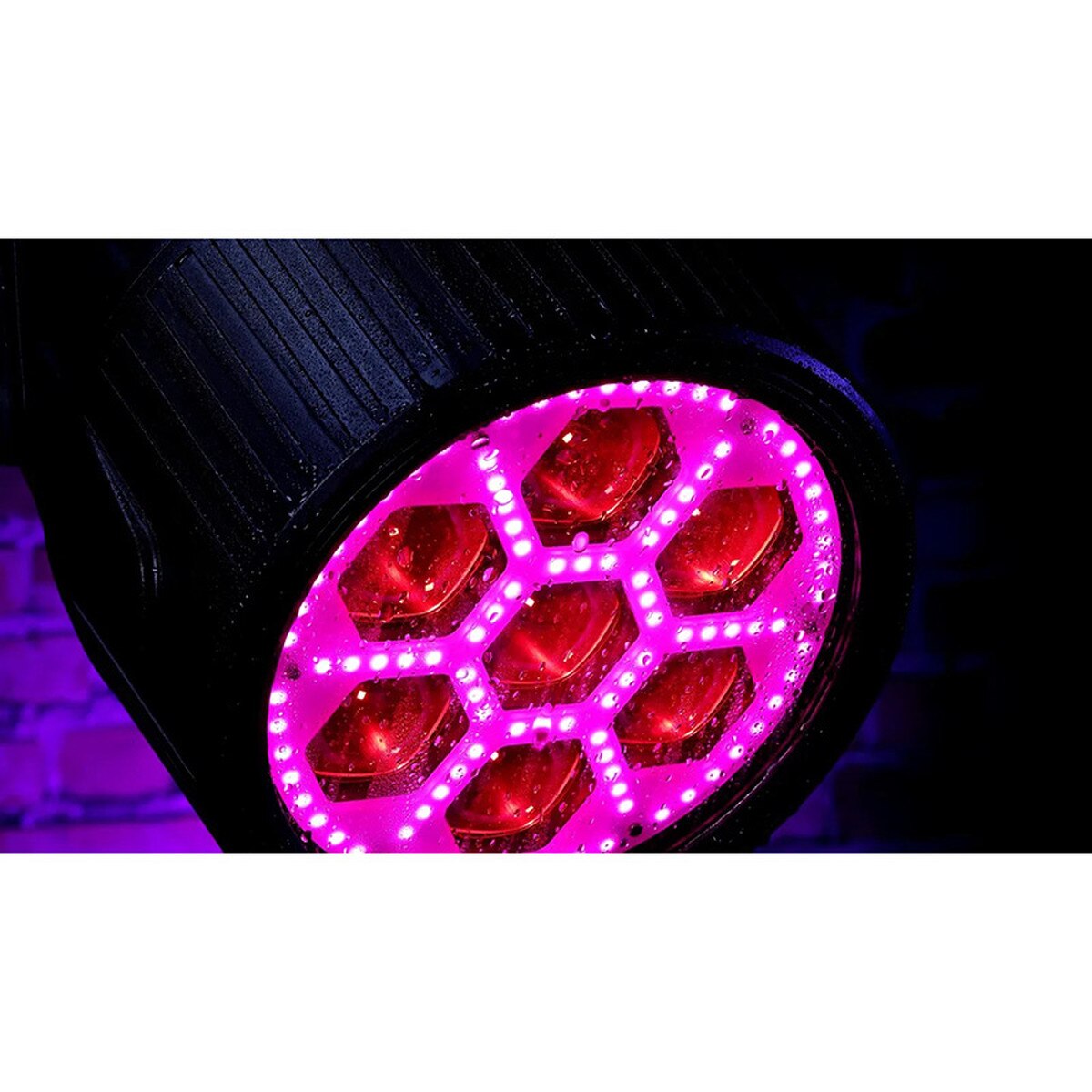

Meet the Motif™ Settelenti (RGBW), an avant-garde innovation in outdoor lighting. Equipped with 7x 40W LEDs, the fixture provides intense illumination, further enriched by its 5.7° to 38° motorized zoom, color macros, and strobe effects. A standout feature is the 96x frost-filtered 0.2W RGB SMD LEDs encircling each primary LED, offering a subtle and captivating visual layer that contrasts with the main LEDs. This innovative blend creates a unique ambiance, setting it apart from traditional LED pars.

Exceptional Versatility:

Designed for precision and flexibility, the Motif Settelenti (RGBW) offers independent control over its 40W LEDs and the surrounding SMD LEDs. Whether you’re navigating through its intuitive touch-sensitive LCD menu or leveraging DMX control, you can tailor the fixture’s performance to your exact needs. Encased in a robust heavy-duty aluminum housing with an IP65 rating, this fixture is crafted for both aesthetics and durability, ensuring it’s not just another LED par but a revolution in outdoor lighting.

Optical:

• 7x 40W RGBW (flicker-free) LEDs, 96x 0.2W RGB SMD LEDs
• 5.7° to 38° zoom

Luminous Intensity:

• 11,688 Lux @ 2.5M (5.7°)
• 1,083 Lux @ 2.5M (38°)
• 2,644 Lux @ 5M (5.7°)
• 248 Lux @ 5M (38°)

Control:

• USITT DMX-512, RDM
• 3-pin DMX in/out
• 9/19-channel DMX
• 4-button menu with LCD display
• DMX512, M/S, auto mode

Power & Current:

• 90-260VAC, 50-60 Hz
• Consumption: 232W, 1.99A, PF: .99
• PowerCON™ TRUE1-compatible in/out

Dimensions:

• 10.5" x 9.4" x 11.5"
• 20lbs

Warranty:

• 2 Year - Extendable

Certifications:

• cETLus
• IP65
