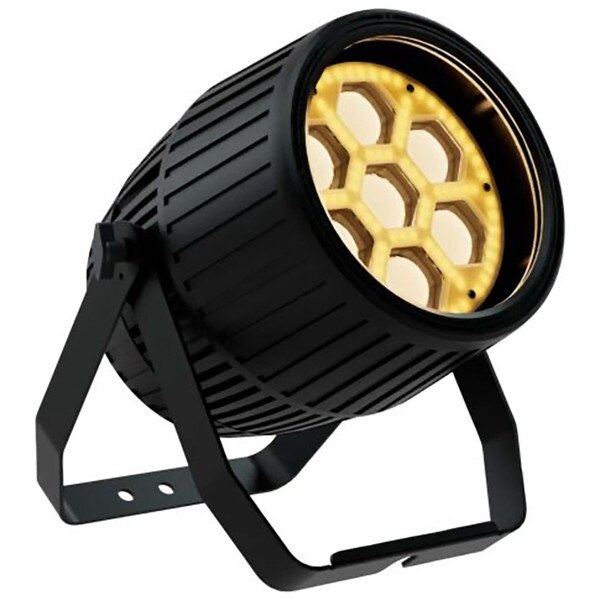

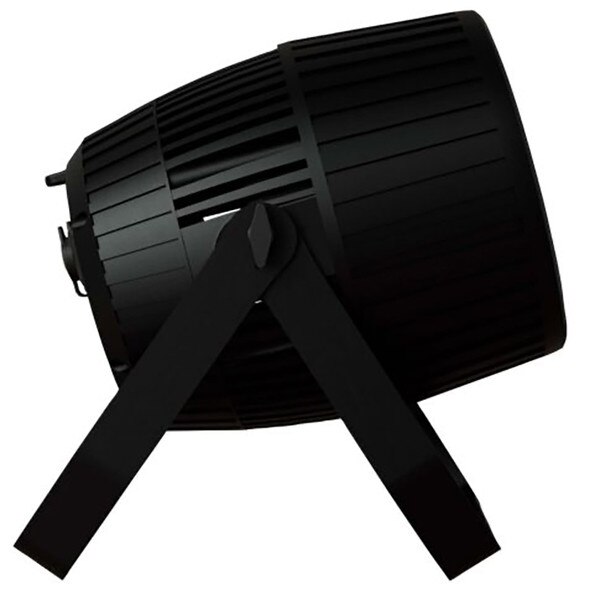

Blizzard Motif Settelenti CW+WW (B)
Details
At A Glance:
- 7x 40W 2-in-1 CW+WW LEDs (60,000 hours)
- 96x 0.2W RGB SMD LEDs
- IP65 rated, suitable for outdoor use
Tech Specs
Innovative Illumination:
Meet the Motif™ Settelenti (CW+WW), an avant-garde innovation in outdoor lighting. Equipped with 7x 40W LEDs, the fixture provides intense illumination, further enriched by its 5.7° to 38° motorized zoom, color macros, and strobe effects. A standout feature is the 96x frost-filtered 0.2W RGB SMD LEDs encircling each primary LED, offering a subtle and captivating visual layer that contrasts with the main LEDs. This innovative blend creates a unique ambiance, setting it apart from traditional LED pars.
Exceptional Versatility:
Designed for precision and flexibility, the Motif Settelenti (CW+WW) offers independent control over its 40W LEDs and the surrounding SMD LEDs. Whether you’re navigating through its intuitive touch-sensitive LCD menu or leveraging DMX control, you can tailor the fixture’s performance to your exact needs. Encased in a robust heavy-duty aluminum housing with an IP65 rating, this fixture is crafted for both aesthetics and durability, ensuring it’s not just another LED par but a revolution in outdoor lighting.
Optical:
- 7x 40W CW+WW (flicker-free) LEDs, 96x 0.2W RGB SMD LEDs
- 5.7° to 38° zoom
Luminous Intensity:
- 36,622 Lux @ 2.5M (5.7°)
- 2,637 Lux @ 2.5M (38°)
- 10,571 Lux @ 5M (5.7°)
- 746 Lux @ 5M (38°)
Control:
- USITT DMX-512, RDM
- 3-pin DMX in/out
- 8/17-channel DMX
- 4-button menu with LCD display
- DMX512, M/S, auto mode
Power & Current:
- 90-260VAC, 50-60 Hz
- Consumption: 220W, 1.96A, PF:.99
- PowerCON™ TRUE1-compatible in/out
Dimensions:
- 10.5" x 9.4" x 11.5"
- 20lbs
Warranty:
- 2 Year - Extendable
Certifications:
- cETLus
- IP65
