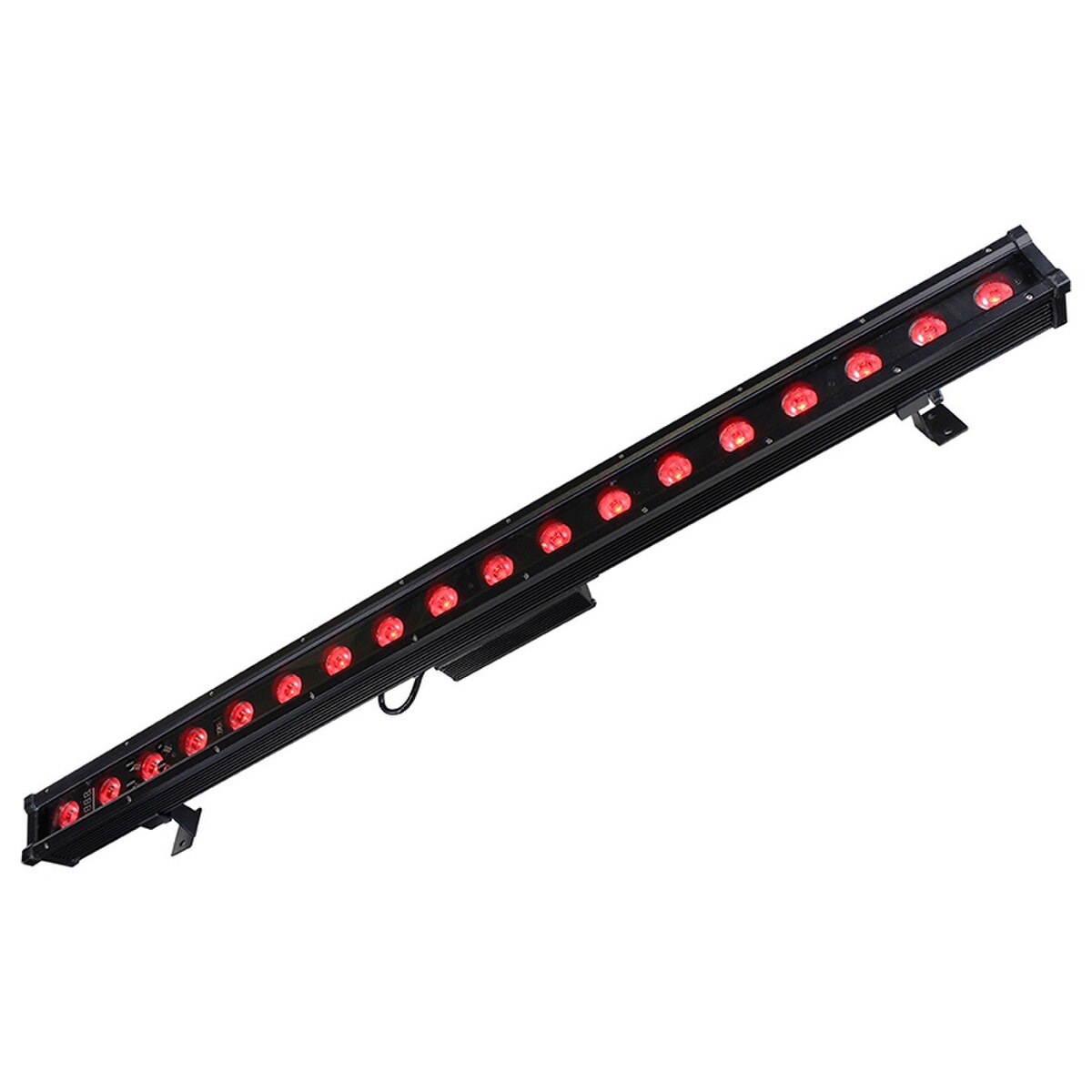

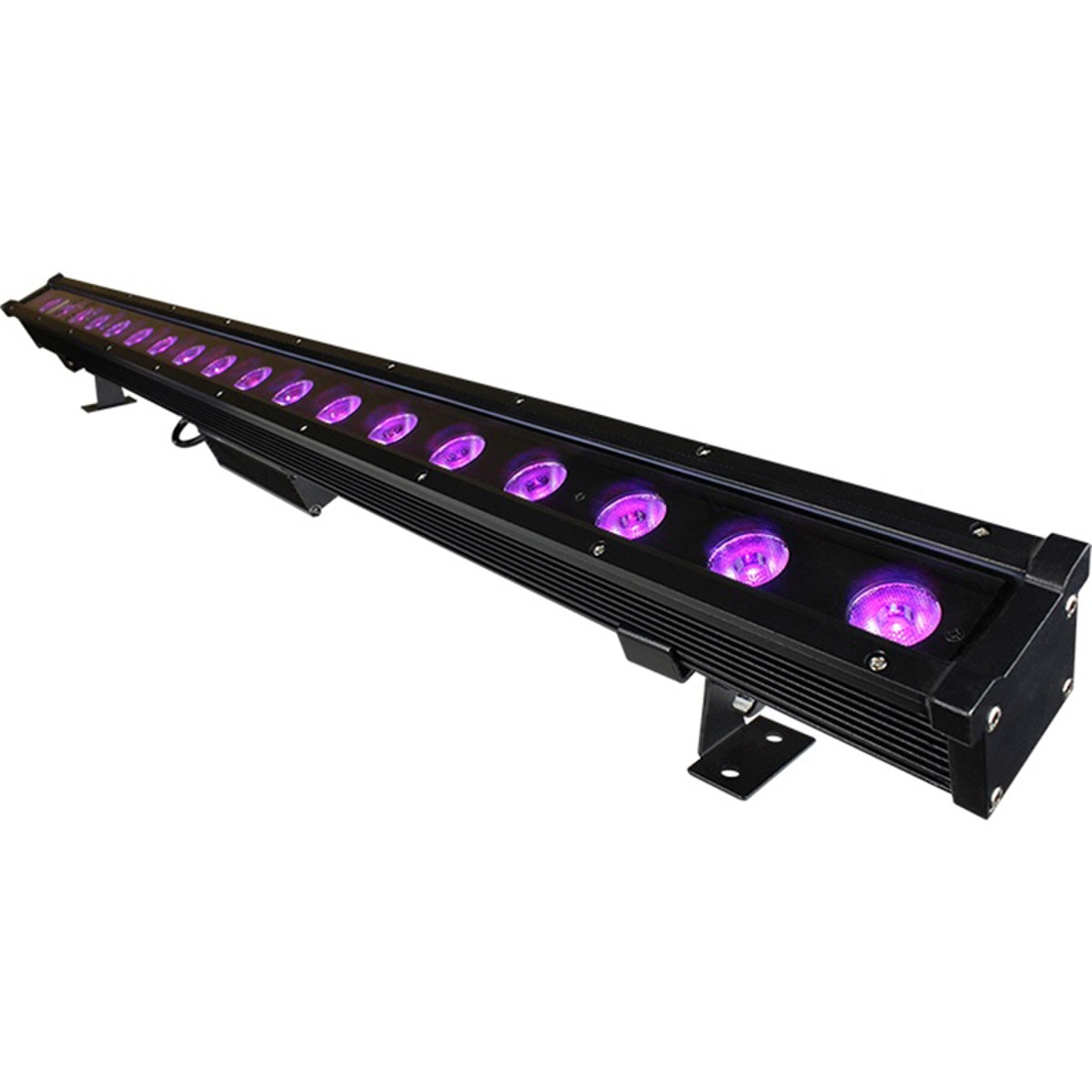

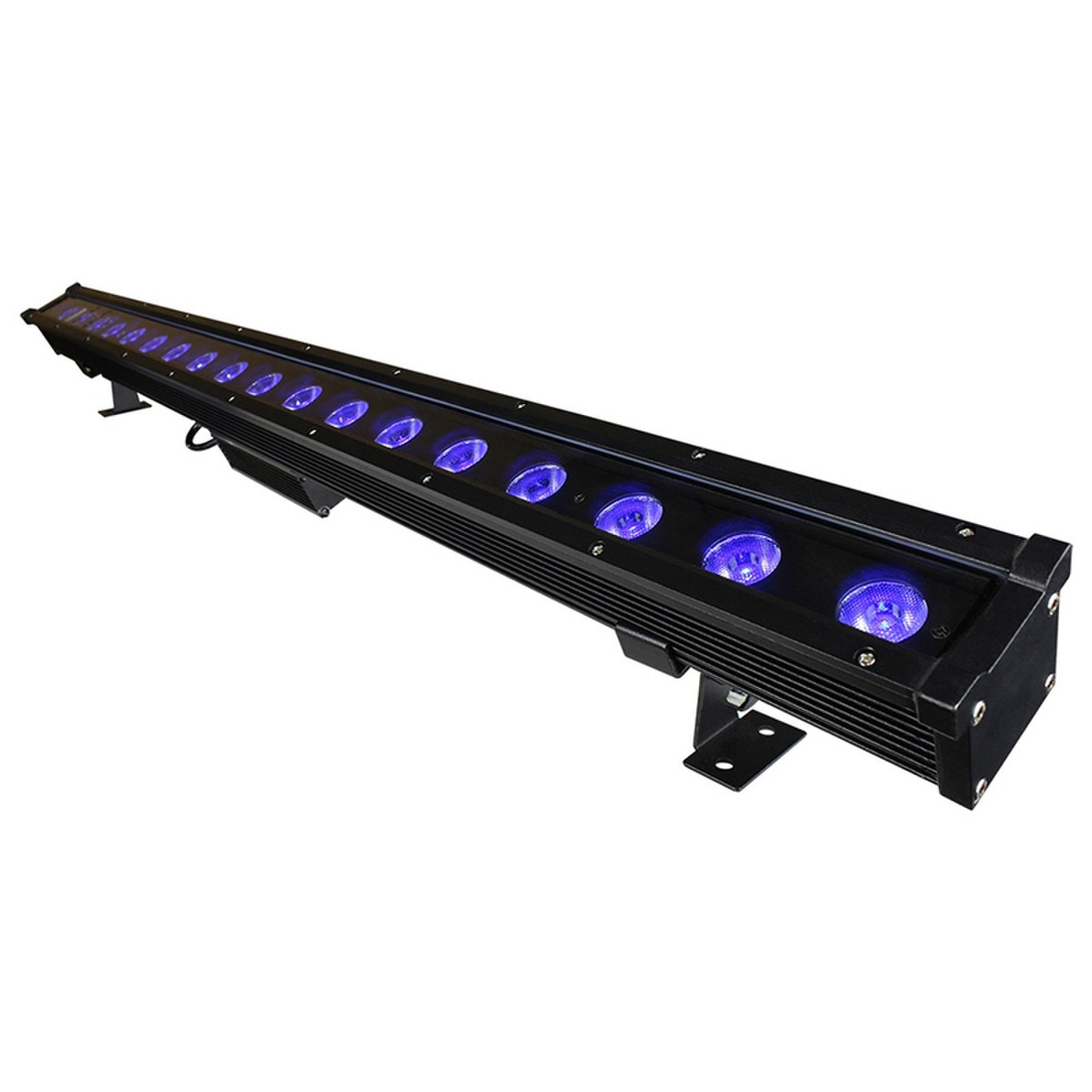

Blizzard Motif Vignette

(0)No Reviews yet
$479.99
SKU: Blizzard Motif Vignette

Details

Blizzard's Motif Vignette Key Features:

  • 18x 10W 4-in-1 RGB+WW LEDs
  • Convection cooled design, zero fan noise
  • IP65 rated, suitable for outdoor use

Retro Look on Modern LEDs:

The Motif™ Vignette features RGB+Warm White LEDs, which increases CRI and emulates the warmth of traditional tungsten filament fixtures.

Zero Fan Noise:

Perfect for sound sensitive environments, these fixtures feature high efficient, natural convection cooling thanks to their attractive cast aluminum housing with heat sink design and no internal cooling fans.

Brilliant, Rich Mixed Colors:

Motif™ Vignette offers an 18x 10W RGB+WW LED light source, which when compared to fixtures with RGBW LEDs, the warm white can increase the CRI and better emulate the warmth of traditional tungsten filament fixtures. Perfect for sound sensitive environments, it also features a highly efficient, natural convection cooled housing.

Control With Ease:

This fixture can be controlled via 3/4/5/7 or 10-channels of DMX, or directly using the easy-to-use LED control panel found on the face of its water-tight tempered glass lens. It also comes with an IR remote control (IR-1 remote) that is super simple to use, and it offers the exact same functionality as the LED control panel.

Tech Specs:
Warranty:

  • 2 Year - Extendable

Certifications:

  • RoHS, CE, IP65

Optical:

  • 18x 10W RGB+WW LEDs, 100,000 hours
  • Beam angle: 25 degrees
  • Luminous Intensity: 6,030 Lux @ 1m, 2,895 Lux @ 2M

Control:

  • USITT DMX-512
  • DMX channels: 3/4/5/7 and 10-channels
  • 3-pin DMX input/output
  • 4-button LED control panel
  • IR-1 Remote (included)
  • Operating Modes: DMX512, M/S, Auto, Standalone

Power & Current:

  • Operating voltage: 100-264VAC, 50/60 Hz
  • Power Consumption: 83W, .98A, PF: .68

Dimensions:

  • 4" x 2.7" x 39.8"
  • 9lbs



Motif Vignette Cutsheet.pdf
Motif Vignette User Manual - Rev F.pdf
Motif Vignette - IES Testing Report.pdf
Motif Vignette Dimensions.pdf
