Blizzard MystACL Z

(0)No Reviews yet
SKU: Blizzard MystACL Z


At A Glance:

  • 10x 30W OSRAM™ Ostar RGBW 4-in-1 LEDs, 50,000 hours
  • Fast and precise 3-60° zoomable beam angle
  • Single or dual pixel mapping capabilities via DMX

Tech Specs

RGBW LEDs + Zoom:

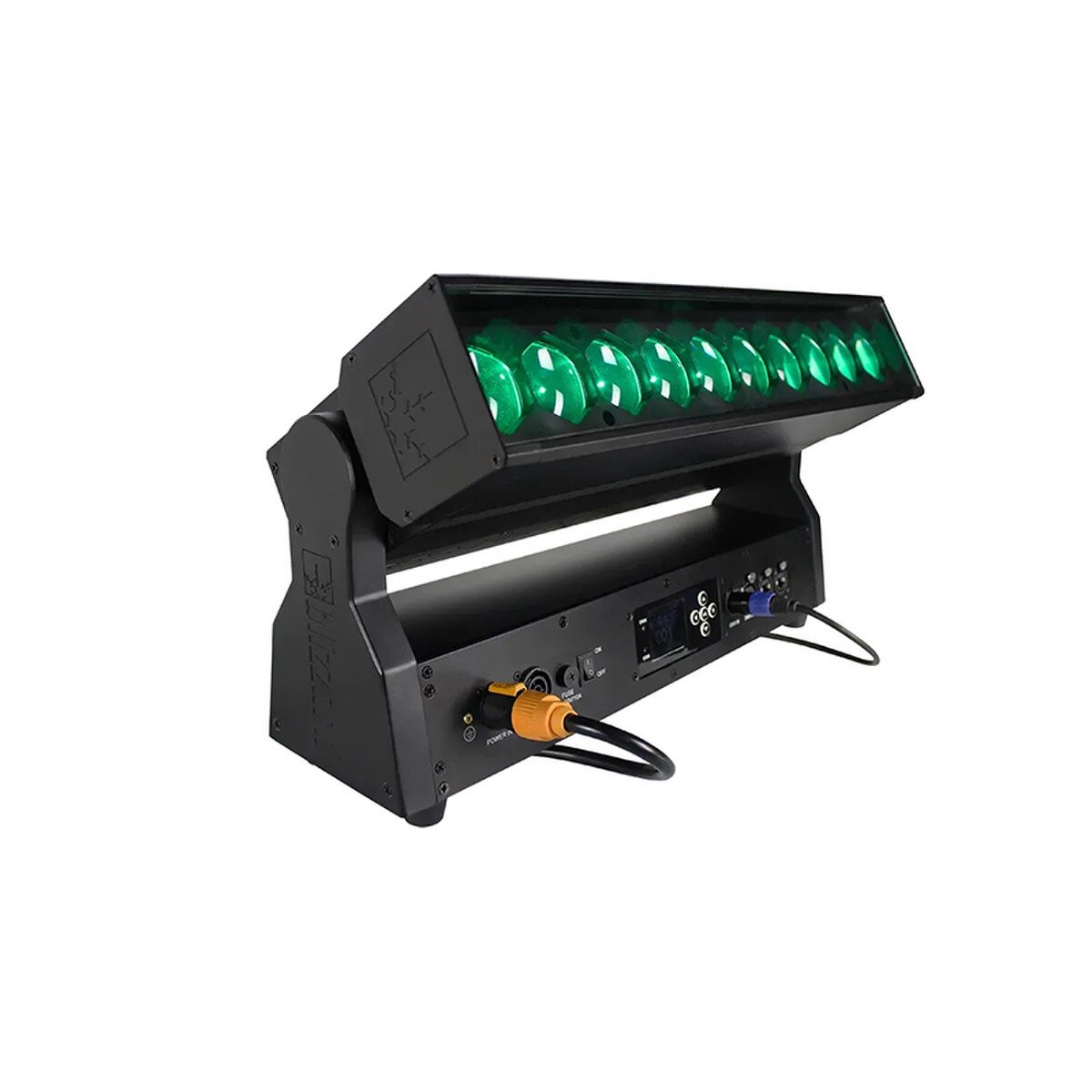

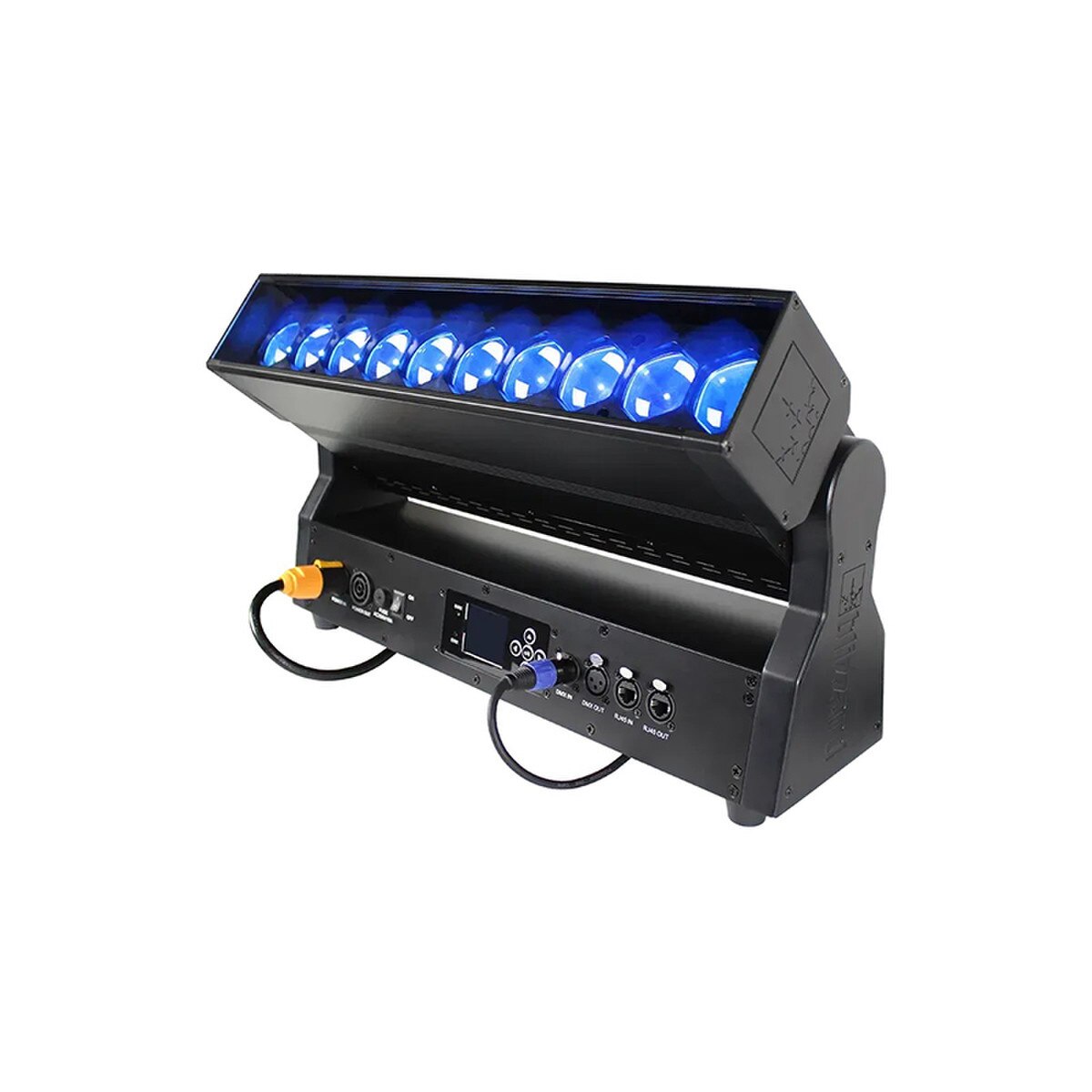

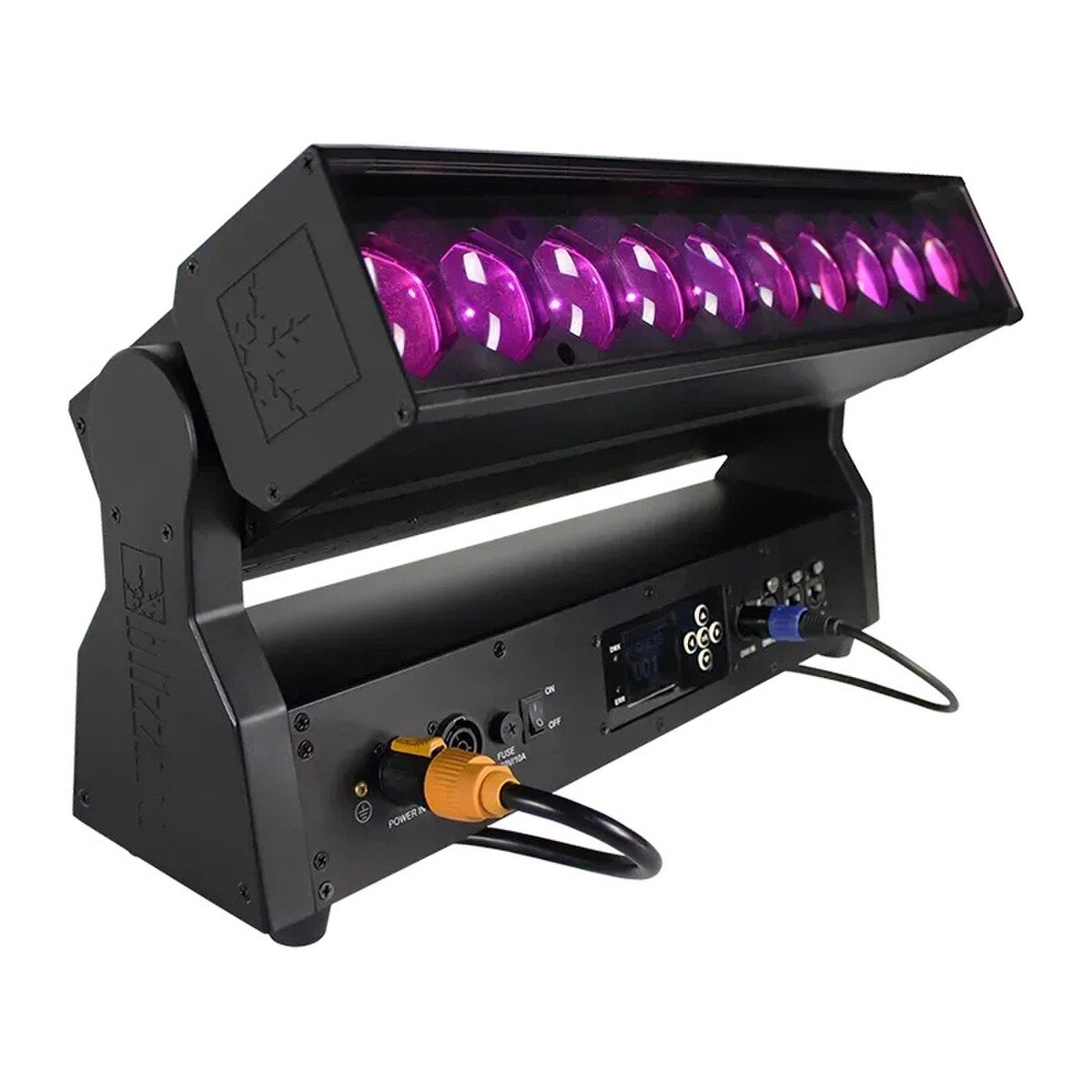

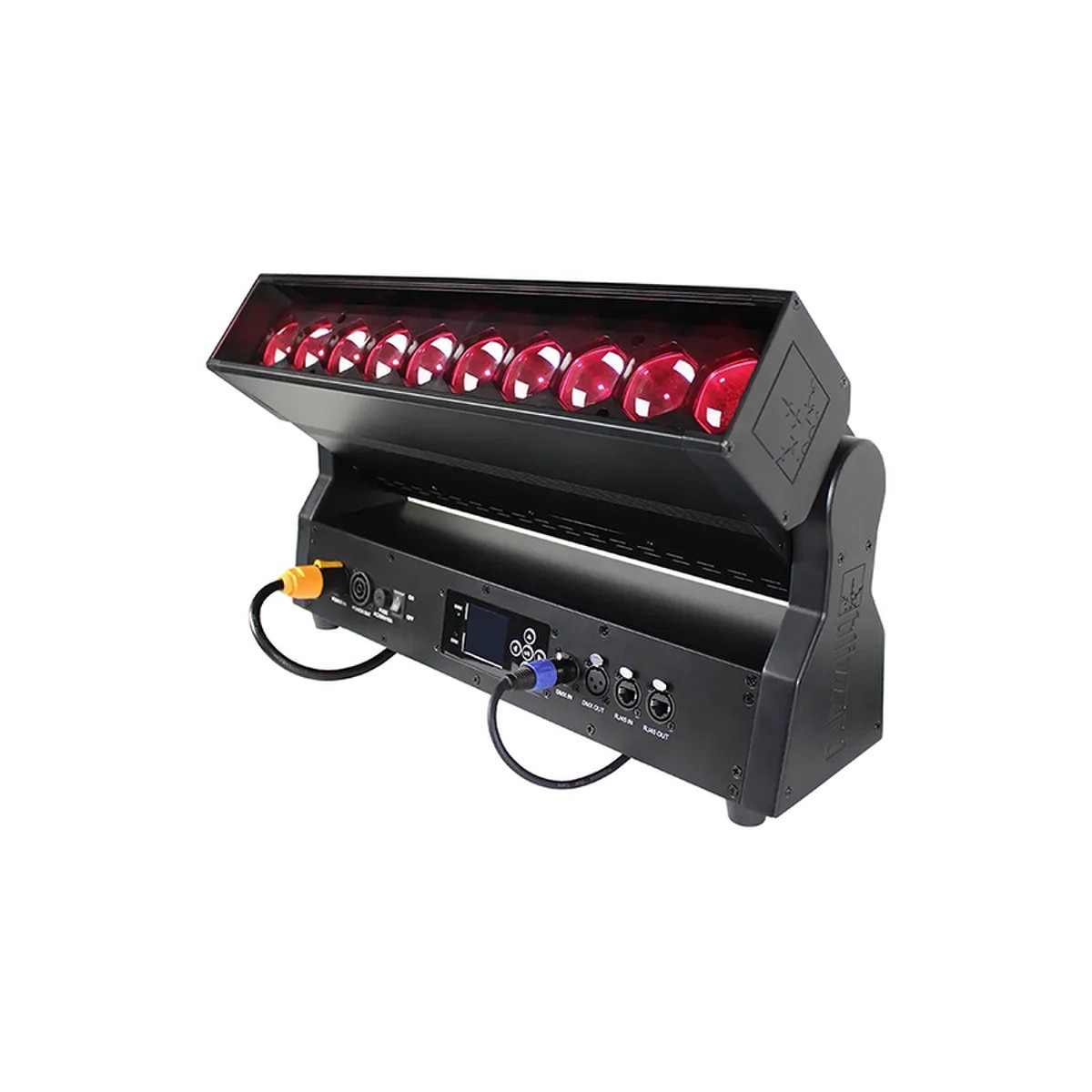

MystACL™ Z is a high-performance LED bar loaded with 10* 30W OSRAM™ Ostar 4-in-1 RGBW LEDs. It offers DMX control with full pixel mapping capabilities, plus 3° to 60° zoom, creating effects that can range from a narrow angled light curtain to a wide angled wash.

Loaded With Features:

It also features 210° motorized tilt (8-16 bit), unique 3-layer pixel set & macro effects, multiple built-in programs, color presets, 3/5-pin DMX + RJ45 input/output connections (Art-Net ready), and powerCON® TRUE1-compatible power input/output connections.


  • 10x 30W OSRAM™ Ostar RGBW 4-in-1 LEDs, 50,000 hours
  • 3-60° zoomable beam angle


  • Protocol: USITT DMX-512, Art-Net
  • DMX channels: 13/26/28 or 46-channel
  • 5-button LCD control panel
  • Operating modes: DMX512, M/S, auto, sound active

Power & Current:

  • 100-240VAC, 50-60Hz
  • Power consumption: 261W, 2.26A, PF: .99
  • PowerCON™ TRUE1-compatible AC In/Out


  • 13.4" x 5.9" x 19.7"
  • 20.1lbs

General Specs:

  • 8-16 bit motorized 210° tilt
  • Flicker-free LEDs
  • Single or dual pixel mapping via DMX
  • 3-layer effects via DMX
  • Built-in macros and color presets

Luminous intensity:

  • 10,524 Lux @ 2.5M (narrow) 1,015 Lux @ 2.5M (wide)
  • 6,105 Lux @ 5M (narrow) 241 Lux @ 5M (wide)


  • 2 Year - Extendable

Blizzard MystACL Z User Manual.pdf
Blizzard MystACL Z Cutsheet.pdf
